FinishPro 9.5

FinishPro HVLP 9.5 ProComp Series Sprayer

17N269

FinishPro 9.5

FinishPro HVLP 9.5 ProComp Series Sprayer

17N269

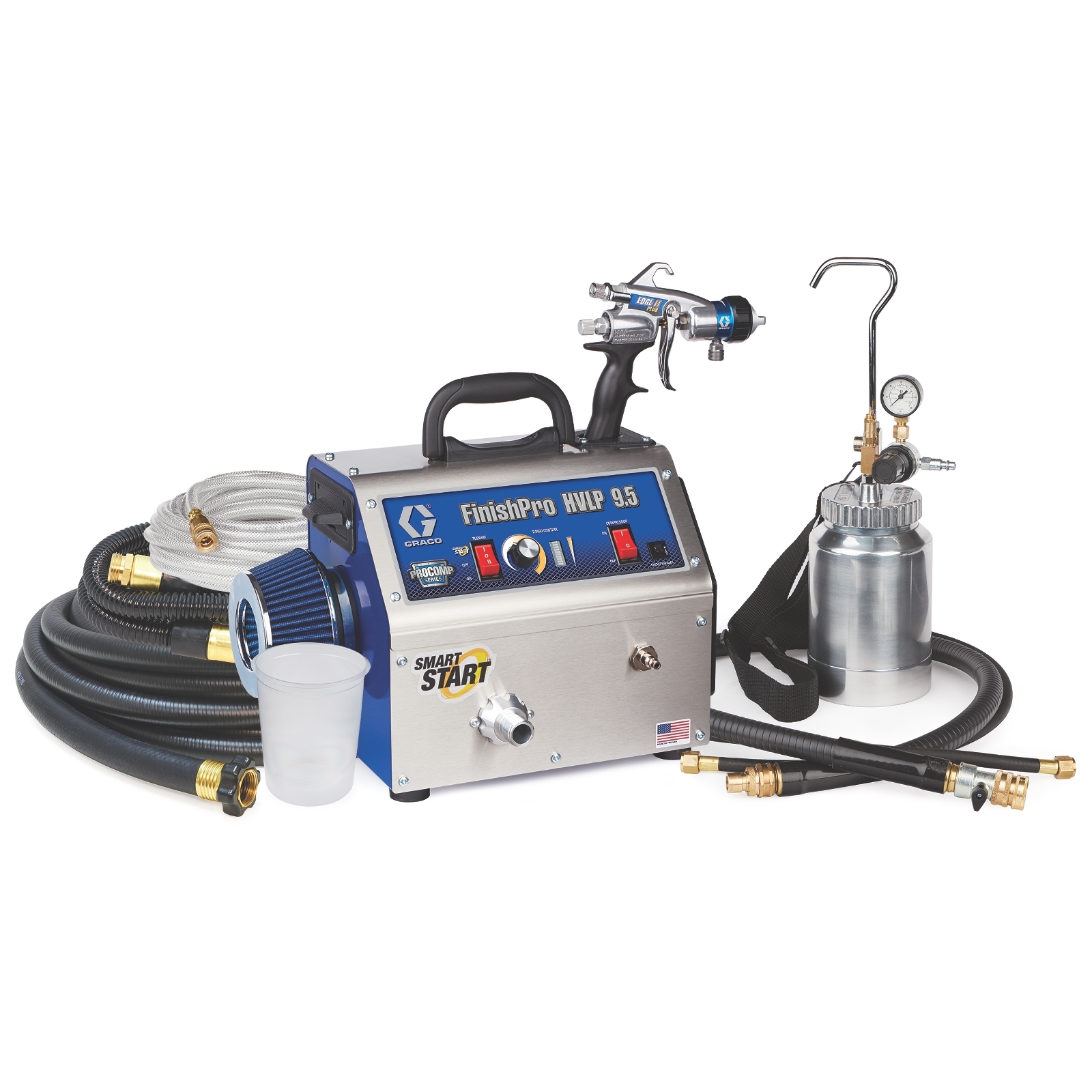

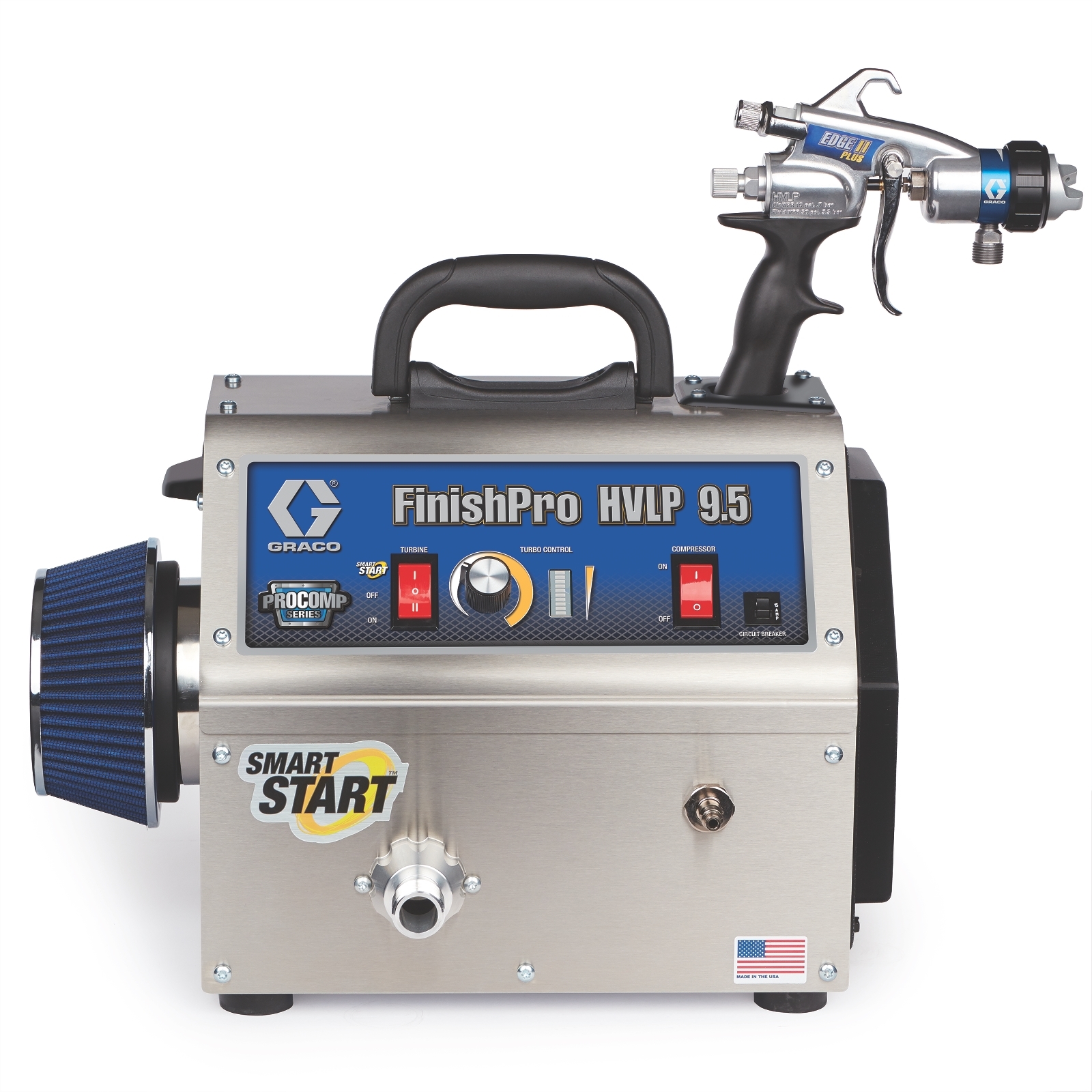

The FinishPro HVLP 9.5 ProComp Series sprayer provides unmatched long-life with SmartStart, double the fluid capacity and an integrated compressor for the ultimate in power and performance to spray thicker materials on medium to large fine finish jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The FinishPro HVLP 9.5 ProComp Series sprayer provides unmatched long-life with SmartStart, double the fluid capacity and an integrated compressor for the ultimate in power and performance to spray thicker materials on medium to large fine finish jobs.

Superior Productivity & Durability. Graco ProComp Series sprayers include unique features that deliver higher production and more control with an expanded range of coatings to maximize efficiencies and produce a superior spray finish on every job, every time.

  • Integrated Compressor
    • Pressurize remote cup up to 25 psi
    • Allows spraying of thicker materials
    • Quick connect hose connections
  • 2-Quart Remote Cup
    • Fewer refills
    • Increase productivity and ease-of-use without cup mounted on the gun
    • Fine-tune pressure with pressure regulator and gauge
    • Includes belt hook and convenient shoulder strap
  • TurboForce Technology
    • Exclusive, proprietary turbine design builds more pressure through each stage, resulting in more performance at the gun
    • More air flow and air pressure means higher production with less thinning of material
    • Generates less heat and provides longer turbine life
  • SmartStart Turbine
    • Automatically shuts off when not in use— if you’re not spraying, it’s not running
    • Reduces jobsite noise, resulting in less fatigue
    • Automatic shut-off reduces heat and extends turbine life
  • TurboControl System with LED Display
    • Adjust the TurboForce turbine speed to match the performance you require
    • Reduces heat build up
    • Runs quieter
    • Extends turbine system life
    • 50% longer hoses
  • Industry Leading Dual Filtration System
    • Automotive-grade filter has high performance filtration
    • Outperforms foam and traditional paper filters used on most HVLP systems
  • EDGE II Plus Gun
    • Ultimate control with independent user controls for material volume, air flow, and spray fan size
    • 4X more productivity
    • FlexLiner Bag System
    • Learn more: EDGE II Plus Gun
  • 1-Quart FlexLiner Cup
    • FlexLiner Paint Bag System replaces traditional material cups
    • Includes conversion kit use gun-mounted 1-quart FlexLiner cup
    • Spray at any angle with no adjustment – even upside down!
  • Super-Flex Air Hose
    • 15% lighter weight than other leading brands for more control at the gun
    • 30 ft length included
    • No tools needed to connect
  • Stainless Steel “Tough Box” Design
    • Rugged, all steel enclosure protects the turbine on the job and during transport
    • Utility toolbox for separate tool and needle and nozzle storage
    • On-Board Gun and Cup Holder stores gun when not in use

Specifications & Documents

Technical Specifications

Convert to Metric
Gun Included 1
Includes EDGE II Plus Gun, 2 qt Remote Cup, 5 ft Material and Air Hose, Shoulder Strap, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, #4 Quick-Release Fluid Set, #5 Quick-Release Fluid Set, 30 ft Super-Flex Air Hose, 4 ft Whip Hose, Automotive Main Filter
Maximum Air Inlet Pressure (psi) 9.5
Maximum Hose Length (ft) 60
Maximum Working Pressure (psi) 10
Product Type Spray Package
Recommended Annual Usage Up to 50 gallons per year
Series 9.5
Spray Gun Type EDGE II Plus Gun
Spray Type Air-Powered
Sprayer Type HVLP
Technology Type HVLP
Type Air-Powered Sprayer
Weight (lb) 30
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane
Gun Included 1
Includes EDGE II Plus Gun, 2 qt Remote Cup, 5 ft Material and Air Hose, Shoulder Strap, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, #4 Quick-Release Fluid Set, #5 Quick-Release Fluid Set, 30 ft Super-Flex Air Hose, 4 ft Whip Hose, Automotive Main Filter
Maximum Air Inlet Pressure (bar) 1
Maximum Air Inlet Pressure (kPa) 10
Maximum Hose Length (m) 18.0
Maximum Working Pressure (bar) 0.7
Maximum Working Pressure (kPa) 70
Product Type Spray Package
Recommended Annual Usage Up to 50 gallons per year
Series 9.5
Spray Gun Type EDGE II Plus Gun
Spray Type Air-Powered
Sprayer Type HVLP
Technology Type HVLP
Type Air-Powered Sprayer
Weight (kg) 13.6
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane

What's Included

Part No. Description Qty Unit
17P483 EDGE II Plus Gun with FlexLiner System 1 ea
287819 GB CUP, 2 QT, COMPLETE 1 ea
257159 SuperFlex Air Hose, 30 ft 1 ea
17R299 KIT, ACCESSORY, 4'AIR, HOSE, WHIP 1 ea
17R298 KIT, FILTER, FINISHPRO, HVLP, PRO 1 ea
