Self-Leveling Underlayment Mixers and Pumps

Flooring jobs requiring self-leveling underlayment will get done sooner with Graco's mixing pumps. No more manually mixing your batches and wheeling barrels of mix. With our self-leveling underlayment pumps, the material is mixed automatically with water and pumped into precise locations. Graco pumps are ideal for any self-leveling underlayment materials. The takeaway: more efficiency with your existing crew.

IDEAL FOR LARGE JOBS—ESPECIALLY TALL BUILDINGS

SIMPLIFY BATCH PLACEMENT & SAVE TIME

Pumps Get Material to the Floor Faster

With one machine mixing and pumping, you won’t be hauling mixed material all over the job site. Graco pumps do the heavy lifting for you and you’ll save time.

More Efficient Batch Placement

When mixing and pumping self-leveling underlayment, the process is more efficient than batch processing. You can work continuously and maintain a wet edge in a simple zig-zag pattern. No slowing down and no stopping.

Mixing Pumps, Rotor Stator Pumps and Continuous Mixers


SLU Mixers & Pumps Comparison Chart

 MP20 Mixing PumpMP40 Mixing PumpCM40 Continuous Mixer + P40 Rotor Stator

Material output

100 bags/hr

200 bags/hr

300 bags/hr

Maximum flow rate*

7.3 gpm (27.6 lpm)

13 gpm (49.2 lpm)

18 gpm (70 lpm)

Power input

230V, 30A, 1Ph

230V, 16A, 1Ph, 50Hz

230V, 25A, 3Ph

380V, 25A, 3Ph, 50Hz

CM40:
230V, 30A, 1Ph
230V, 30A, 1Ph, 50Hz
230V, 25A, 3Ph, 50Hz

P40:
240V, 25A, 3Ph

*Testing in water

Filter results


Type

(2)
(1)
(1)
(1)
(1)

Material Output (bags/hr)

(1)
(2)

Filters
toughtek-mp20-right-th

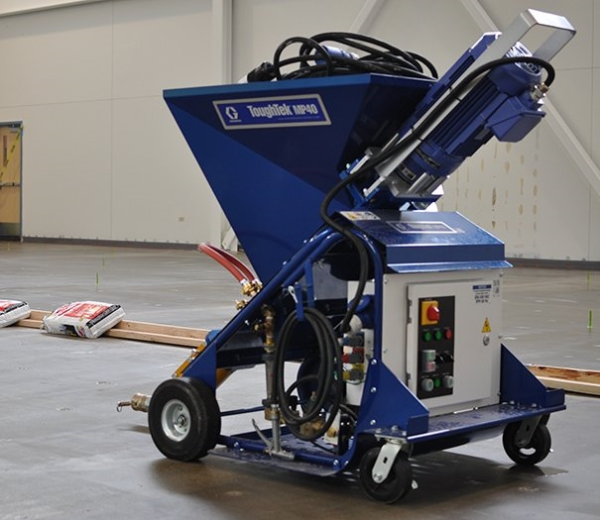

Graco's mixing pumps will give you consistency in cementitious self-leveling underlayment (SLU) – from one batch to another – and pump continuously so you get the entire job done faster.

toughtek-cm20-left-th

With a ToughTek continuous mixer, it’s easy to improve your crews' production rates by automatically mixing pre-blended mortar products such as plaster, stucco and self-leveling underlayments.

toughtek-p40-right-th

With ToughTek rotor stator pumps, expect long-lasting durability and rugged performance – for a range of applications including fireproofing, self-leveling underlayment, mortar, stucco and EIFS.

sl340e-self-leveling-pump-right-th

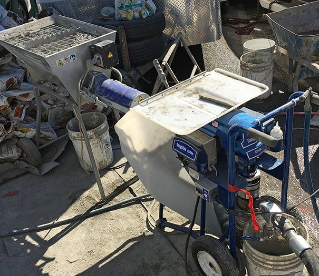

Stop moving your barrel mixer full of self-leveling underlayment all over the job site. Mix all your material near the pallets and let the SL340e pump the underlayment to wherever it's needed–even if it's three stories up.
