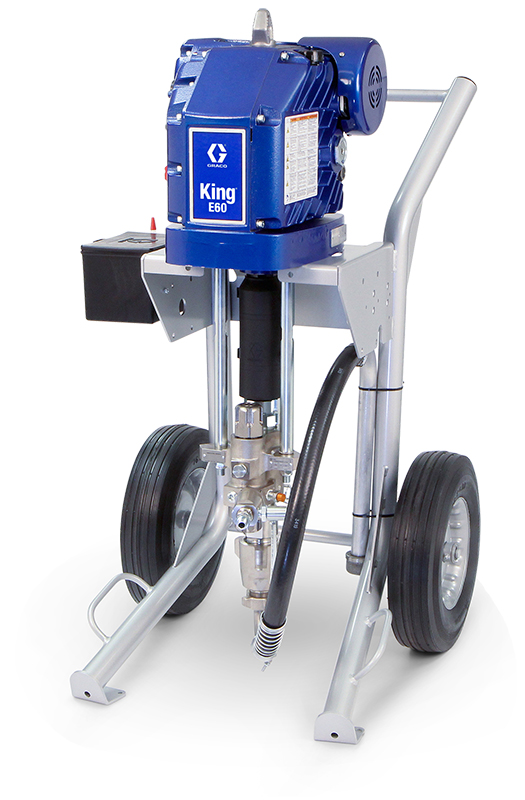

Meet the new Electric King

The King has been the industry's favourite for over 60 years. The new King electric airless sprayer combines benefit of a traditional pneumatic airless sprayer (e.g. the robust ATEX design, simple maintenance and power) with those of an electric unit (e.g. energy cost savings, eliminating icing problems and noise reduction).

The King electric airless sprayer operates on a reliable and convenient electric power source. This reduces jobsite inefficiencies that are usually associated with air compressors. Electrical technology also reduces pulsation, prevents motor icing, and much more. This ensures your coating jobs will run smoothly, every single time.



eking

REBUILD LIKE A PRO


e-king-logo-cost-power

Electric power

  • No need for an air compressor - Avoid inefficiencies associated with compressors.
  • Environmentally friendly - Contribute to a cleaner energy future.
  • Consistent Quality - Less pulsation to have perfect results, every single time.
e-king-logo-cost-savingsCost savings
  • Improved efficiency - Improved efficiency and an overall lower cost of ownership.
  • Energy savings - Saves up to 80% of energy costs when compared to an air operated sprayer.*
  • High productivity - Stay productive by using the most reliable power source available – electricity!
attex-approvedATEX approved
  • ATEX, IECEX, and Class 1, DIV. 1 Approvals - Allowed to work in any location where generating a spark is of concern.
  • Safe operation - Get the job done safely: approved for hazardous locations.
  • Spray solvent-based coatings - Protect yourself against the risks from hazardous solvents.
e-king-logo-cost-comfort

User comfort

  • Plug in & Spray – Easy to use and connect, runs on widely available 240V/16A or 110V/25A power
  • Quite electric motor - When compared to an air motor, the King sprayer is up to five times quieter.
  • No more icing - By eliminating the need for an air motor, it is possible to avoid all icing problems.

*Study completed on pump pressure of 241 bar (3500 psi) for 20 hours/week; spraying 1226 L (324 gal) of 73% volume solids epoxy with XHD519 tip

“It doesn’t fluctuate like air pumps do. It’s much more consistent and always has a good pattern regardless of which tip you use.”

Dean stewart, iron works

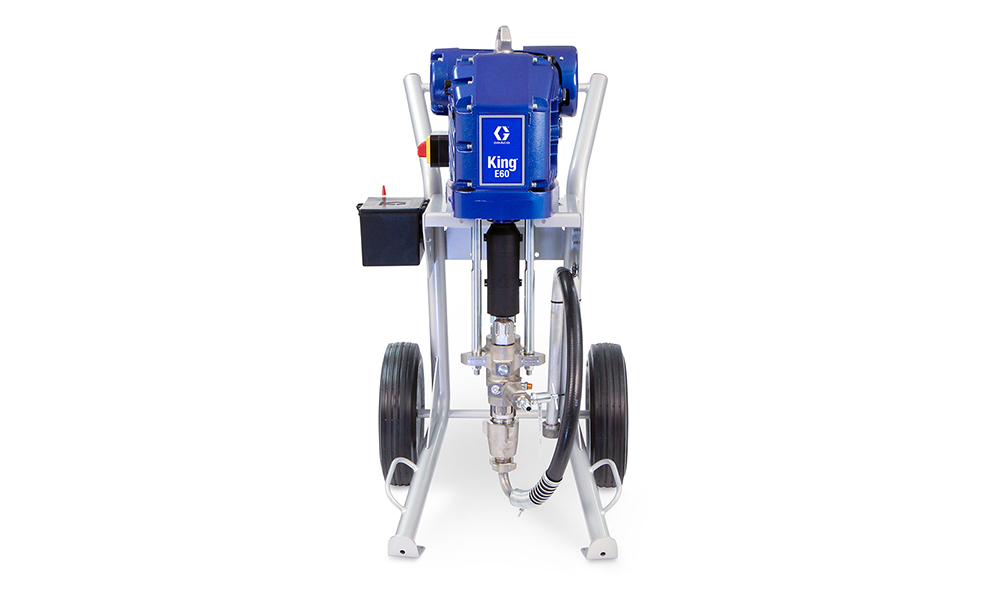

king-e60-ctr2

Pressure Control Knob

• Minimal training required

close

New Driver

• Updated driver for maximum safety while spraying in hazardous locations
• Minimal service driver requires only oil. More up time, less hassle, reduced maintenance costs

close

Built-in Disconnect Switch

• Designed for use in explosive
• atmospheres

close

Electrically Operated

• No compressor maintenance costs
• Runs on 240 VOLT/15 AMP or 110 VOLT/25 AMP power
• Low cost of ownership
• Energy efficient

close

Pinch protection and dust cover for increased safety

close

Burst Disk

• Prevents over pressure of spray line

close

Xtreme® Lower

• 115cc - KING E 60
• 145cc - KING E 50

close

Pinch protection and dust cover for increased safety

close

Check Valve

• Helps maintain consistent fluid pressure

close

Inlet Housing and Suction Set

• Reduced material and solvent requirements when priming/flushing

close



Learn more about the electric technology




Choose the model that's right for you


 E60 King Electric SprayerE50 King Electric Sprayer
Maximum Working Pressure414 Bar (6000 psi, 41.4 MPa)310 Bar (4500 psi, 31.0 MPa)
Supported Tip Size*0.53 mm (.021 in)
@ 345 bar (5000 psi, 34.5 MPa) Spray Pressure
0.58 mm (.023 in)
@ 276 bar (4000 psi, 27.6 MPa) Spray Pressure
Overall Dimensions (W x H x D)70 x 127 x 74 (27.5 x 50.0 x 29.0 in)70 x 127 x 74 (27.5 x 50.0 x 29.0 in)
Operating Temperature Range5°C to 50°C (23°F to 120°F)5°C to 50°C (23°F to 120°F)
Power Input15A @ 200-240V, 50/60 Hz, single phase;
25A @ 100-120V, 50/60 Hz, single phase
15A @ 200-240V, 50/60 Hz, single phase;
25A @ 100-120V, 50/60 Hz, single phase
Sound Pressure70 dB (A)70 dB (A)

*Actual supported tip size may be larger or smaller depending on: actual input voltage, hose length, paint type, paint thinning, and paint temperature.
