FASTEST WAY TO FINISH SMALL JOBS, PROVEN BY PROS
PERFECT AIRLESS FINISH AT ANY SPEED, SMOOTH & EVEN WITHOUT THINNING
RELIABILITY DELIVERED - EVERY JOB, EVERY TIME
AVAILABLE IN 3 MODELS

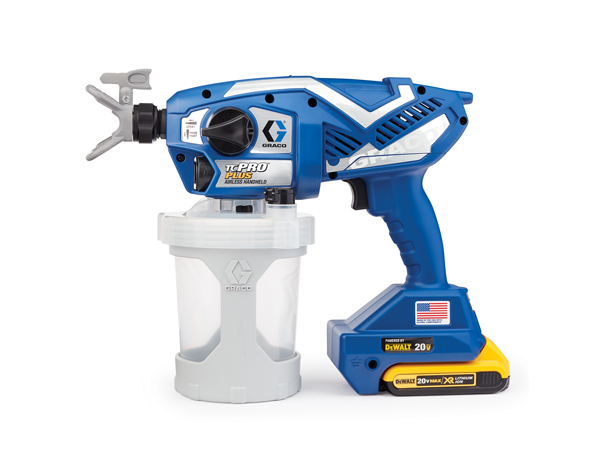

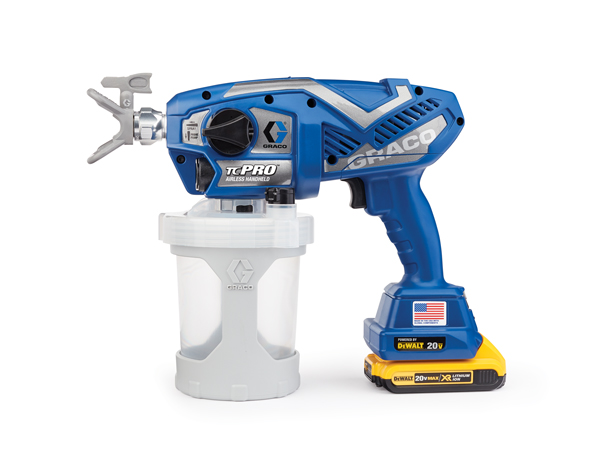

| _ | TC Pro Corded | TC Pro Cordless | TC Pro PLUS Cordless |
| Model Number | 17N163 | 17N166 | 17N223 |
| Compatible Materials* | |||
| Water-Based | ✓ | ✓ | ✓ |
| Mineral Spirits | ✓ | ✓ | ✓ |
| Flammable | _ | _ | ✓ |
| Hot Solvents | _ | _ | ✓ |
| Features | |||
| Pressure Control | ✓ | ✓ | ✓ |
| Pressure Range | 500 - 2000 psi | 500 - 2000 psi | 500 - 2000 psi |
| Tip Type Supported | TC Pro Tips | TC Pro Tips | TC Pro Tips |
| Tip Size Supported | .008 - .016 in | .008 - .016 in | .008 - .016 in |
| Power Source | Corded | Battery | Battery |
| Fully Repairable | ✓ | ✓ | ✓ |
| ProConnect System | ✓ | ✓ | ✓ |
| Includes | |||
| TC Pro Tip(s) | TC Pro 514 | TC Pro 514 | TC Pro 514 & TC Pro 210 |
| 32 oz FlexLiner Bags | 4 | 4 | 6 |
| Batteries | _ | 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion | 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion |
| Filter Mesh | 60 Mesh | 60 Mesh | 60 & 100 Mesh |
| Storage Bag | ✓ | ✓ | ✓ |
*Ultra sprayers spray most materials that can be cleaned with water or mineral spirits. Refer to the operation manual for more details.
Features
TC Pro Tip
TC Pro Tip
- Provides superior finish at low pressure
- Large range of sizes available to meet the job requirements
- Reverse-A-Clean (RAC) SwitchTips deliver exceptional spraying results and make cleaning tip clogs simple
Triax Triple Piston Pump
Triax Triple Piston Pump
Unmatched Performance
- Durable stainless steel and carbide components bonded with a high strength polymer
- Incredible durability in a light weight design
- 500-2,000 PSI
- .008-.016 Tip Support
Reliable Startup
- No inlet check valve to get stuck
- Automatic Outlet Ball Knocker

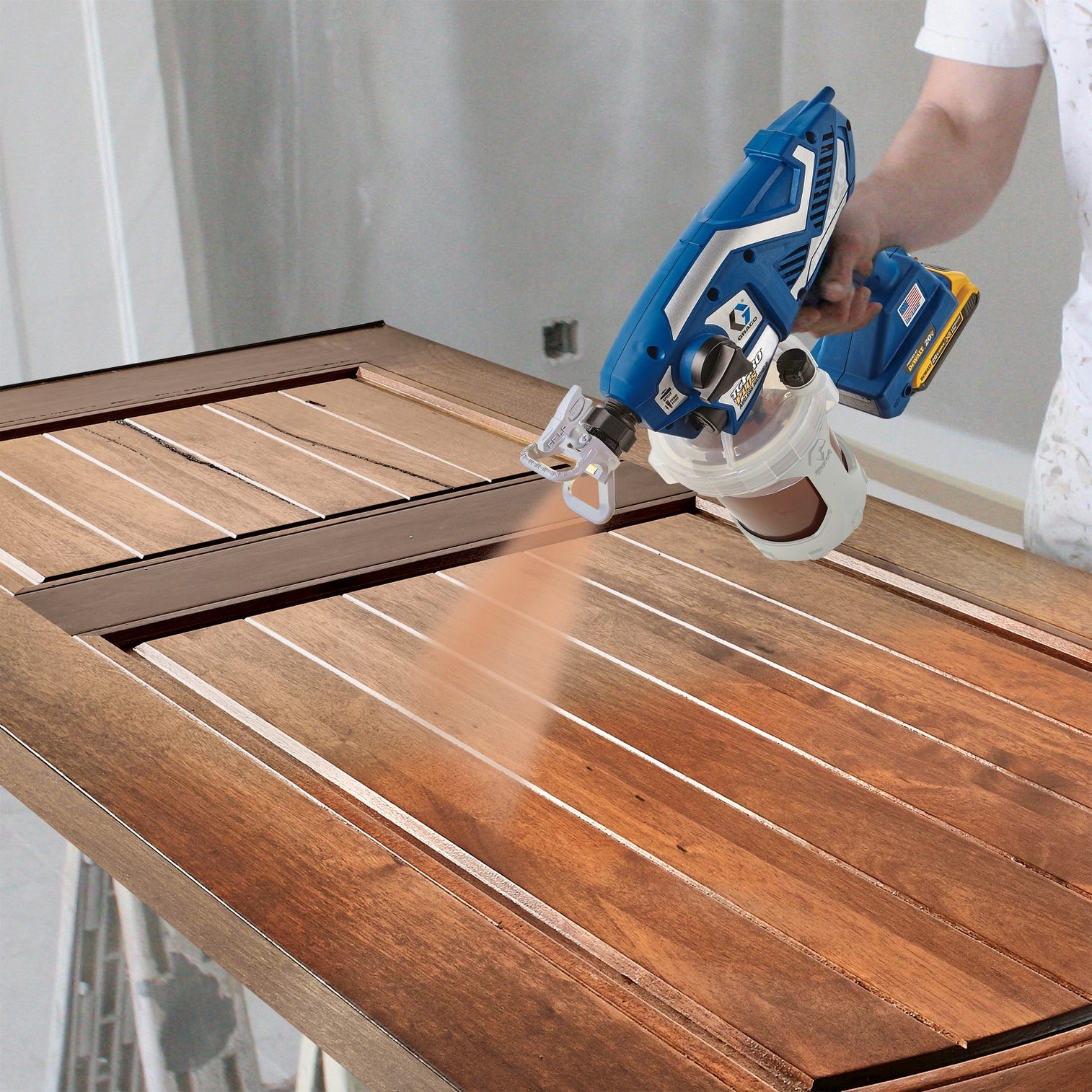

Perfect Airless Finish
- Smooth and even at any hand speed
- No Thinning
- Single Coat Coverage

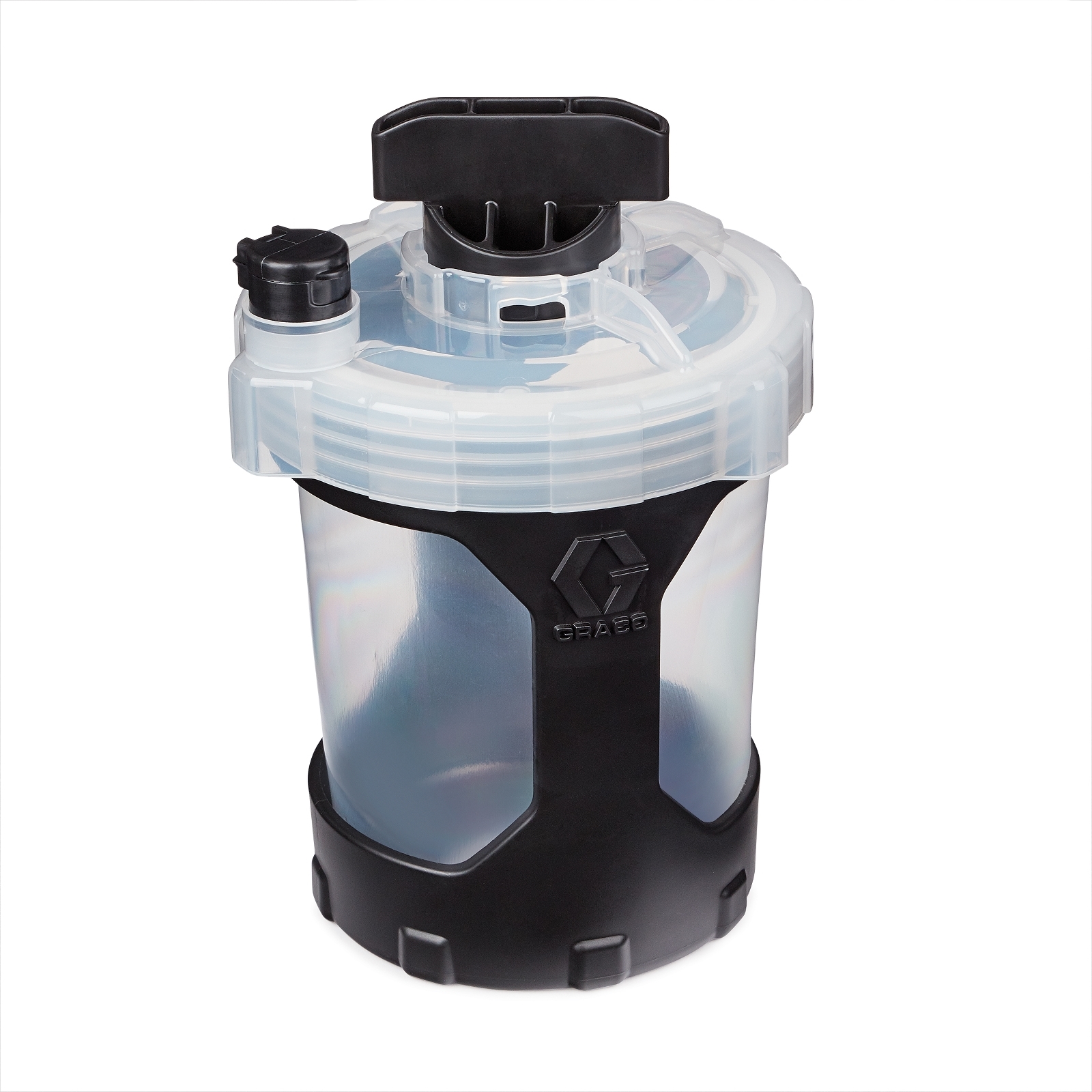

FlexLiner System
FlexLiner System
Disposable liners eliminate cleanup time
Easy Setup
- Fill 32 oz. FlexLiner Bag with material and attach to the handheld
- Squeeze out any remaining air
- Spray
Easy Cleanup
- Fill FlexLiner Bag with cleaning fluid like PumpArmor
- Shake sprayer
- Spray into a bucket
No suction tube to clean
Toss or reuse FlexLiner Bag, it's your choice

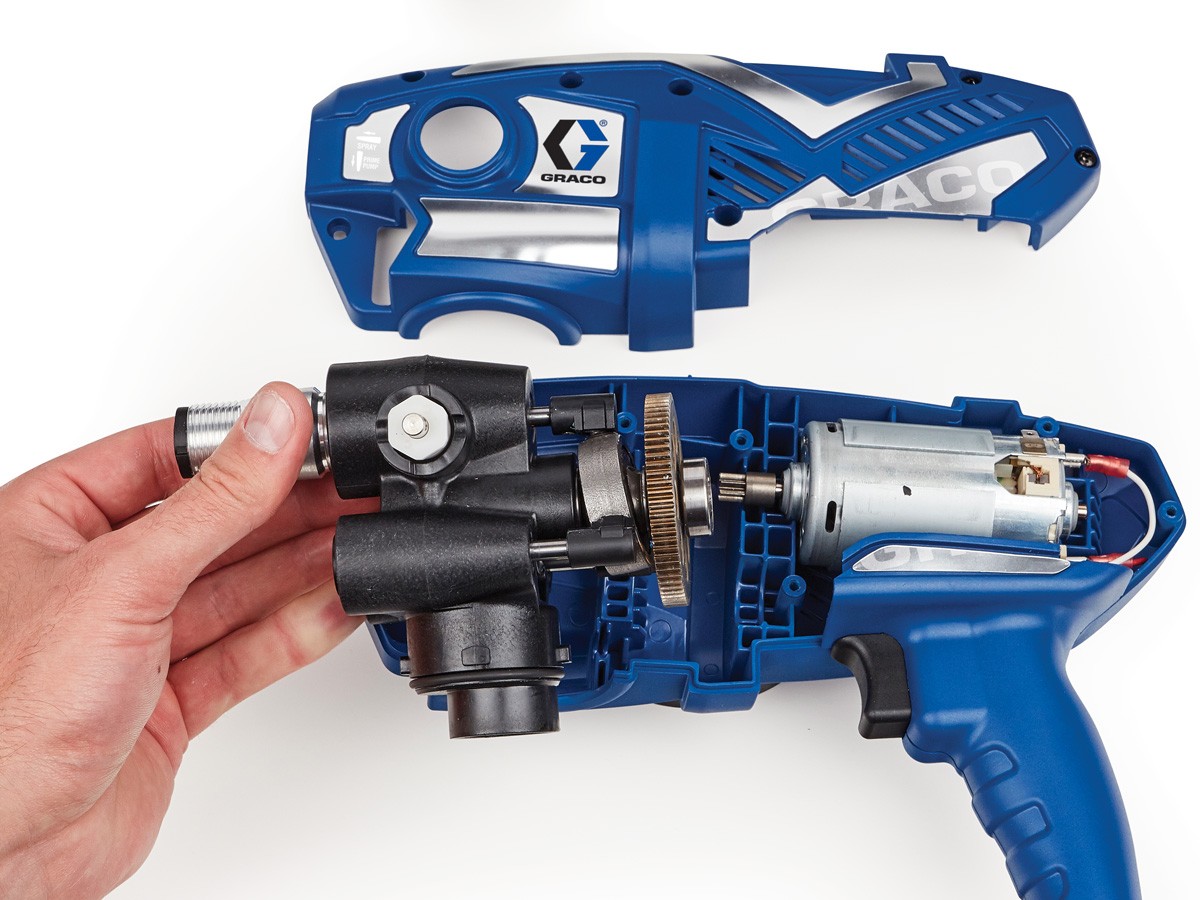

ProConnect Pump Replacement System
ProConnect Pump Replacement System
On-The-Job Pump Replacement System
One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
- Remove Phillips screws and door
- Remove and replace pump
- Reinstall door and screws

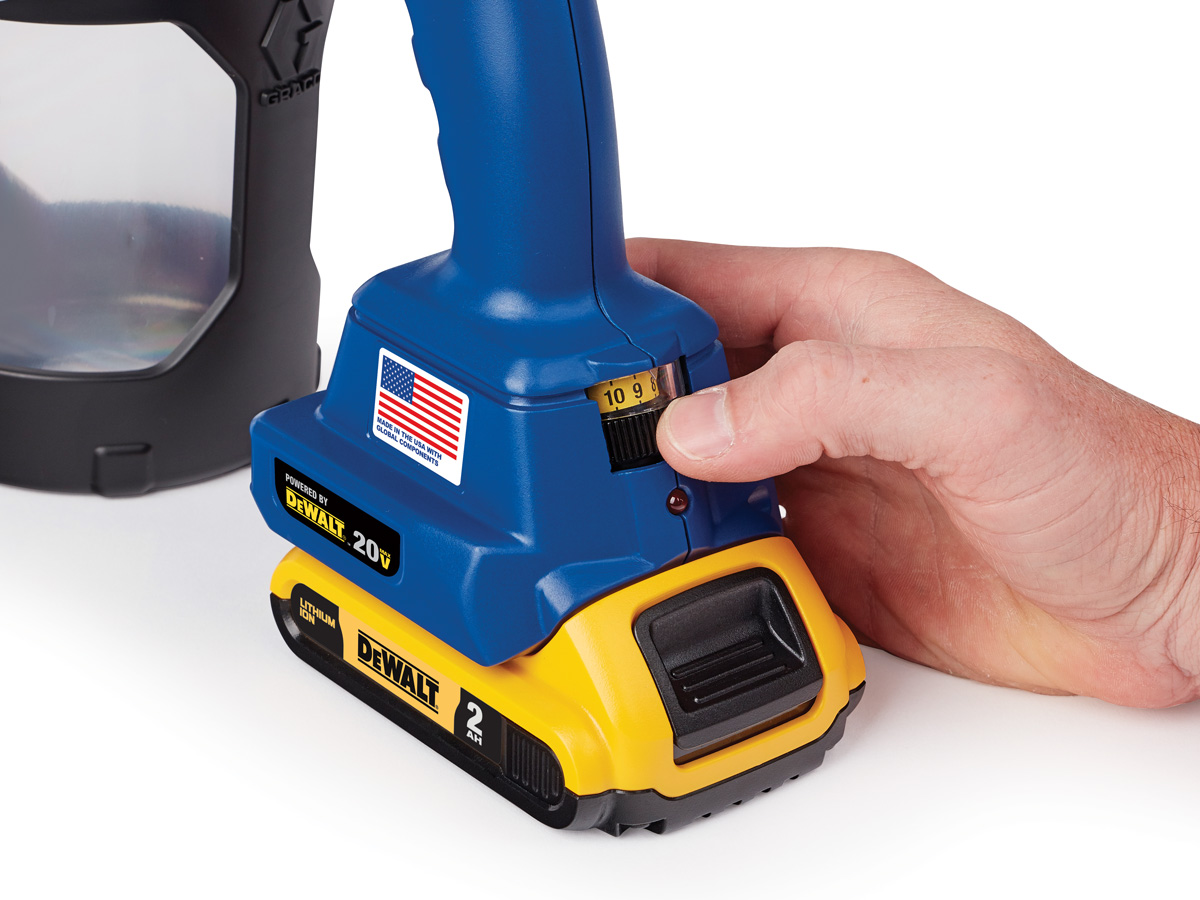

ProControl II Pressure Control with SmartControl
ProControl II Pressure Control with SmartControl
- Adjust motor speed to spray at virtually any speed that the job demands - hear it working
- More control allows users to spray at the speed they choose - a professional finish, fast or slow
- Precision pressure control that delivers a consistent spray fan without pressure fluctuations
Powered by DEWALT
Powered by DEWALT
- GUARANTEED TOUGH
- Proven quality, contractor recognized battery manufacturer
- 3-LED fuel gauge system allows immediate feedback on state of charge
- Lightweight design and 30% faster charge time (35 minutes)
- Each cordless machine comes standard with 2 batteries
- Compatible with any DEWALT 20V Lithium Ion battery
- Spray up to 1 gallon with each charge thanks to the DEWALT 20V Lithium Ion system
Video
Where To Buy
Find an authorized Graco Distributor near you
DEWALT® and the DEWALT logo are trademarks of DEWALT Industrial Tool Co. or an affliate thereof and are used under license. The yellow/black color scheme is a trademark for DEWALT power tools & accessories.
