TC Pro Cordless

TC Pro Cordless Handheld Airless Sprayer

17N166

17N166_TC_Pro_Cordless_Main 17N166_TC_Pro_Cordless_Alt_1 17N166_TC_Pro_Cordless_Alt_2 17N166_TC_Pro_Cordless_Alt_3 17N166_TC_Pro_Cordless_Includes

TC Pro Cordless

TC Pro Cordless Handheld Airless Sprayer

17N166

Powered by DEWALT, the TC Pro Cordless handheld electric airless sprayer delivers a consistent spray fan without pressure fluctuations to produce a professional finish with less overspray. This handheld provides unmatched performance with thick or thin coatings and reliable startup, every time.
$549.00
USD MSRP
Find A Retailer
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Powered by DEWALT, the TC Pro Cordless handheld electric airless sprayer delivers a consistent spray fan without pressure fluctuations to produce a professional finish with less overspray. This handheld provides unmatched performance with thick or thin coatings and reliable startup, every time.
  • Triax Triple Piston Pump - Unmatched performance with reliable startup providing the Perfect Airless Finish
  • Powered by DEWALT® - Proven quality, contractor recognized battery manufacturer, spray up to 1 gallon with each charge thanks to DEWALT 20V Lithium Ion system
  • ProConnect - On-the-job pump replacement system allowing a worn pump to be replaced in 3 steps using only a screwdriver
  • SmartControl - Precision pressure control that delivers a consistent spray fan without pressure fluctuations
  • ProControl II - Adjust motor speed to spray at virtually any speed that the job demands
  • TC Pro Spray Tips - Deliver exceptional spraying results at low pressure and make clearing tip clogs simple with Reverse-A-Clean
  • FlexLiner Paint Bags - Disposable liners allow for easy setup and reduces cleanup time, toss or reuse
17N166_TC_Pro_Cordless_Includes

Specifications

Technical Specifications

Convert to Metric
Battery Capacity (Ah) 2
Battery Chemistry Lithium-ion
Battery Voltage (V) 20
Compatible Replacement Pump 17P186
Compatible Tip Size (in) 0.008, 0.010, 0.012, 0.014, 0.016
Frame Configuration Handheld
Includes TC Pro 514 Spray Tip, TC Pro Guard, 4 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX Compact XR Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, Storage Bag, Pump Armor Storage Fluid 4 oz
Maximum Tip Size (in) 0.016
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (psi) 2000
Minimum Working Pressure (psi) 500
Model TC Pro
Overall Height (in) 10.5
Overall Length (in) 14.0
Overall Width (in) 5
Power Source Battery Powered
Pressure Control Type ProControl II
Pump Type Triax Triple Piston
Recommended Annual Usage (gal) 50
Series Cordless
Standards Met ETL Certified, ETL File #102260835MIN-002
Type Handheld Cordless Airless Sprayer
Weight (lb) 5
Battery Capacity (Ah) 2
Battery Chemistry Lithium-ion
Battery Voltage (V) 20
Compatible Replacement Pump 17P186
Frame Configuration Handheld
Includes TC Pro 514 Spray Tip, TC Pro Guard, 4 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX Compact XR Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, Storage Bag, Pump Armor Storage Fluid 4 oz
Maximum Tip Size (cm) 0.0406
Maximum Tip Size (mm) 0.4064
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Minimum Working Pressure (bar) 35
Minimum Working Pressure (kPa) 3500
Model TC Pro
Overall Height (cm) 26.7
Overall Height (mm) 267
Overall Length (cm) 36.1
Overall Length (mm) 361
Overall Width (cm) 12.7
Overall Width (mm) 127
Power Source Battery Powered
Pressure Control Type ProControl II
Pump Type Triax Triple Piston
Series Cordless
Standards Met ETL Certified, ETL File #102260835MIN-002
Type Handheld Cordless Airless Sprayer
Weight (kg) 2

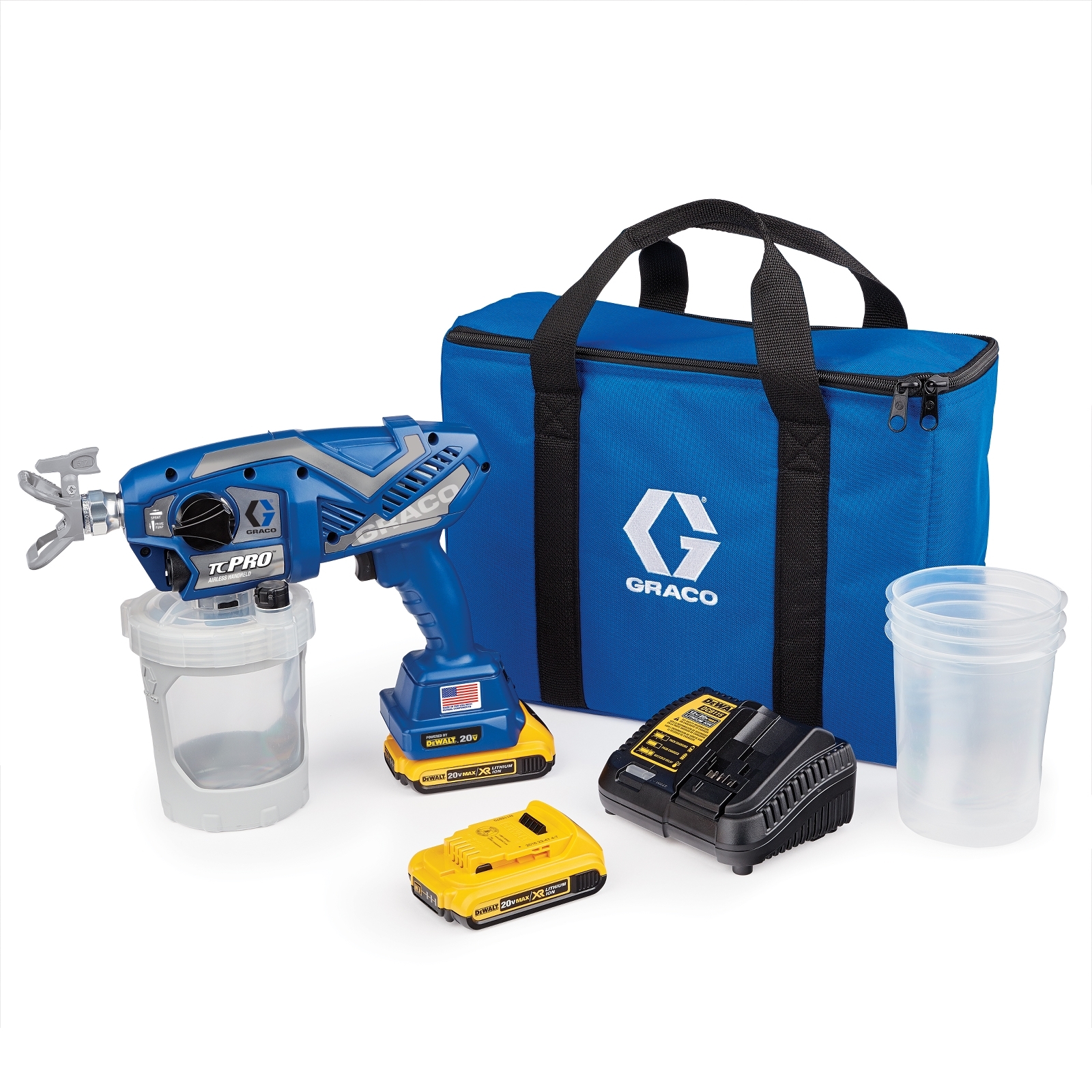

What's Included

Part No. Description Qty Unit
TCP514 TC Pro SwitchTip 514 1 ea
17P574 TC Pro Tip Guard 1 ea
16W847 32 oz FlexLiner Paint Cup 4 ea
17P474 DEWALT 20V MAX Compact XR Lithium Ion Battery Pack 2 ea
17P475 DEWALT 20V MAX Lithium Ion Battery Charger 1 ea
17N194 TC Pro Storage Bag 1 ea
17M938 FILTER, FLUID, 60 MESH 1 ea

Recommended Accessories

17P474_DEWALT_20V_Battery_Main

DEWALT 20V MAX Compact XR Lithium Ion Battery Pack

View Details
17A226_FlexLiner_32_oz_3_pack_Main

FlexLiner Bags 32 oz 3 pk

View Details
FlexLiner Storage Plug

FlexLiner Storage Plug

View Details
17R821_FlexLiner_System_32_oz_Main

FlexLiner System 32 oz

View Details
17P552_FlexLiner_System_42_oz_Main

FlexLiner System 42 oz

View Details
17P555_TC_Pro_Filter_100_mesh_Main

Handheld Filter 100 mesh

View Details
17P554_TC_Pro_Filter_60_mesh_Main

Handheld Filter 60 mesh

View Details
243104_Pump_Armor_1qt_Main

Pump Armor 1 qt

View Details
TCP210_TCP_Spray_Tip_Main

TC Pro SwitchTip 210

View Details
17P186_Triax_Pump_Main

Triax Replacement Pump for Cordless Handheld

View Details
VacuValve Cap Replacements, 3 pk

VacuValve Cap Replacements, 3 pk

View Details
