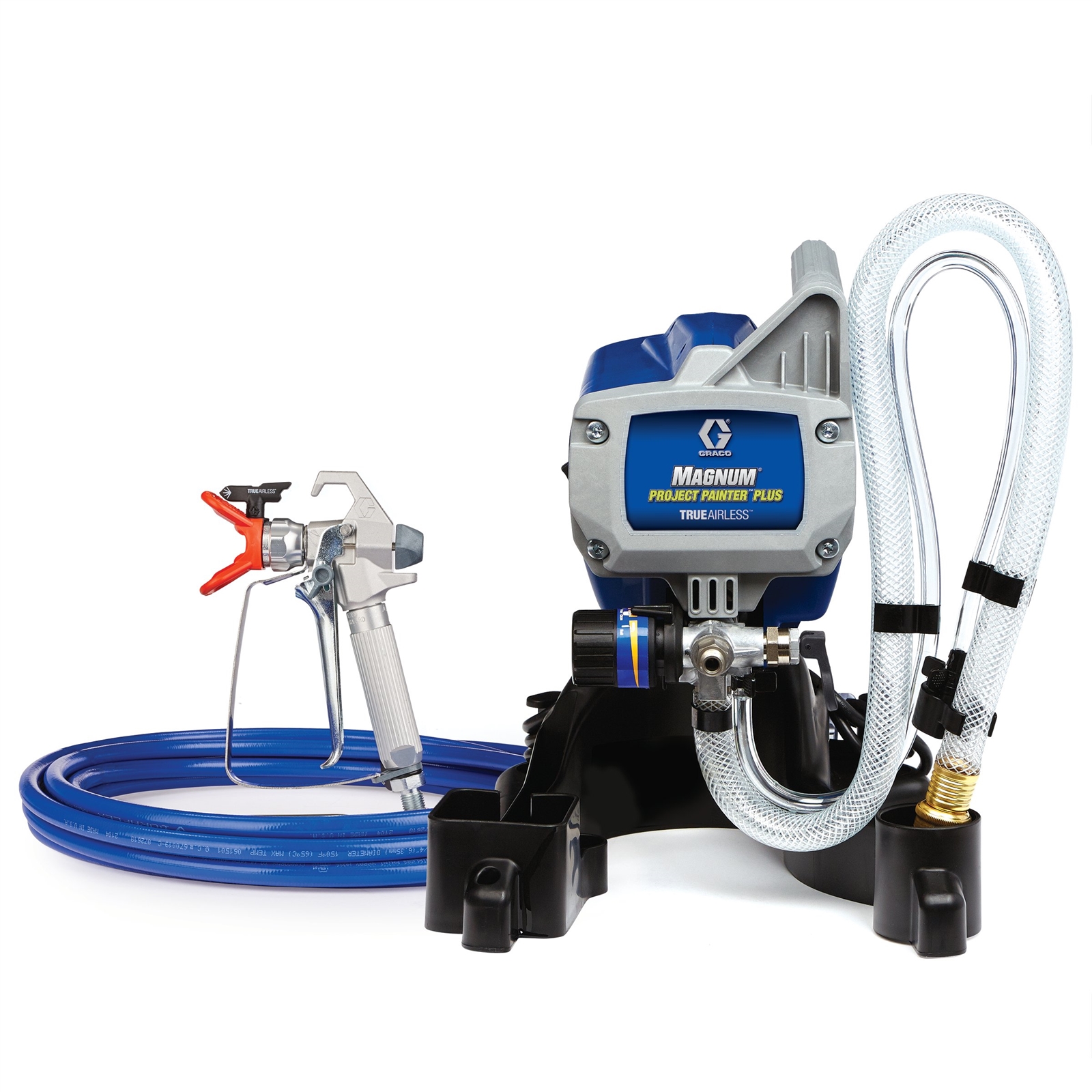

Magnum Project Painter Plus

Magnum Project Painter Plus Electric TrueAirless Sprayer

Part Number: 257025

product image product image product image product image product image

Magnum Project Painter Plus

Magnum Project Painter Plus Electric TrueAirless Sprayer

Part Number: 257025

DIY homeowners, including those new to paint sprayers, breeze through paint jobs with the Magnum Project Painter Plus. This sprayer has the capacity to handle most interior and exterior home improvement projects and lets you spray directly from a 1 or 5 gallon container to finish faster.
$329.00
USD MSRP
Find A Retailer
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Quick Operation Videos

Review Highlights

READ ALL REVIEWS

“This is my first experience with a paint sprayer, and I’m a lifetime convert from here out. This little guy made painting a long concrete breeze block wall in my back yard into a two hour job.”
– jwpdx, 5/20/23 ★★★★★

“Just bought this about a week ago. It is the first sprayer I have ever owned. All of the videos in the documentation that come with the equipment were awesome.”
– Sideshow, 5/18/23 ★★★★★

“I bought it to paint privacy fence love it very good working sprayer best investment I've ever made thank you very much.”
– Richard my fence 57, 5/11/23 ★★★★★

“It works flawless and very easy to use. Did our complete deck in no time. Again very easy to setup and use. Cleaning was a breeze.”
– Camoxjeep, 5/4/23 ★★★★★

“This made ease of what would have been a long project by brush. I then used it to prime the walls. It really got into all the tight spaces!”
– JohnnyV, 5/3/23 ★★★★★

“Worked flawlessly and laid out a nice coat of heavy latex paint/primer over full garage pegboard. Cleaned up with little effort.”
– Bud 52, 5/1/23 ★★★★★

Features

Product Brochure
DIY homeowners, including those new to paint sprayers, breeze through paint jobs with the Magnum Project Painter Plus. This sprayer has the capacity to handle most interior and exterior home improvement projects and lets you spray directly from a 1 or 5 gallon container to finish faster.
  • Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
  • Adjustable Pressure Control - Easy control of paint flow
  • Flexible Suction Tube - Spray directly from 1 or 5 gallon containers for small or large projects
  • TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
  • Power Flush Adapter - Connects to a garden hose for fast and easy cleaning
  • Compact Design - Stable, low profile with integrated pail hook so everything can be carried together
  • Extra Storage Compartments - Space to store the spray gun, extra spray tips, and power cord

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 9.0
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015
Construction Nylon, Aluminum, Brass, Plated Steel, Leather, UHMWPE, Stainless Steel, Polypropylene, Fluoroelastomer, Tungsten Carbide
Engine Size (HP) 0.375
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.24
Maximum Hose Length (ft) 50
Maximum Tip Size (in) 0.015
Maximum Tip Size 1 Gun (in) 0.015
Maximum Working Pressure (MPa) 19.3
Maximum Working Pressure (psi) 2800
Minimum Generator Power (W) 1500
Model Magnum
Motor Type Universal
Number of Guns 1
Overall Height (in) 13.8
Overall Length (in) 13.8
Overall Width (in) 12.1
Phase 1
Power Rating (HP) 0.375
Power Rating (W) 280
Power Rating (kW) 0.28
Power Source Electric
Pressure Control Type Adjustable
Product Series DIY
Pump Rod Type Stainless Steel
Pump Sleeve Material Stainless Steel
Recommended Annual Usage (gal) 50
Series Project Painter Plus
Type Airless Sprayer
Voltage (V) 120
Weight (lb) 13
Amperage (A) 9.0
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015
Construction Nylon, Aluminum, Brass, Plated Steel, Leather, UHMWPE, Stainless Steel, Polypropylene, Fluoroelastomer, Tungsten Carbide
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 0.91
Maximum Hose Length (m) 15
Maximum Tip Size (in) 0.015
Maximum Tip Size 1 Gun (in) 0.015
Maximum Working Pressure (MPa) 19.3
Maximum Working Pressure (bar) 193
Maximum Working Pressure (kPa) 19300
Maximum Working Pressure (psi) 2800
Minimum Generator Power (W) 1500
Model Magnum
Motor Type Universal
Number of Guns 1
Overall Height (cm) 35.1
Overall Height (mm) 351
Overall Length (cm) 35.2
Overall Length (mm) 352
Overall Width (cm) 30.7
Overall Width (mm) 307
Phase 1
Power Rating (W) 280
Power Rating (kW) 0.28
Power Source Electric
Pressure Control Type Adjustable
Product Series DIY
Pump Rod Type Stainless Steel
Pump Sleeve Material Stainless Steel
Series Project Painter Plus
Type Airless Sprayer
Voltage (V) 120
Weight (kg) 6

What's Included

Part No. Description Qty Unit
243011 SG2 Metal Spray Gun 1 ea
TRU515 TrueAirless 515 Spray Tip 1 ea
237859 Spray Tip Guard 1 ea
247339 DuraFlex Hose 1/4 in x 25 ft 1 ea
17S980 Kit, Pump Armor, 8 oz 1 ea

Repair Parts

Part No. Description
243011 SG2 Metal Spray Gun
16F102 Control Board Replacement Kit
257002 KIT, REPAIR,STRAINER,INLET,MAG
