Magnum ProX17

Magnum ProX17 Electric TrueAirless Sprayer, Cart

17G178

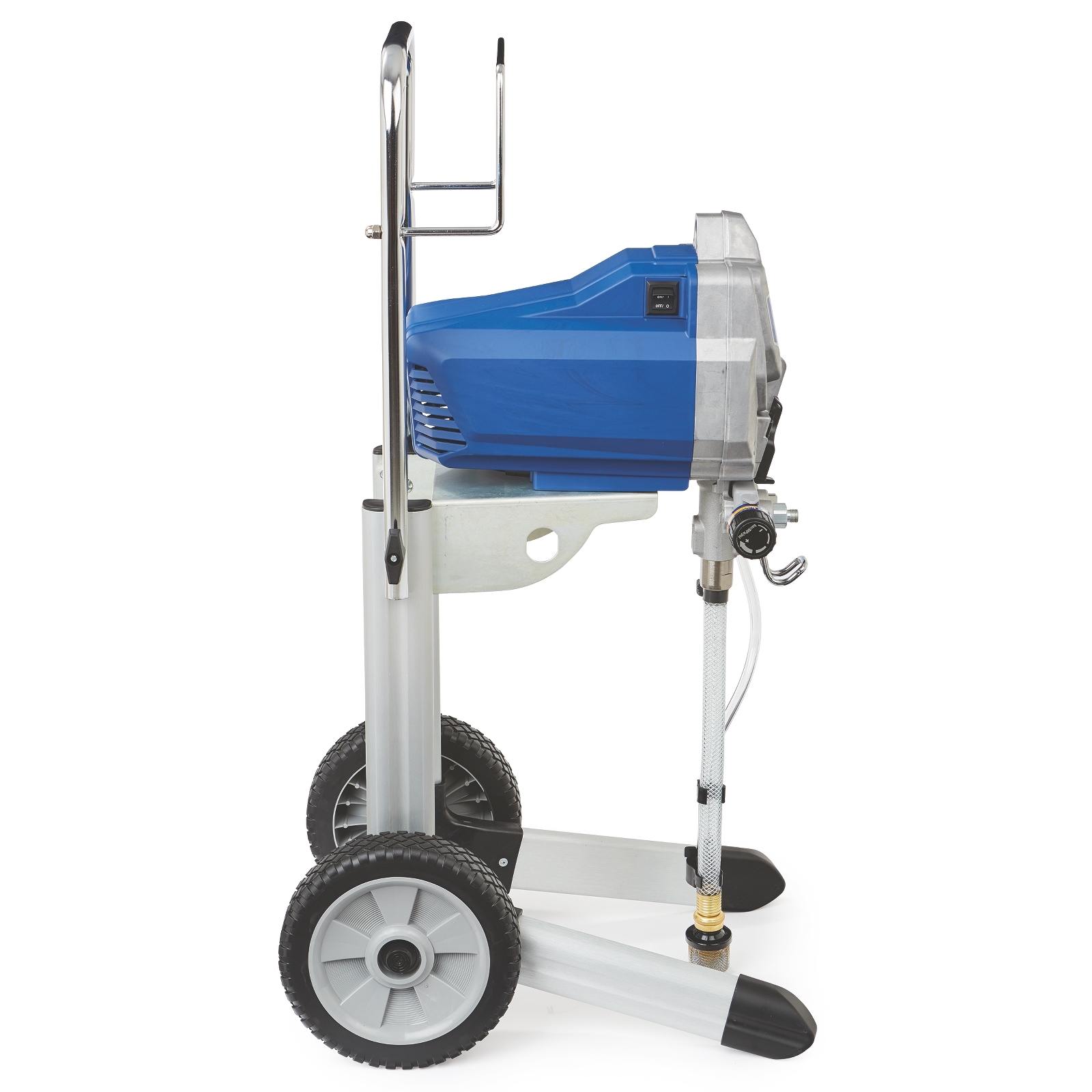

17G178_Magnum_ProX17_Cart_Main 17G178_Magnum_ProX17_Cart_Alt_1 17G178_Magnum_ProX17_Cart_Alt_2
Magnum ProX17 Cart;
Magnum ProX17 Cart;

Magnum ProX17

Magnum ProX17 Electric TrueAirless Sprayer, Cart

17G178

Property maintenance pros, remodelers and general contractors work faster with the ProX17 with built-in cart. This innovative sprayer is ideal for tackling any interior project, rental property and large homes. Quickly replace the pump with no tools and use longer hose lengths to be more producti...

More Info
$569.00
USD MSRP
Find A Retailer

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Property maintenance pros, remodelers and general contractors work faster with the ProX17 with built-in cart. This innovative sprayer is ideal for tackling any interior project, rental property and large homes. Quickly replace the pump with no tools and use longer hose lengths to be more productive.

  • ProX Stainless Steel Piston Pump - For greater reliability and long life

  • ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job

  • DC Motor - Supports longer extension cords and up to 150 feet of airless hose

  • PushPrime - Fast and reliable start-up every time

  • SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths

  • Reverse-A-Clean Spray Tip - Quickly clears tip clogs

  • Compact Design - Easy to transport around the job site

  • Adjustable Pressure - Easy control of paint flow

  • InstaClean Pump Filter - Extra filtration reduces tip clogging

  • Power Flush - Connects to garden hose for fast and easy cleanup

17G178_Magnum_ProX17_Cart_Main
Magnum ProX17 Cart;

Specifications

Technical Specifications

Convert to Metric
Compatible Tip Size (in) 0.011, 0.013, 0.015, 0.017
Engine Size (HP) 0.75
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Includes 50 ft Hose, Metal SG3 Spray Gun, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide, RAC IV 515 Tip
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.34
Maximum Hose Length (ft) 150
Maximum Tip Size (in) 0.017
Maximum Tip Size 1 Gun (in) 0.017
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Phase 1
Power Rating (HP) 0.75
Power Source Electric
Pressure Control Type Adjustable
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Type Piston
Recommended Annual Usage (gal) 300
Series ProX17
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 17.0
Weight (lb) 37.5
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
Engine Size (HP) 0.75
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Includes 50 ft Hose, Metal SG3 Spray Gun, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide, RAC IV 515 Tip
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.34
Maximum Hose Length (m) 45.7500
Maximum Tip Size (cm) 0.0432
Maximum Tip Size (mm) 0.4318
Maximum Tip Size 1 Gun (cm) 0.0432
Maximum Tip Size 1 Gun (mm) 0.4318
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20670
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Phase 1
Power Rating (HP) 0.75
Power Source Electric
Pressure Control Type Adjustable
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Type Piston
Recommended Annual Usage (gal) 300
Series ProX17
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 17.0
Weight (lb) 37.5
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE

What's Included

Part No. Description Qty Unit
112612 CAP, HUB 2 ea
115478 SCREW, MACH., TORX/SLT PAN HD 4 ea
115480 KNOB, T-HANDLE 2 ea
115498 SCREW, MCH, SLOT, HEX, WASH HD 1 ea
115648 VALVE, SHUTOFF, POWERFLUSH 1 ea
117501 SCREW, MACH, SLOT HEX WASH HD 3 ea
118444 SCREW, MACH, SLOT, HEX 2 ea
118899 SWITCH, ROCKER, SPDT 1 ea
120689 NUT,HEX,ACRON,5/16-18,NICKEL 2 ea
120788 SCREW,CARRIAGE 2 ea
15X737 BRACKET, SWITCH 1 ea
16H350 RACK, HOSE 1 ea
16H354 HANDLE, CART 1 ea
17G541 PLATE, MOUNT, MOTOR 1 ea
17J173 CORD, POWER 1 ea
17J430 HOOK,PAIL 1 ea
17K631 TAG, HANG, TIP, MAGNUM 1 ea
194503 ROD, GUIDE YOKE 2 ea
24J019 TUBE, SUCTION, ASSEMBLY 1 ea
260212 SCREW,HEX WASHER HD 8 ea
