Review Highlights
Read All Reviews“Used the X7 to spray 23 gallons of stain on a shadow box privacy fence. It worked perfectly. My next project is to stain a half mile of horse fence.”
– 509ABCT, 5/20/23 ★★★★★
“I wish I would have known about the Graco X7 a long time ago. Bought this after watching a professional painter use one on the my neighbor's deck. Wow, it is easy to use and a tremendous time saver.”
– Arm1448, 5/18/23 ★★★★★
“The airless sprayer was easy to use and provided great results. Clean up was a breeze, and using the water hose adapter to flush out pump was a plus."
– S Gardea, 4/27/23 ★★★★★
“Very easy to work with and excellent results. I would recommend this product to everyone!”
– Marcos, 4/9/23 ★★★★★
“Straight out off the box and to the Jo site. I was extremely impressed how it handled and how easy it was to use.”
– Rick Florida, 4/8/23 ★★★★★
“This sprayer is definitely a must for larger projects with multiple gallons of paint. Being able to put the hose in the paint and go is a great feature. The no clog tip ensures you can keep painting without stopping. Definitely recommend!”
– JohnH7, 4/3/23 ★★★★★

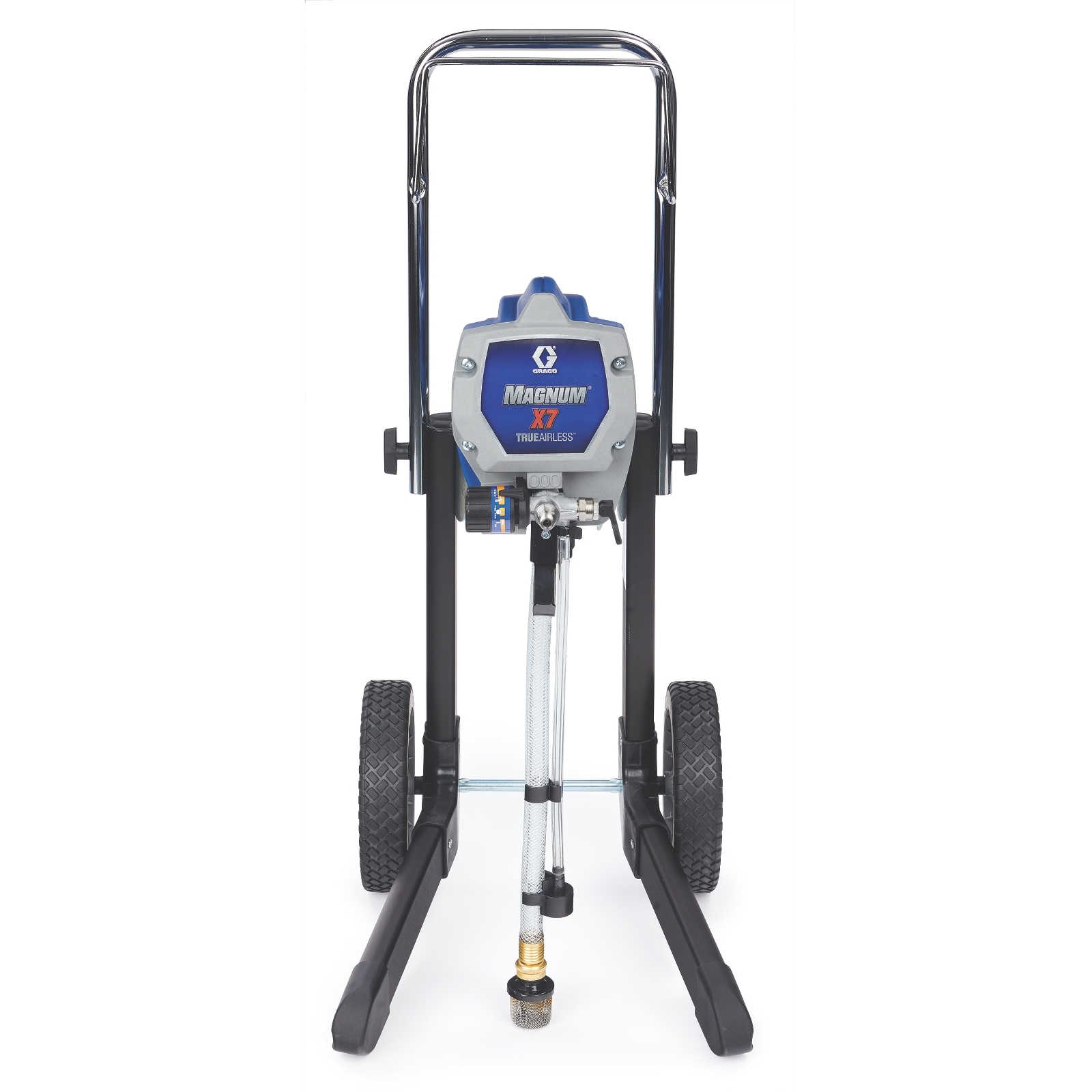

Features
Product Brochure- Hardened Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
- Flexible Suction Hose - Spray directly from 1 or 5 gallon paint container
- Convenient Cart - Easily move sprayer around on the job
- Paint Saver Pail Hook - Effortlessly move 5 gallon paint container with cart
- TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
- Power Flush Adapter - Connects to a garden hose for fast and easy cleaning
- PushPrime - Fast and reliable start-up every time
- Adjustable Pressure Control - Easy control of paint flow

Specifications & Documents
Technical Specifications
Convert to MetricAmperage (A) | 9.0 |
---|---|
Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017 |
Engine Size (HP) | 0.625 |
Fluid Outlet Size (in) | 1/4 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Cart |
Includes | SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
Maximum Flow Rate (GPM) | 0.31 |
Maximum Hose Length (ft) | 100 |
Maximum Tip Size (in) | 0.017 |
Maximum Tip Size 1 Gun (in) | 0.017 |
Maximum Working Pressure (MPa) | 20.7 |
Maximum Working Pressure (psi) | 3000 |
Minimum Generator Power (W) | 2500 |
Model | Magnum |
Motor Type | Universal |
Number of Guns | 1 |
Overall Height (in) | 37.0 |
Overall Length (in) | 19.3 |
Overall Width (in) | 15.3 |
Phase | 1 |
Power Rating (HP) | 0.625 |
Power Rating (W) | 466 |
Power Rating (kW) | 0.47 |
Power Source | Electric |
Pressure Control Type | Adjustable |
Product Series | Project |
Pump Rod Type | Hardened Stainless Steel |
Pump Sleeve Material | Stainless Steel |
Recommended Annual Usage (gal) | 125 |
Series | X7 |
Type | Airless Sprayer |
Voltage (V) | 120 |
Weight (lb) | 27 |
Wetted Material | Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE |
Amperage (A) | 9.0 |
Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017 |
Fluid Outlet Size (in) | 1/4 |
Fluid Outlet Size (mm) | 6.35 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Cart |
Includes | SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
Maximum Flow Rate (L/min) | 1.2 |
Maximum Hose Length (m) | 30 |
Maximum Tip Size (in) | 0.017 |
Maximum Tip Size 1 Gun (in) | 0.017 |
Maximum Working Pressure (MPa) | 20.7 |
Maximum Working Pressure (bar) | 207 |
Maximum Working Pressure (kPa) | 20700 |
Maximum Working Pressure (psi) | 3000 |
Minimum Generator Power (W) | 2500 |
Model | Magnum |
Motor Type | Universal |
Number of Guns | 1 |
Overall Height (cm) | 94.0 |
Overall Height (mm) | 940 |
Overall Length (cm) | 49 |
Overall Length (mm) | 490 |
Overall Width (cm) | 38.9 |
Overall Width (mm) | 389 |
Phase | 1 |
Power Rating (W) | 466 |
Power Rating (kW) | 0.47 |
Power Source | Electric |
Pressure Control Type | Adjustable |
Product Series | Project |
Pump Rod Type | Hardened Stainless Steel |
Pump Sleeve Material | Stainless Steel |
Series | X7 |
Type | Airless Sprayer |
Voltage (V) | 120 |
Weight (kg) | 12 |
Wetted Material | Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE |
Product Manuals
Warranty
Sales Literature
What's Included
Part No. | Description | Qty | Unit |
---|---|---|---|
243011 | SG2 Metal Spray Gun | 1 | ea |
TRU515 | TrueAirless 515 Spray Tip | 1 | ea |
237859 | Spray Tip Guard | 1 | ea |
247339 | DuraFlex Hose 1/4 in x 25 ft | 1 | ea |
25M568 | FLUID, PUMP ARMOR, 8OZ | 1 | ea |
Repair Parts
Part No. | Description |
---|---|
243011 | SG2 Metal Spray Gun |
247339 | DuraFlex Hose 1/4 in x 25 ft |
16E829 | Magnum Control Board Paint Kit for X5 / X7 |
288706 | Magnum Control Board Paint Sprayer Kit for X5 / X7 |
17L104 | Repair Kit, Control Board Replacement, X5, X7 |
16E843 | Magnum X7 Power Cord Paint Sprayer Kit |
17L282 | Repair Kit, Motor, X5, X7 |
244267 | Pro210ES Pressure Switch |
235014 | Spray Prime/Drain Valve Kit |
288716 | Inlet Strainer |
118899 | Repair Kit, Switch, X5, X7 |
195108 | TUBE DRAIN |
16D951 | TUBE, SUCTION |
16H348 | TUBE, SUCTION |
