Magnum ProX19

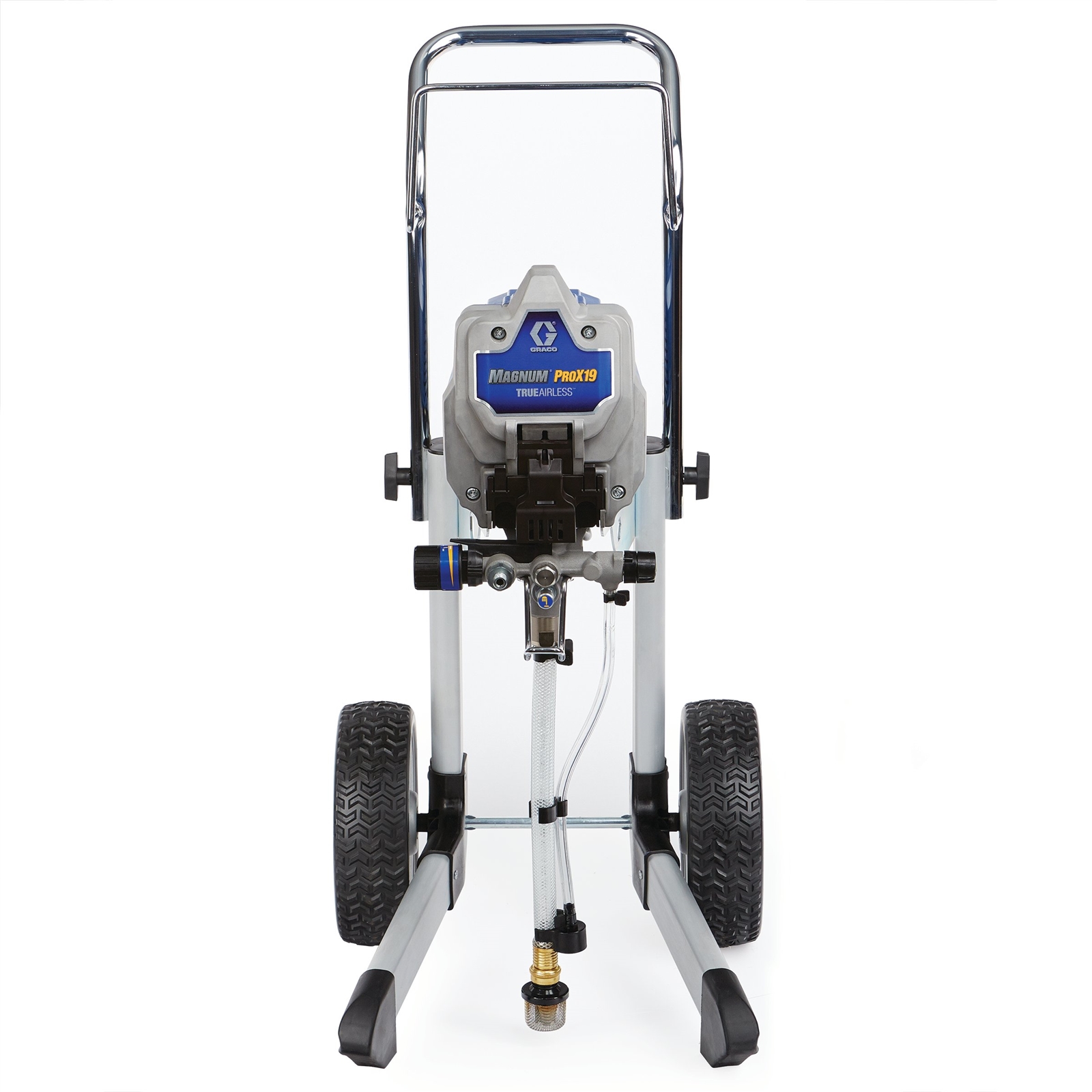

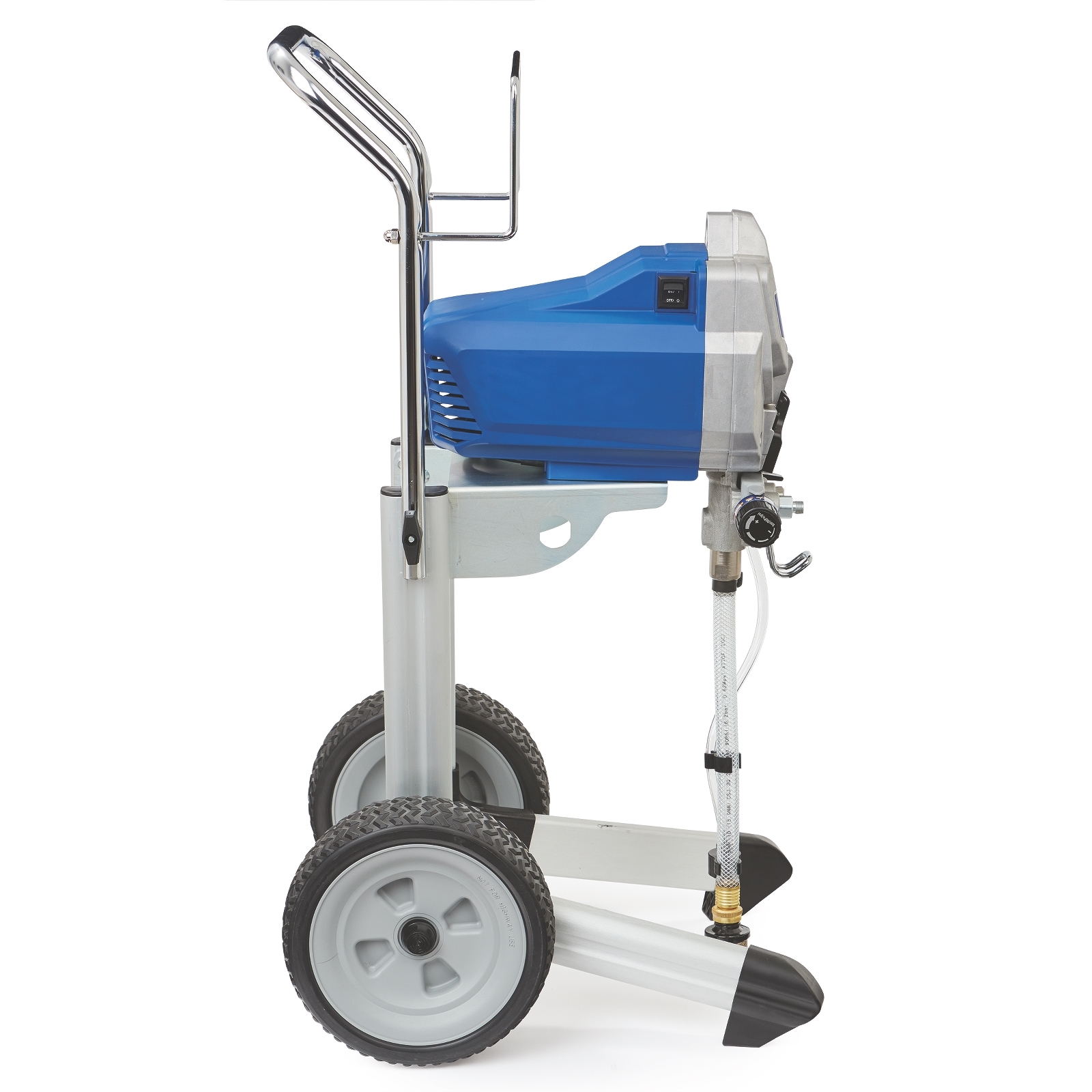

Magnum ProX19 Electric TrueAirless Sprayer, Cart
Part Number: 17G180
Magnum ProX19
Magnum ProX19 Electric TrueAirless Sprayer, Cart
Part Number: 17G180
Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX19 with built-in cart. Tackle all rental property and large interior projects with the ability to spray thicker materials and eliminate downtime with fast, on-the-job pump swaps.
$839.00
USD MSRP
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an Expert
Quick Operation Videos
Review Highlights
Read All Reviews“Setup is quick and sprayer gives consistent results throughout the project. Cleanup is easy & thorough. Overall a time-saver producing excellent results."
– johnnypaints, 5/19/23 ★★★★★
"Setup was quick and simple. Cleanup was very easy and nowhere near as difficult as I thought it might be.”
– Andrew8687, 4/15/23 ★★★★★
“It’s a nice spray rig”
– Jimmy71, 3/27/23 ★★★★★
“Understanding what tips to use for the paint I was using and the different materials being painted made things pretty easy. I've put about 20 gallons of paint through over different sessions.”
– DIY Jack, 3/26/23 ★★★★★
"Bought it to with high expectations and was not disappointed"
– John culwell, 1/8/23 ★★★★★
“I had a huge commercial paint job coming up and the Graco Magum ProX19 performed flawlessly. It was easy to setup up. I used both the sprayer and power roller, which drastically cut my labor time down.”
– AlphaProjects, 1/4/23 ★★★★★
Features
Product Brochure
Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX19 with built-in cart. Tackle all rental property and large interior projects with the ability to spray thicker materials and eliminate downtime with fast, on-the-job pump swaps.
- ProX Stainless Steel Piston Pump - For greater reliability and long life
- ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job
- DC Motor - Supports longer extension cords and up to 150 feet of airless hose
- PushPrime - Fast and reliable start-up every time
- SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths
- TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
- Convenient Cart - Move paint and sprayer around job site
- Adjustable Pressure - Easy control of paint flow
- InstaClean Pump Filter - Added pump filtration reduces tip clogs from debris in the paint
- Power Flush Adapter - Connects to garden hose for fast and easy cleanup
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 8 |
|---|---|
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019 |
| Engine Size (HP) | 0.875 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (GPM) | 0.38 |
| Maximum Hose Length (ft) | 150 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size 1 Gun (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 2500 |
| Model | Magnum |
| Motor Type | DC |
| Number of Guns | 1 |
| Outlet Paint Filter | InstaClean |
| Overall Height (in) | 36.7 |
| Overall Length (in) | 20.2 |
| Overall Width (in) | 17.2 |
| Phase | 1 |
| Power Rating (HP) | 0.875 |
| Power Rating (W) | 653 |
| Power Rating (kW) | 0.65 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product Series | Pro |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Stainless Steel |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Piston |
| Recommended Annual Usage (gal) | 500 |
| Series | ProX19 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (lb) | 38 |
| Wetted Material | Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE |
| Amperage (A) | 8 |
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 1.4 |
| Maximum Hose Length (m) | 45 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size 1 Gun (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 2500 |
| Model | Magnum |
| Motor Type | DC |
| Number of Guns | 1 |
| Outlet Paint Filter | InstaClean |
| Overall Height (cm) | 93.0 |
| Overall Height (mm) | 930 |
| Overall Length (cm) | 51.3 |
| Overall Length (mm) | 513 |
| Overall Width (cm) | 43.7 |
| Overall Width (mm) | 437 |
| Phase | 1 |
| Power Rating (W) | 653 |
| Power Rating (kW) | 0.65 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product Series | Pro |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Stainless Steel |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Piston |
| Series | ProX19 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (kg) | 19 |
| Wetted Material | Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE |
Product Manuals
Warranty
Sales Literature

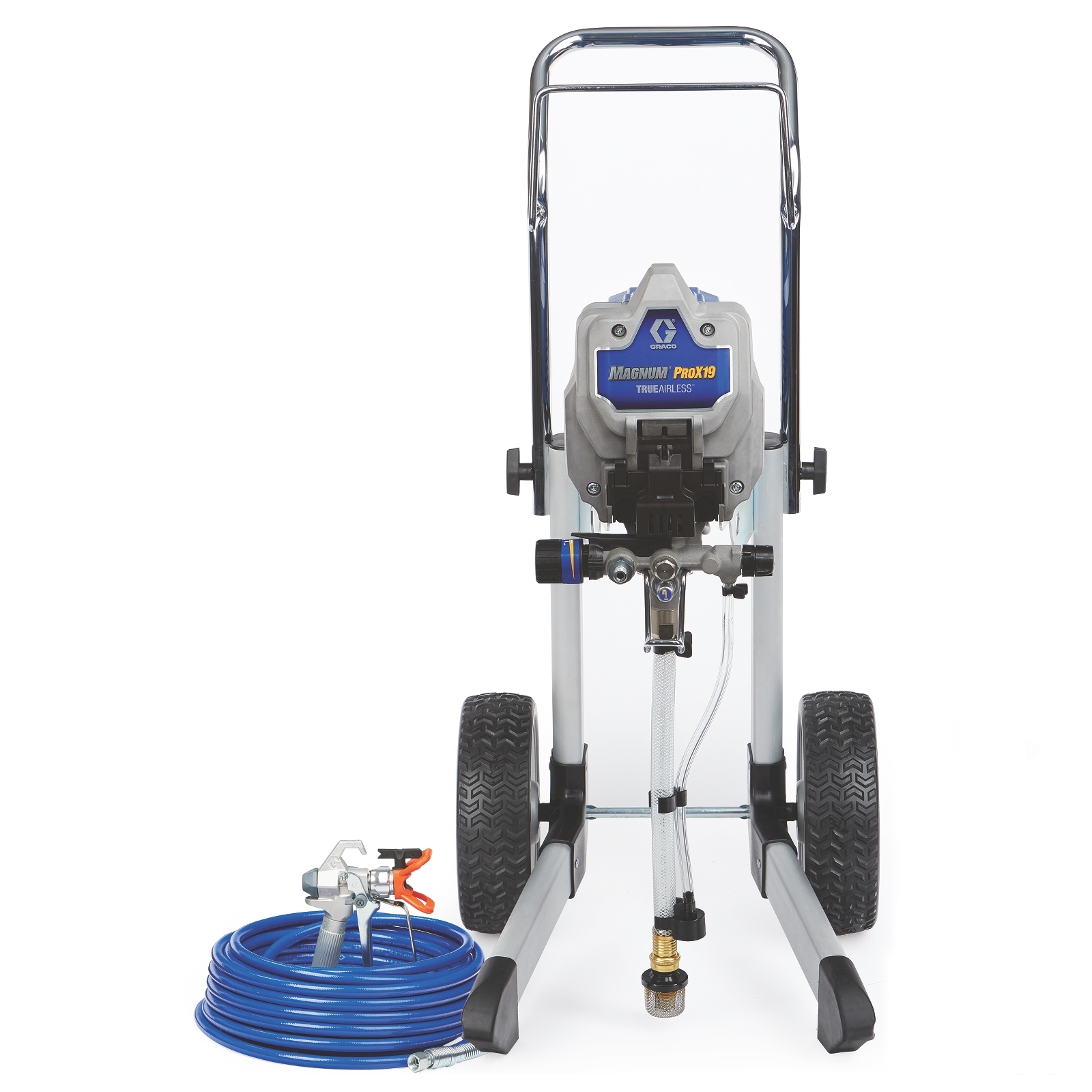

What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 243012 | SG3 Metal Spray Gun | 1 | ea |
| TRU515 | TrueAirless 515 Spray Tip | 1 | ea |
| 237859 | Spray Tip Guard | 1 | ea |
| 247340 | DuraFlex Hose 1/4 in x 50 ft | 1 | ea |
| 25M568 | FLUID, PUMP ARMOR, 8OZ | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 17J173 | Magnum ProX Paint Sprayer Replacement Cord |
| 119276 | FUSE, 12.5 APM, TIME LAG, 5 X 20 |
| 287770 | Fan, ProX17, ProX19, Stand/Cart |
| 17J881 | Repair Kit, Pressure Control, ProX17, ProX19, Prox21 Stand/Cart |
| 24Y329 | Repair Kit, Switch, ProX17, ProX19, ProX21 Stand/Cart |
| 235014 | Spray Prime/Drain Valve Kit |
| 17J867 | Repair Kit, Control Board, ProX17, ProX19, ProX21 Stand/Cart |
| 17F756 | Repair Kit, Motor, ProX17, ProX19 Stand/Cart |
| 288716 | Inlet Strainer |
| 195108 | TUBE DRAIN |
| 16H348 | TUBE, SUCTION |
