Magnum ProX21

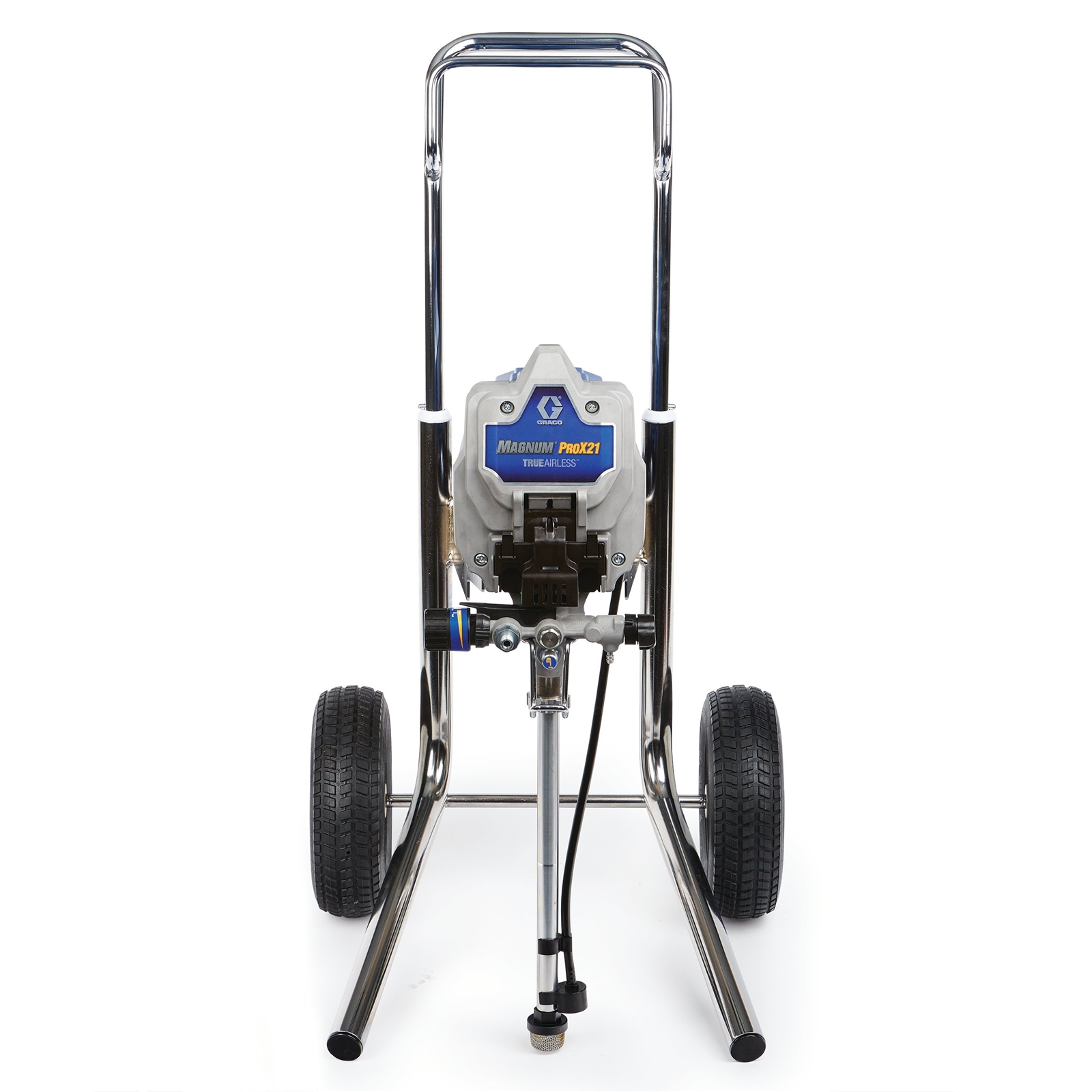

Magnum ProX21 Electric TrueAirless Sprayer, Cart

17G182

17G182_Magnum_ProX21_Cart_Main 17G182_Magnum_ProX21_Cart_Alt_1
Magnum ProX21 Cart, 17G180
Magnum ProX21 Cart, 17G180

Magnum ProX21

Magnum ProX21 Electric TrueAirless Sprayer, Cart

17G182

Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX21 airless sprayer with built-in cart. This reliable, jobsite-proven sprayer allows you to spray heavier materials and hot solvents, including solvent-based lacquer.

$849.00
USD MSRP
Find A Retailer

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX21 airless sprayer with built-in cart. This reliable, jobsite-proven sprayer allows you to spray heavier materials and hot solvents, including solvent-based lacquer.

  • ProX Stainless Steel Piston Pump - For greater reliability and long life

  • ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job

  • Longer Pump Stroke - Supports a 0.021 in tip to spray heavier material

  • DC Motor - Supports longer extension cords and up to 200 feet of airless hose

  • Hot Solvent Compatible - Handles hot solvents such as solvent-based lacquer

  • PushPrime - Fast and reliable start-up every time

  • SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths

  • Reverse-A-Clean Spray Tip - Quickly clears tip clogs

  • Durable Welded Frame - Easy to transport around the job site

  • Adjustable Pressure - Easy control of paint flow

17G182_Magnum_ProX21_Cart_Main
Magnum ProX21 Cart, 17G180

Specifications

Technical Specifications

Convert to Metric
Compatible Tip Size (in) 0.011, 0.013, 0.015, 0.017, 0.019, 0.021
Engine Size (HP) 0.875
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Includes 50 ft Hose, Metal SG3 Spray Gun, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide, RAC IV 515 Tip
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.47
Maximum Hose Length (ft) 200
Maximum Tip Size (in) 0.021
Maximum Tip Size 1 Gun (in) 0.021
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Model Magnum
Number of Guns 1
Outlet Paint Filter InstaClean
Phase 1
Power Rating (HP) 0.875
Power Source Electric
Pressure Control Type Adjustable
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Type Piston
Recommended Annual Usage (gal) 800
Series ProX21
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 22.45
Weight (lb) 49.5
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
Engine Size (HP) 0.875
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Includes 50 ft Hose, Metal SG3 Spray Gun, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide, RAC IV 515 Tip
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.47
Maximum Hose Length (m) 61.0000
Maximum Tip Size (cm) 0.0533
Maximum Tip Size (mm) 0.5334
Maximum Tip Size 1 Gun (cm) 0.0533
Maximum Tip Size 1 Gun (mm) 0.5334
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20670
Minimum Generator Power (W) 2500
Model Magnum
Number of Guns 1
Outlet Paint Filter InstaClean
Phase 1
Power Rating (HP) 0.875
Power Source Electric
Pressure Control Type Adjustable
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Type Piston
Recommended Annual Usage (gal) 800
Series ProX21
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 22.45
Weight (lb) 49.5
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE

What's Included

Part No. Description Qty Unit
115478 SCREW, MACH., TORX/SLT PAN HD 4 ea
115498 SCREW, MCH, SLOT, HEX, WASH HD 1 ea
115648 VALVE, SHUTOFF, POWERFLUSH 1 ea
117501 SCREW, MACH, SLOT HEX WASH HD 3 ea
118444 SCREW, MACH, SLOT, HEX 2 ea
118899 SWITCH, ROCKER, SPDT 1 ea
119452 CAP HUB 2 ea
15X737 BRACKET, SWITCH 1 ea
17J173 CORD, POWER 1 ea
17J430 HOOK,PAIL 1 ea
17K631 TAG, HANG, TIP, MAGNUM 1 ea
194503 ROD, GUIDE YOKE 2 ea
260212 SCREW,HEX WASHER HD 4 ea
287489 HANDLE, ASSY, HI-CART 1 ea
