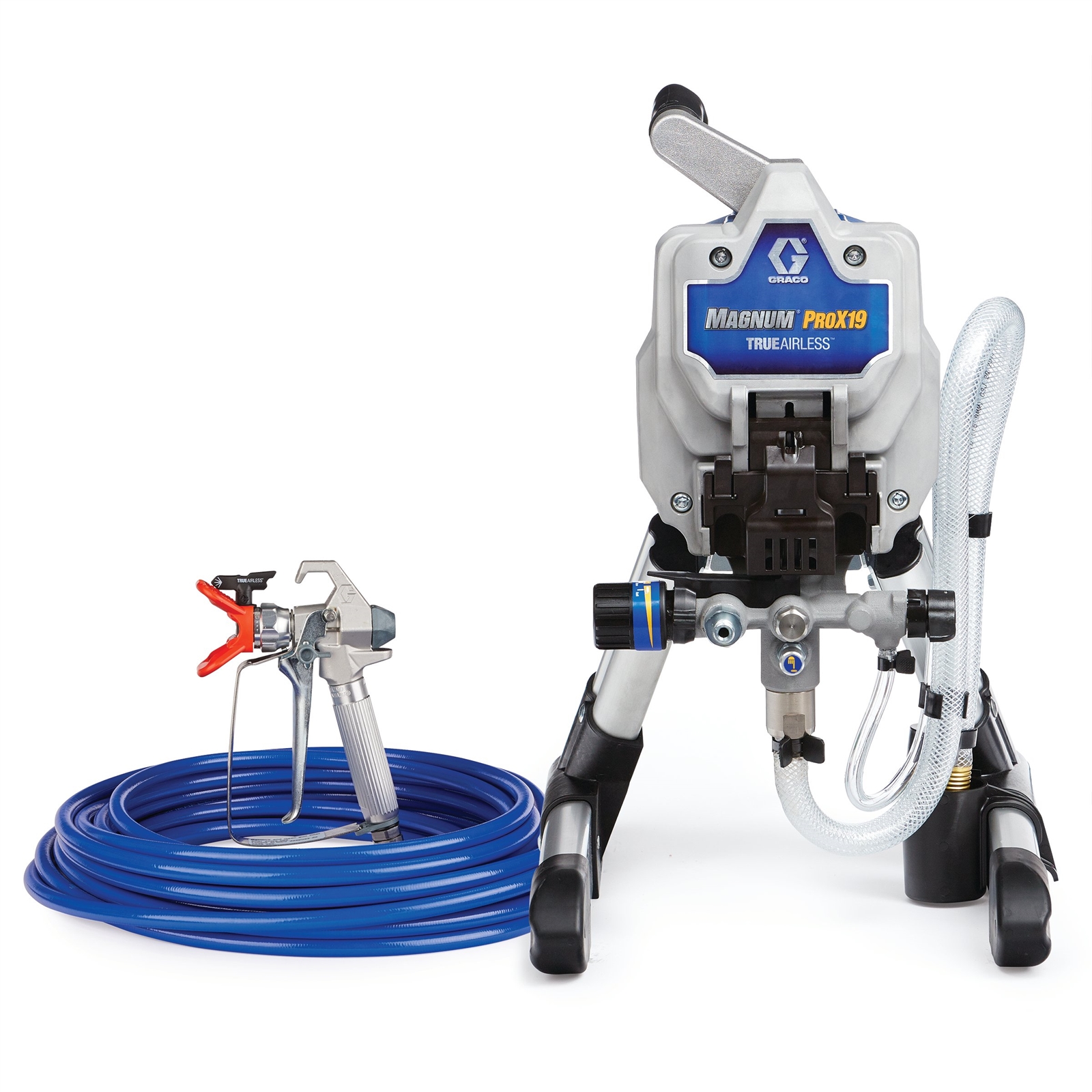

Magnum ProX19

Magnum ProX19 Electric TrueAirless Sprayer, Stand

17G179

17G179_Magnum_ProX19_Stand_Main 17G179_Magnum_ProX19_Stand_Alt_1
Magnum ProX19; 17G179

Magnum ProX19

Magnum ProX19 Electric TrueAirless Sprayer, Stand

17G179

The ProX19 airless sprayer is the solution for property maintenance pros, remodelers and general contractors with fast-paced projects of any kind. Spray thicker materials with larger tip size capability and avoid downtime with the ability to quickly swap the pump on the job without tools.

$619.00
USD MSRP
Find A Retailer

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The ProX19 airless sprayer is the solution for property maintenance pros, remodelers and general contractors with fast-paced projects of any kind. Spray thicker materials with larger tip size capability and avoid downtime with the ability to quickly swap the pump on the job without tools.

  • ProX Stainless Steel Piston Pump - For greater reliability and long life

  • ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job

  • DC Motor - Supports longer extension cords and up to 150 feet of airless hose

  • PushPrime - Fast and reliable start-up every time

  • SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths

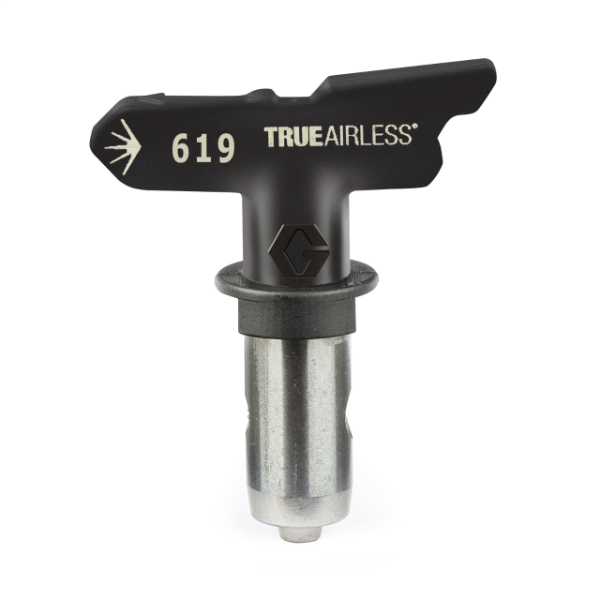

  • Reverse-A-Clean Spray Tip - Quickly clears tip clogs

  • Convenient Cart - Move paint and sprayer around job site

  • Adjustable Pressure - Easy control of paint flow

  • InstaClean Pump Filter - Added pump filtration reduces tip clogs from debris in the paint

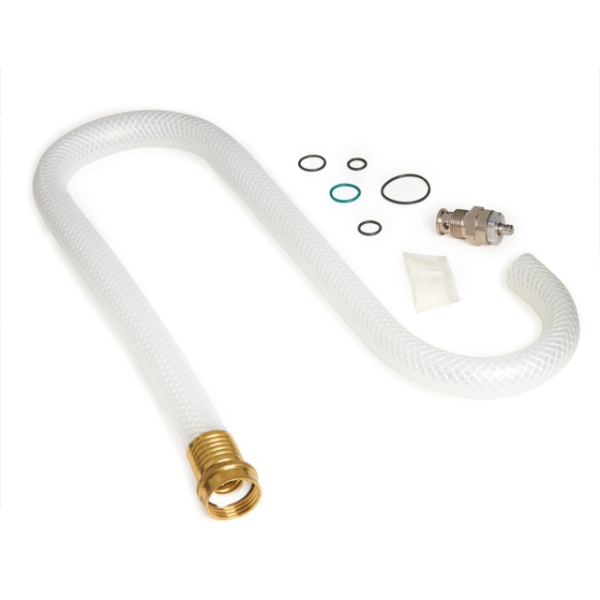

  • Power Flush - Connects to garden hose for fast and easy cleanup

17G179_Magnum_ProX19_Stand_Main
Magnum ProX19; 17G179

Specifications

Technical Specifications

Convert to Metric
Compatible Tip Size (in) 0.011, 0.013, 0.015, 0.017, 0.019
Engine Size (HP) 0.875
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes 50 ft Hose, Metal SG3 Spray Gun, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide, RAC IV 515 Tip
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.38
Maximum Hose Length (ft) 150
Maximum Tip Size (in) 0.019
Maximum Tip Size 1 Gun (in) 0.019
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Phase 1
Power Rating (HP) 0.875
Power Source Electric
Pressure Control Type Adjustable
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Type Piston
Recommended Annual Usage (gal) 500
Series ProX19
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 12.4
Weight (lb) 27.3
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
Engine Size (HP) 0.875
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes 50 ft Hose, Metal SG3 Spray Gun, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide, RAC IV 515 Tip
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.38
Maximum Hose Length (m) 45.7500
Maximum Tip Size (cm) 0.0483
Maximum Tip Size (mm) 0.4826
Maximum Tip Size 1 Gun (cm) 0.0483
Maximum Tip Size 1 Gun (mm) 0.4826
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20670
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Phase 1
Power Rating (HP) 0.875
Power Source Electric
Pressure Control Type Adjustable
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Type Piston
Recommended Annual Usage (gal) 500
Series ProX19
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 12.4
Weight (lb) 27.3
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE

What's Included

Part No. Description Qty Unit
115478 SCREW, MACH., TORX/SLT PAN HD 4 ea
115498 SCREW, MCH, SLOT, HEX, WASH HD 1 ea
115648 VALVE, SHUTOFF, POWERFLUSH 1 ea
116139 GRIP, HANDLE 1 ea
117493 SCREW, MACH, HEX WSHER HD 1 ea
117501 SCREW, MACH, SLOT HEX WASH HD 1 ea
118444 SCREW, MACH, SLOT, HEX 2 ea
118899 SWITCH, ROCKER, SPDT 1 ea
15X737 BRACKET, SWITCH 1 ea
17G328 PLATE,MOUNT, MOTOR 1 ea
17H422 CUP, INLET DRIP 1 ea
17J173 CORD, POWER 1 ea
17K631 TAG, HANG, TIP, MAGNUM 1 ea
194503 ROD, GUIDE YOKE 2 ea
257020 TUBE, SUCTION SET, X5 1 ea
260212 SCREW,HEX WASHER HD 12 ea
276864 HANDLE, SPRAYER 1 ea
