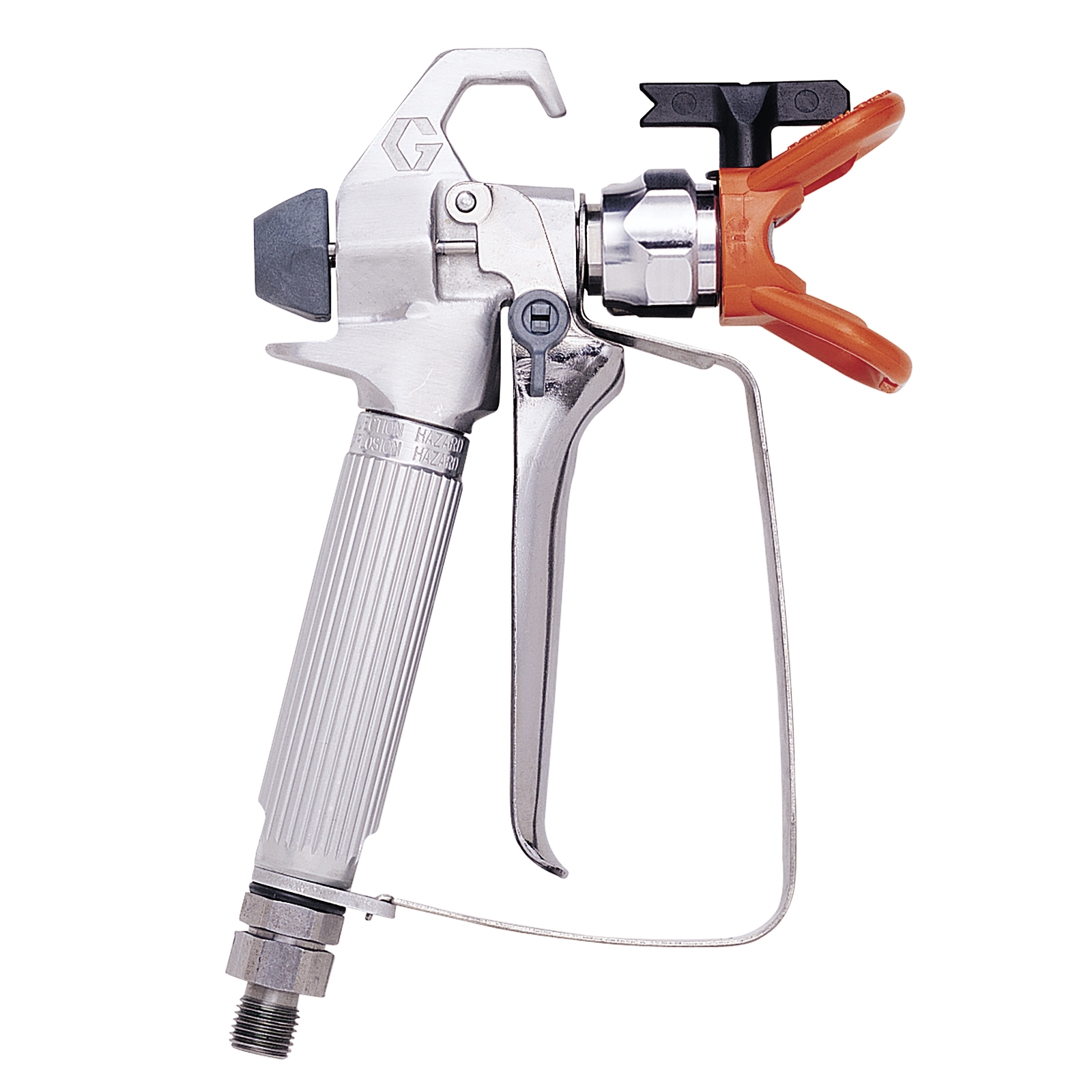

SG3 Airless Gun

SG3 Metal Spray Gun

Part Number: 243012

SG3 Airless Gun

SG3 Metal Spray Gun

Part Number: 243012

Use with any Magnum airless paint sprayer. Built-in hose swivel to reduce hose twists. Ideal for homeowners and diyer's for spraying a variety of coatings including primers, stains, varnishes and latex. Includes 515 spray tip, 60 mesh gun filter and hand-tight guard
$169.00
USD MSRP
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Use with any Magnum airless paint sprayer. Built-in hose swivel to reduce hose twists. Ideal for homeowners and diyer's for spraying a variety of coatings including primers, stains, varnishes and latex. Includes 515 spray tip, 60 mesh gun filter and hand-tight guard

Graco's premium, aluminum spray gun is designed to deliver performance, be the longest lasting and most reliable spray gun on the market. The well-balanced and lightweight full 4-finger trigger allows for a comfortable spraying experience. The SG3 spray gun comes with a built-in hose swivel to help reduce hose twists.

  • Built-in hose swivel provides for easy gun movement and reduces hose twisting
  • Full 4-finger trigger with light, smooth pull provides control and comfort
  • Thumb engaged safety lock allows you to lock the handle when not spraying for safety
  • Maximum operating pressure of 3,600 psi
  • Replaceable in-handle paint filter reduces tip clogging and improves the finish
  • Replaceable gun needle keeps maintenance simple
  • For use with Magnum and Graco paint sprayers
  • Includes built-in hose swivel, 515 spray tip, 60 mesh gun filter and tip guard

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Water Based Paint, Solventborne Paints
Component Type Single Component
Fluid Orifice Size (in) 0.125
For Use With Project Painter Plus, X5, X7, ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart, Magnum A30 ProPlus, Magnum A45 ProPlus, Magnum A60 ProPlus, Magnum A80 ProPlus, Magnum A100 ProPlus, Magnum ProS19 ProPlus, Magnum ProS21 ProPlus
Gun Activation Manual
Gun Type Airless Gun
Gun Weight (oz) 22
Includes TrueAirless 515 Spray Tip, Spray Tip Guard, Smooth Glide Swivel
Maximum Fluid Pressure (MPa) 24.8
Maximum Fluid Pressure (psi) 3600
Model SG3
Overall Height (in) 8
Overall Length (in) 1.75
Overall Width (in) 5
Purge Method Liquid
Series Airless Gun
Trigger Lock Locking
Trigger Type Four-Finger
Type Spray Gun
Compatible Material Water Based Paint, Solventborne Paints
Component Type Single Component
Fluid Orifice Size (cm) 0.318
Fluid Orifice Size (in) 0.125
Fluid Orifice Size (mm) 3.17
For Use With Project Painter Plus, X5, X7, ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart, Magnum A30 ProPlus, Magnum A45 ProPlus, Magnum A60 ProPlus, Magnum A80 ProPlus, Magnum A100 ProPlus, Magnum ProS19 ProPlus, Magnum ProS21 ProPlus
Gun Activation Manual
Gun Type Airless Gun
Gun Weight (oz) 22
Includes TrueAirless 515 Spray Tip, Spray Tip Guard, Smooth Glide Swivel
Maximum Fluid Pressure (MPa) 24.8
Maximum Fluid Pressure (bar) 248
Maximum Fluid Pressure (kPa) 24800
Maximum Fluid Pressure (psi) 3600
Model SG3
Overall Height (cm) 20.32
Overall Height (mm) 203.2
Overall Length (cm) 4.445
Overall Length (mm) 44.45
Overall Width (cm) 12.7
Overall Width (mm) 127
Purge Method Liquid
Series Airless Gun
Trigger Lock Locking
Trigger Type Four-Finger
Type Spray Gun

Repair Parts

Part No. Description
243012 SG3 Metal Spray Gun
288750 Gun Filter 100 mesh
288749 Gun Filter 60 mesh
