Magnum ProX17

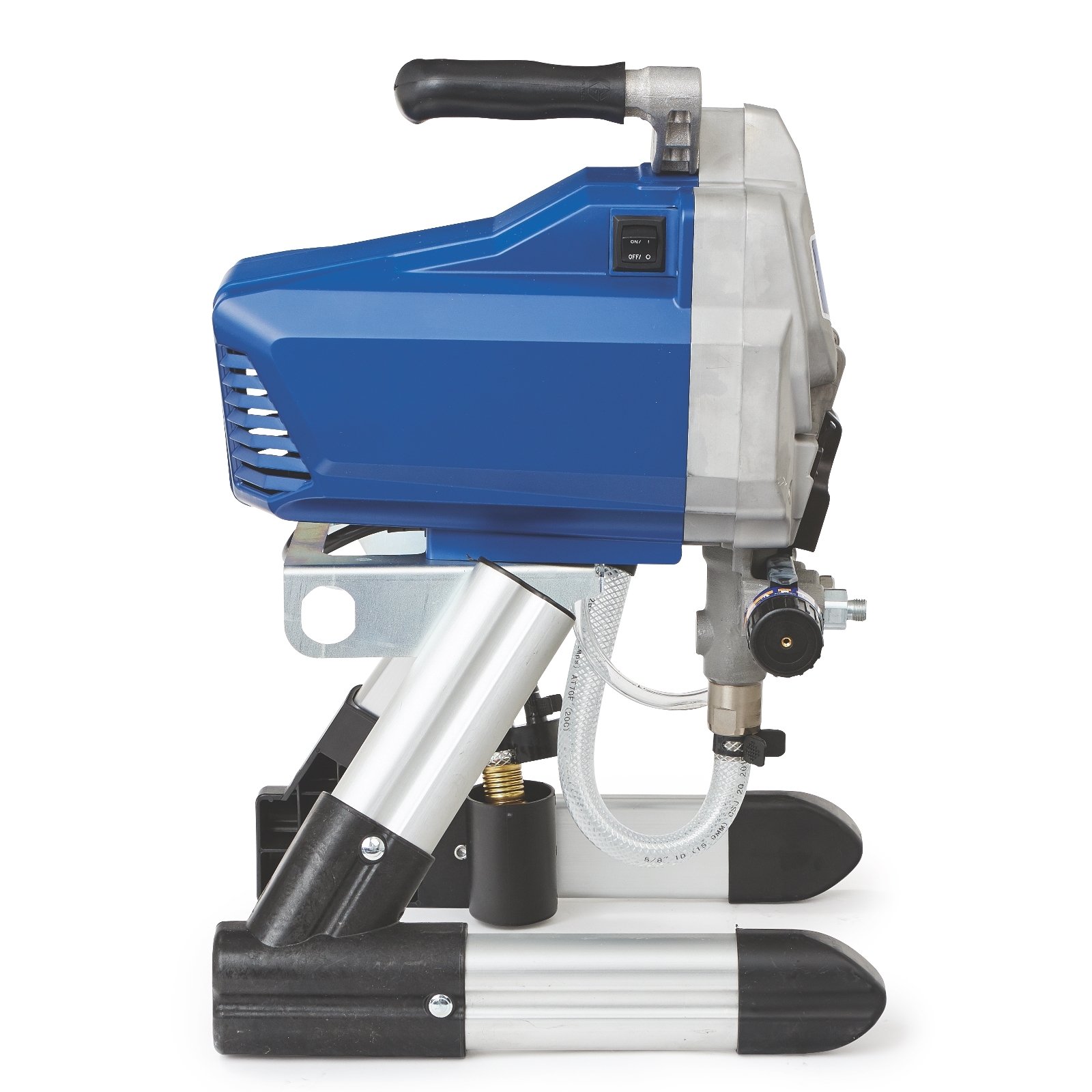

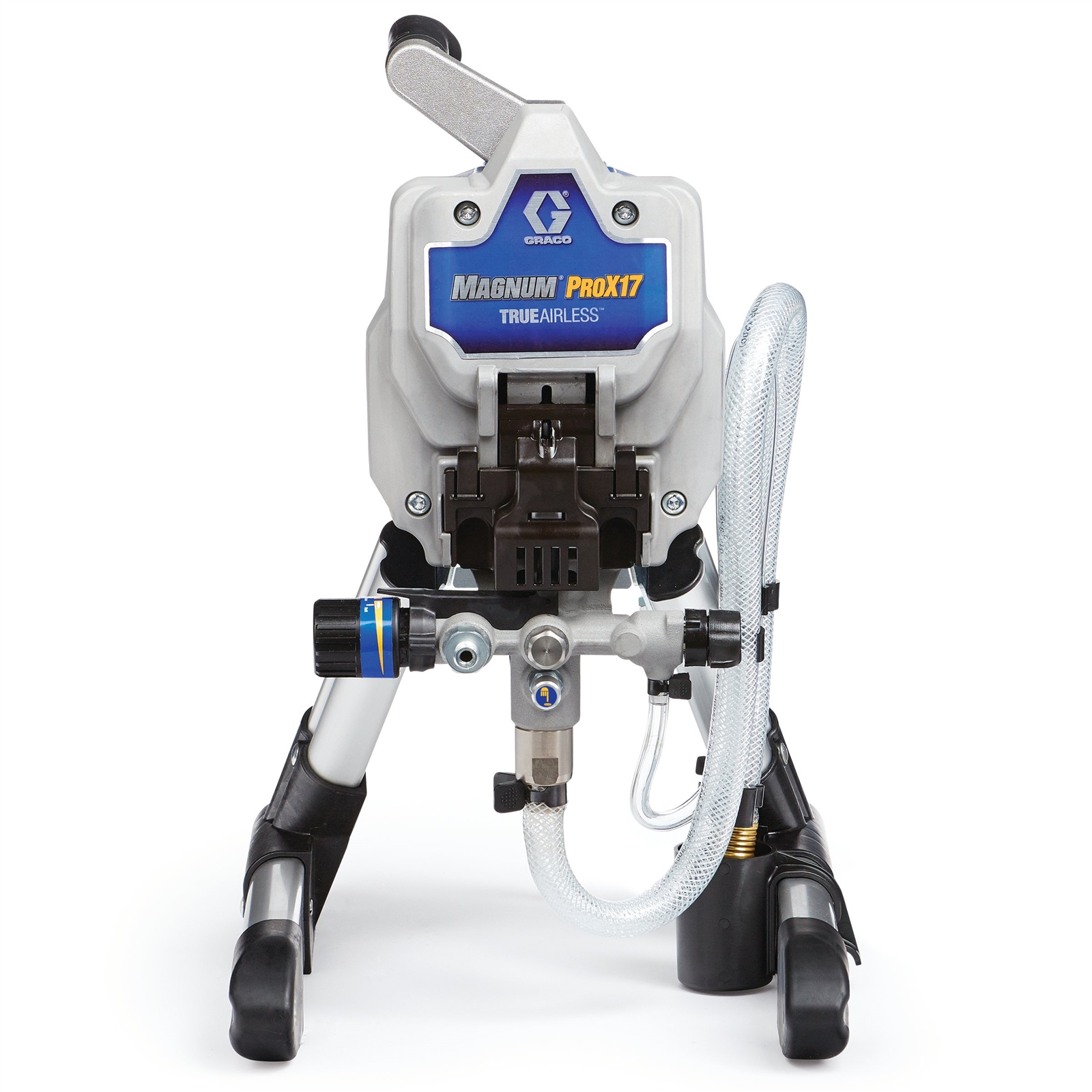

Magnum ProX17 Electric TrueAirless Sprayer, Stand

Part Number: 17G177

Magnum ProX17

Magnum ProX17 Electric TrueAirless Sprayer, Stand

Part Number: 17G177

Property maintenance pros, remodelers and general contractors work smarter and faster with the ProX17. This innovative sprayer can tackle any interior, rental property and large home project. Replace the pump on the job with no tools and use longer hose lengths to be more productive.
$659.00
USD MSRP
Find A Retailer
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Quick Operation Videos

Review Highlights

READ ALL REVIEWS

“Bought it used it and man i finished quick and easy”
– Sgtmtz, 9/26/21★★★★★

"Found the Prox17 to be a great product so far. Clean up is a bit of a pain when using oil based product. Uses a lot more paint than I expected.”
– Hammerforged, 8/27/21★★★★★

“So far one home painted and no issues. Quick and easy setup and clean up”
– Willis, 8/25/21★★★★

"I have been painting more and more regularly and with a new project - I decided to upgrade to a Magnum ProX 17. This proved to be substantial improvement…It was easy to prepare and prime…Quick and easy application, smooth results. The sprayer is a game changer."
– JMic, 8/15/21★★★★

“It worked great …sprayed a parking lot with some rejuvenating oil, took 3 hrs, usually takes 3 people 7 hrs to squeegee on. Easy to clean and fill with the storage solution.”
– Rancher3305, 8/2/21★★★★★

“Its exceeded my expectations. everything about it. one wish would be a more flexible hose. but thats not even a complaint. I would recommend to anyone.”
– Bam0, 7/20/21★★★★★

Features

Product Brochure
Property maintenance pros, remodelers and general contractors work smarter and faster with the ProX17. This innovative sprayer can tackle any interior, rental property and large home project. Replace the pump on the job with no tools and use longer hose lengths to be more productive.
  • ProX Stainless Steel Piston Pump - For greater reliability and long life
  • ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job
  • DC Motor - Supports longer extension cords and up to 150 feet of airless hose
  • PushPrime - Fast and reliable start-up every time
  • SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths
  • TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
  • Compact Design - Easy to transport around the job site
  • Adjustable Pressure - Easy control of paint flow
  • InstaClean Pump Filter - Extra filtration reduces tip clogging
  • Power Flush Adapter - Connects to garden hose for fast and easy cleanup

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 8
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015, 0.017
Engine Size (HP) 0.75
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.34
Maximum Hose Length (ft) 150
Maximum Tip Size (in) 0.017
Maximum Tip Size 1 Gun (in) 0.017
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Overall Height (in) 21.2
Overall Length (in) 15.1
Overall Width (in) 13.2
Phase 1
Power Rating (HP) 0.75
Power Rating (W) 559
Power Rating (kW) 0.56
Power Source Electric
Pressure Control Type Adjustable
Product Series Pro
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Sleeve Material Stainless Steel
Pump Type Piston
Recommended Annual Usage (gal) 300
Series ProX17
Type Airless Sprayer
Voltage (V) 120
Weight (lb) 27
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
Amperage (A) 8
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015, 0.017
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 1.3
Maximum Hose Length (m) 45
Maximum Tip Size (cm) 0.0432
Maximum Tip Size (in) 0.017
Maximum Tip Size (mm) 0.4318
Maximum Tip Size 1 Gun (cm) 0.0432
Maximum Tip Size 1 Gun (in) 0.017
Maximum Tip Size 1 Gun (mm) 0.4318
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Overall Height (cm) 53.9
Overall Height (mm) 539
Overall Length (cm) 38.4
Overall Length (mm) 384
Overall Width (cm) 33.5
Overall Width (mm) 335
Phase 1
Power Rating (W) 559
Power Rating (kW) 0.56
Power Source Electric
Pressure Control Type Adjustable
Product Series Pro
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Sleeve Material Stainless Steel
Pump Type Piston
Series ProX17
Type Airless Sprayer
Voltage (V) 120
Weight (kg) 12
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE

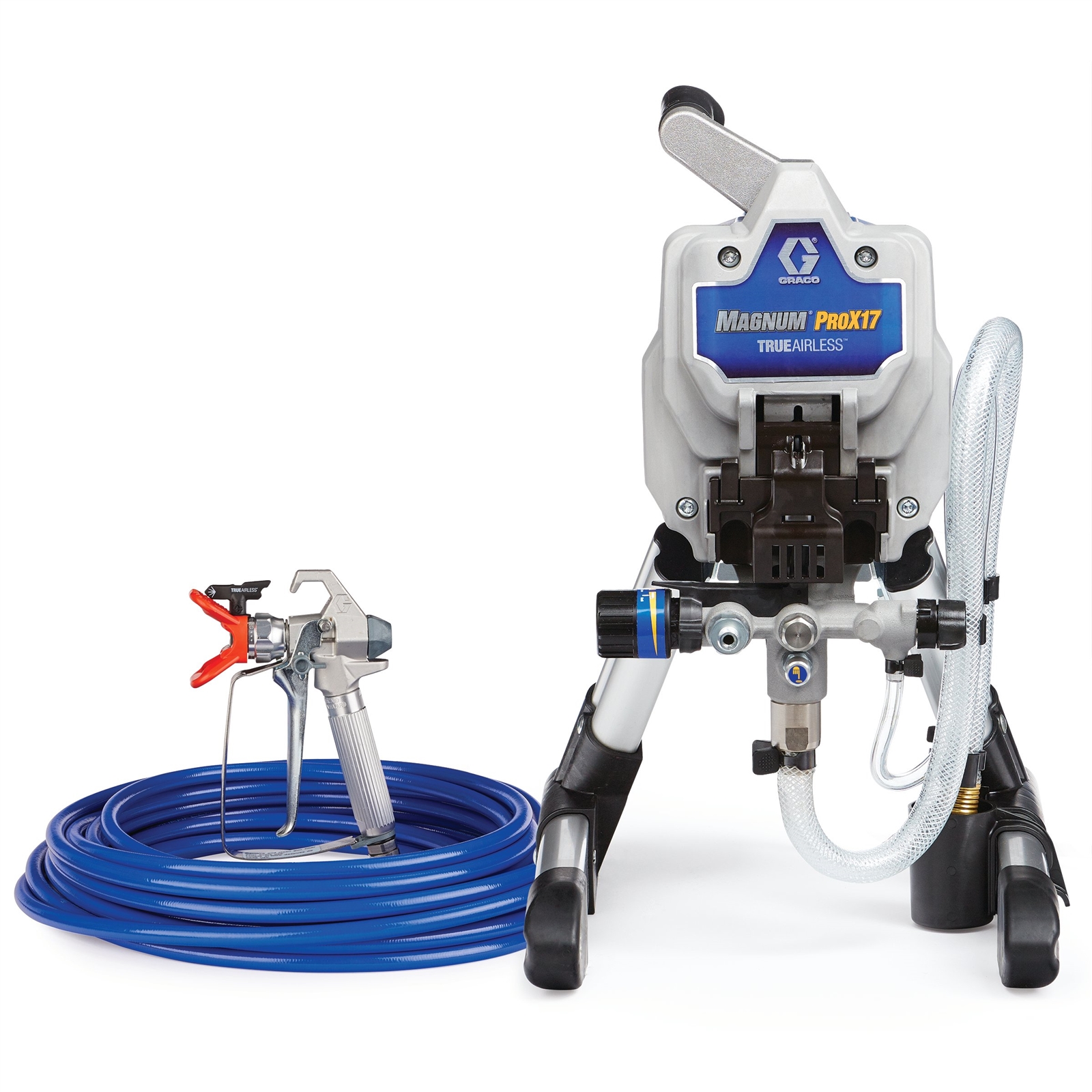

What's Included

Part No. Description Qty Unit
243012 SG3 Metal Spray Gun 1 ea
TRU515 TrueAirless 515 Spray Tip 1 ea
237859 Spray Tip Guard 1 ea
247340 DuraFlex Hose 1/4 in x 50 ft 1 ea
25M568 FLUID, PUMP ARMOR, 8OZ 1 ea

Repair Parts

Part No. Description
17J173 CORD, POWER
119276 FUSE, 12.5 APM, TIME LAG, 5 X 20
17K285 KIT, MOTOR, PROX 17
287770 Fan, ProX17, ProX19, Stand/Cart
17J881 Repair Kit, Pressure Control, ProX17, ProX19, Prox21 Stand/Cart
24Y329 Repair Kit, Switch, ProX17, ProX19, ProX21 Stand/Cart
235014 Spray Prime/Drain Valve Kit
17J867 Repair Kit, Control Board, ProX17, ProX19, ProX21 Stand/Cart
17J874 Magnum ProX Pump Assembly Replacement Kit
288716 Inlet Strainer
197607 TUBE, SUCTION
