TC Pro PLUS Cordless

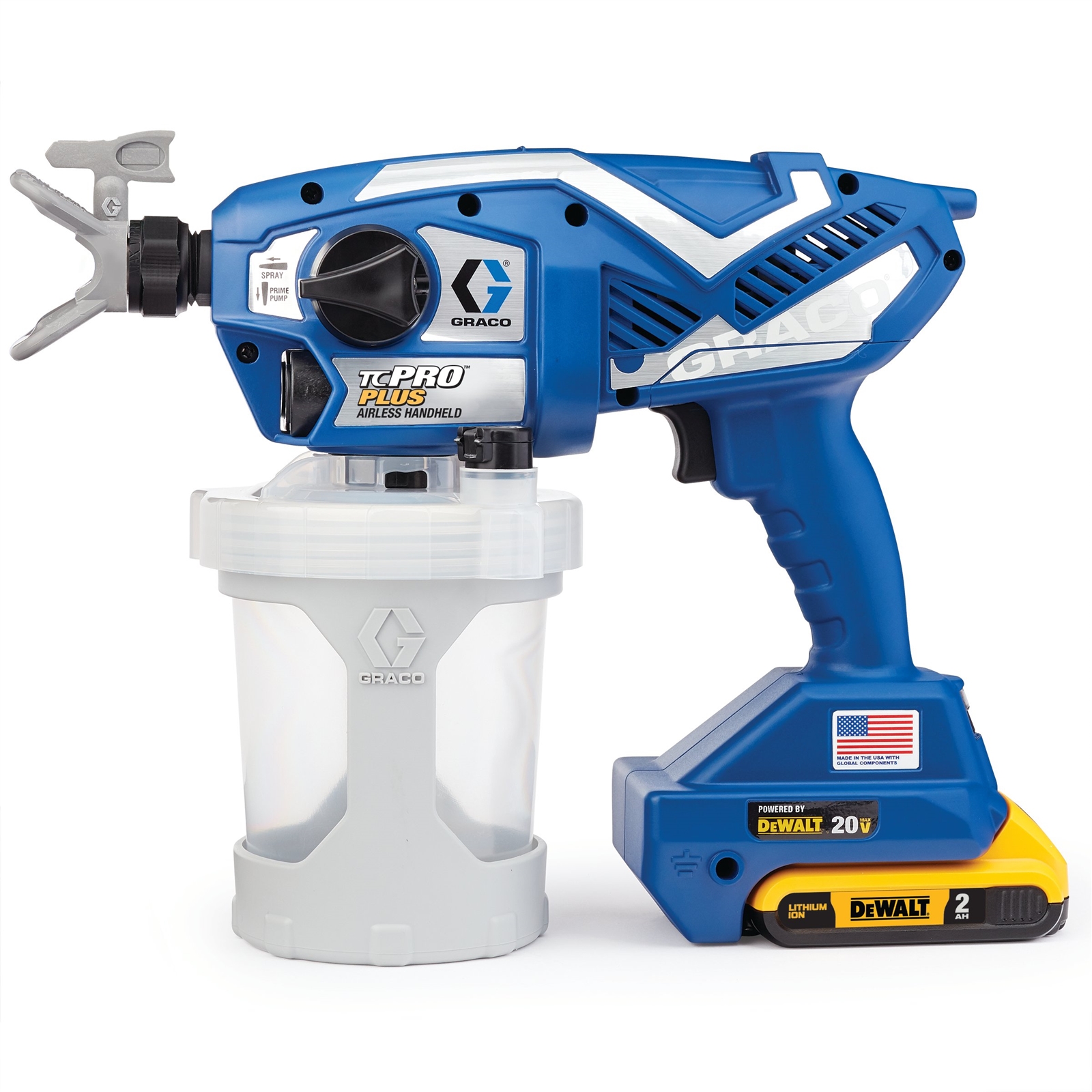

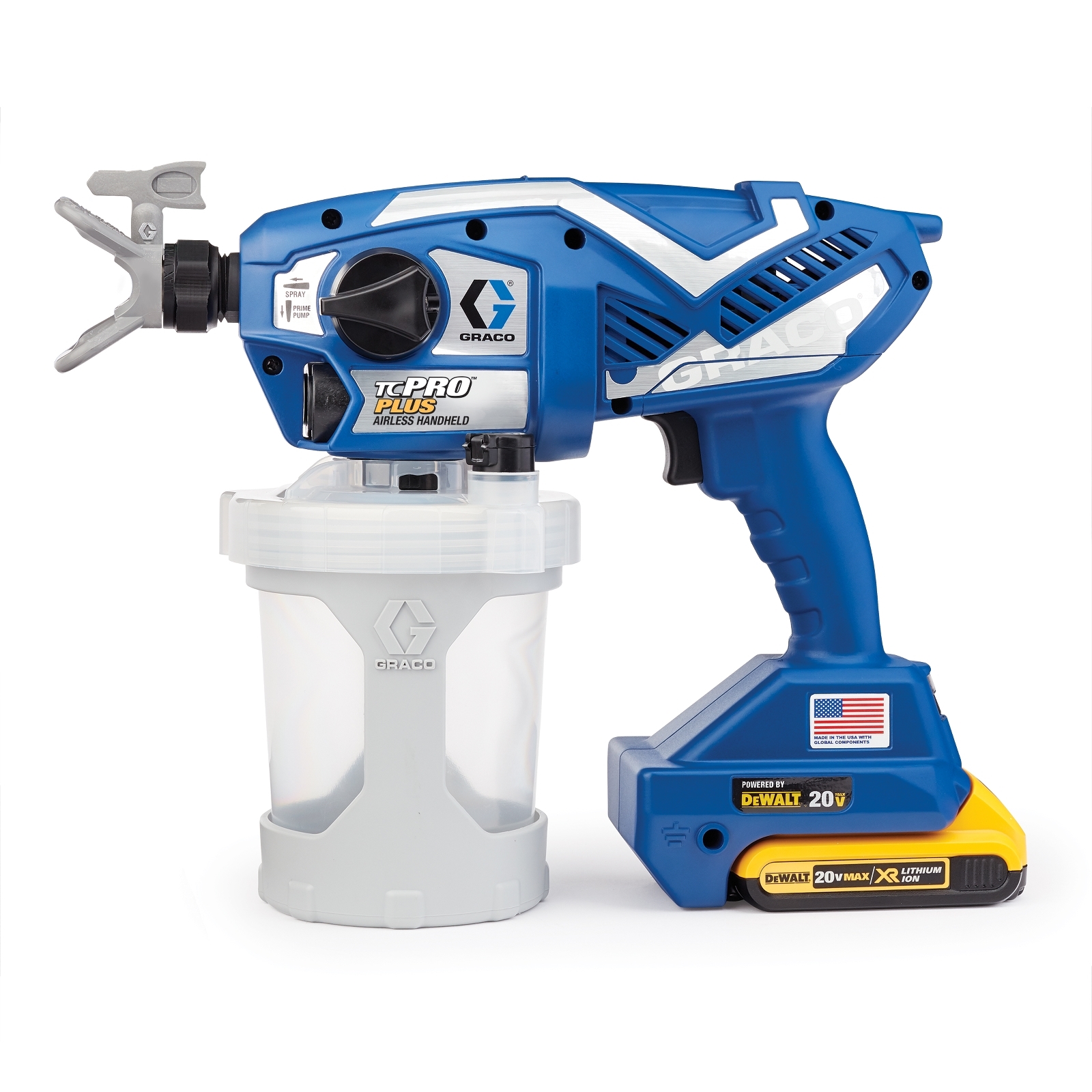

TC Pro PLUS Cordless Handheld Airless Sprayer

17N223

17N223_TC_Pro_PLUS_Main 17N223_TC_Pro_PLUS_Alt_1 17N223_TC_Pro_PLUS_Alt_2 17N223_TC_Pro_PLUS_Includes 17P474_DeWalt_20V_MAX_Battery_Alt_2 17N223_TC_Pro_PLUS_App_1

TC Pro PLUS Cordless

TC Pro PLUS Cordless Handheld Airless Sprayer

17N223

Powered by DEWALT, the TC Pro PLUS Cordless handheld electric airless sprayer sprays flammable and water- and solvent-based materials. With unmatched performance and reliable startup, this handheld delivers a consistent spray fan with less overspray for less prep time and a professional finish.
$769.00
USD MSRP
Find A Retailer
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Powered by DEWALT, the TC Pro PLUS Cordless handheld electric airless sprayer sprays flammable and water- and solvent-based materials. With unmatched performance and reliable startup, this handheld delivers a consistent spray fan with less overspray for less prep time and a professional finish.
  • Triax Triple Piston Pump - Unmatched performance with reliable startup providing the Perfect Airless Finish
  • Powered by DEWALT® - Proven quality, contractor recognized battery manufacturer, spray up to 1 gallon with each charge thanks to DEWALT 20V Lithium Ion system
  • Hot Solvent Compatible - Sprays the widest range of materials including flammable and water- and solvent-based materials such as solvent-based lacquer
  • ProConnect - On-the-job pump replacement system allowing a worn pump to be replaced in 3 steps using only a screwdriver
  • SmartControl - Precision pressure control that delivers a consistent spray fan without pressure fluctuations
  • ProControl II - Adjust motor speed to spray at virtually any speed that the job demands
  • TC Pro Spray Tips - Deliver exceptional spraying results at low pressure and make clearing tip clogs simple with Reverse-A-Clean

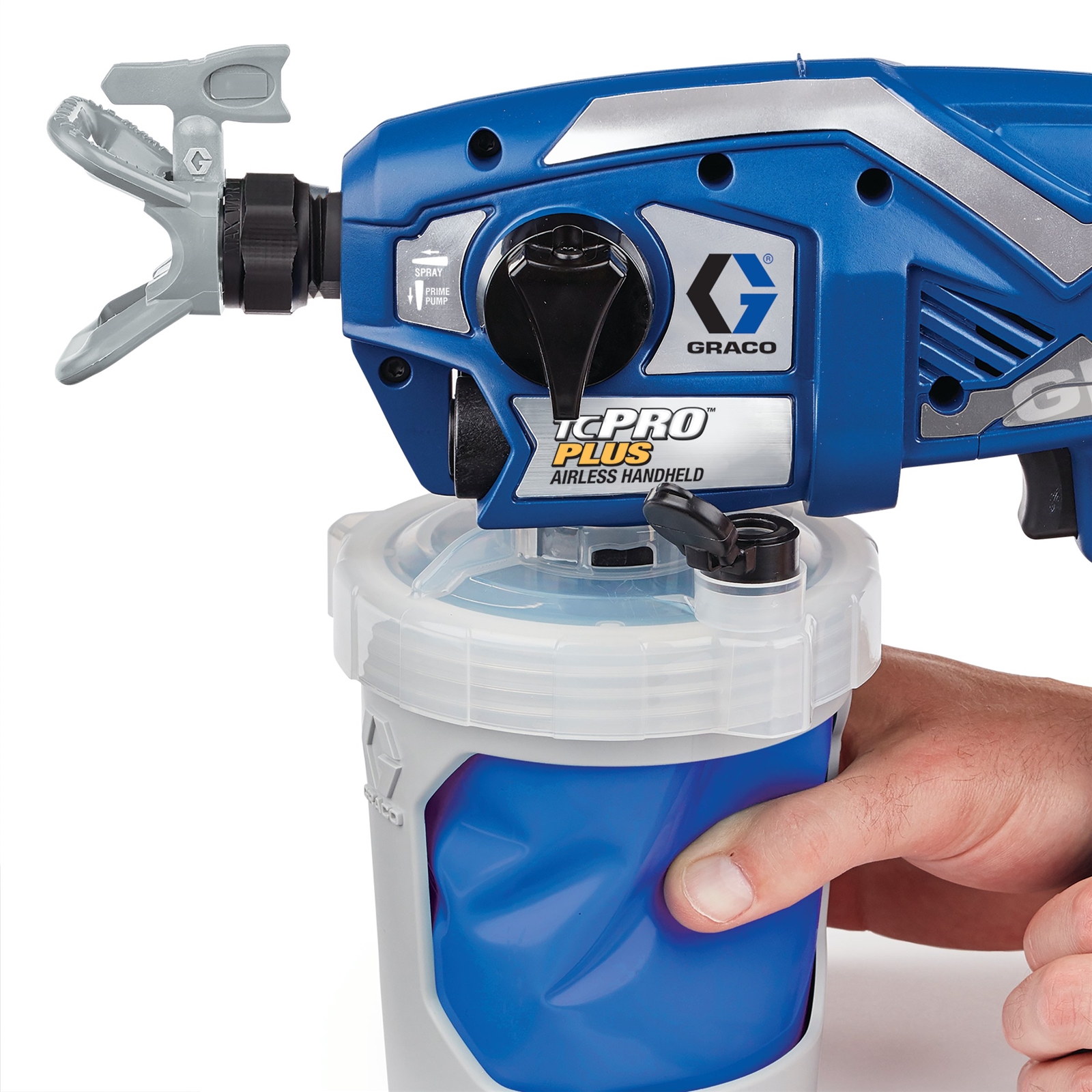

  • FlexLiner Paint Bags - Disposable liners allow for easy setup and reduces cleanup time, toss or reuse
17N223_TC_Pro_PLUS_Includes

Specifications

Technical Specifications

Convert to Metric
Battery Capacity (Ah) 2
Battery Chemistry Lithium-ion
Battery Voltage (V) 20
Compatible Replacement Pump 17P187
Compatible Tip Size (in) 0.008, 0.010, 0.012, 0.014, 0.016
Frame Configuration Handheld

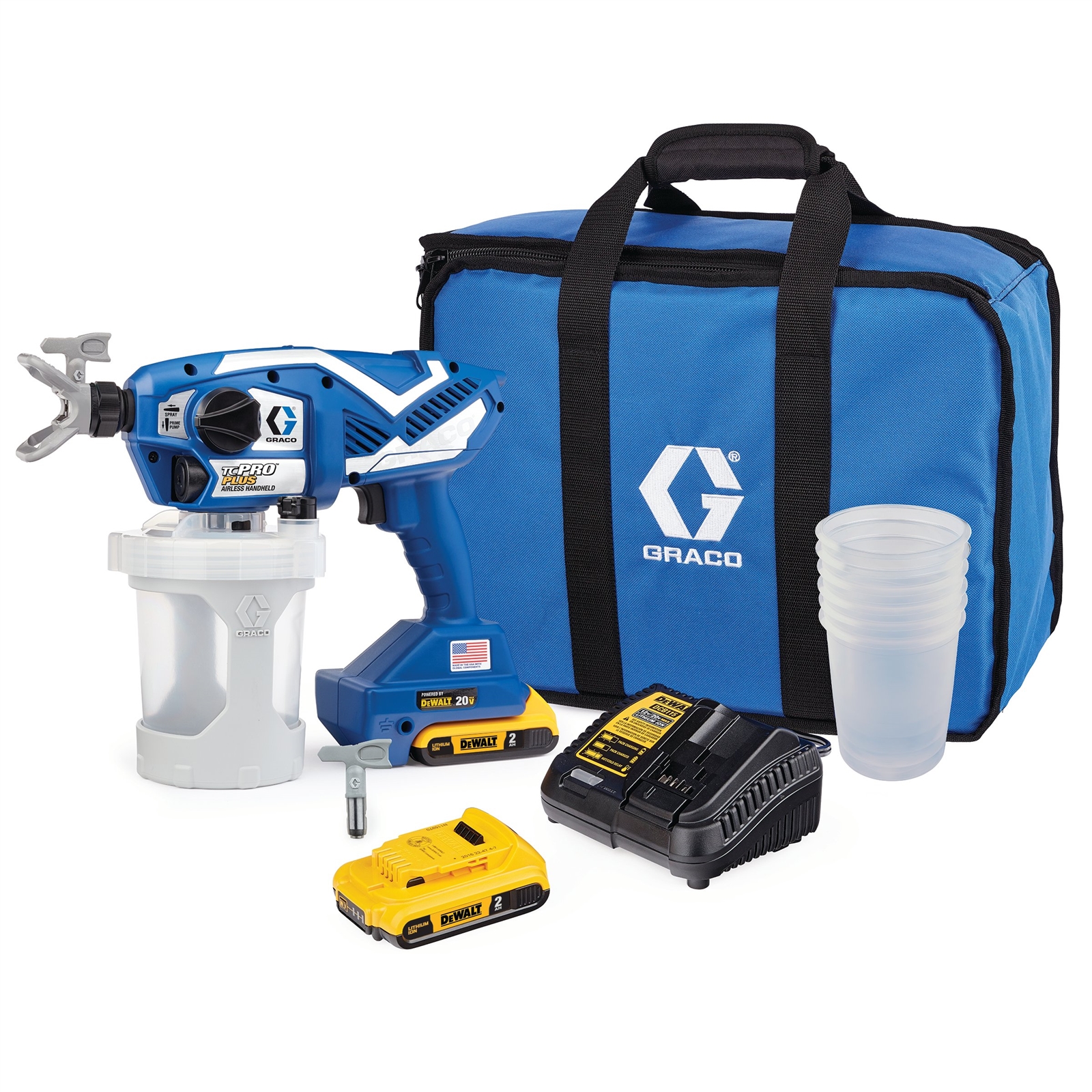

Includes TC Pro 210 Spray Tip, TC Pro 514 Spray Tip, TC Pro PLUS Guard, 6 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX Compact XR Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, 100 Mesh Filter, Storage Bag, Pump Armor Storage Fluid 4 oz
Maximum Flow Rate (GPM) 0.05
Maximum Tip Size (in) 0.016
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (psi) 2000
Minimum Working Pressure (psi) 500
Model TC Pro PLUS
Overall Height (in) 10.5
Overall Length (in) 14.0
Overall Width (in) 5
Power Source Battery Powered
Pressure Control Type ProControl II
Recommended Annual Usage (gal) 50
Series Cordless
Standards Met ETL Certified, ETL File #102260835MIN-003
Type Handheld Cordless Airless Sprayer
Weight (lb) 5
Battery Capacity (Ah) 2
Battery Chemistry Lithium-ion
Battery Voltage (V) 20
Compatible Replacement Pump 17P187
Frame Configuration Handheld
Includes TC Pro 210 Spray Tip, TC Pro 514 Spray Tip, TC Pro PLUS Guard, 6 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX Compact XR Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, 100 Mesh Filter, Storage Bag, Pump Armor Storage Fluid 4 oz
Maximum Flow Rate (L/min) 0.2
Maximum Tip Size (cm) 0.0406
Maximum Tip Size (mm) 0.4064
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Minimum Working Pressure (bar) 35
Minimum Working Pressure (kPa) 3500
Model TC Pro PLUS
Overall Height (cm) 26.7
Overall Height (mm) 267
Overall Length (cm) 36.1
Overall Length (mm) 361
Overall Width (cm) 12.7
Overall Width (mm) 127
Power Source Battery Powered
Pressure Control Type ProControl II
Series Cordless
Standards Met ETL Certified, ETL File #102260835MIN-003
Type Handheld Cordless Airless Sprayer
Weight (kg) 2

What's Included

Part No. Description Qty Unit
TCP210 TC Pro SwitchTip 210 1 ea
TCP514 TC Pro SwitchTip 514 1 ea
17P575 TC Pro PLUS Tip Guard 1 ea
16W847 32 oz FlexLiner Paint Cup 6 ea
17P474 DEWALT 20V MAX Compact XR Lithium Ion Battery Pack 2 ea
17P475 DEWALT 20V MAX Lithium Ion Battery Charger 1 ea
17N194 TC Pro Storage Bag 1 ea
17M938 FILTER, FLUID, 60 MESH 1 ea
17M939 FILTER, FLUID, 100 MESH 1 ea
