SD™ Blue Pump Tote Package – 1.5 m (5 ft) Suction Hose Length – Automatic Nozzle – SST Clamp Fittings
Part Number: 24V678
SD
SD™ Blue Pump Tote Package – 1.5 m (5 ft) Suction Hose Length – Automatic Nozzle – SST Clamp Fittings
Part Number: 24V678
Graco's SD Series DEF solutions are built on versatility with a Husky 515 AODD pump delivering up to 57 lpm (15 gpm) and operating on as little as 2.1 to 3.4 bar (30 to 50 psi). Increasing productivity this powerful pneumatic design provides superior suction and lift in tanks, totes and drums. Wheth...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Graco's SD Series DEF solutions are built on versatility with a Husky 515 AODD pump delivering up to 57 lpm (15 gpm) and operating on as little as 2.1 to 3.4 bar (30 to 50 psi). Increasing productivity this powerful pneumatic design provides superior suction and lift in tanks, totes and drums. Whether a small garage or large dealership, Graco has a complete line of Diesel Exhaust Fluid (DEF) for every application, capable of higher outputs over longer runs.
Typical applications include automotive and heavy-duty dealerships, mining, service and fast lube centres, fleet service facilities, in-plant and lube trucks.
- Modular air valve with a stall-free, low-pulsation design for smooth and rapid changeover to increase efficiency and minimise downtime
- Robust design with bolt-through fluid cover design to eliminate leaks and provide safety and reliability
- Rugged construction built to resist corrosion for reliable performance and long life
- High-efficiency air valves operate at a maximum of 28 scfm
- Centre and end porting options available
- Up to 4.57 m (15 ft) of suction lift provides installation flexibility
- 5 year warranty. See manufacturers website for details.

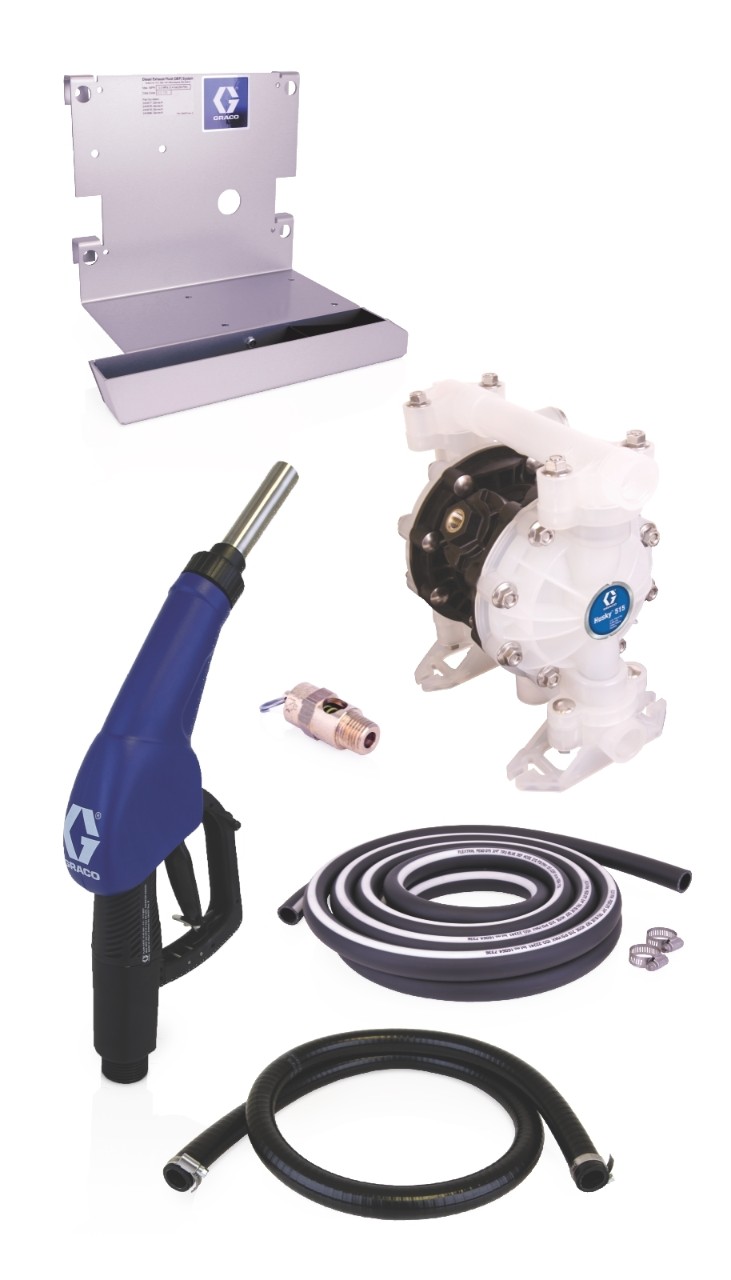

- Package includes: Husky 515 AODD pump (127643), SD tote/wall mount bracket with nozzle holder, LD automatic nozzle with SST spout (127649), 6m (20 ft) dispense hose with (2) SST clamps (24W161), 1.5 m (5 ft) suction hose with (2) SST clamps (24W149), and 3.4 bar (50 psi) air safety valve (116306)
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | Industrial |
|---|---|
| Compatible Material | Diesel Exhaust Fluid |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | BSPP |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | BSPP |
| For Use With | DEF |
| Hose Length (ft) | 5 |
| Includes | Air Operated Diaphragm Pump, Mounting Bracket, LD Automatic Nozzle with SST Spout, Dispense Hose and 2 Clamps, Suction Hose and 2 Clamps, Air Safety Valve |
| Inlet Size (in) | 3/4 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | BSPP |
| Maximum Air Pressure (psi) | 50 |
| Maximum Cycle Rate (cpm) | 400 |
| Maximum Fluid Pressure (MPa) | 0.35 |
| Maximum Fluid Pressure (psi) | 50 |
| Maximum Solid Size (in) | 0.09375 |
| Model | SD |
| Mount Location | Tote Mount |
| Type | Diaphragm Pump Package |
| Application | Industrial |
| Compatible Material | Diesel Exhaust Fluid |
| Fluid Inlet Size (cm) | 1.9050 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | BSPP |
| Fluid Outlet Size (cm) | 1.905 |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | BSPP |
| For Use With | DEF |
| Includes | Air Operated Diaphragm Pump, Mounting Bracket, LD Automatic Nozzle with SST Spout, Dispense Hose and 2 Clamps, Suction Hose and 2 Clamps, Air Safety Valve |
| Inlet Size (cm) | 1.905 |
| Inlet Size (in) | 3/4 |
| Inlet Size (mm) | 19.05 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | BSPP |
| Maximum Air Pressure (bar) | 4 |
| Maximum Air Pressure (kPa) | 40 |
| Maximum Air Pressure (psi) | 50 |
| Maximum Cycle Rate (cpm) | 400 |
| Maximum Fluid Pressure (MPa) | 0.35 |
| Maximum Fluid Pressure (bar) | 3.4 |
| Maximum Fluid Pressure (kPa) | 34 |
| Maximum Fluid Pressure (psi) | 50 |
| Maximum Solid Size (cm) | 0.2381 |
| Maximum Solid Size (mm) | 2.3813 |
| Model | SD |
| Mount Location | Tote Mount |
| Type | Diaphragm Pump Package |
