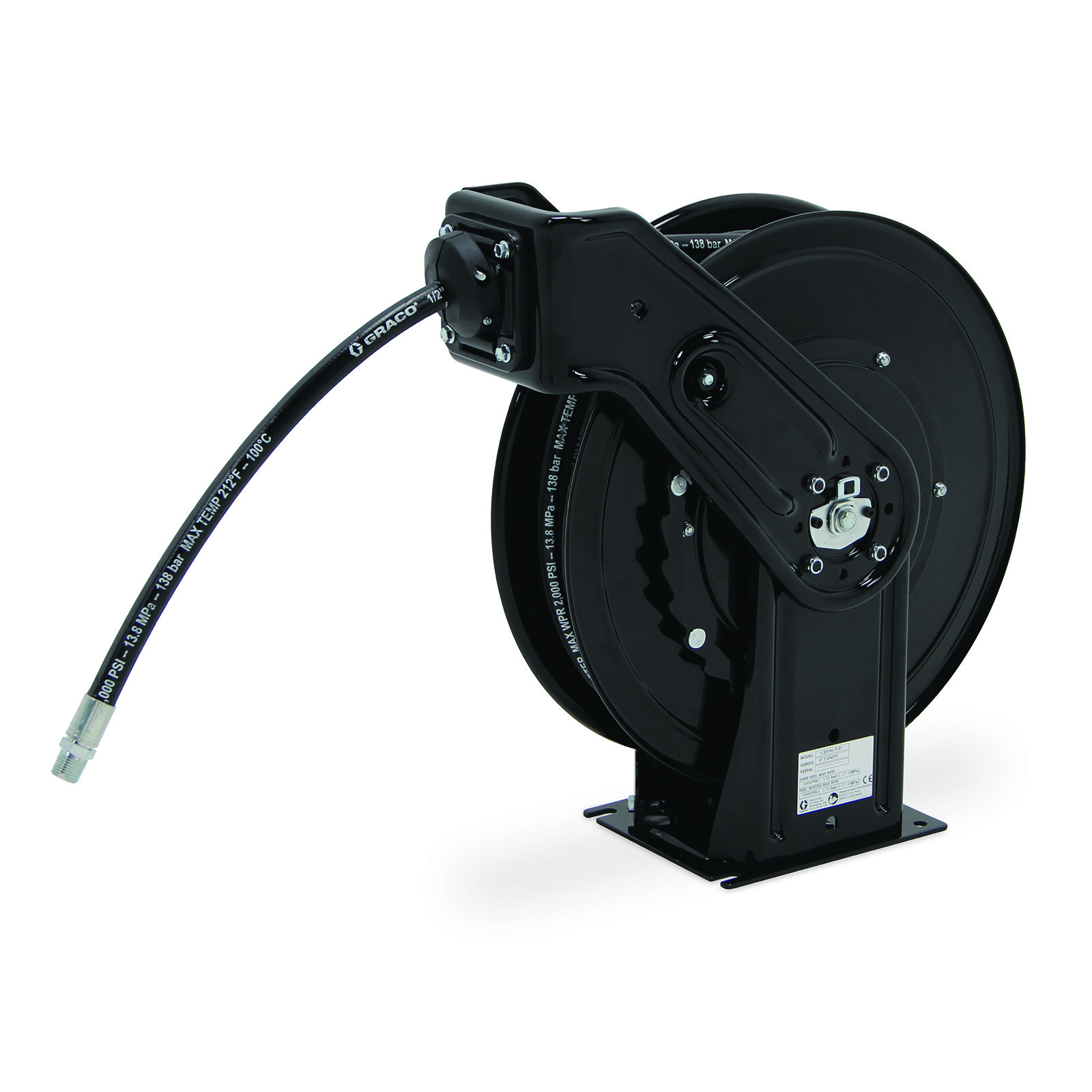

XDX™ 20, Air/Water/Antifreeze/WWS, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, Black
Part Number: XDL65D
Image is for illustrative purposes only.
20
XDX™ 20, Air/Water/Antifreeze/WWS, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, Black
Part Number: XDL65D
Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment – Increase or decrease spring tension while reel is pressurised with fluid
- Full-Flow Swivel – Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm – Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Durable Finish – Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 107-198 metre (35-65 foot) hose capacity for a wide variety of applications
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | Air, Water, Antifreeze, WWS |
|---|---|
| Colour | Black |
| Frame Type | Dual Pedestal |
| Hose Inside Diameter (in) | 1/2 |
| Hose Length (ft) | 50 |
| Hose Reel Type | Reel with Hose |
| Includes Hose | Yes |
| Inlet Size (in) | 1/2 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPSM |
| Maximum Temperature (°F) | 190 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Temperature (°F) | -20 |
| Mount Location | Truck Mount, Bench Mount |
| Outlet Size (in) | 1/2 |
| Outlet Thread Gender | Male |
| Overall Height (in) | 25.2 |
| Overall Length (in) | 23.4 |
| Overall Width (in) | 7.5 |
| Recommended Environment | Indoor, Outdoor |
| Reel Thread Type | NPT |
| Series | 20 |
| Type | Spring-Rewind Reel |
| Wetted Parts | Stainless Steel, Anodised Aluminium, Nitrile Rubber |
| Application | Air, Water, Antifreeze, WWS |
| Colour | Black |
| Frame Type | Dual Pedestal |
| Hose Inside Diameter (in) | 1/2 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Length (m) | 15 |
| Hose Reel Type | Reel with Hose |
| Includes Hose | Yes |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPSM |
| Maximum Temperature (°C) | 87 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Temperature (°C) | -28 |
| Mount Location | Truck Mount, Bench Mount |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12.7 |
| Outlet Thread Gender | Male |
| Overall Height (mm) | 640 |
| Overall Length (mm) | 594 |
| Overall Width (mm) | 191 |
| Recommended Environment | Indoor, Outdoor |
| Reel Thread Type | NPT |
| Series | 20 |
| Type | Spring-Rewind Reel |
| Wetted Parts | Stainless Steel, Anodised Aluminium, Nitrile Rubber |
