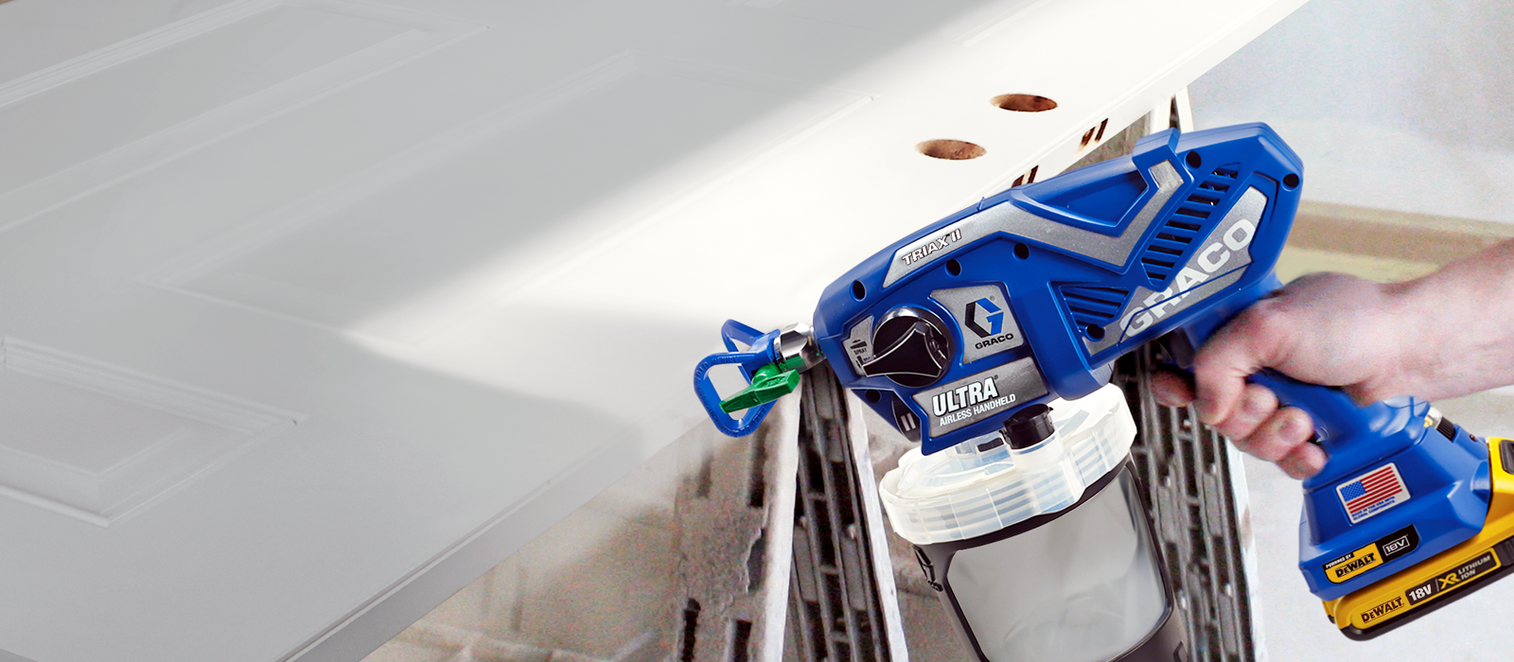

Ultra Handheld

FASTEST WAY TO FINISH SMALL JOBS, PROVEN BY PROS

PERFECT AIRLESS FINISH AT ANY SPEED, SMOOTH & EVEN WITHOUT THINNING

RELIABILITY DELIVERED - EVERY JOB, EVERY TIME

AVAILABLE IN 3 MODELS

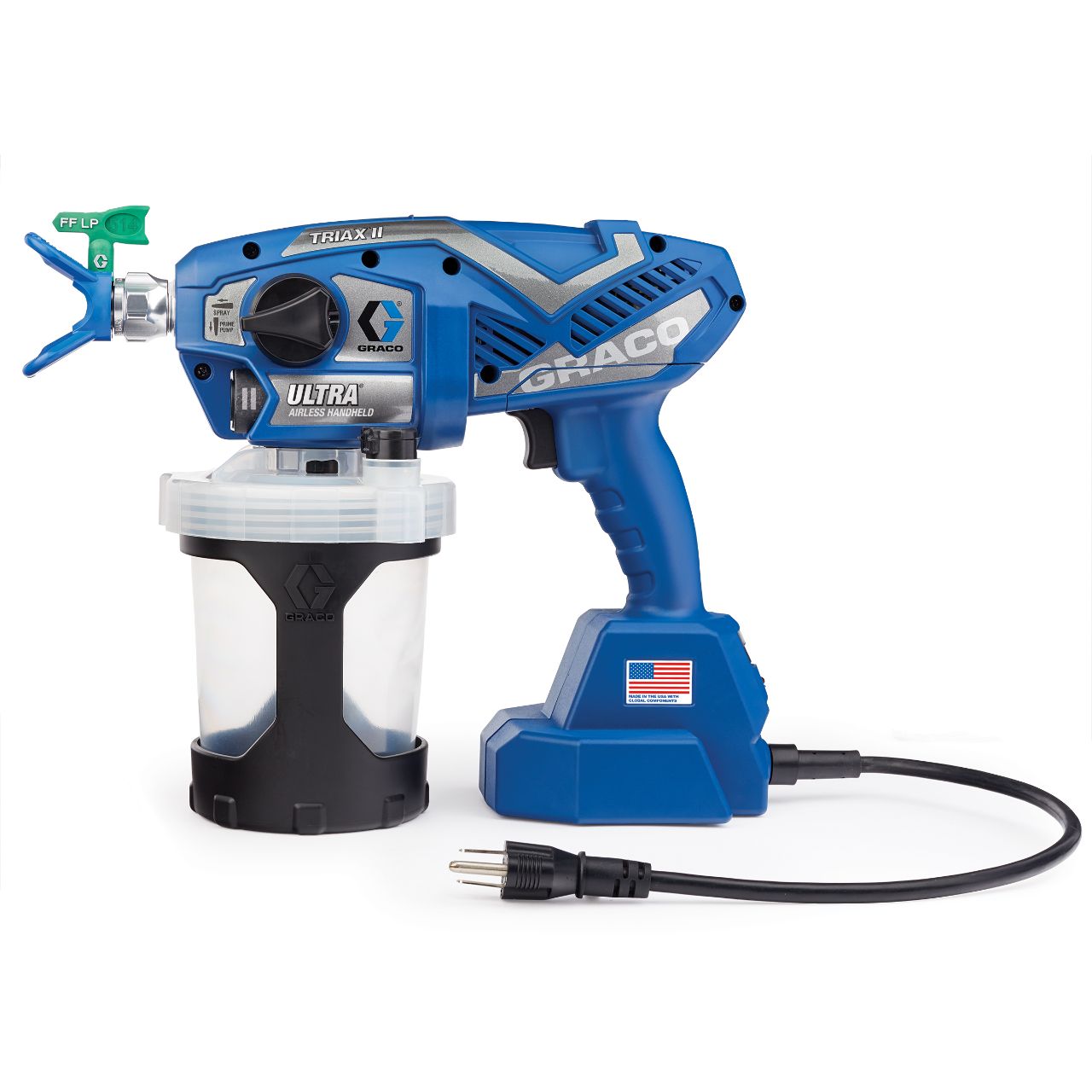

Ultra Corded

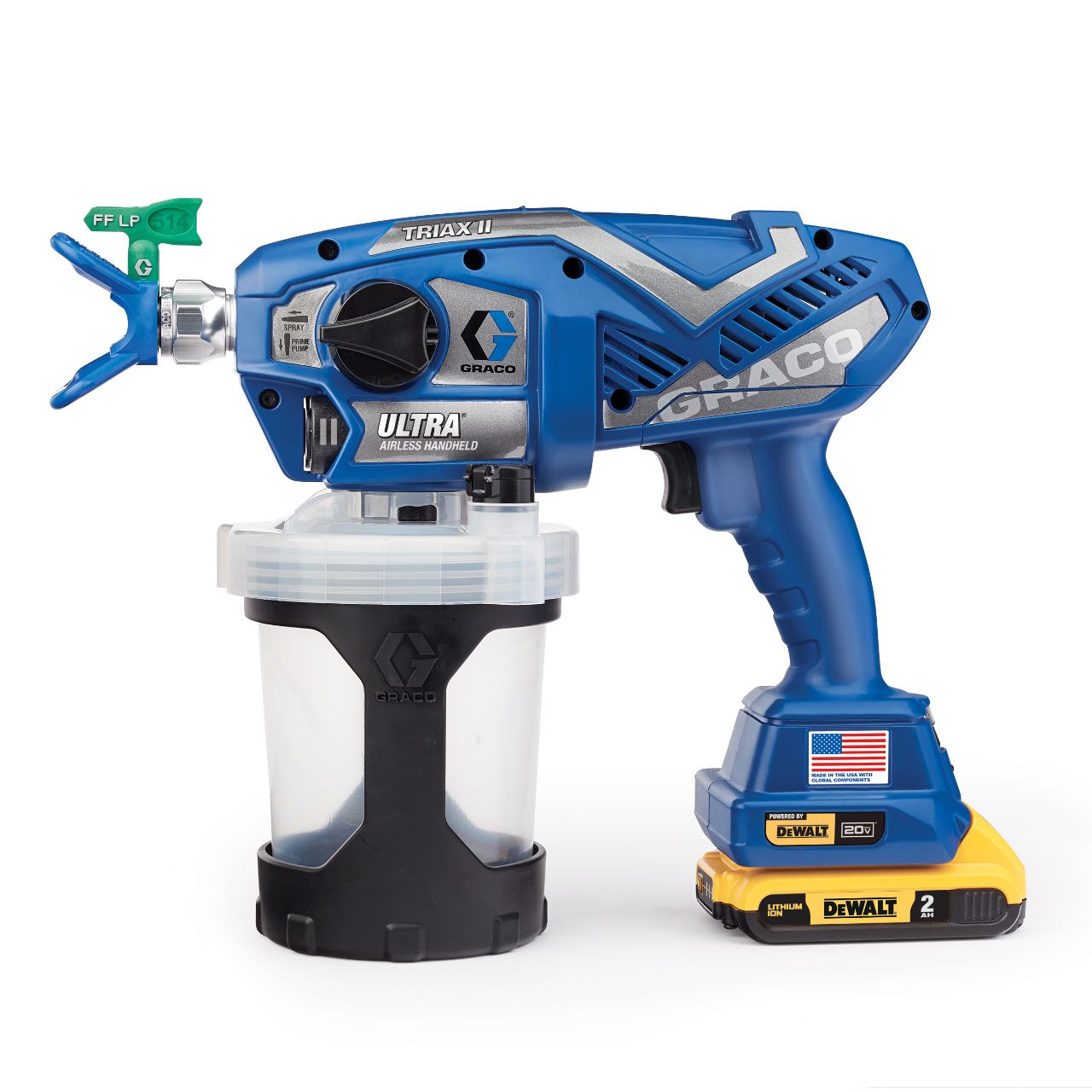

Ultra Cordless

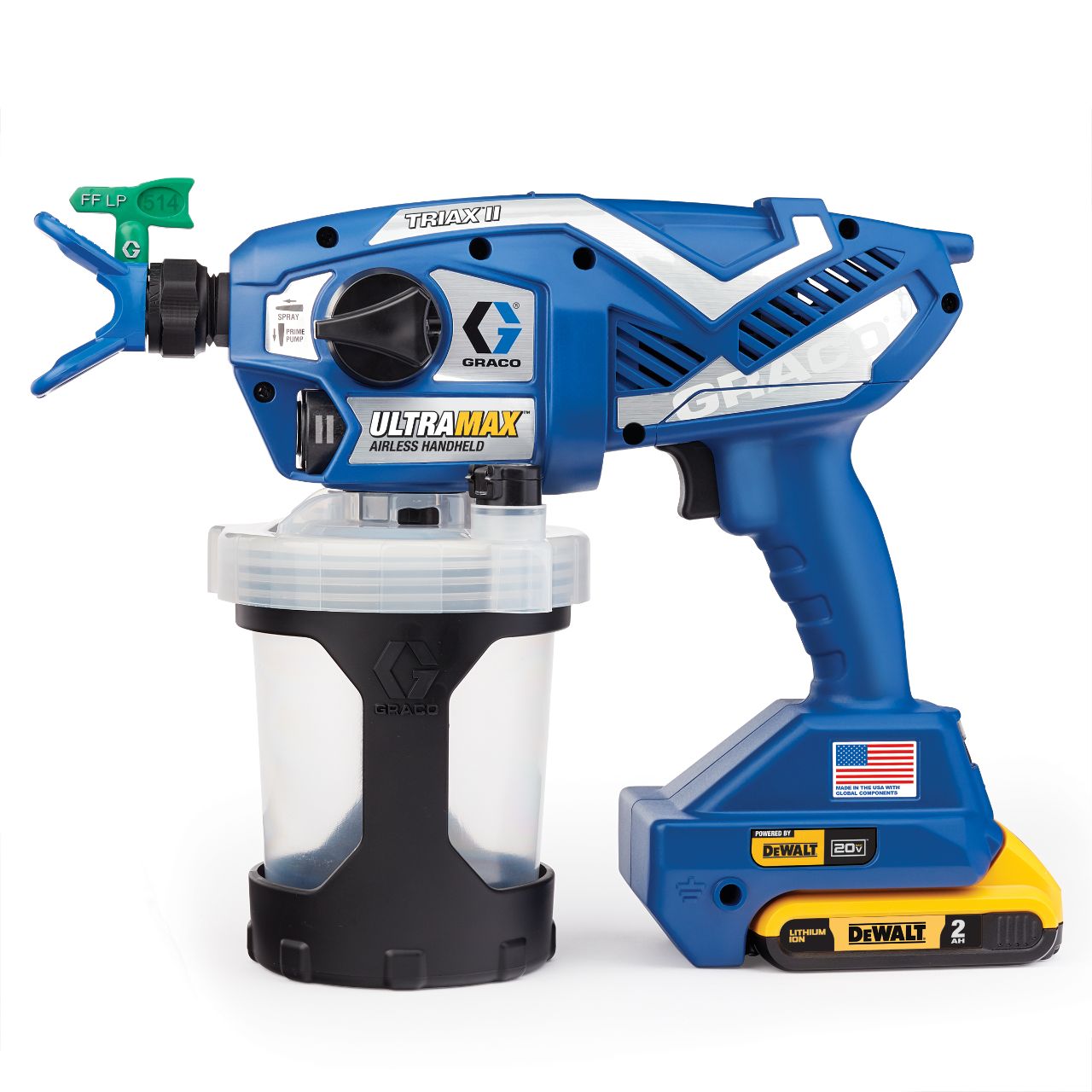

UltraMax Cordless

_ Ultra Corded Ultra Cordless UltraMAX Cordless
Model Number 17M359 17M363 17M367
Compatible Materials*
Water-Based
Mineral Spirits
Flammable _ _
Hot Solvents _ _
Features
Pressure Control
Pressure Range 500 - 2000 psi 500 - 2000 psi 500 - 2000 psi
Tip Type Supported RAC X FF LP RAC X FF LP RAC X FF LP
Tip Size Supported .008 - .016 in .008 - .016 in .008 - .016 in
Power Source Corded Battery Battery
Fully Repairable
ProConnect System
Includes
RAC X FF LP Tip(s) RAC X FF LP 514 RAC X FF LP 514 RAC X FF LP 514 & RAC X FF LP 210
32 oz FlexLiner Bags 4 4 6
Batteries _ 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion
Filter Mesh 60 Mesh 60 Mesh 60 & 100 Mesh
Storage Bag

*Ultra sprayers spray most materials that can be cleaned with water or mineral spirits. Refer to the operation manual for more details.

WHAT'S NEW

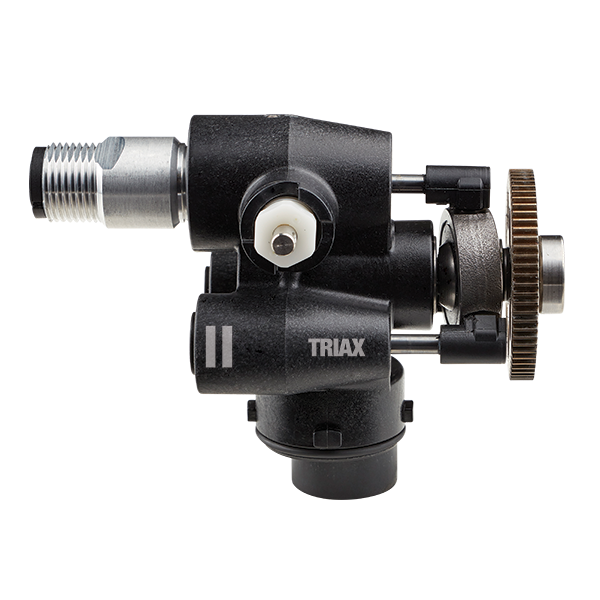

Triax II Triple Piston Pump

  • Now with harder and more wear resistant carbide piston and sleeve
  • 3X more gallons pumped before service
  • Compatible with all Ultra Handheld Models

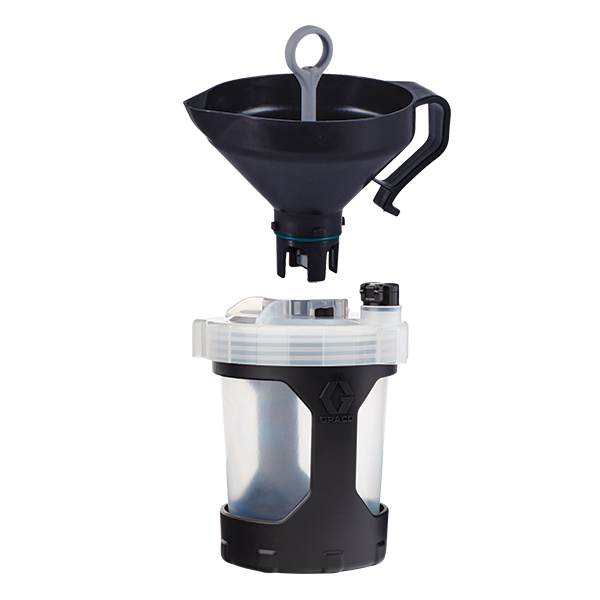

FlexLiner Quick Funnel

  • Click and fill design for faster refill and less mess
  • Automatically strains pain while pouring

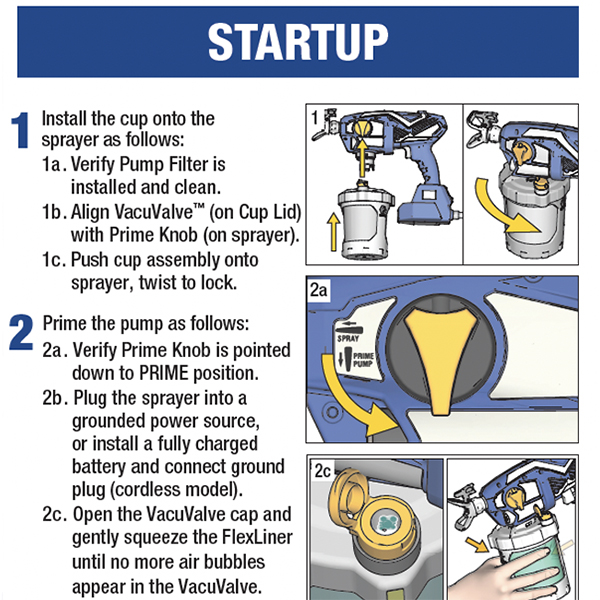

QuickGuide

  • Easy to follow step-by-step operational instructions
  • QR code access to helpful videos

Video

Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

1x
  • Chapters
  • descriptions off, selected
  • captions off, selected

    Features

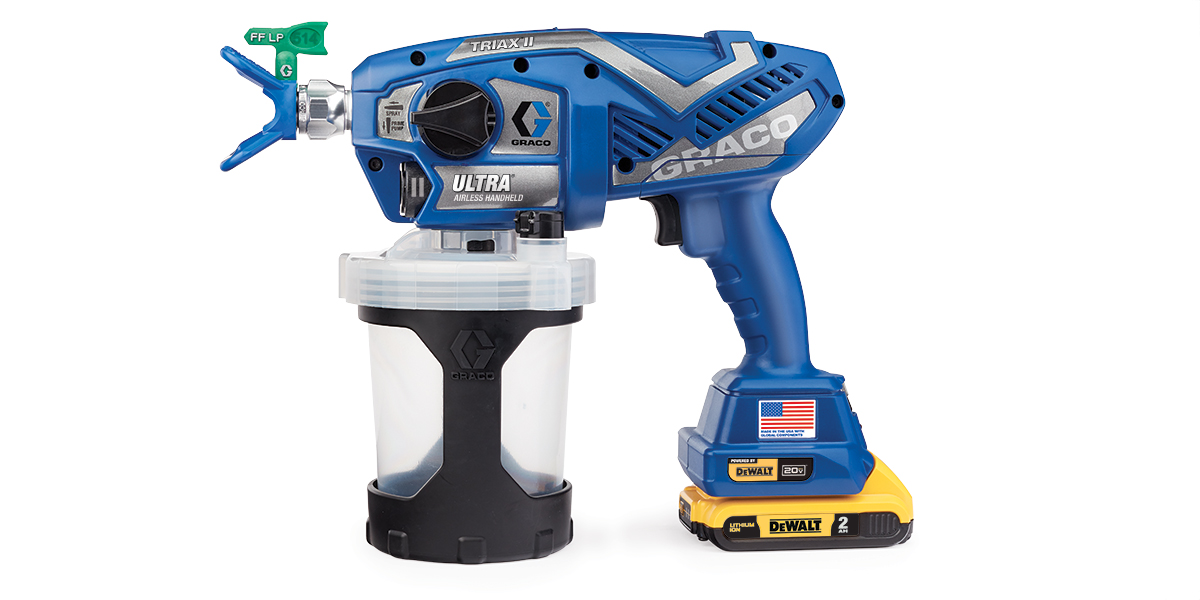

    Ultra Cordless Features

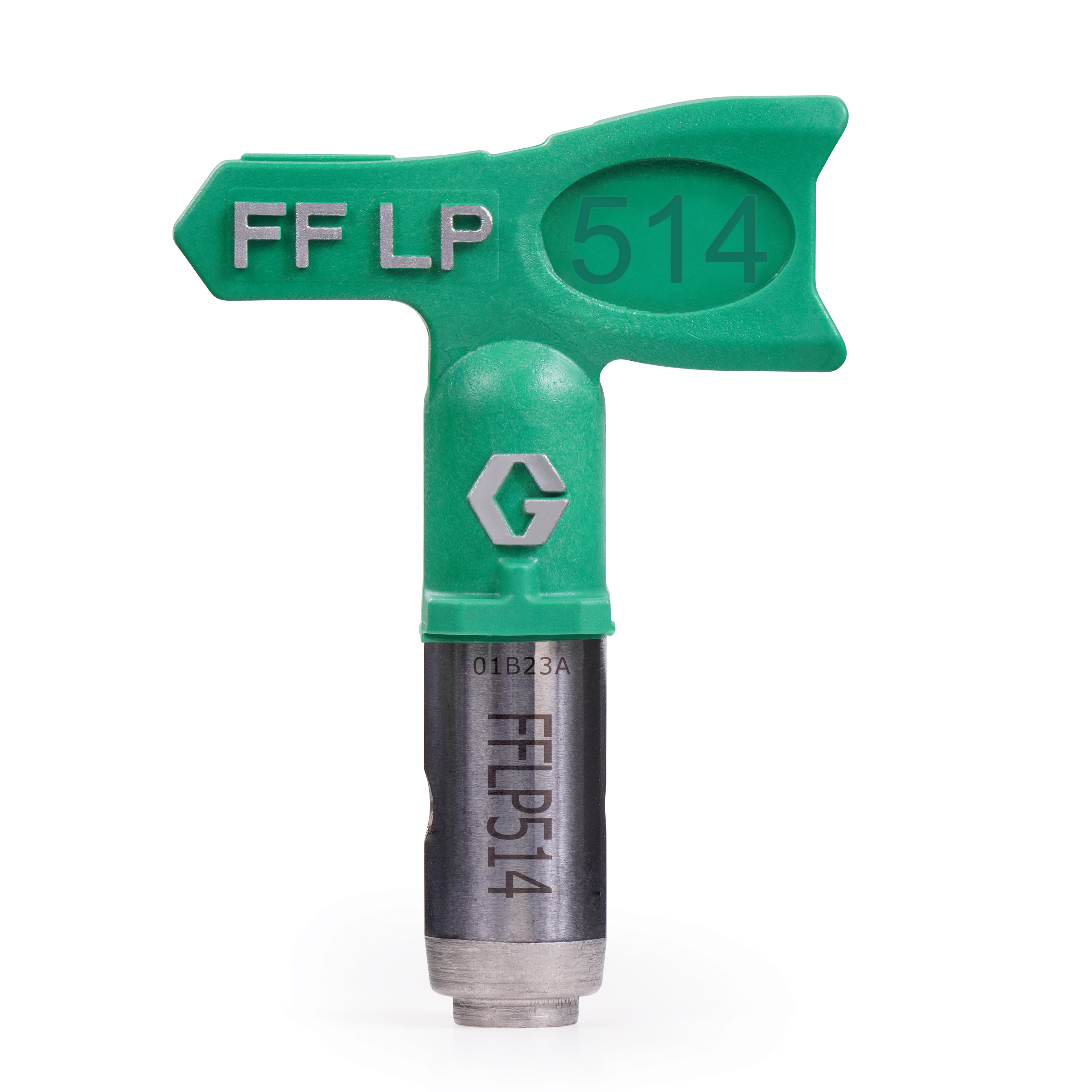

    RAC X FF LP Tip RAC X FF LP Tip RAC X FF LP Tip
    RAC X FF LP Tip

    RAC X FF LP Tip

    • Provides superior finish at low pressure
    • Works on all Graco Airless Sprayers - everything from handhelds to large airless
    • Large range of sizes available to meet the job requirements
    • Reverse-A-Clean (RAC) SwitchTips deliver exceptional spraying results and make cleaning tip clogs simple
    close
    Triax II Triple Piston Pump Triax II Triple Piston Pump Triax II Triple Piston Pump
    Triax II Triple Piston Pump

    Triax II Triple Piston Pump

    Unmatched Performance

    • Harder and more wear resistant carbide piston and sleeve
    • 3X more gallons pumped before service

    Reliable Startup

    • No inlet check valve to get stuck
    • Automatic Outlet Ball Knocker

    Perfect Airless Finish

    • Smooth and even at any hand speed
    • No Thinning
    • Single Coat Coverage
    close
    FlexLiner System FlexLiner System FlexLiner System
    FlexLiner System

    FlexLiner System

    Disposable liners eliminate cleanup time

    Easy Setup

    • Fill 32 oz. FlexLiner Bag with material and attach to the handheld
    • Squeeze out any remaining air
    • Spray

    Easy Cleanup

    • Fill FlexLiner Bag with cleaning fluid like PumpArmor
    • Shake sprayer
    • Spray into a bucket

    No suction tube to clean

    Toss or reuse FlexLiner Bag, it's your choice

    close
    ProConnect Pump Replacement System ProConnect Pump Replacement System ProConnect Pump Replacement System
    ProConnect Pump Replacement System

    ProConnect Pump Replacement System

    On-The-Job Pump Replacement System

    One Tool Replacement - Replace the pump in 3 steps using only a screwdriver

    • Remove Phillips screws and door
    • Remove and replace pump
    • Reinstall door and screws
    close
    ProControl II Pressure Control with SmartControl ProControl II Pressure Control with SmartControl ProControl II Pressure Control with SmartControl
    ProControl II Pressure Control with SmartControl

    ProControl II Pressure Control with SmartControl

    • Adjust motor speed to spray at virtually any speed that the job demands - hear it working
    • More control allows users to spray at the speed they choose - a professional finish, fast or slow
    • Precision pressure control that delivers a consistent spray fan without pressure fluctuations
    close
    Powered by DEWALT Powered by DEWALT Powered by DEWALT
    Powered by DEWALT

    Powered by DEWALT

    • GUARANTEED TOUGH
    • Proven quality, contractor recognized battery manufacturer
    • 3-LED fuel gauge system allows immediate feedback on state of charge
    • Lightweight design and 30% faster charge time (35 minutes)
    • Each cordless machine comes standard with 2 batteries
    • Compatible with any DEWALT 20V Lithium Ion battery
    • Spray up to 1 gallon with each charge thanks to the DEWALT 20V Lithium Ion system
    close
