Ultra Corded

Ultra Corded Handheld Airless Sprayer

17M359

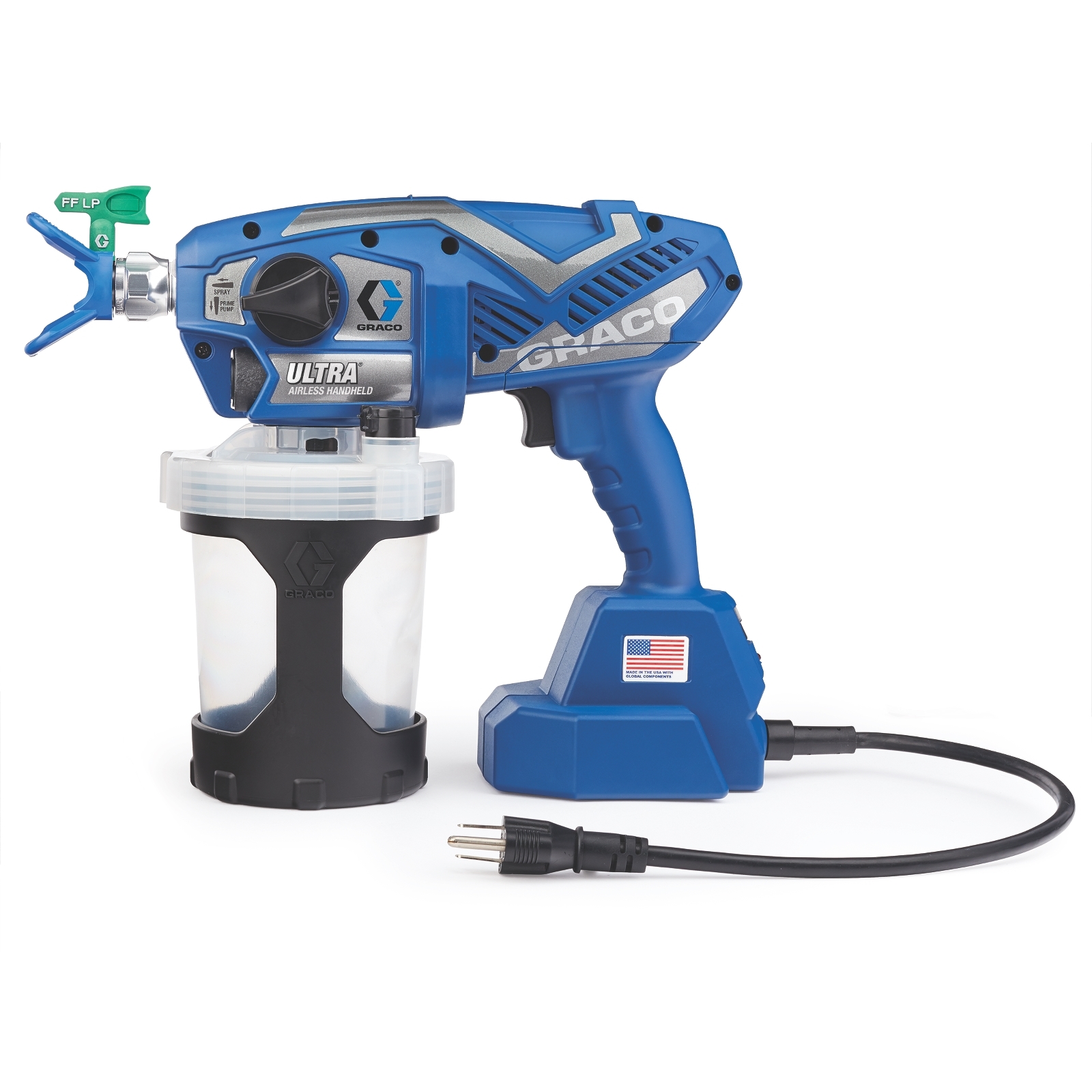

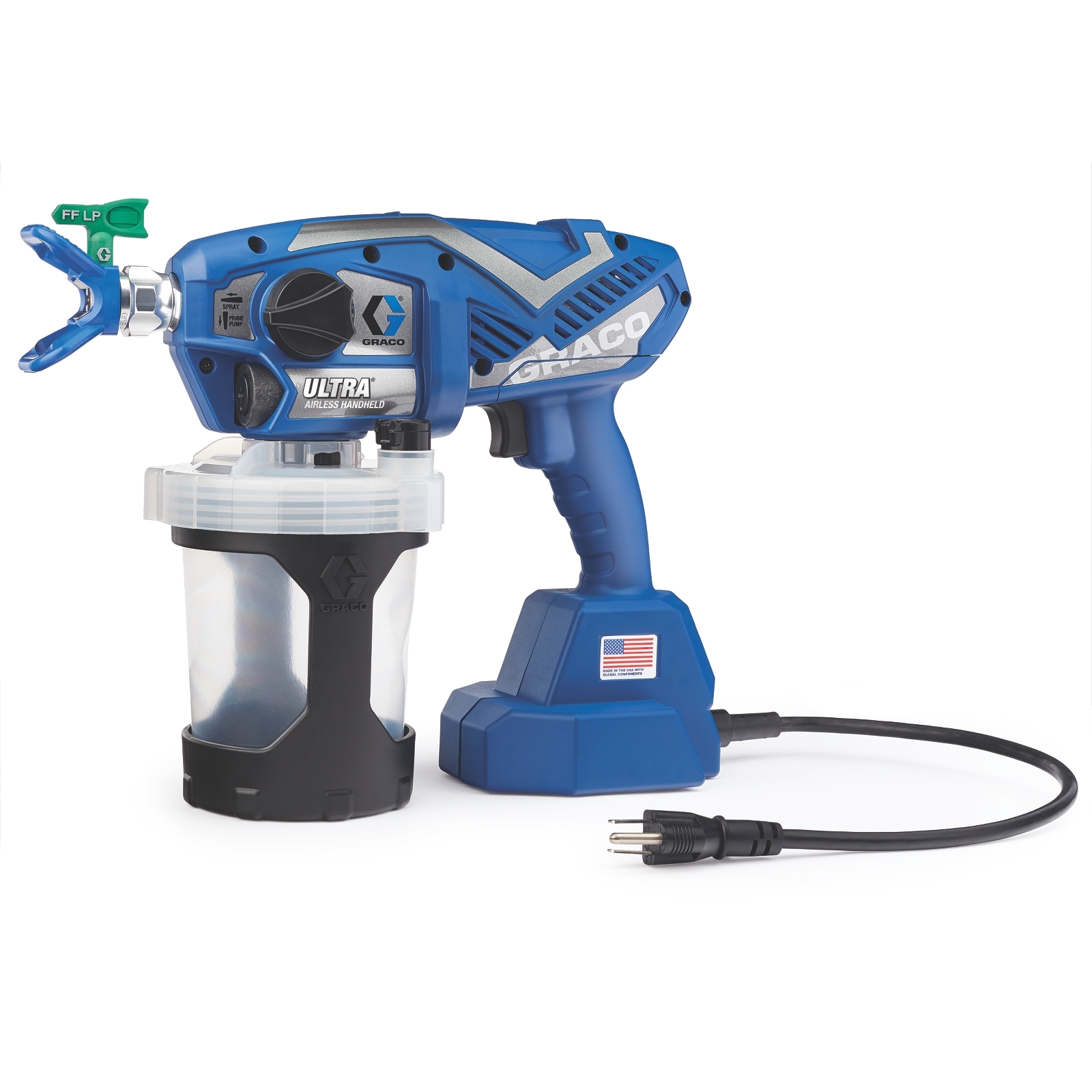

17M359_Ultra_Corded_Main 17M359_Ultra_Corded_Alt_1 17M359_Ultra_Corded_Alt_2 17M359_Ultra_Corded_Alt_3

Ultra Corded

Ultra Corded Handheld Airless Sprayer

17M359

Pros agree. Airless handheld sprayers are the essential tool for turning small jobs around fast. Industry-tested Graco Ultra handhelds are the most advanced in the world, delivering unbeatable speed, flawless finish, and unmatched reliability.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Pros agree. Airless handheld sprayers are the essential tool for turning small jobs around fast. Industry-tested Graco Ultra handhelds are the most advanced in the world, delivering unbeatable speed, flawless finish, and unmatched reliability.

Ultra airless handheld sprayers are designed specifically for small interior, exterior and specialty projects with extreme portability and the ability to spray in seconds. Easily spray those small jobs without having to start-up your larger airless sprayer.

  • Triax Triple Piston Pump
    • Durable carbide piston built to deliver extended reliability and full tip support
    • The most durable, lightest weight pump
    • Fast, on-the-job pump replacement with ProConnect
  • ProConnect
    • On-The-Job Pump Replacement System
    • One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
  • SmartControl
    • Spray at any hand speed with professional finish every time
    • Precision pressure control delivers a consistent spray fan without pressure fluctuations
  • ProControl II
    • Adjust motor speed to spray at any speed the job demands
    • More control to deliver a professional finish – every job, every time
  • RAC X FF LP Tips
    • Provides superior finish at low pressure
    • Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple
    • Large range of sizes available to meet the job requirements
    • Works on all Graco Airless Sprayers – handhelds to large airless
  • 32 oz FlexLiner Paint Bags
    • Fast cleanup with disposable liners and no suction tube to clean
    • Easy Setup

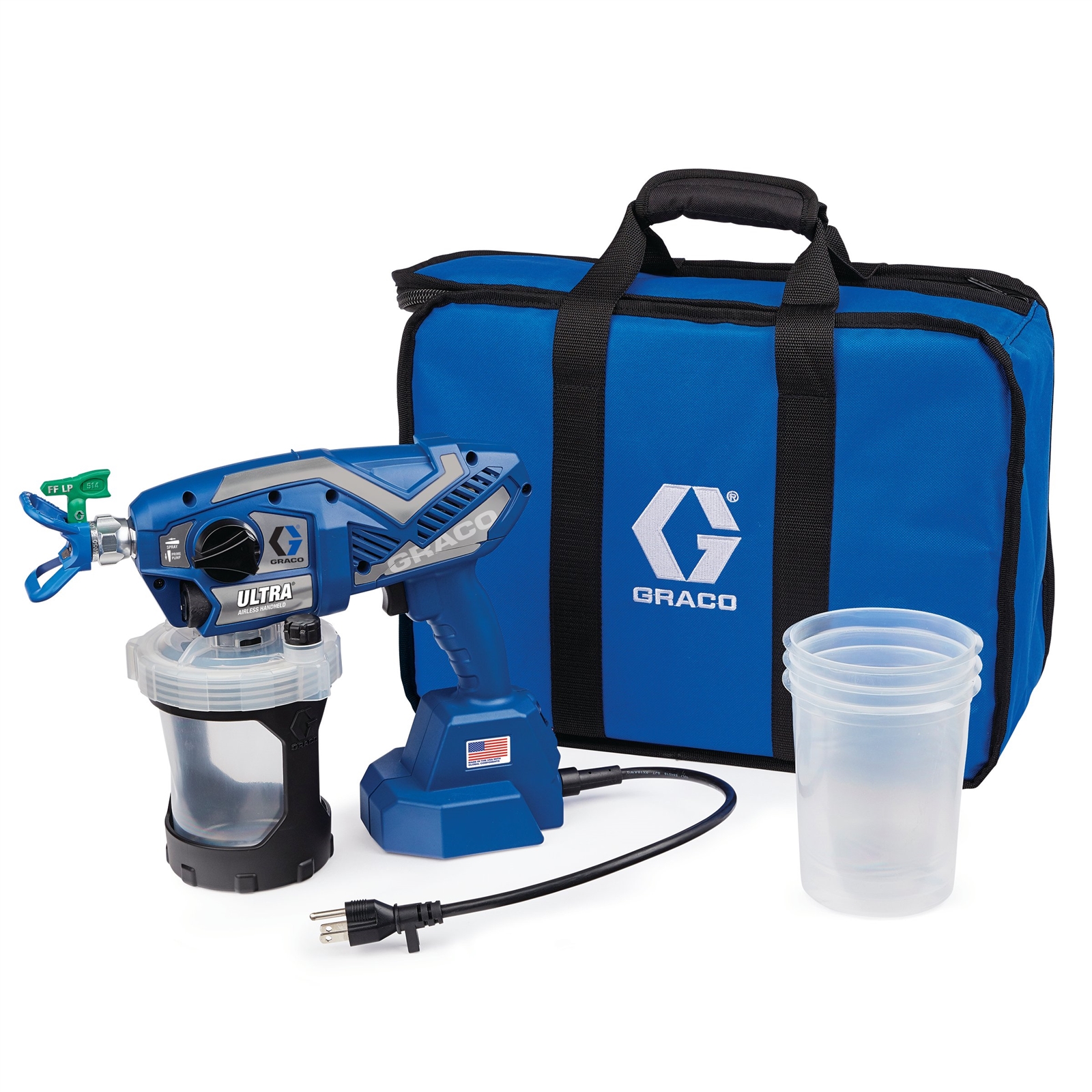

17M359_Ultra_Corded_Alt_3

Specifications

Technical Specifications

Convert to Metric
Amperage (A) 15
Compatible Replacement Pump 17P185
Frame Configuration Handheld
Includes RAC X FF LP 514 Spray Tip, RAC X Guard, 4 - 32 oz FlexLiner Bags, 60 Mesh Filter, Storage Bag, Pump Armor 4 oz
Maximum Tip Size (in) 0.016
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (psi) 2000
Model Ultra
Motor Type AC
Overall Height (in) 10.5
Overall Length (in) 14
Overall Width (in) 5
Power Cord Length (in) 18
Power Source Electric
Pressure Control Type SmartControl
Pump Type Triax Triple Piston
Recommended Annual Usage (gal) 50
Series Corded
Technology Type Airless
Type Handheld Corded Airless Sprayer
Voltage (V) 120
Weight (lb) 5
Amperage (A) 15
Compatible Replacement Pump 17P185
Frame Configuration Handheld
Includes RAC X FF LP 514 Spray Tip, RAC X Guard, 4 - 32 oz FlexLiner Bags, 60 Mesh Filter, Storage Bag, Pump Armor 4 oz
Maximum Tip Size (cm) 0.0406
Maximum Tip Size (mm) 0.4064
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Model Ultra
Motor Type AC
Overall Height (cm) 26.7
Overall Height (mm) 266.7
Overall Length (cm) 36
Overall Length (mm) 356
Overall Width (cm) 12.7
Overall Width (mm) 127
Power Cord Length (cm) 46
Power Cord Length (mm) 457
Power Source Electric
Pressure Control Type SmartControl
Pump Type Triax Triple Piston
Series Corded
Technology Type Airless
Type Handheld Corded Airless Sprayer
Voltage (V) 120
Weight (kg) 2

What's Included

Part No. Description Qty Unit
FFLP514 Fine Finish Low Pressure RAC X FF LP SwitchTip, 514 1 ea
246215 RAC X HandTite Tip Guard 1 ea
16W847 32 oz FlexLiner Paint Cup 4 ea
17M883 Storage Case 1 ea
17M938 FILTER, FLUID, 60 MESH 1 ea
