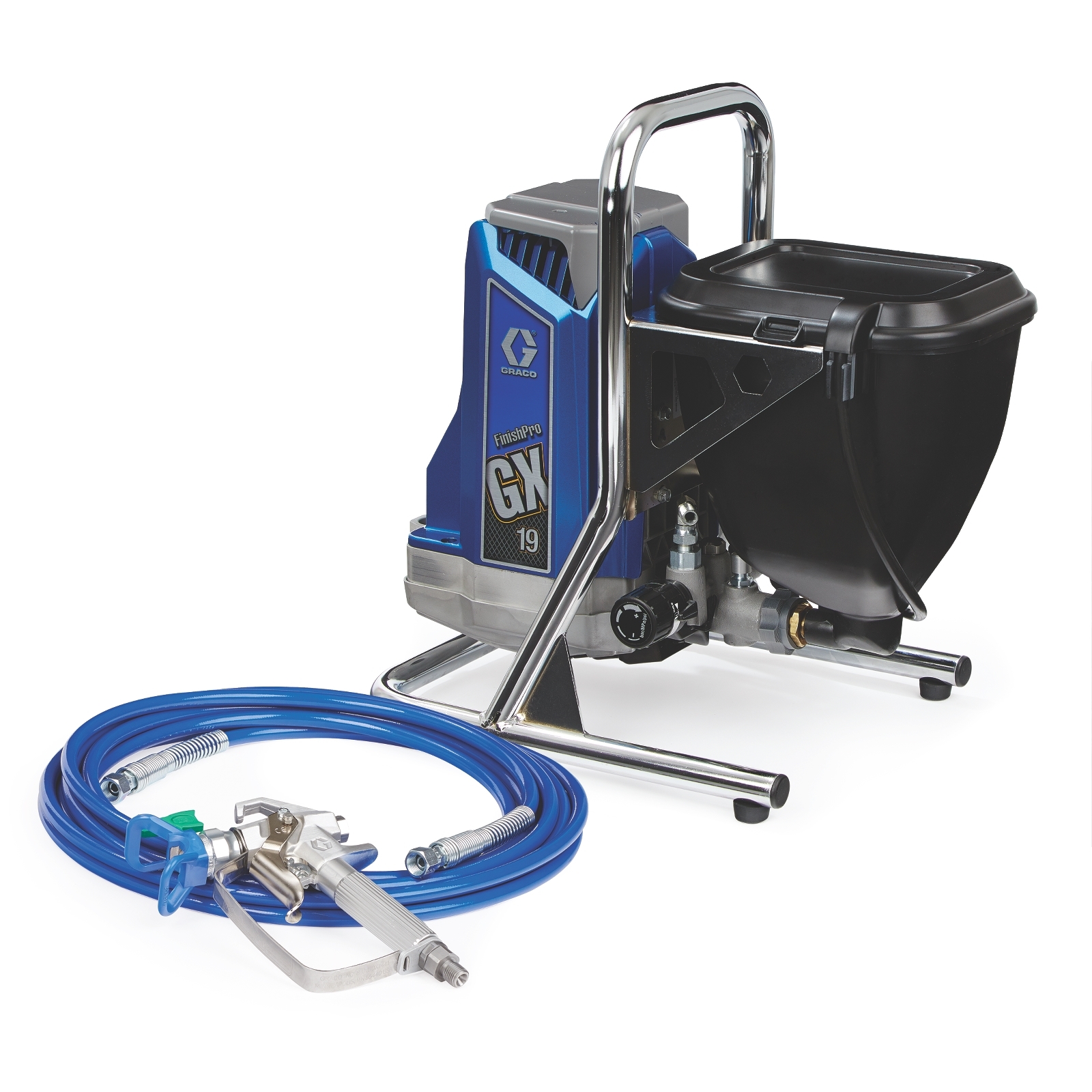

FinishPro GX 19

FinishPro GX 19 Electric Airless Sprayer

17F924

17F924_FinishPro_GX_19_Main
GX 19 stand, 17F924

FinishPro GX 19

FinishPro GX 19 Electric Airless Sprayer

17F924

Introducing the newest portable and affordable solution for fine finish spraying—airless piston pump technology. Airless technology in the FinishPro GX19 combines Graco's proven piston with the RAC X Fine Finish SwitchTip to quickly lay down a smooth finish. The FinishPro GX19 features the ProXCh...

More Info

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Introducing the newest portable and affordable solution for fine finish spraying—airless piston pump technology. Airless technology in the FinishPro GX19 combines Graco's proven piston with the RAC X Fine Finish SwitchTip to quickly lay down a smooth finish. The FinishPro GX19 features the ProXChange Pump, the fast and easy on-the-job pump replacement—no tools required.

The FinishPro GX19 is the fast, portable and affordable solution for small finishing jobs that every finishing contractor encounters.

  • Presicion-cut RAC X Fine Finish SwitchTip

    • Pre-orifice design produces finer atomization at lower pressures
    • Allows for fast application of materials
    • Delivers a softer, more controlled spray fan
    • Ability to quickly clear tip clogs
    • Switching tips to change fan width is simple and quick
    • Includes solvent seal for extremely hot solvents
  • 1.5 Gallon Hopper

    • Ideal for spraying small amounts of material
    • Smooth inside surface cleans up fast
    • Lid included for spill-proof portability
    • Hopper easily attaches to sprayer without tools for easy cleaning
  • ProX Power-Piston Pump featuring ProXChange

    • Small deadband pressure ensures the finest finish possible
    • Exceptional durability and long life piston pump
    • Exclusive lifetime lubricated wiper pad for maintenance free operation
    • Modular pump components for easy maintenance
    • Fast and easy on-the-job pump replacement—no tools needed
    • Eliminate labor costs and down time expenses
  • FTx Spray Gun with RAC X Fine Finish SwitchTip

    • Form fitted handle provides maximum control and comfort
    • EasyOut 100-mesh gun filter included to minimize tip clogs and protect finish
    • Precision-cut RAC X Fine Finish SwitchTip included for more control
    • EasyGlide Swivel provides maximum flexibility for effortless hose management

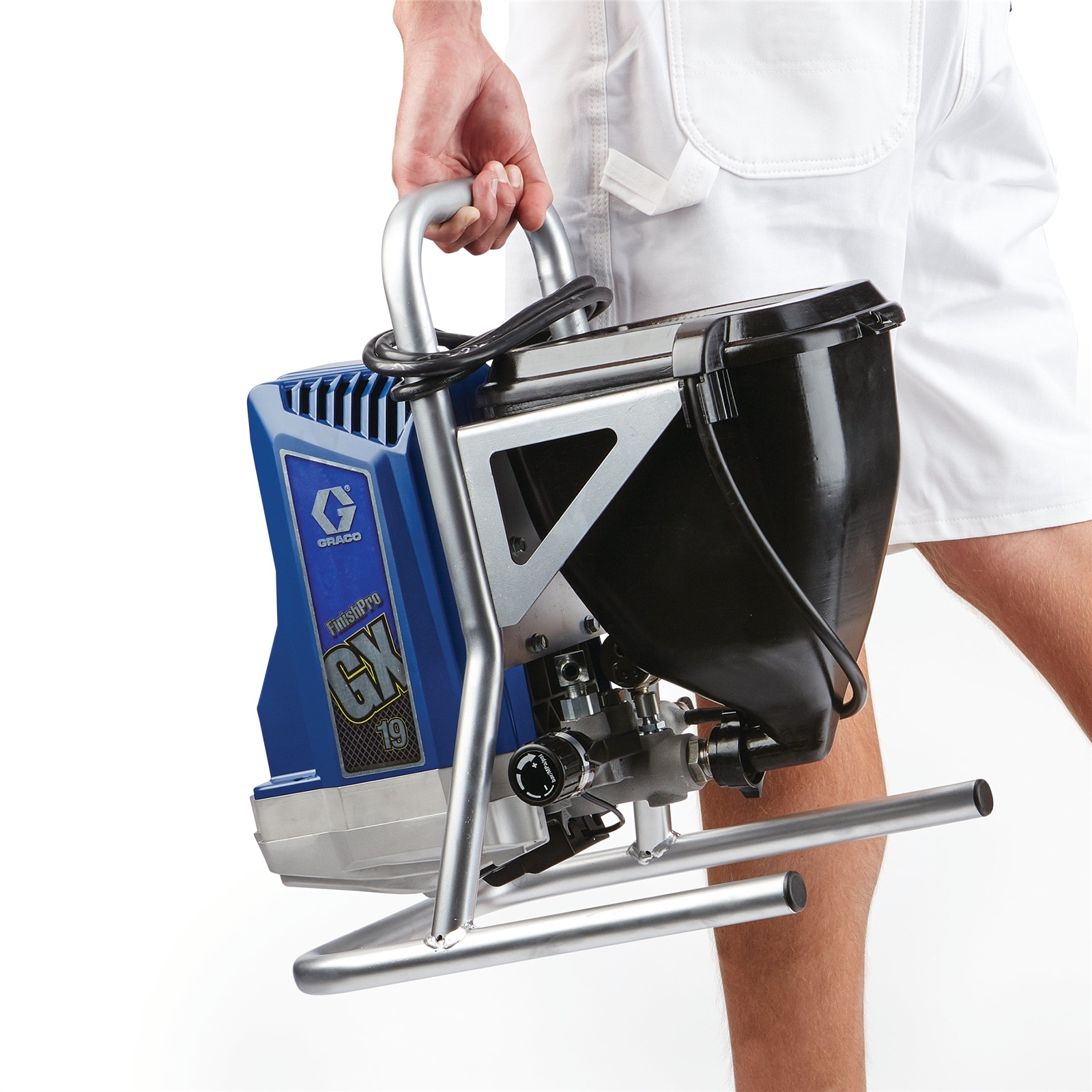

  • Extremely Portable

    • Lighter than any competitive system
    • Easy Carry Handle makes transportation easy
    • Lid prevents splashes and spills while carrying

Specifications

Technical Specifications

Convert to Metric
Compatible Material Stains, Varnish, Enamel, Solventborne Paints
Engine Size (HP) 0.5
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hopper
Gun Included 1
Includes FTx Spray Gun, RAC X FF LP 210 Spray Tip, RAC X Guard, 3/16 in x 25 ft BlueMax II Hose, Fluid Pressure Gauge, 100 Mesh Gun Filter
Maximum Flow Rate (GPM) 0.38
Maximum Sound Pressure Level (dB(A)) 83
Maximum Tip Size (in) 0.019
Maximum Tip Size 1 Gun (in) 0.019
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 3500
Model FinishPro
Motor Type DC
Number of Guns 1
Outlet Paint Filter 100 Mesh Stainless Steel Screen
Power Rating (HP) 0.5
Power Source Electric
Pressure Control Type Pressure Control Knob
Product Type Spray Package
Pump Type ProX Piston Pump
Series GX 19
Spray Type Airless
Standards Met CE Certified, Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, RCM Compliance, cETLus Listed
Type Airless Sprayer
Weight (kg) 1.2712
Weight (lb) 28
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Polypropylene, Stainless Steel, UHMWPE
Compatible Material Stains, Varnish, Enamel, Solventborne Paints
Engine Size (HP) 0.5
Fluid Outlet Thread Type NPSM
Frame Configuration Hopper
Gun Included 1
Includes FTx Spray Gun, RAC X FF LP 210 Spray Tip, RAC X Guard, 3/16 in x 25 ft BlueMax II Hose, Fluid Pressure Gauge, 100 Mesh Gun Filter
Maximum Flow Rate (GPM) 0.38
Maximum Sound Pressure Level (dB(A)) 83
Maximum Tip Size (cm) 0.0483
Maximum Tip Size (mm) 0.4826
Maximum Tip Size 1 Gun (cm) 0.0483
Maximum Tip Size 1 Gun (mm) 0.4826
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20670
Minimum Generator Power (W) 3500
Model FinishPro
Motor Type DC
Number of Guns 1
Outlet Paint Filter 100 Mesh Stainless Steel Screen
Power Rating (HP) 0.5
Power Source Electric
Pressure Control Type Pressure Control Knob
Product Type Spray Package
Pump Type ProX Piston Pump
Series GX 19
Spray Type Airless
Standards Met CE Certified, Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, RCM Compliance, cETLus Listed
Type Airless Sprayer
Weight (kg) 1.2712
Weight (lb) 28
Wetted Material Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Polypropylene, Stainless Steel, UHMWPE

What's Included

Part No. Description Qty Unit
115478 SCREW, MACH., TORX/SLT PAN HD 4 ea
115498 SCREW, MCH, SLOT, HEX, WASH HD 1 ea
117501 SCREW, MACH, SLOT HEX WASH HD 1 ea
118444 SCREW, MACH, SLOT, HEX 6 ea
118899 SWITCH, ROCKER, SPDT 1 ea
120151 PLUG,TUBE 2 ea
15X737 BRACKET, SWITCH 1 ea
17J173 CORD, POWER 1 ea
17J244 HOPPER,ASSEMBLY 1 ea
17J819 PLUG, HOLE 1" PRY OUT 1 ea
17K336 TUBE,DRAIN,HOPPER,ASSEMBLY,24" 1 ea
17L081 CLAMP,HOSE, PINCH 1 ea
194503 ROD, GUIDE YOKE 2 ea
260212 SCREW,HEX WASHER HD 4 ea
FFLP210 Fine Finish Low Pressure (FFLP) RAC X SwitchTip, 210 1 ea
