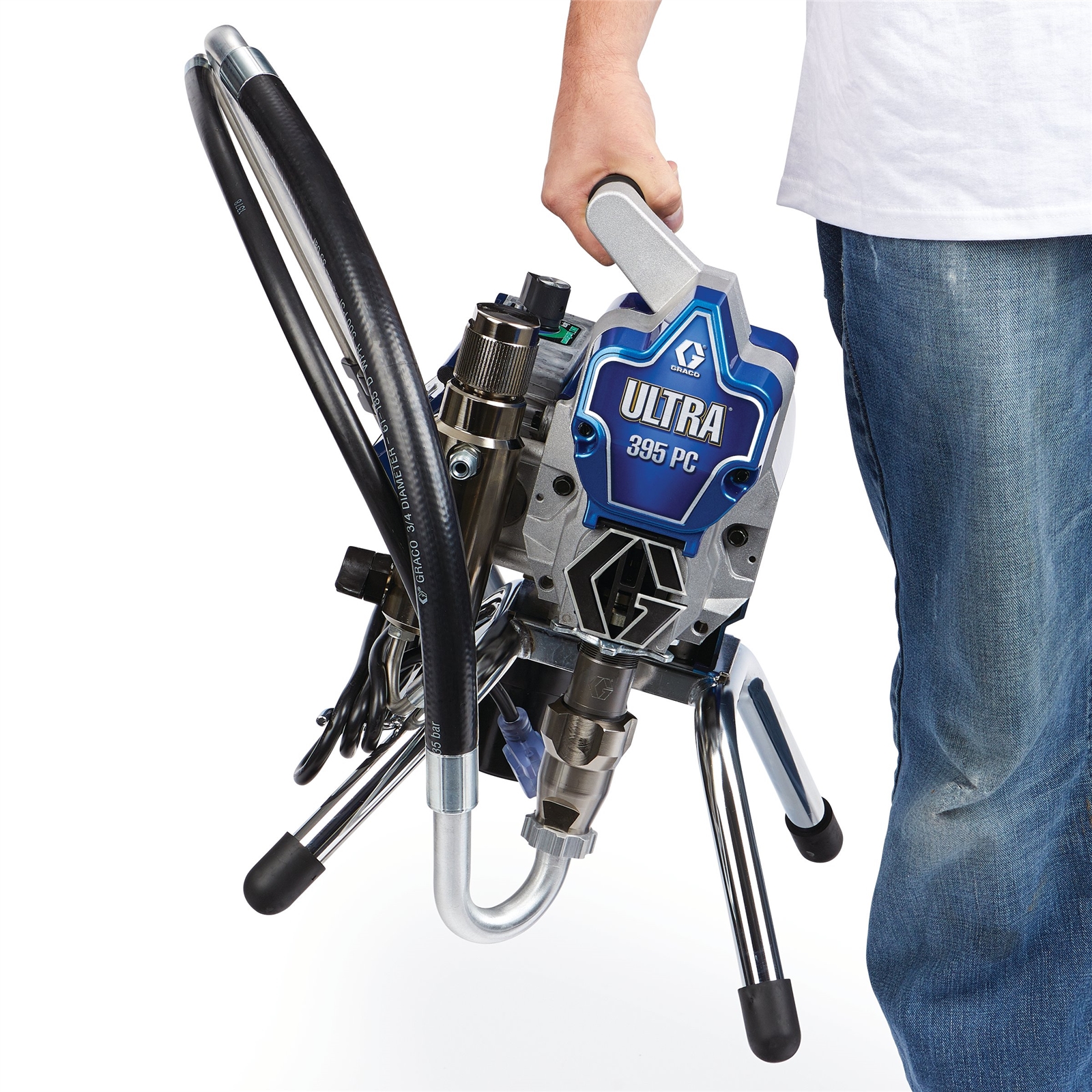

Ultra 395 PC

Ultra 395 PC Electric Airless Sprayer, Stand

Part Number: 17E844

product image product image

Ultra 395 PC

Ultra 395 PC Electric Airless Sprayer, Stand

Part Number: 17E844

The performance and versatility of the Ultra 395 PC has made it Graco’s most popular sprayer. SmartControl 1.0 pressure control delivers a consistent spray fan without fluctuation and the proven reliability make it perfect for professionals who spray daily with a wide range of coatings.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The performance and versatility of the Ultra 395 PC has made it Graco’s most popular sprayer. SmartControl 1.0 pressure control delivers a consistent spray fan without fluctuation and the proven reliability make it perfect for professionals who spray daily with a wide range of coatings.

Small Size. Large Capability. Built with the same quality as Graco’s Large Electric sprayers, Graco Small Electric airless sprayers deliver exceptional power and performance.

  • Durable Endurance Chromex Piston Pump
    • Lasts 2X longer than the next leading brand
    • Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder
    • Faster cleaning with the QuikAccess intake valve
  • SmartControl 1.0
    • Even pressure delivery
    • Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
    • Ideal for RAC X LP tips commonly used in fine finish and low overspray applications
  • Durable TEFC DC Motor
    • Get more work done
    • High torque produces the most power possible for all painting applications
  • Advantage Drive
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
  • ProConnect One-Part Pump Replacement System
    • Eliminate costly downtime
    • Pump swaps in minutes – no tools, pins or parts to lose
  • Easy Out Pump Filter
    • Easy maintenance & less clogging
    • Exclusive inside-out filtering process ensures a quality finish
  • Rugged Steel Frame
    • Thick chrome over steel withstands rugged environments
    • 4 leg stand provides greater stability
  • Swivel Inlet Suction Hose
    • Easily reaches paint buckets
  • Contractor PC Spray Gun
    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge
    • More info: graco.com/ContractorPC

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 15
Compatible Material Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics
Construction Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Engine Size (HP) 7/8
Engine Size (kW) 0.65
Features Endurance Chromex Pump, SmartControl 1.0, TEFC DC, Advantage Drive, ProConnect, Easy Out Filter, Contractor PC Gun
Filter Mesh Size 60
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Frequency (Hz) 50/60
Hose Inlet Diameter (in) 1/4
Includes Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Maximum Flow Rate (GPM) 0.54
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (in) 0.023
Maximum Tip Size 1 Gun (in) 0.023
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 3000
Model Ultra
Motor Type TEFC DC
Number of Guns 1
Overall Height (in) 18.5
Overall Length (in) 16
Overall Width (in) 14
Phase 1
Power Rating (HP) 7/8
Power Rating (W) 653
Power Rating (kW) 0.65
Power Source Electric
Pressure Control Type SmartControl 1.0
Pump Mount Type ProConnect
Pump Type Endurance
Recommended Annual Usage Up to 50 gallons per week
Series 395 PC
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 700
Weight (lb) 43
Amperage (A) 15
Compatible Material Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics
Construction Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Engine Size (kW) 0.65
Features Endurance Chromex Pump, SmartControl 1.0, TEFC DC, Advantage Drive, ProConnect, Easy Out Filter, Contractor PC Gun
Filter Mesh Size 60
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Frequency (Hz) 50/60
Hose Inlet Diameter (cm) 0.635
Hose Inlet Diameter (in) 1/4
Hose Inlet Diameter (mm) 6.35
Includes Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Maximum Flow Rate (L/min) 2.0
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (in) 0.023
Maximum Tip Size 1 Gun (in) 0.023
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 3000
Model Ultra
Motor Type TEFC DC
Number of Guns 1
Overall Height (cm) 47
Overall Height (mm) 470
Overall Length (cm) 40.6
Overall Length (mm) 406
Overall Width (cm) 35.6
Overall Width (mm) 356
Phase 1
Power Rating (W) 653
Power Rating (kW) 0.65
Power Source Electric
Pressure Control Type SmartControl 1.0
Pump Mount Type ProConnect
Pump Type Endurance
Recommended Annual Usage Up to 50 gallons per week
Series 395 PC
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 700
Weight (kg) 20

What's Included

Part No. Description Qty Unit
246215 RAC X HandTite Tip Guard 1 ea
240794 BlueMax II Airless Hose, 1/4 in x 50 ft 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea
17Y043 Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip 1 ea
LP517 Low Pressure RAC X LP SwitchTip, 517 1 ea

Repair Parts

Part No. Description
15J743 Pro210ES Stand Replacement Cord Set
240794 BlueMax II Airless Hose, 1/4 in x 50 ft
15B071 INSERT, FILTER
117828 KIT, O-RING, PTFE, ENCAPULATED
246379 Q KIT, REPAIR, CONTROL BOARD, 120V
246381 KIT, REPAIR, DRAIN LINE
248189 KIT, REPAIR, FAN, MOTOR
246382 Easy Out Pump Manifold Filter, Short, 100 mesh
246425 Easy Out Pump Manifold Filter, Short, 30 mesh
246384 Easy Out Pump Manifold Filter, Short, 60 mesh
287015 KIT, REPAIR, MOTOR, .023
246385 Inlet Strainer, Nylon Cap, 7/8 in
246386 Q KIT, REPAIR, SUCTION SET
243222 Pressure Control Transducer Repair Kit
235014 Spray Prime/Drain Valve Kit
17D888 KIT, REPLACEMENT, POTENTIOMETER
24W830 Hose Replacement Kit
246383 Easy Out Pump Manifold Filter, Short, 200 mesh
195429 SWITCH, TOGGLE
