UltraMax Cordless

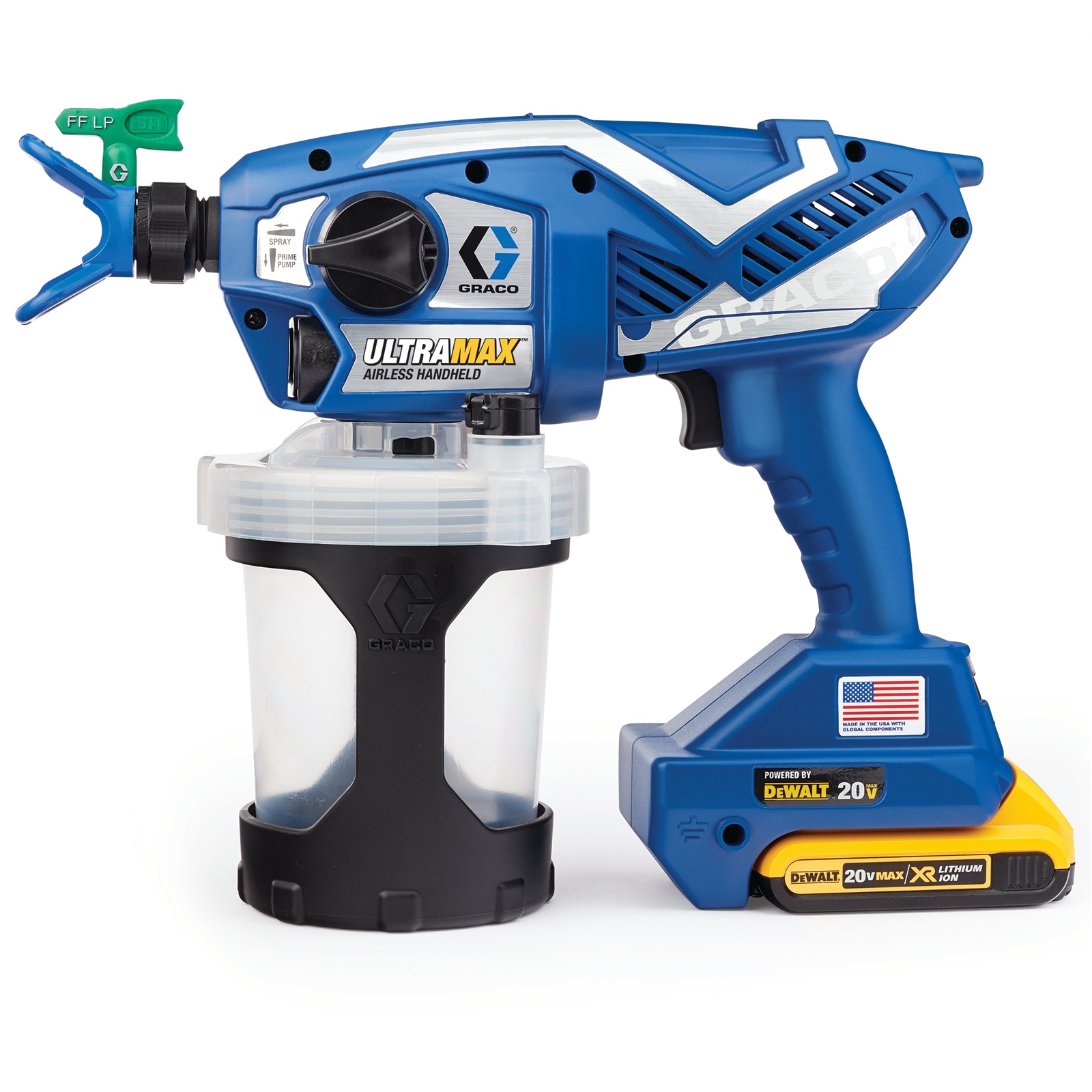

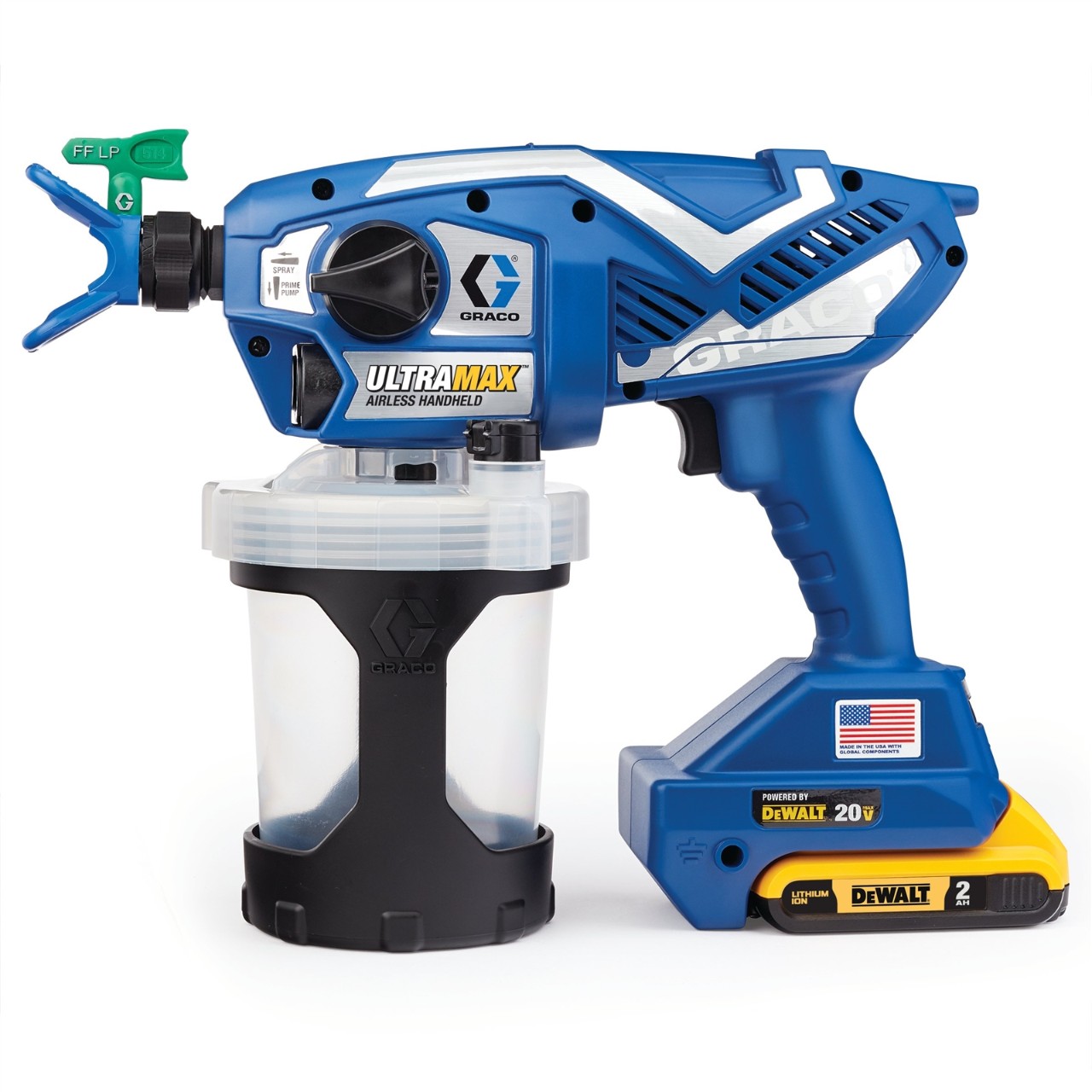

UltraMAX Cordless Handheld Airless Sprayer

17M367

Tested by Pros, the UltraMAX Cordless is the ONLY Handheld sprayer capable of spraying water-based, solvent and flammable architectural coatings. Static shock protection eliminates the potential for sparks while SmartControl technology delivers a flawless finish with no thinning required.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Tested by Pros, the UltraMAX Cordless is the ONLY Handheld sprayer capable of spraying water-based, solvent and flammable architectural coatings. Static shock protection eliminates the potential for sparks while SmartControl technology delivers a flawless finish with no thinning required.
  • Triax Triple Piston Pump
    • Durable carbide piston built to deliver extended reliability and full tip support
    • The most durable, lightest weight pump
    • Fast, on-the-job pump replacement with ProConnect
  • DEWALT® XR Lithium Ion Battery System
    • Spray up to 1 gallon with each charge
    • Compatible with any DEWALT 20V Lithium Ion battery
    • Comes standard with 2 batteries
    • Lightweight design and 30% faster charge time (35 minutes)
  • ProConnect
    • On-The-Job Pump Replacement System
    • One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
  • SmartControl
    • Spray at any hand speed with professional finish every time
    • Precision pressure control delivers a consistent spray fan without pressure fluctuations
  • ProControl II
    • Adjust motor speed to spray at any speed the job demands
    • More control to deliver a professional finish – every job, every time
  • Hot Solvent Compatible
    • Sprays hot solvents such as solvent-based lacquer
    • Sprays water, solvent and flammable based materials
  • RAC X FF LP Tips
    • Provides superior finish at low pressure
    • Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple
    • Large range of sizes available to meet the job requirements
    • Works on all Graco Airless Sprayers – handhelds to large airless
  • 32 oz FlexLiner Paint Bags
    • Fast cleanup with disposable liners and no suction tube to clean
    • Easy Setup
17M367_UltraMax_Cordless_Alt_2

Specifications

Technical Specifications

Convert to Metric
Battery Capacity (Ah) 2
Battery Chemistry Lithium-ion
Battery Voltage (V) 20
Charging Time (min) 35
Compatible Replacement Pump 17P187
Frame Configuration Handheld

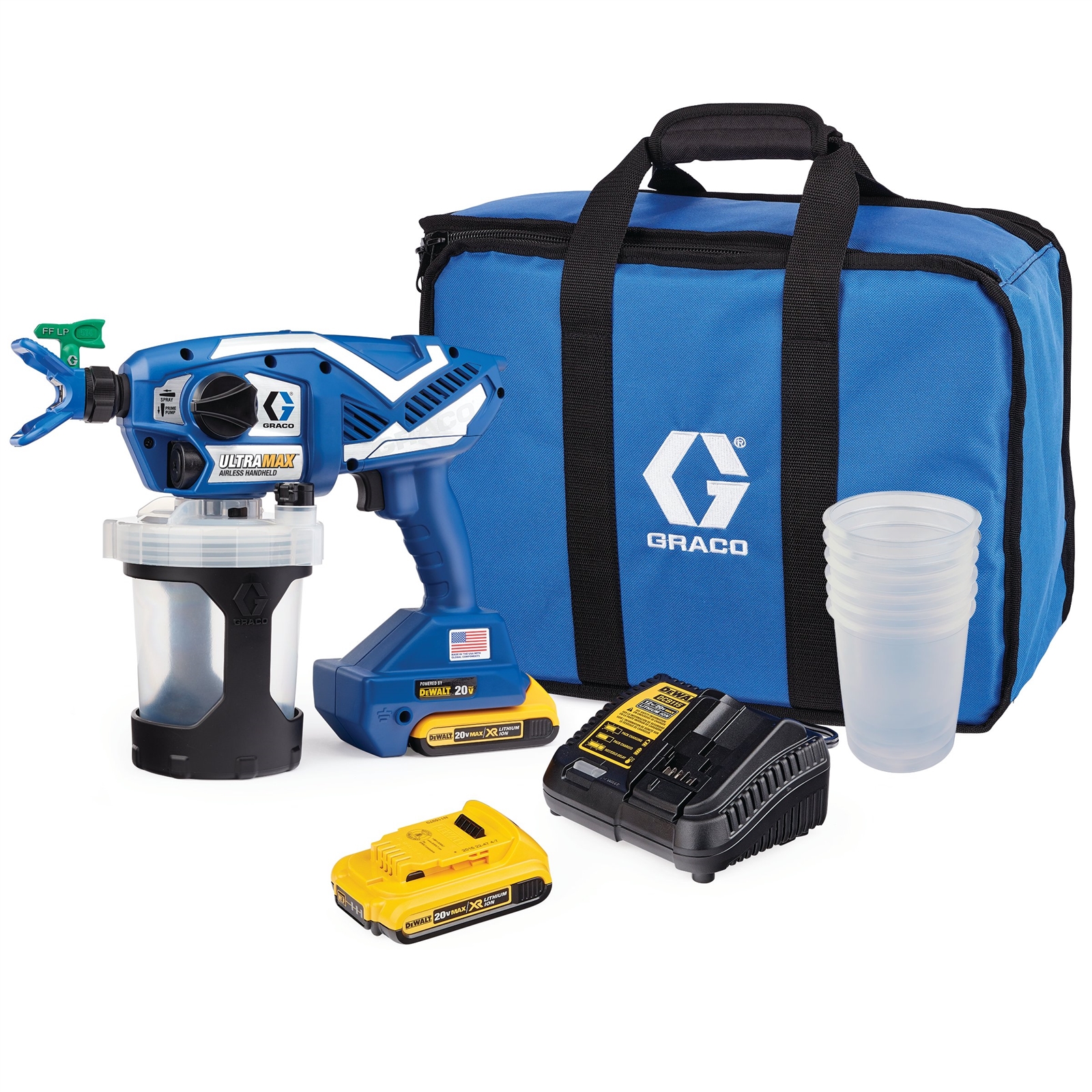

Includes RAC X FF LP 210 Spray Tip, RAC X FF LP 514 Spray Tip, RAC X Guard, 6 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX Compact XR Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, 100 Mesh Filter, Storage Bag, Pump Armor 4 oz
Maximum Tip Size (in) 0.016
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (psi) 2000
Minimum Working Pressure (psi) 500
Model UltraMax
Overall Height (in) 10.5
Overall Length (in) 14
Overall Width (in) 5
Power Source Battery Powered
Pressure Control Type ProControl II
Pump Type Triax Triple Piston
Series Cordless
Type Handheld Cordless Airless Sprayer
Weight (lb) 5
Battery Capacity (Ah) 2
Battery Chemistry Lithium-ion
Battery Voltage (V) 20
Charging Time (min) 35
Compatible Replacement Pump 17P187
Frame Configuration Handheld
Includes RAC X FF LP 210 Spray Tip, RAC X FF LP 514 Spray Tip, RAC X Guard, 6 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX Compact XR Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, 100 Mesh Filter, Storage Bag, Pump Armor 4 oz
Maximum Tip Size (cm) 0.0406
Maximum Tip Size (mm) 0.4064
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Minimum Working Pressure (bar) 35
Minimum Working Pressure (kPa) 3500
Model UltraMax
Overall Height (cm) 26.7
Overall Height (mm) 266.7
Overall Length (cm) 36
Overall Length (mm) 356
Overall Width (cm) 12.7
Overall Width (mm) 127
Power Source Battery Powered
Pressure Control Type ProControl II
Pump Type Triax Triple Piston
Series Cordless
Type Handheld Cordless Airless Sprayer
Weight (kg) 2

What's Included

Part No. Description Qty Unit
FFLP210 Fine Finish Low Pressure RAC X FF LP SwitchTip, 210 1 ea
FFLP514 Fine Finish Low Pressure RAC X FF LP SwitchTip, 514 1 ea
246215 RAC X HandTite Tip Guard 1 ea
16W847 32 oz FlexLiner Paint Cup 6 ea
17P474 DEWALT 20V MAX Compact XR Lithium Ion Battery Pack 2 ea
17P475 DEWALT 20V MAX Lithium Ion Battery Charger 1 ea
17M938 FILTER, FLUID, 60 MESH 1 ea
17M939 FILTER, FLUID, 100 MESH 1 ea
17M883 Storage Case 1 ea

Recommended Accessories

17P474_DEWALT_20V_Battery_Main

DEWALT 20V MAX Compact XR Lithium Ion Battery Pack

View Details
FFLP312_Fine_Finish_Low_Pressure_RAC_X_Main

Fine Finish Low Pressure RAC X FF LP SwitchTip, 312

View Details
17A226_FlexLiner_32_oz_3_pack_Main

FlexLiner Bags 32 oz 3 pk

View Details
17F005_FlexLiner_42_oz_3_pack_Main

FlexLiner Bags 42 oz 3 pk

View Details
17M879_FlexLiner_Storage_Plug_Main

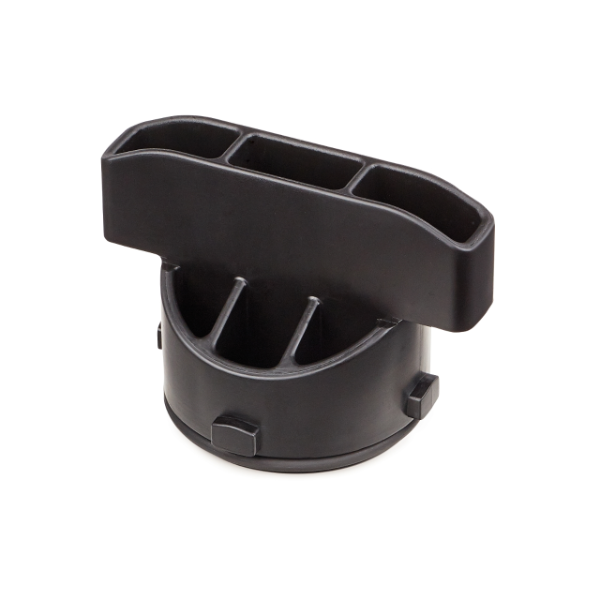

FlexLiner Storage Plug

View Details
17R611_FlexLiner_Storage_Plug_Solvent_Main

FlexLiner Storage Plug for Solvent-Based

View Details
17P550_FlexLiner_System_32_oz_Main

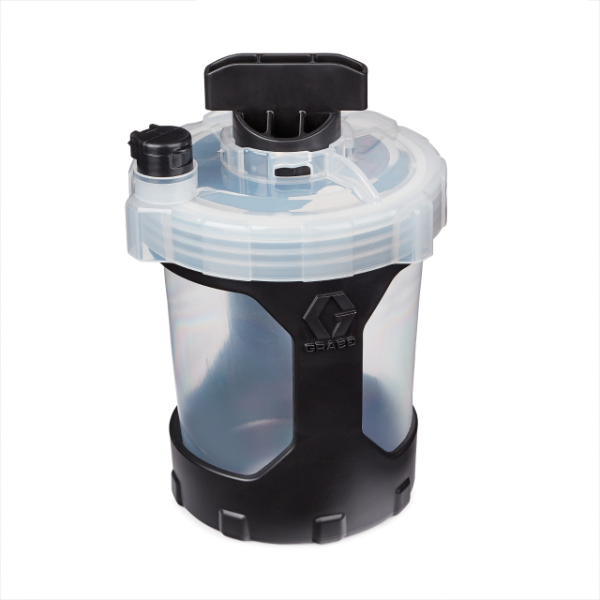

FlexLiner System 32 oz
