UltraMAX Cordless

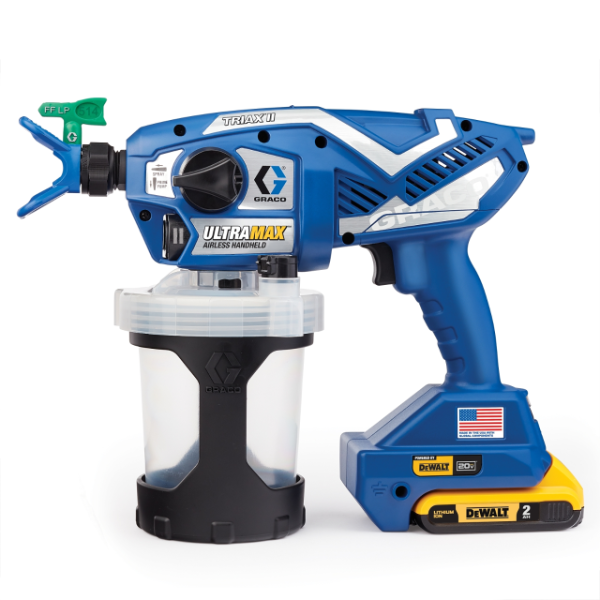

UltraMAX Cordless Handheld Airless Sprayer, Tool-Only

17P928

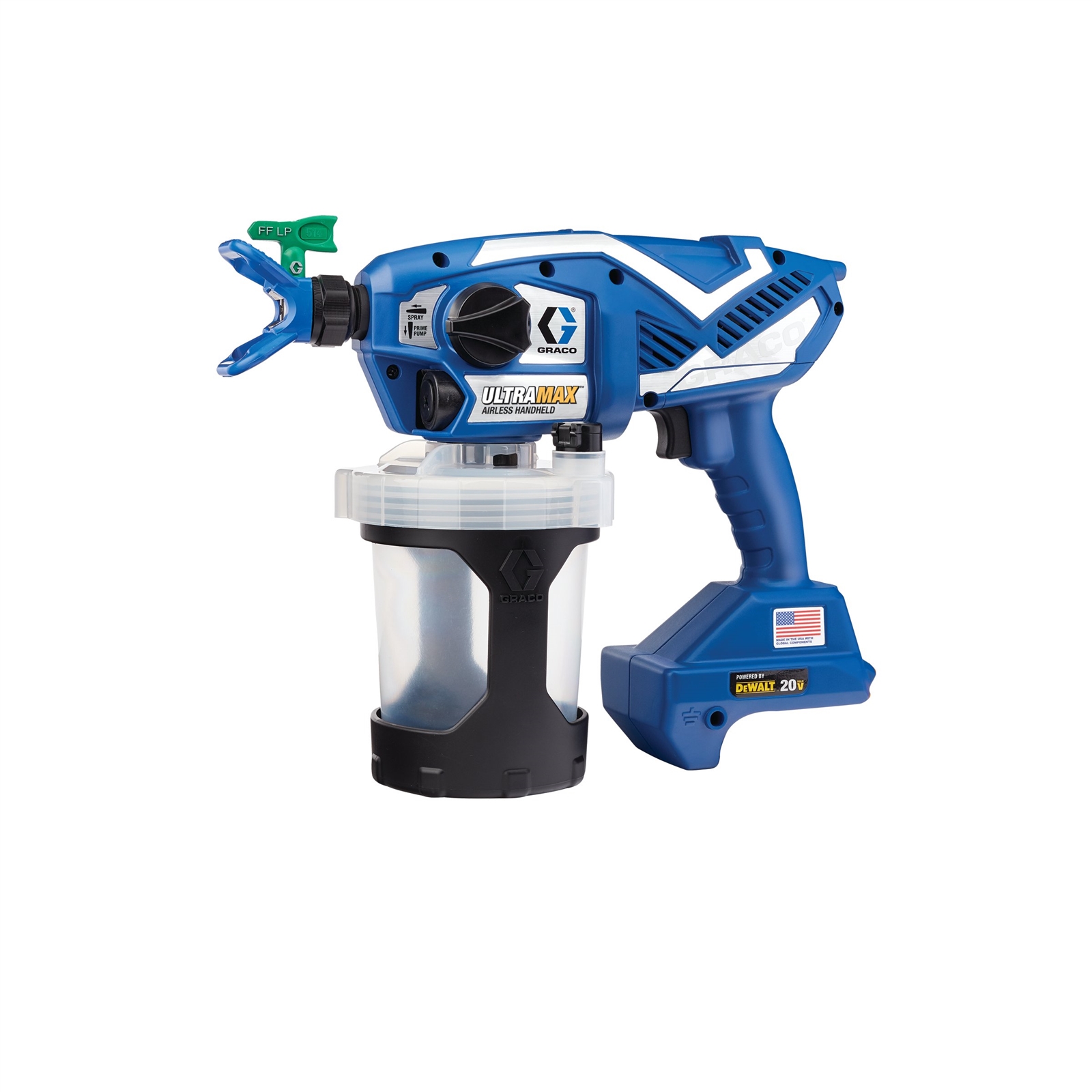

17P928_UltraMAX_Cordless_Tool_Only_Main 17P928_UltraMAX_Cordless_Tool_Only_Alt_1

UltraMAX Cordless

UltraMAX Cordless Handheld Airless Sprayer, Tool-Only

17P928

Tested by Pros, the UltraMAX Cordless is the ONLY Handheld sprayer capable of spraying water-based, solvent and flammable architectural coatings. Static shock protection eliminates the potential for sparks while SmartControl technology delivers a flawless finish with no thinning required.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Tested by Pros, the UltraMAX Cordless is the ONLY Handheld sprayer capable of spraying water-based, solvent and flammable architectural coatings. Static shock protection eliminates the potential for sparks while SmartControl technology delivers a flawless finish with no thinning required.
  • Triax Triple Piston Pump
    • Durable carbide piston built to deliver extended reliability and full tip support
    • The most durable, lightest weight pump
    • Fast, on-the-job pump replacement with ProConnect
  • DEWALT® XR Lithium Ion Battery System
    • Spray up to 1 gallon with each charge
    • Compatible with any DEWALT 20V Lithium Ion battery
    • Lightweight design and 30% faster charge time (35 minutes)
    • Batteries not included
  • ProConnect
    • On-The-Job Pump Replacement System
    • One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
  • SmartControl
    • Spray at any hand speed with professional finish every time
    • Precision pressure control delivers a consistent spray fan without pressure fluctuations
  • ProControl II
    • Adjust motor speed to spray at any speed the job demands
    • More control to deliver a professional finish – every job, every time
  • Hot Solvent Compatible
    • Sprays hot solvents such as solvent-based lacquer
    • Sprays water, solvent and flammable based materials
  • RAC X FF LP Tips
    • Provides superior finish at low pressure
    • Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple
    • Large range of sizes available to meet the job requirements
    • Works on all Graco Airless Sprayers – handhelds to large airless
  • 32 oz FlexLiner Paint Bags
    • Fast cleanup with disposable liners and no suction tube to clean
    • Easy Setup

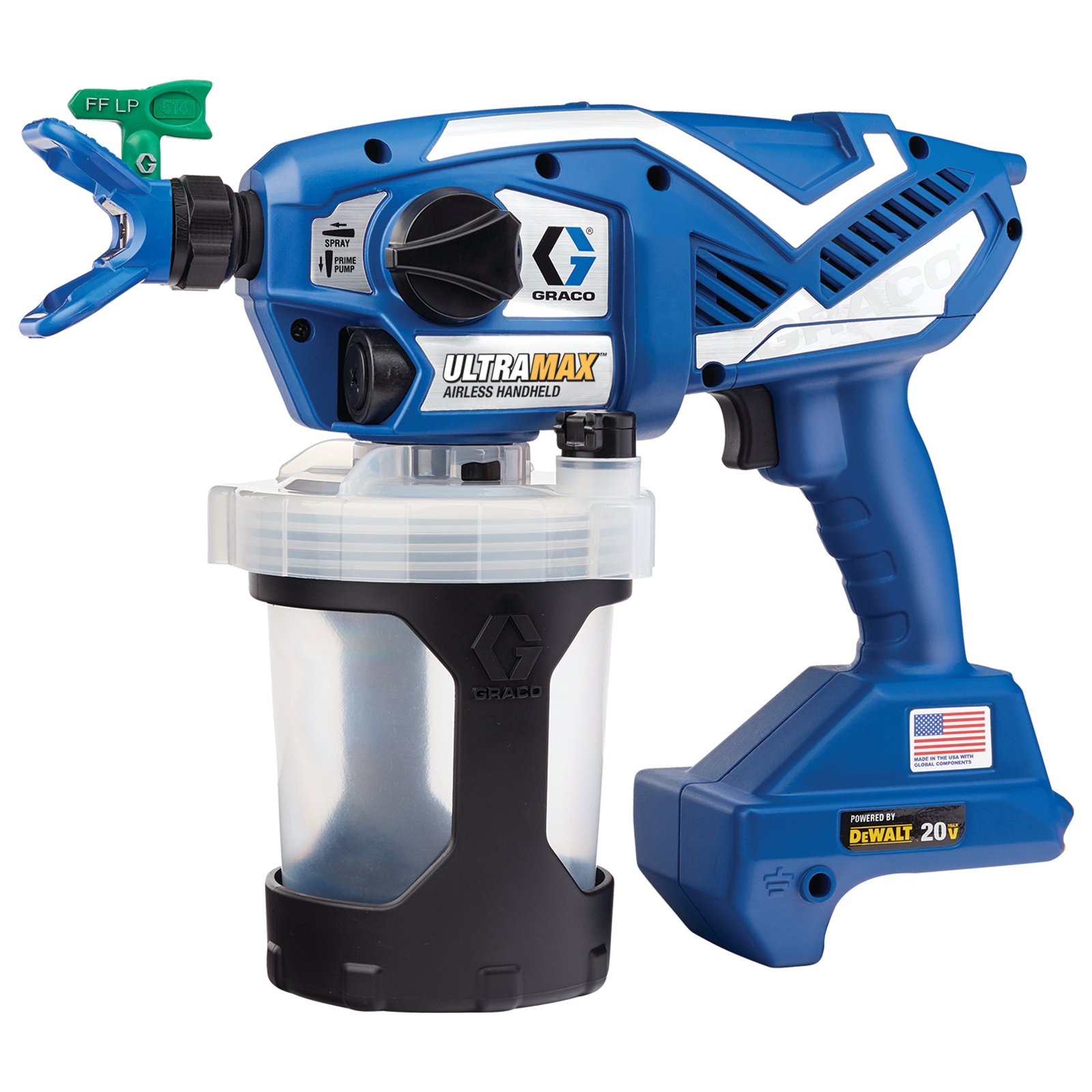

17P928_UltraMAX_Cordless_Tool_Only_Alt_1

Specifications

Technical Specifications

Convert to Metric
Compatible Replacement Pump 17P187
Includes RAC X FF LP 210 Spray Tip, RAC X FF LP 514 Spray Tip, RAC X Guard, 6 - 32 oz FlexLiner Bags, 60 Mesh Filter, 100 Mesh Filter, Pump Armor 4 oz
Maximum Tip Size (in) 0.016
Maximum Working Pressure (psi) 2000
Minimum Working Pressure (psi) 500
Model UltraMAX
Power Source Battery Powered
Series Cordless
Type Handheld Cordless Airless Sprayer
Compatible Replacement Pump 17P187
Includes RAC X FF LP 210 Spray Tip, RAC X FF LP 514 Spray Tip, RAC X Guard, 6 - 32 oz FlexLiner Bags, 60 Mesh Filter, 100 Mesh Filter, Pump Armor 4 oz
Maximum Tip Size (cm) 0.0406
Maximum Tip Size (mm) 0.4064
Maximum Working Pressure (bar) 140
Maximum Working Pressure (kPa) 1400
Minimum Working Pressure (bar) 35.0000
Minimum Working Pressure (kPa) 350.0000
Model UltraMAX
Power Source Battery Powered
Series Cordless
Type Handheld Cordless Airless Sprayer

What's Included

Part No. Description Qty Unit
FFLP210 Fine Finish Low Pressure RAC X FF LP SwitchTip, 210 1 ea
FFLP514 Fine Finish Low Pressure RAC X FF LP SwitchTip, 514 1 ea
246215 RAC X HandTite Tip Guard 1 ea
16W847 32 oz FlexLiner Paint Cup 6 ea
17M938 FILTER, FLUID, 60 MESH 1 ea
17M939 FILTER, FLUID, 100 MESH 1 ea
