Ultra Cordless

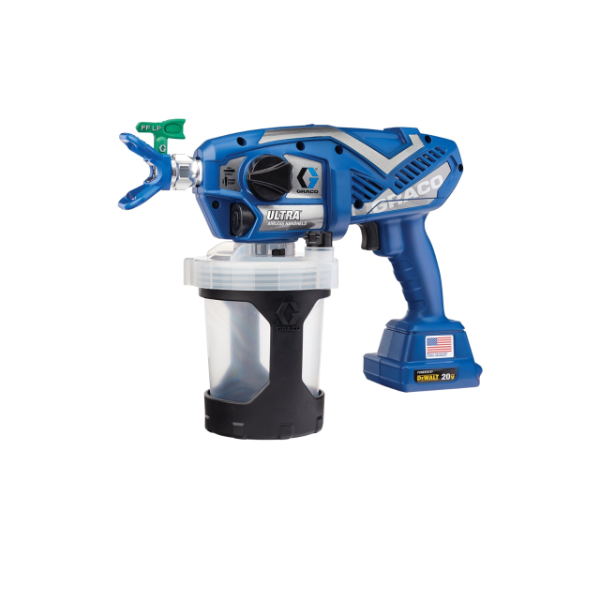

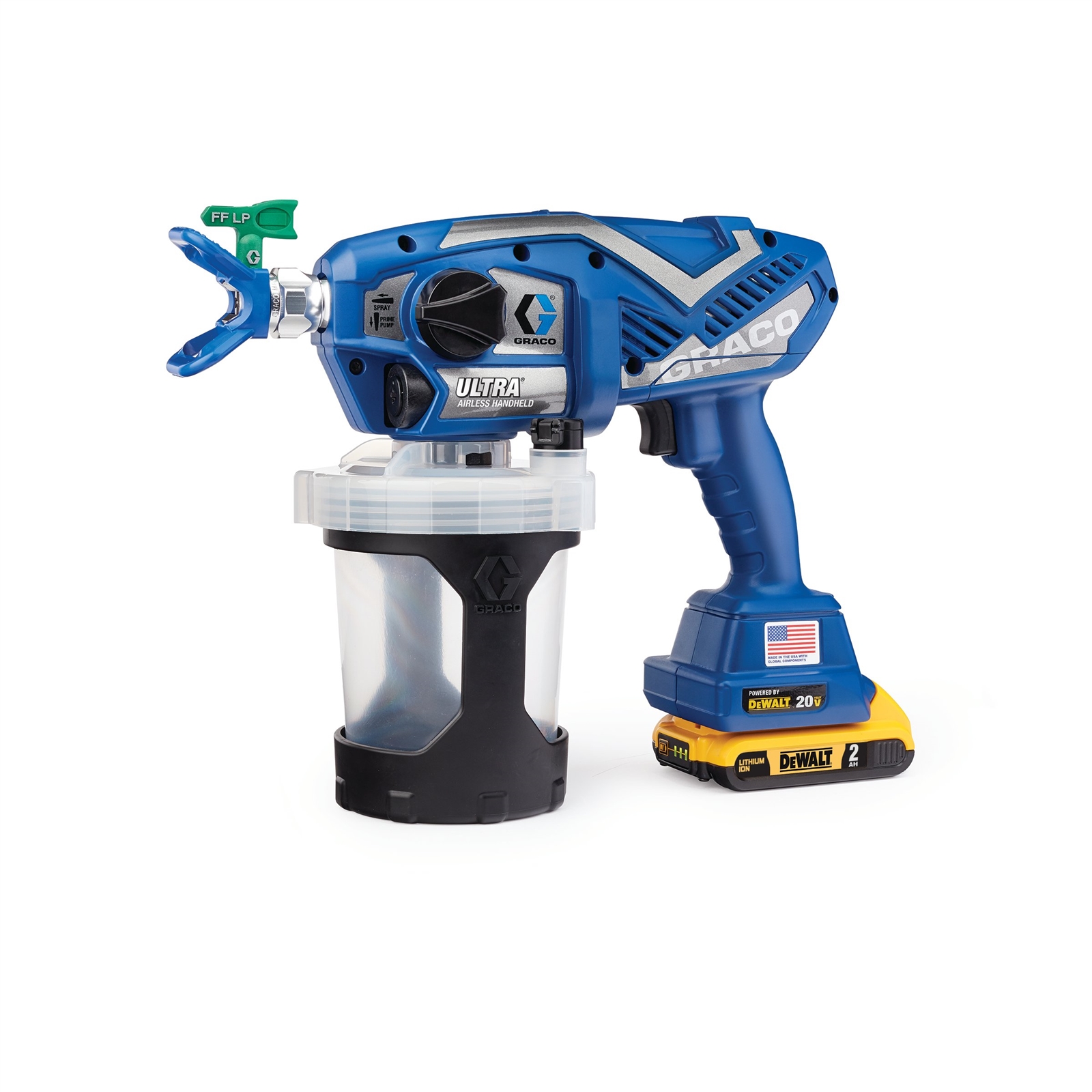

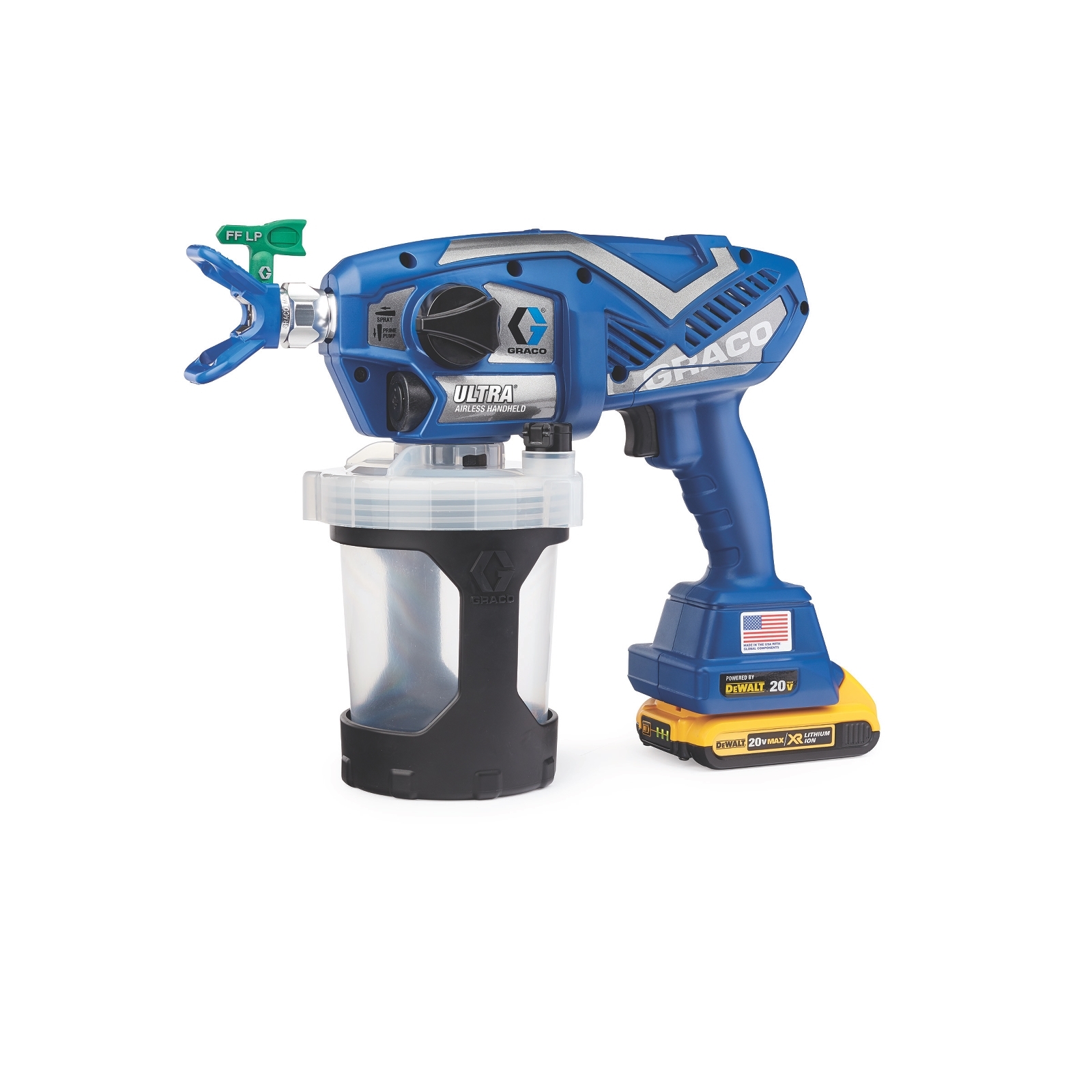

Ultra Cordless Handheld Airless Sprayer

17M363

17M363_Ultra_Cordless_Main 17M363_Ultra_Cordless_Alt_1 17M363_Ultra_Cordless_Alt_2 17M363_Ultra_Cordless_Alt_3 17P474_DeWalt_20V_MAX_Battery_Alt_2

Ultra Cordless

Ultra Cordless Handheld Airless Sprayer

17M363

Proven By Pros, Ultra Cordless sprayers provide the fastest way to finish small jobs. Deliver a perfect airless finish in seconds with fast, easy setup and the easy-to-clean design reduces cleanup to just a few minutes so you get to the next job quicker.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Proven By Pros, Ultra Cordless sprayers provide the fastest way to finish small jobs. Deliver a perfect airless finish in seconds with fast, easy setup and the easy-to-clean design reduces cleanup to just a few minutes so you get to the next job quicker.

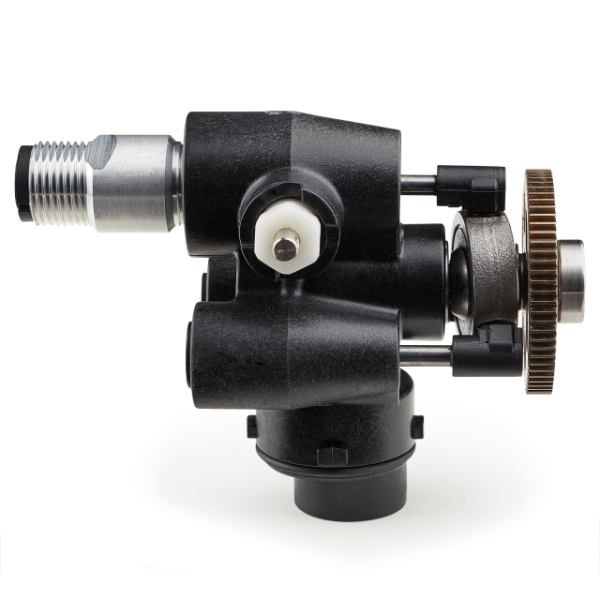

  • Triax Triple Piston Pump
    • Durable carbide piston built to deliver extended reliability and full tip support
    • The most durable, lightest weight pump
    • Fast, on-the-job pump replacement with ProConnect
  • DEWALT® XR Lithium Ion Battery System
    • Spray up to 1 gallon with each charge
    • Compatible with any DEWALT 20V Lithium Ion battery
    • Comes standard with 2 batteries and charger
    • 3-LED fuel gauge system allows immediate feedback on state of charge
    • Lightweight design and 30% faster charge time (35 minutes)
  • ProConnect
    • On-The-Job Pump Replacement System
    • One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
  • SmartControl
    • Spray at any hand speed with professional finish every time
    • Precision pressure control delivers a consistent spray fan without pressure fluctuations
  • ProControl II
    • Adjust motor speed to spray at any speed the job demands
    • More control to deliver a professional finish – every job, every time
  • RAC X FF LP Tips
    • Provides superior finish at low pressure
    • Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple
    • Large range of sizes available to meet the job requirements
    • Works on all Graco Airless Sprayers – handhelds to large airless
  • 32 oz FlexLiner Paint Bags
    • Fast cleanup with disposable liners and no suction tube to clean
    • Easy Setup

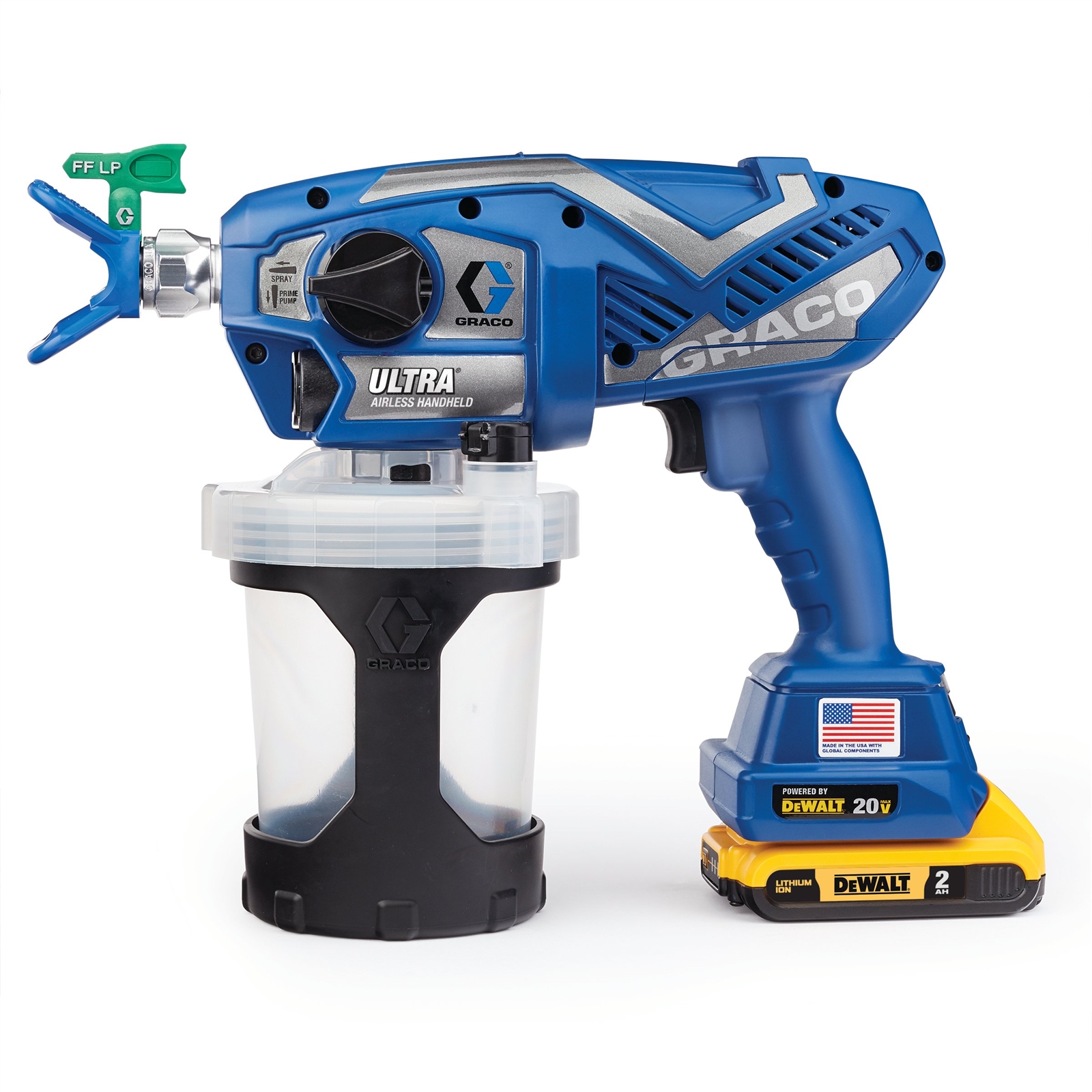

17M363_Ultra_Cordless_Alt_1

Specifications

Technical Specifications

Convert to Metric
Battery Capacity (Ah) 2
Battery Chemistry Lithium-ion
Battery Voltage (V) 20
Charging Time (min) 35
Compatible Replacement Pump 17P186
Filter Mesh Size 60
Frame Configuration Handheld

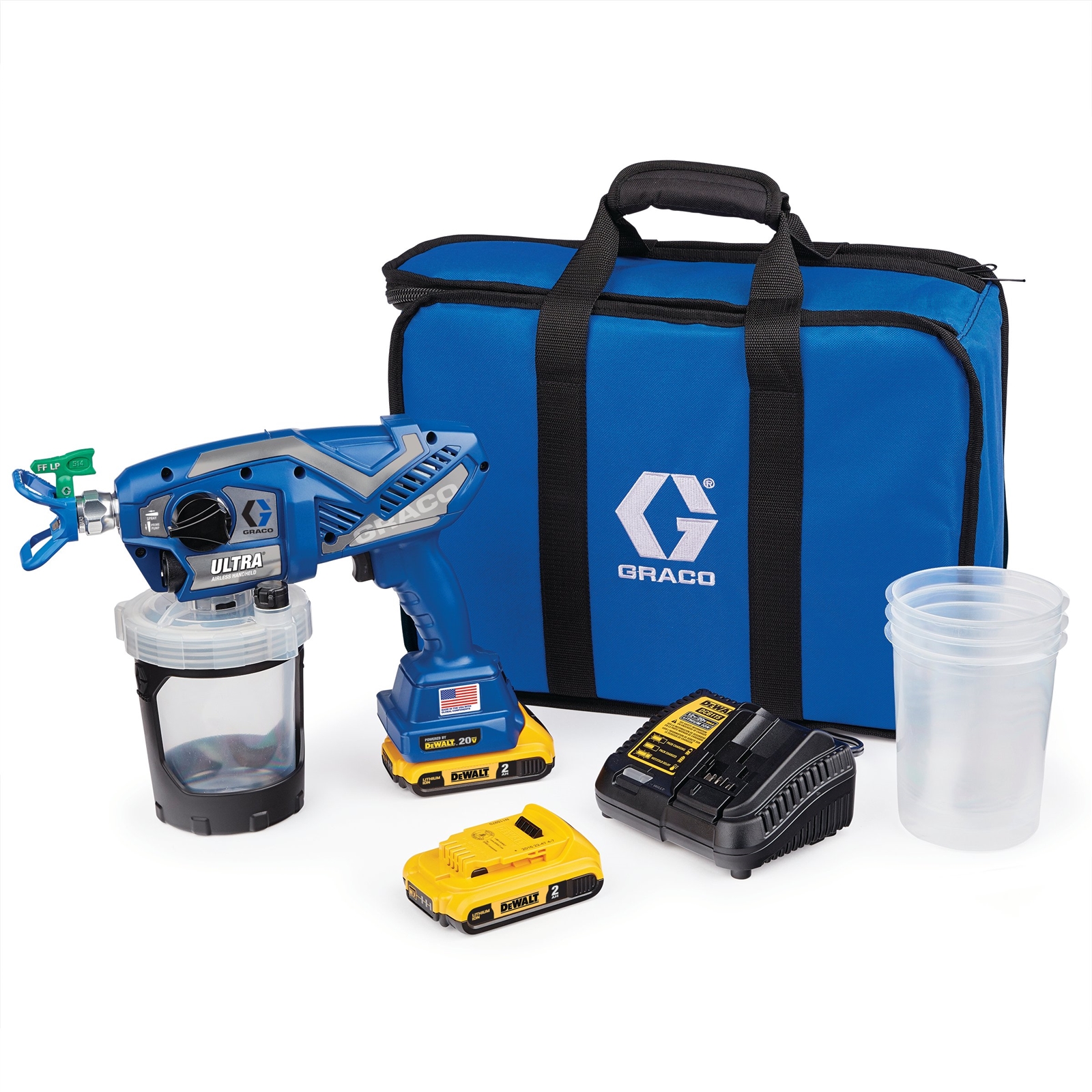

Includes RAC X FF LP 514 Spray Tip, RAC X Guard, 4 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX Compact XR Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, Storage Bag, Pump Armor 4 oz
Maximum Tip Size (in) 0.016
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (psi) 2000
Minimum Working Pressure (psi) 500
Model Ultra
Overall Height (in) 10.5
Overall Length (in) 14
Overall Width (in) 5
Power Source Battery Powered
Pressure Control Type ProControl II
Pump Type Triax Triple Piston
Series Cordless
Type Handheld Cordless Airless Sprayer
Weight (lb) 5
Battery Capacity (Ah) 2
Battery Chemistry Lithium-ion
Battery Voltage (V) 20
Charging Time (min) 35
Compatible Replacement Pump 17P186
Filter Mesh Size 60
Frame Configuration Handheld
Includes RAC X FF LP 514 Spray Tip, RAC X Guard, 4 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX Compact XR Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, Storage Bag, Pump Armor 4 oz
Maximum Tip Size (cm) 0.0406
Maximum Tip Size (mm) 0.4064
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Minimum Working Pressure (bar) 35
Minimum Working Pressure (kPa) 3500
Model Ultra
Overall Height (cm) 26.7
Overall Height (mm) 266.7
Overall Length (cm) 36
Overall Length (mm) 356
Overall Width (cm) 12.7
Overall Width (mm) 127
Power Source Battery Powered
Pressure Control Type ProControl II
Pump Type Triax Triple Piston
Series Cordless
Type Handheld Cordless Airless Sprayer
Weight (kg) 2

What's Included

Part No. Description Qty Unit
FFLP514 Fine Finish Low Pressure RAC X FF LP SwitchTip, 514 1 ea
246215 RAC X HandTite Tip Guard 1 ea
16W847 LINER, CUP 4 ea
17P474 DEWALT 20V MAX Compact XR Lithium Ion Battery Pack 2 ea
17P475 DEWALT 20V MAX Lithium Ion Battery Charger 1 ea
17M938 FILTER, FLUID, 60 MESH 1 ea
17M883 Storage Case 1 ea
