TrueCoat 360 VSP

TrueCoat 360 VSP Electric TrueAirless Sprayer

Part Number: 17D889

TrueCoat 360 VSP

TrueCoat 360 VSP Electric TrueAirless Sprayer

Part Number: 17D889

The TrueCoat 360 VSP helps DIY homeowners and handymen turn jobs around faster. An ideal choice for any interior project, decks or fences, the Variable Speed Control lets you determine the pace for ultimate control and you’ll have fewer refills with the large 42-ounce FlexLiner bag.
$309.00
USD MSRP
Find A Retailer
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Review Highlights

Read All Reviews

“I bought a month ago to spray inside and outside of deer hunting blind. No need thinning primer/paint in one. Was able to spray steady every angle you can think of - excellent coverage. Don’t hesitate buy this sprayer.”
– Deano66, 10/5/21★★★★★

“We ordered new kitchen cabinet doors and are extremely happy with the result. So much cleaner than what a brush could do. Cleaning up can be a little time consuming, but that is to protect it for future use. I highly recommend.”
– wilson4usc, 9/26/21★★★★

“Very happy with this sprayer. Used it on a bathroom vanity and the finish was perfect…this sprayer worked as advertised and I would recommend it.”
– Choprpilot76, 9/19/21★★★★★

“Just finished my first paint project and really like the way it work no paint thinning sprayer great right out of the can latex paint.”
– Barracudabad64, 8/27/21 ★★★★★

“Best sprayer for my needs, Plan on wasting about a quart of paint as training but don't give up. My results on louvered door were best with low setting and multiple passes. Still Way easier than a brush! Wish there was lest paint wastage in flex cup.”
– Jim03, 8/14/21★★★★

“Very pleased with product as well as customer service. I’m sure if anything goes wrong in the future it will be on me not following very detailed instructions. Good company great products. No I wasn’t paid to say this.”
– Braircliff, 8/14/21★★★★★

Features

Product Brochure
The TrueCoat 360 VSP helps DIY homeowners and handymen turn jobs around faster. An ideal choice for any interior project, decks or fences, the Variable Speed Control lets you determine the pace for ultimate control and you’ll have fewer refills with the large 42-ounce FlexLiner bag.

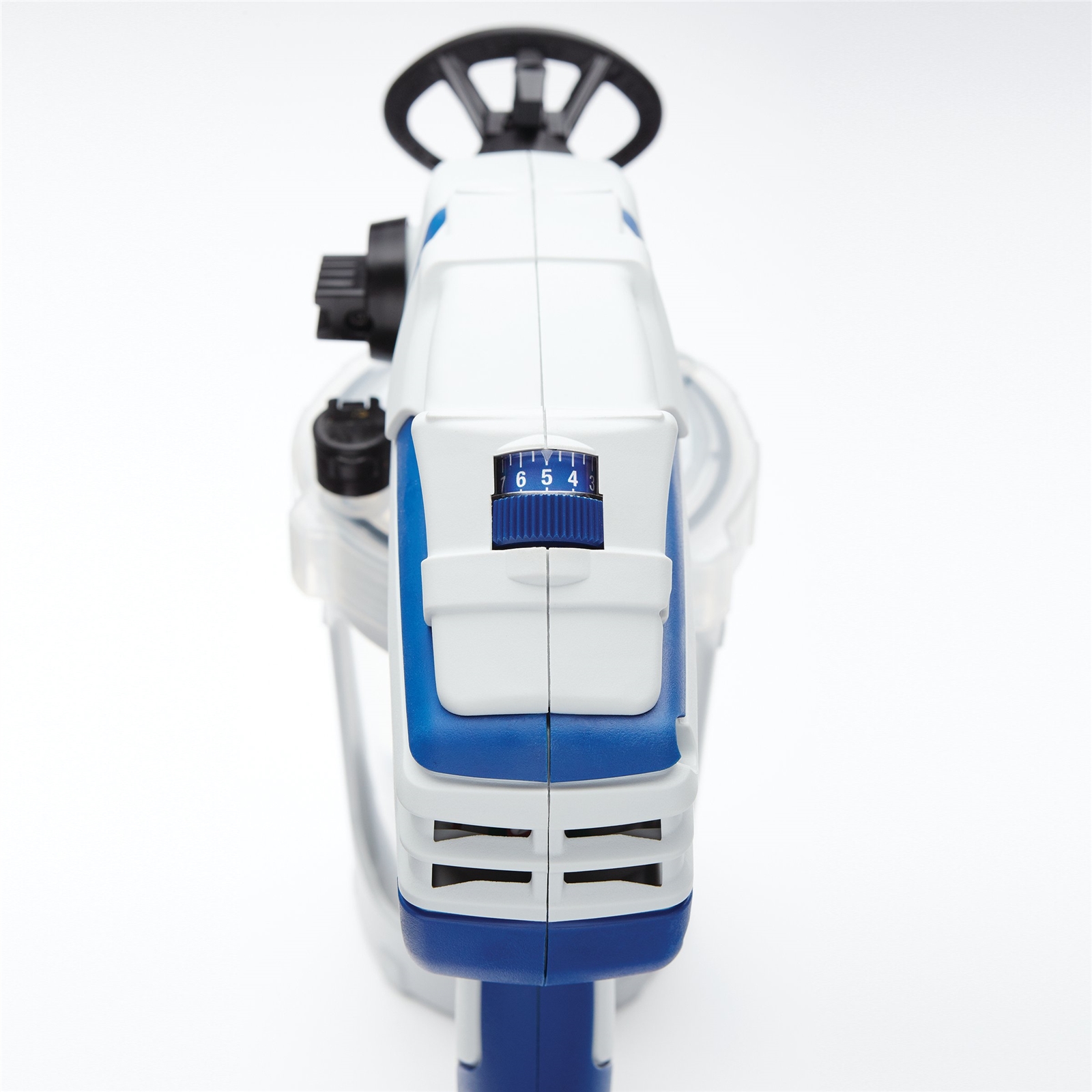

  • Variable Speed Control - Multiple speed settings to fit your pace
  • Larger FlexLiner System - 42 oz bags for 25% less refills per gallon
  • Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
  • VacuValve Technology - Squeeze out all the air to spray in any direction - even upside down
  • Reverse-A-Clean Spray Tip - High precision spray tip reverses to quickly clean material clogs
  • On-Board Tip Storage - Quickly switch between the 4 in narrow and 12 in wide spray tips (tips are included)
  • FlexLiner Paint Bag System - Fast cleanup, recycle or reuse
  • Durable Storage Bag - Protects sprayer while keeping tips and accessories organized

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Tip Size (in) 0.015
Frame Configuration Handheld
Includes 4 in RAC Spray Tip, 12 in RAC Spray Tip, 4 - 42 oz FlexLiner Bags, Storage Bag
Maximum Tip Size (in) 0.015
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (psi) 1500
Model TrueCoat
Overall Height (in) 11.8
Overall Length (in) 12.50
Overall Width (in) 5.25
Power Cord Length (in) 18
Power Source Electric
Product Series Project
Pump Type Piston
Recommended Annual Usage (gal) 25
Series 360 VSP
Type Handheld Corded Airless Sprayer
Voltage (V) 120
Weight (lb) 4
Compatible Tip Size (cm) 0.0381
Compatible Tip Size (in) 0.015
Compatible Tip Size (mm) 0.3810
Frame Configuration Handheld
Includes 4 in RAC Spray Tip, 12 in RAC Spray Tip, 4 - 42 oz FlexLiner Bags, Storage Bag
Maximum Tip Size (cm) 0.0381
Maximum Tip Size (in) 0.015
Maximum Tip Size (mm) 0.3810
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (bar) 103
Maximum Working Pressure (kPa) 10300
Maximum Working Pressure (psi) 1500
Model TrueCoat
Overall Height (cm) 29.97
Overall Height (mm) 299.7
Overall Length (cm) 31.75
Overall Length (mm) 317.5
Overall Width (cm) 13.34
Overall Width (mm) 133.4
Power Cord Length (cm) 46
Power Cord Length (mm) 457
Power Source Electric
Product Series Project
Pump Type Piston
Series 360 VSP
Type Handheld Corded Airless Sprayer
Voltage (V) 120
Weight (kg) 2

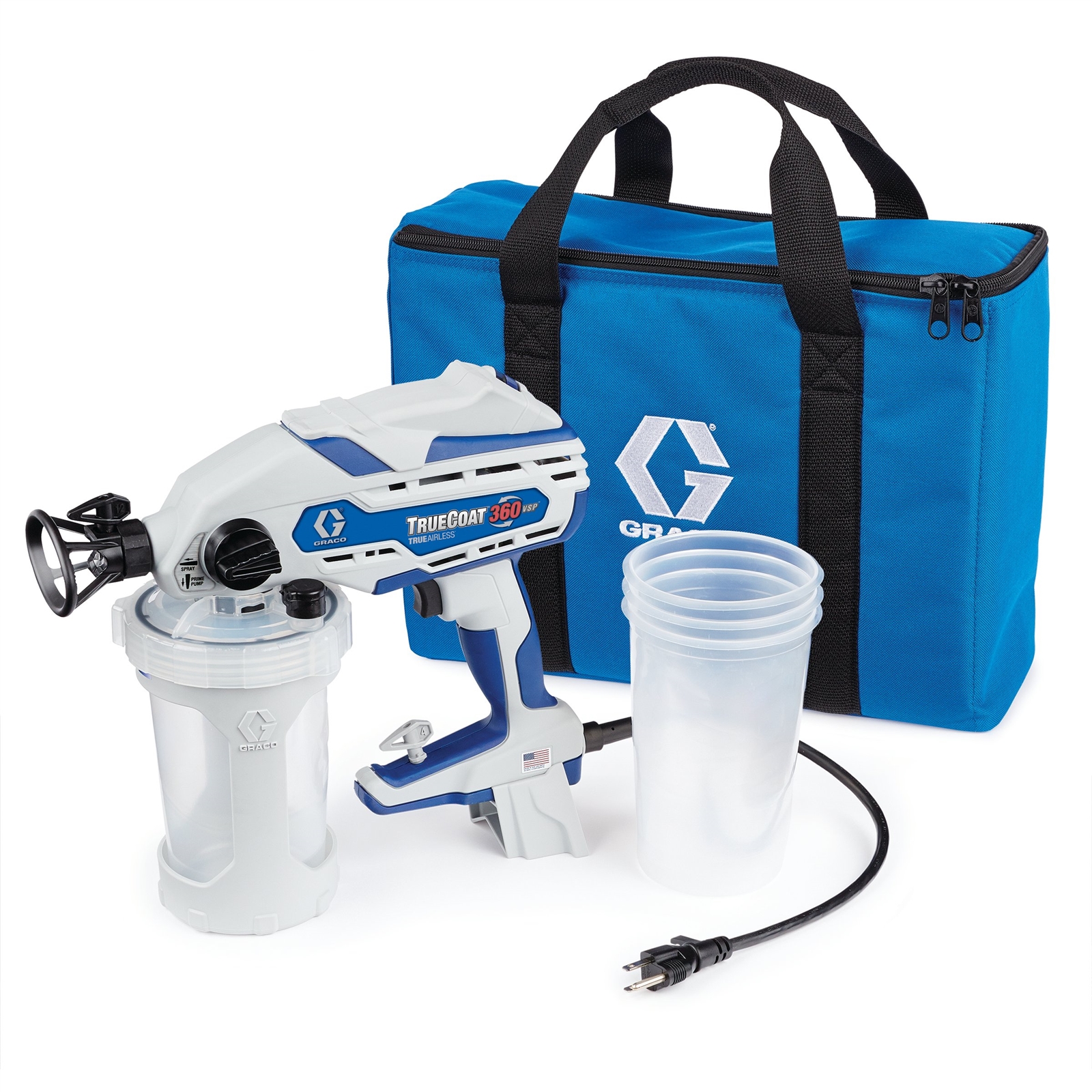

What's Included

Part No. Description Qty Unit
17A223 TrueCoat 360 Spray Tips 1 ea
17N194 Handheld Storage Bag 1 ea

Repair Parts

Part No. Description
16W849 Inlet Filter
17A402 KIT, PRIME/SPRAY VALVE
17B415 KIT, REPAIR, COMPLETE PUMP
17A649 KIT, REPAIR, ENCLOSURE GRAY
17F068 KIT, REPAIR, MTR/CTRL VARIABLE
16Y425 O-RING
