Fitting - Tee , 9/16 MJ(2) X 9/16 SAE
Part Number: 129759

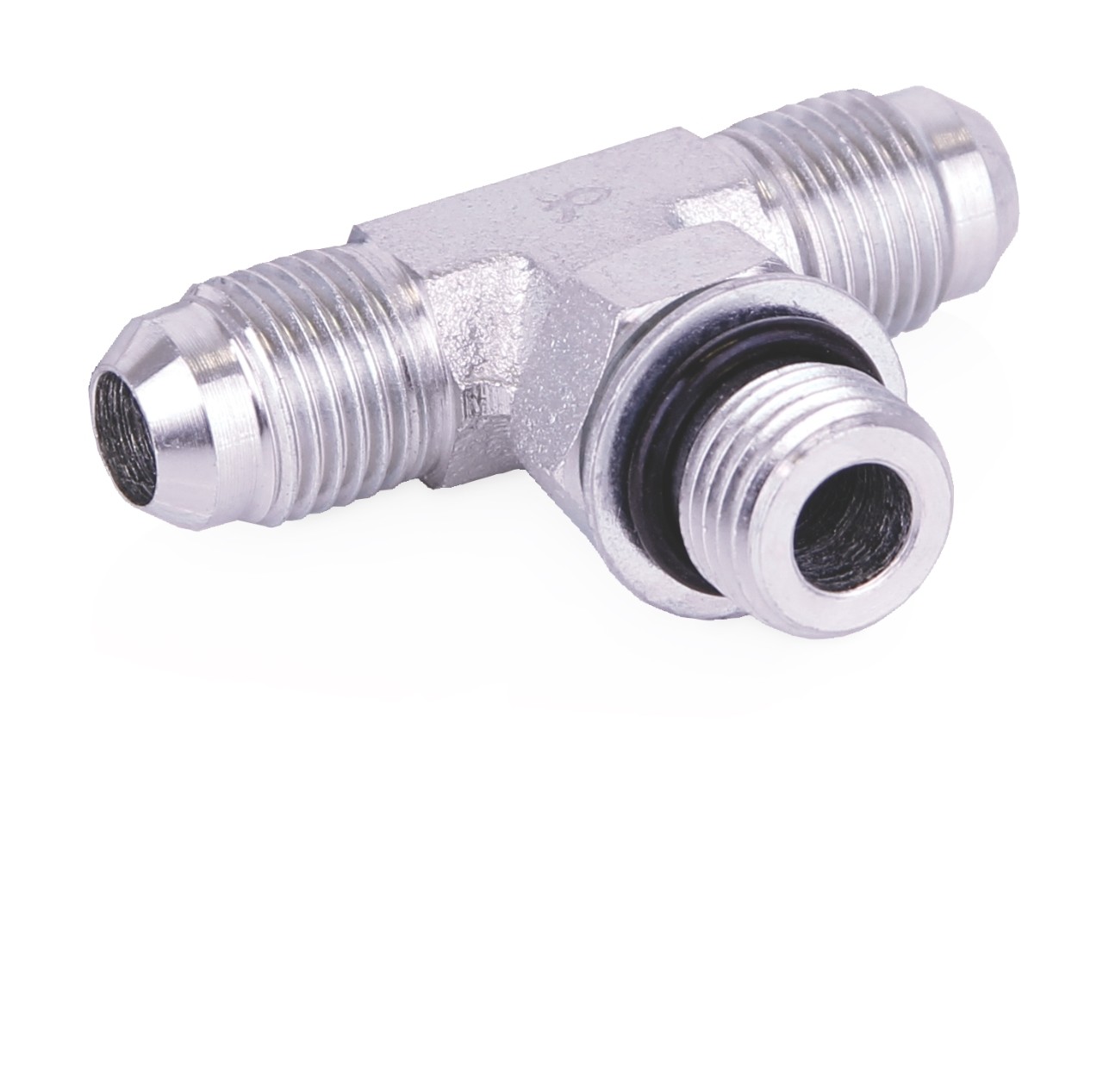

Image is for illustrative purposes only.
Fitting - Tee , 9/16 MJ(2) X 9/16 SAE
Part Number: 129759
Features
Product Brochure
For use with Electric Grease Jockey System Installation Kits.
- Mainline Tees (3)
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | On-Road Vehicles |
|---|---|
| Compatible Material | Oil, Grease |
| Connection Type | Threaded |
| For Use With | Hose |
| Material | Steel |
| Maximum Working Pressure (psi) | 6000 |
| Size A (in) | 9/16 |
| Size B (in) | 9/16 |
| Size C (in) | 9/16 |
| System of Measurement | Imperial |
| Thread Type | JIC, SAE |
| Type | Tee |
| Application | On-Road Vehicles |
| Compatible Material | Oil, Grease |
| Connection Type | Threaded |
| For Use With | Hose |
| Material | Steel |
| Maximum Working Pressure (bar) | 414 |
| Maximum Working Pressure (kPa) | 41400 |
| Maximum Working Pressure (psi) | 6000 |
| Size A (mm) | 14.288 |
| Size B (mm) | 14.288 |
| Size C (mm) | 14.288 |
| System of Measurement | Imperial |
| Thread Type | JIC, SAE |
| Type | Tee |
