G5 Pro

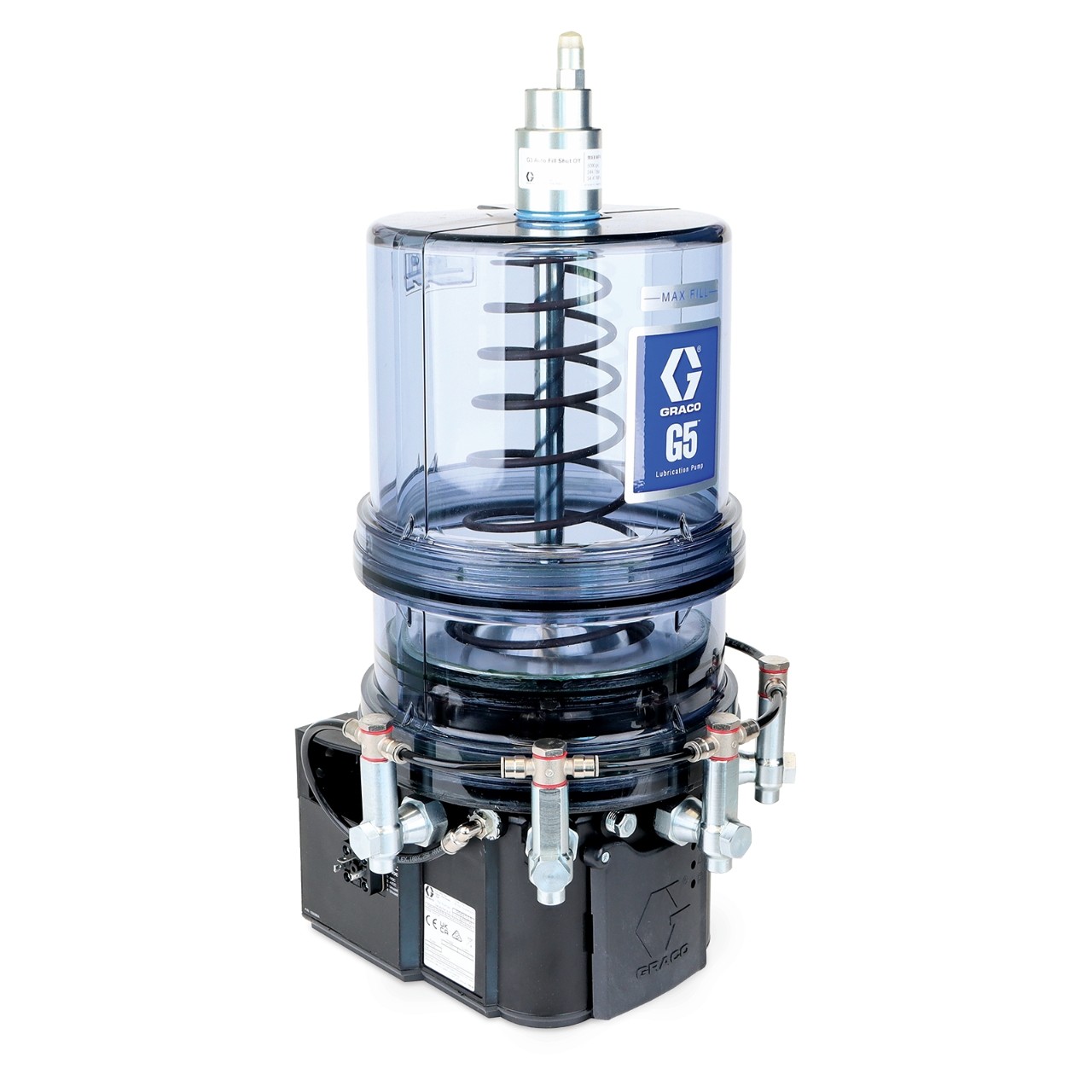

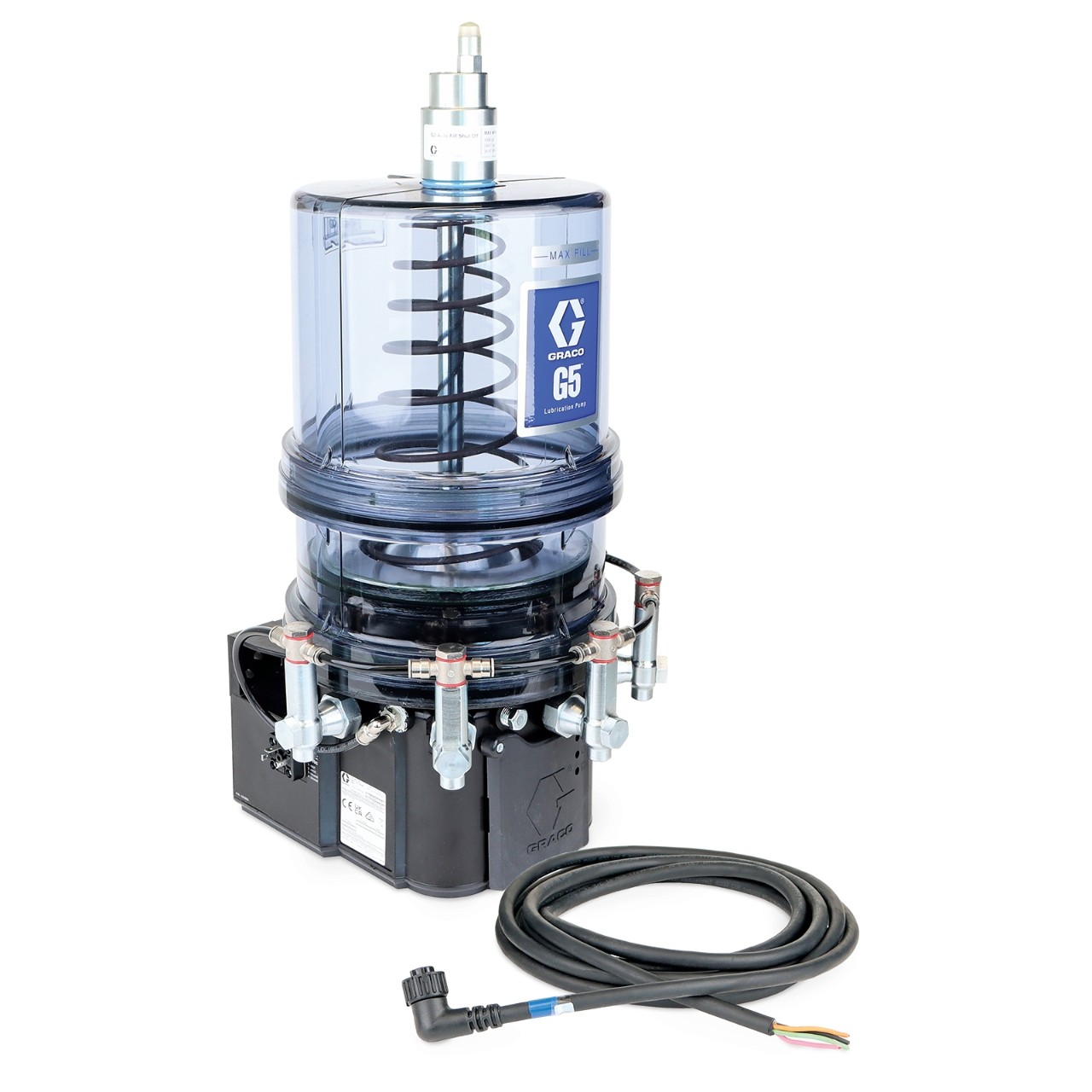

G5™ Pro pump assembly, 24 VDC, 8 litre, AFSO, DIN power and alarm, 4000 psi pressure relief valves, return to reservoir, cover
Part Number: 134180
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
G5 Pro
G5™ Pro pump assembly, 24 VDC, 8 litre, AFSO, DIN power and alarm, 4000 psi pressure relief valves, return to reservoir, cover
Part Number: 134180
Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.
Features
Product Brochure
(English Only)
Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.
Designed for quintuplex frack pumps, pumpjacks and other pump-to-point applications.
- Five pump elements - G5 comes standard with five adjustable pump elements installed.
- Flexible power options - two CPC-style connectors with low level output options make for easy, hassle-free installations.
- Optional pressure relief valves - install up to five pressure relief valves with the option to vent back into the reservoir.
- Two controller options - use your existing machine’s controller or choose the G5 Pro’s built-in controller.
- Reservoir wiper arm - a stirring paddle with wiper arm to keep material from separating.
- Auto-fill shut-off (AFSO) option - completely fill the reservoir while avoiding costly spills with an optional AFSO.
- Robust reservoir - UV resistant, high-impact reservoirs to meet the needs of your equipment.
(English Only)
Specifications & Documents
Technical Specifications
Convert to Imperial| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
|---|---|
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Alarm Relay Inductive Minimum Permissible Load | 10 VA;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Alarm relay inductive maximum operating voltage (VDC) | 220 |
| Application | Off-Road Equipment |
| Compatible Material | Grease, Oil |
| Compatible Metering Device | Series Progressive |
| Control Options | Pro |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-based systems, Series Progressive systems |
| IP Rating | IP69K |
| Input Voltage (V dc) | 24 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fluid Output Pressure (psi) | 4250 |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°F) | 185 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 29.3 |
| Maximum Working Pressure (psi) | 4250 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Voltage (V dc) | 18 |
| Minimum cST Grade (cST) | 40 |
| Model | G5 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Outlets | 5 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Pump Elements | 5 |
| Overall Depth (in) | 11.18 |
| Overall Height (in) | 22.67 |
| Overall Width (in) | 9.25 |
| Power Connection Type | DIN |
| Power Type | Electric |
| Pump Output with 0 Spacers (cu in/min) | 0.16 |
| Pump Output with 1 Spacer (cu in/min) | 0.1 |
| Pump Output with 2 Spacers (cu in/min) | 0.06 |
| Reservoir Size (L) | 8 |
| Reservoir Size (gal) | 2.11 |
| Series | Pro |
| Type | Electric Piston Pump |
| Voltage | 24 |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Weight (lb) | 21.6 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel-Plated Alnico, Chemically Lubricated Acetal, Aluminium, PTFE, Grilamid |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Alarm Relay Inductive Minimum Permissible Load | 10 VA;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Alarm relay inductive maximum operating voltage (VDC) | 220 |
| Application | Off-Road Equipment |
| Compatible Material | Grease, Oil |
| Compatible Metering Device | Series Progressive |
| Control Options | Pro |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-based systems, Series Progressive systems |
| IP Rating | IP69K |
| Input Voltage (V dc) | 24 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fluid Output Pressure (psi) | 4250 |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 29.3 |
| Maximum Working Pressure (bar) | 293 |
| Maximum Working Pressure (kPa) | 29302 |
| Maximum Working Pressure (psi) | 4250 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Voltage (V dc) | 18 |
| Minimum cST Grade (cST) | 40 |
| Model | G5 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Outlets | 5 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Pump Elements | 5 |
| Overall Depth (cm) | 25.4 |
| Overall Depth (mm) | 254 |
| Overall Height (cm) | 57.6 |
| Overall Height (mm) | 576 |
| Overall Width (cm) | 23.5 |
| Overall Width (mm) | 302 |
| Power Connection Type | DIN |
| Power Type | Electric |
| Reservoir Size (L) | 8 |
| Series | Pro |
| Type | Electric Piston Pump |
| Voltage | 24 |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Weight (kg) | 9.8000000000000007 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel-Plated Alnico, Chemically Lubricated Acetal, Aluminium, PTFE, Grilamid |
