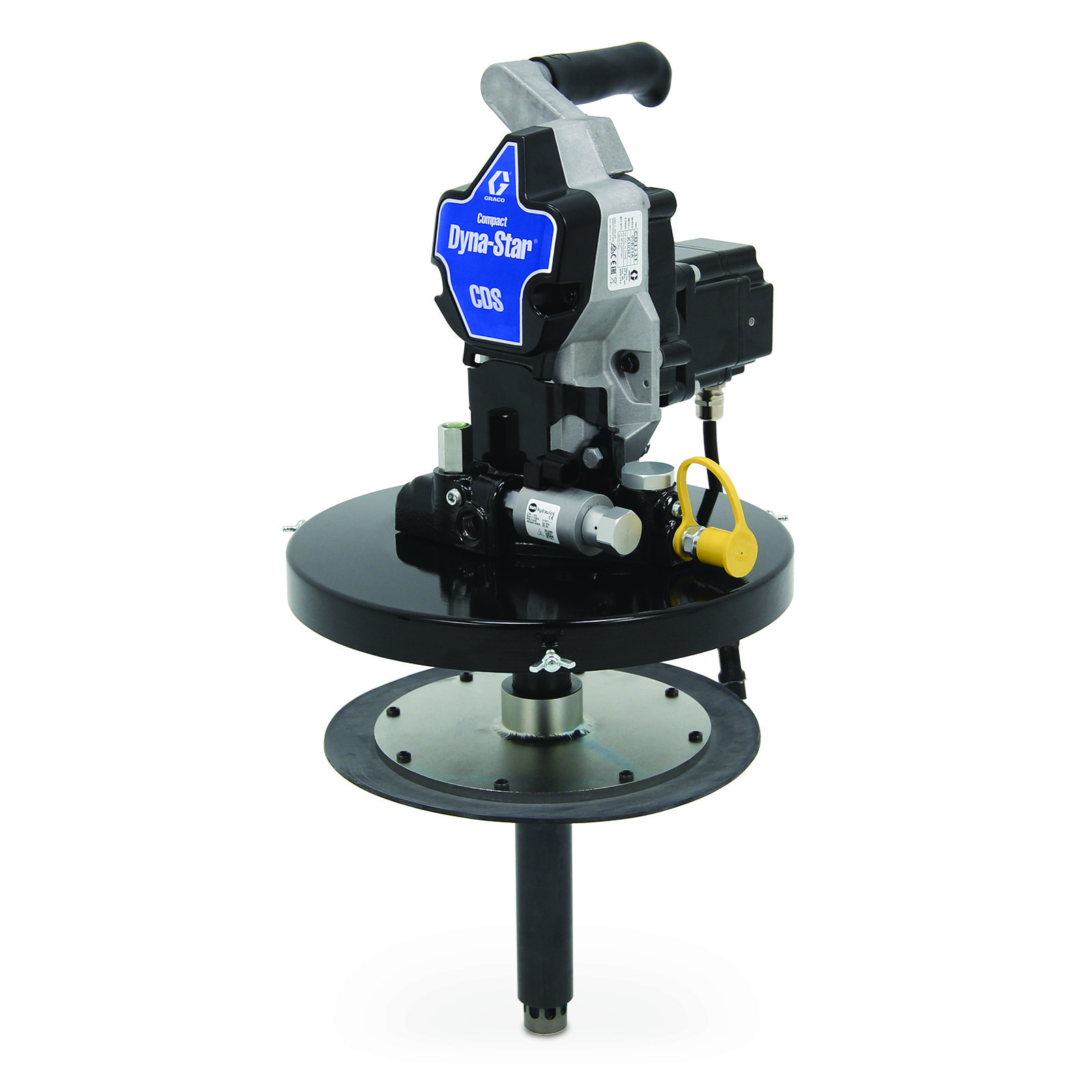

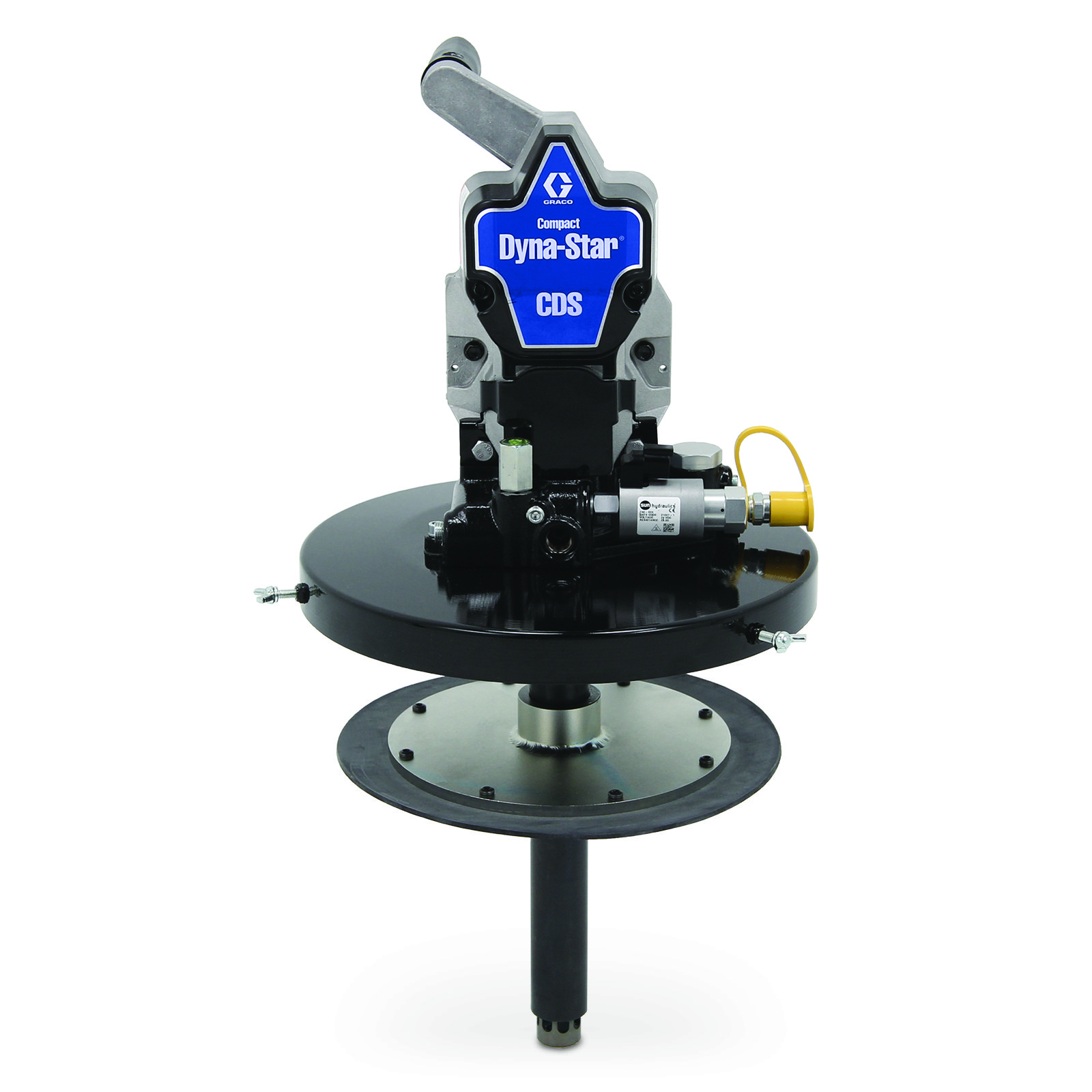

Compact Dyna-Star® 24 VDC 35 lb (16 kg) oil or grease bucket kit, vent-valve pump, lifting handle, pressure and low-level switch
Part Number: CD1231
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Compact Dyna-Star® 24 VDC 35 lb (16 kg) oil or grease bucket kit, vent-valve pump, lifting handle, pressure and low-level switch
Part Number: CD1231
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
Features
Product Brochure
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - fits easily into space-limited applications; powerful enough to keep up with an aggressive lubrication interval.
- Smart Power Train - a 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40°C.
- Rugged durability - the metal construction ensures trustworthy operation in the most extreme environments.
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | In-Plant Machinery, Off-Road Equipment |
|---|---|
| Approvals | CE;RCM |
| Compatible Material | Oil & Grease |
| Compatible Metering Device | Single Line Parallel |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| Control Options | Integrated electrical motor controller |
| Fluid Outlet Size (in) | 3/8 NPT and/or 1/4 NPT |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | Tapered pipe thread (NPT) |
| For Use With | ISO100 oil up to NLGI #2 grease |
| IP Rating | IP69K |
| Input Voltage (V dc) | 24 |
| Input sensor voltage (VDC) | 24 |
| Low Level Carry Current (A) | 0.02 |
| Low Level Switching Current (A) | 0.2 |
| Low level switch rating (VDC) | 24 |
| Lower Type | Shovel |
| Material | Carbon Alloy Steel |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Flow Rate (ci/min) | 4.5 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Input Amperage (A) | 10 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°F) | 149 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (psi) | 3500 |
| Maximum cST Grade (cST) | NLGI #2 Grease |
| Maximum cycle rate (strokes/min) | 64 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Voltage (V dc) | 18 |
| Motor Type | Brushless DC |
| Number of Pump Elements | 1 |
| Overall Depth (in) | 13.9 |
| Overall Height (in) | 39.0 |
| Overall Width (in) | 11.5 |
| Package Options | Pump with Reservoir |
| Power Connection Type | Deutsch DT04-2P housing, M12 |
| Power Rating (HP) | 0.25 |
| Power Type | Electric |
| Reservoir Size (L) | 12 |
| Reservoir Size (lb) | 35 |
| Sound Power Level (dB(A)) | <80 |
| Throat Seal Type | Hythane 181 |
| Type | Compact electric piston pump |
| Vent Valve Maximum Operating Current (A) | 2 |
| Vent valve output voltage (VDC) | 24 |
| Voltage (V dc) | 24 |
| Weight (lb) | 66 |
| Wetted Material | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
| Application | In-Plant Machinery, Off-Road Equipment |
| Approvals | CE;RCM |
| Compatible Material | Oil & Grease |
| Compatible Metering Device | Single Line Parallel |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| Control Options | Integrated electrical motor controller |
| Fluid Outlet Size (in) | 3/8 NPT and/or 1/4 NPT |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | Tapered pipe thread (NPT) |
| For Use With | ISO100 oil up to NLGI #2 grease |
| IP Rating | IP69K |
| Input Voltage (V dc) | 24 |
| Input sensor voltage (VDC) | 24 |
| Low Level Carry Current (A) | 0.02 |
| Low Level Switching Current (A) | 0.2 |
| Low level switch rating (VDC) | 24 |
| Lower Type | Shovel |
| Material | Carbon Alloy Steel |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Flow Rate (L/min) | 0.074 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Input Amperage (A) | 10 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24132 |
| Maximum Working Pressure (psi) | 3500 |
| Maximum cST Grade (cST) | NLGI #2 Grease |
| Maximum cycle rate (strokes/min) | 64 |
| Maximum fluid output pressure (bar) | 241 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Voltage (V dc) | 18 |
| Motor Type | Brushless DC |
| Number of Pump Elements | 1 |
| Overall Depth (mm) | 353.1 |
| Overall Height (mm) | 990 |
| Overall Width (mm) | 292 |
| Package Options | Pump with Reservoir |
| Power Connection Type | Deutsch DT04-2P housing, M12 |
| Power Type | Electric |
| Reservoir Size (L) | 12 |
| Sound Power Level (dB(A)) | <80 |
| Throat Seal Type | Hythane 181 |
| Type | Compact electric piston pump |
| Vent Valve Maximum Operating Current (A) | 2 |
| Vent valve output voltage (VDC) | 24 |
| Voltage (V dc) | 24 |
| Weight (kg) | 29.9 |
| Wetted Material | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
