Magnum ProX19 Cordless

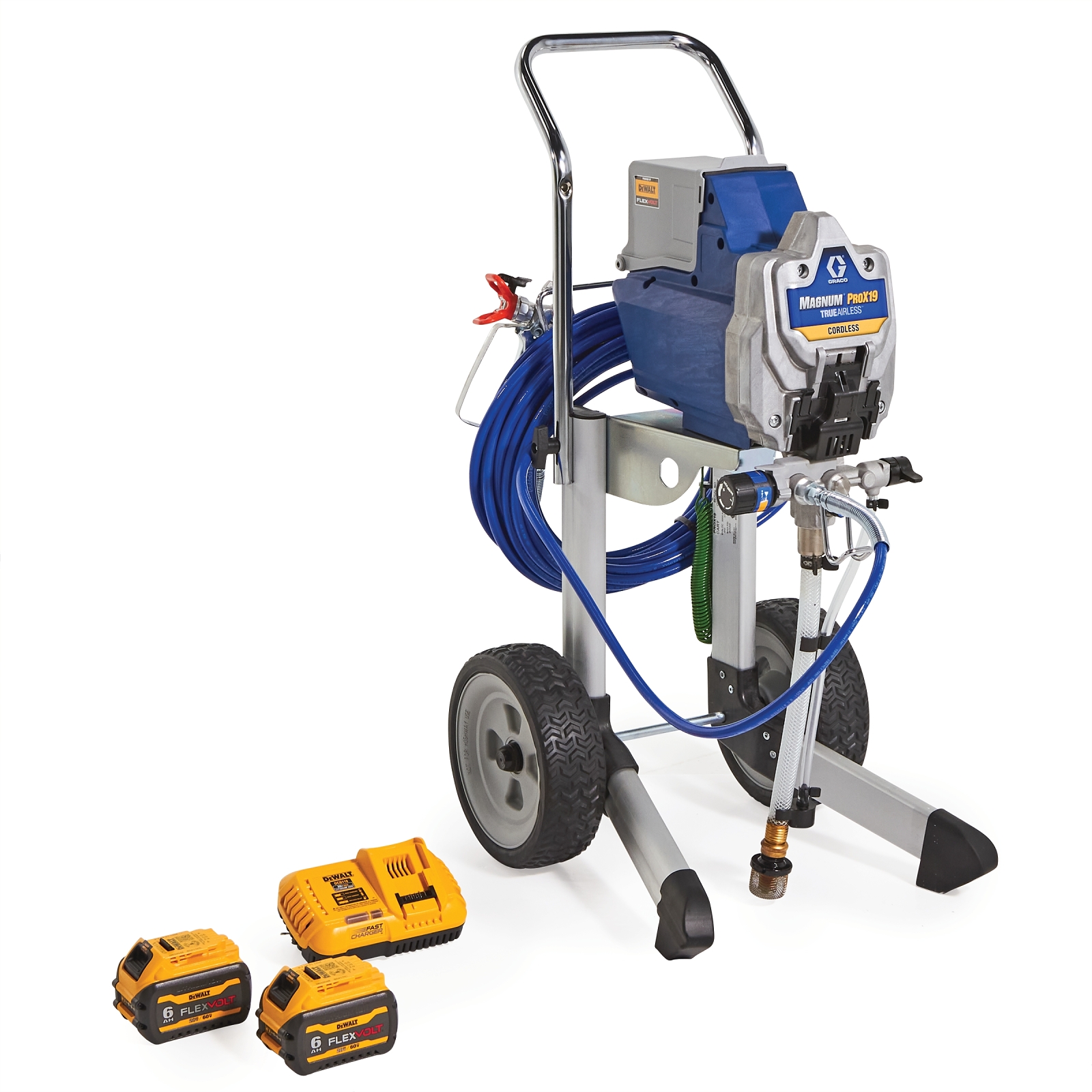

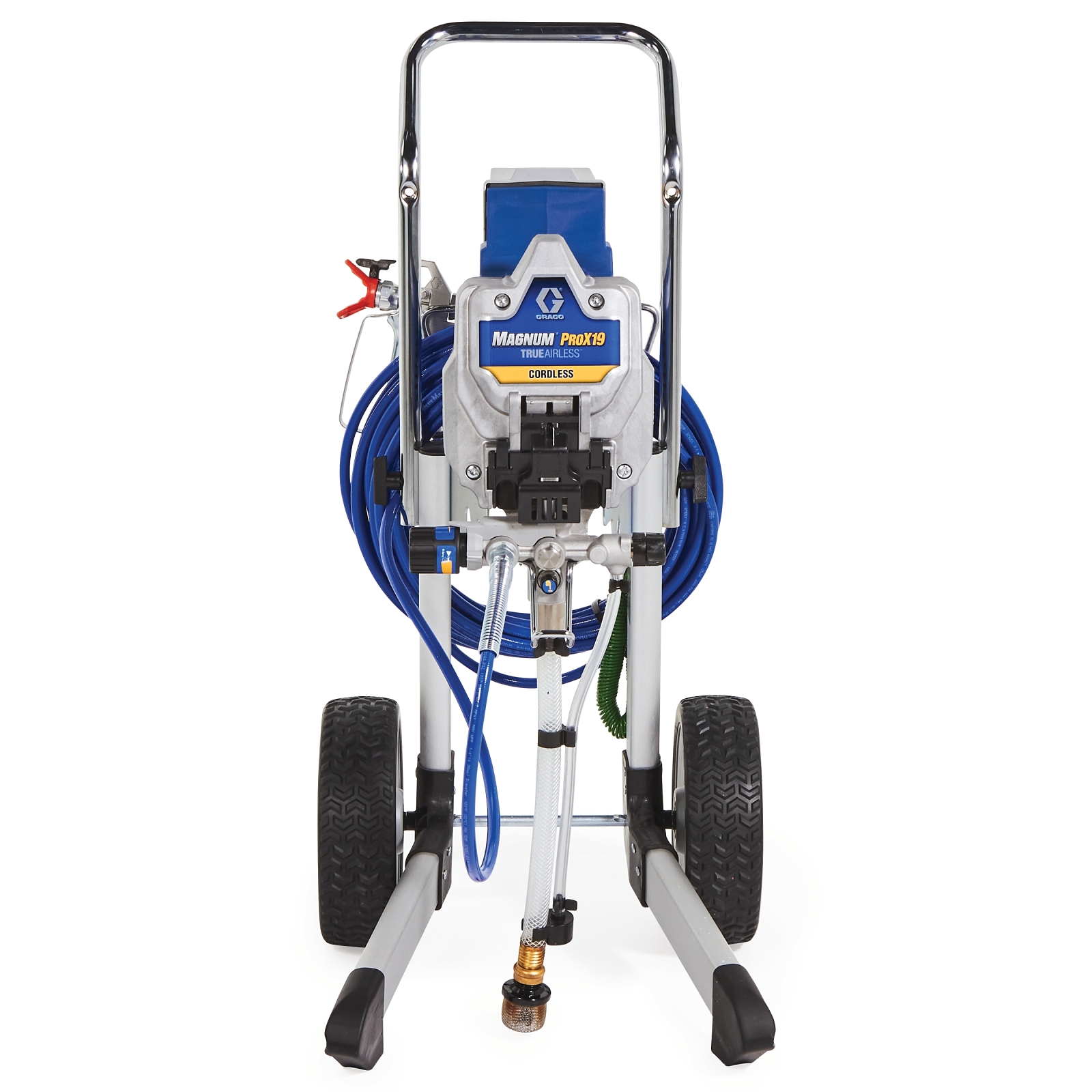

Magnum ProX19 Cordless TrueAirless Sprayer, Cart

Part Number: 25U478

Magnum ProX19 Cordless

Magnum ProX19 Cordless TrueAirless Sprayer, Cart

Part Number: 25U478

Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX19 Cordless. Cordless freedom + cart versatility coupled with legendary Magnum ProX power tackle rental properties and large interior projects with ease.
$1499.00
USD MSRP
Find A Retailer
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX19 Cordless. Cordless freedom + cart versatility coupled with legendary Magnum ProX power tackle rental properties and large interior projects with ease.

The Pro Series line of sprayers are ideal for property and contractor jobs ranging from large residential and rental properties to apartments, townhomes and small commercial buildings. These sprayers are a great solution for improving your efficiency when spraying up to 500 gal. per year. The ProX19 can support to up 150 ft. of paint hose and larger tip sizes for spraying heavier coatings. The ProXChange Pump Replacement System allows you to replace the pump on-the-job with no tools, letting you do more work in less time. You can spray directly from a 1 gal. or 5 gal. bucket with its flexible suction tube and clean up in no time with the PowerFlush adapter.

  • Flexibility of Cordless - Cordless freedom powered by DEWALT® + Cart versatility
  • Adjustable Pressure - Fully adjustable pressure to give you ultimate control of paint flow for any project size
  • Flexible Suction Tube - Allows you to spray directly from a 1 gal. or 5 gal. paint bucket
  • DC Motor - Can support up to 150 ft. of paint hose giving you extra reach for your jobs
  • Variety of Tip Selections - Supports up to a maximum tip size of 0.019 in.
  • TrueAirless Spray Tip - Allows you to reverse the tip when clogged to keep you spraying
  • SG3 Metal Spray Gun - Built-in swivel and in-handle filter blocks debris to prevent tip clogs
  • PushPrime - Prime button for fast and reliable start-up
  • ProX Stainless Steel Piston Pump - Allows you to spray paint unthinned at high pressure
  • PowerFlush Adapter - Connects to a garden hose for fast and easy cleaning

Specifications & Documents

Technical Specifications

Convert to Metric
Battery Capacity (Ah) 6
Battery Chemistry Lithium-ion
Battery Voltage (V) 60
Compatible Replacement Pump 24Y472
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015, 0.017, 0.019
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Includes SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, 2 - DEWALT 20V/60V MAX FLEXVOLT Lithium Ion Batteries, DEWALT Fan-Cooled Fast Charger, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.38
Maximum Hose Length (ft) 150
Maximum Tip Size (in) 0.019
Maximum Tip Size 1 Gun - Electric Motor (in) 0.019
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Overall Height (in) 36.7
Overall Length (in) 20.2
Overall Width (in) 17.2
Power Rating (HP) 0.875
Power Source Battery Powered
Pressure Control Type Adjustable
Product Series Pro
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Sleeve Material Stainless Steel
Pump Type Piston
Recommended Annual Usage (gal) 500
Series ProX19 Cordless
Type Airless Sprayer
Voltage (V) 120
Weight (lb) 46.0
Battery Capacity (Ah) 6
Battery Chemistry Lithium-ion
Battery Voltage (V) 60
Compatible Replacement Pump 24Y472
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Includes SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, 2 - DEWALT 20V/60V MAX FLEXVOLT Lithium Ion Batteries, DEWALT Fan-Cooled Fast Charger, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Power Rating (HP) 0.875
Power Source Battery Powered
Pressure Control Type Adjustable
Product Series Pro
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Sleeve Material Stainless Steel
Pump Type Piston
Series ProX19 Cordless
Type Airless Sprayer
Voltage (V) 120

What's Included

Part No. Description Qty Unit
243012 SG3 Metal Spray Gun 1 ea
TRU515 TrueAirless 515 Spray Tip 1 ea
237859 Spray Tip Guard 1 ea
247340 DuraFlex Hose 1/4 in x 50 ft 1 ea
25M568 FLUID, PUMP ARMOR, 8OZ 1 ea
