G3 Max Dual-Line

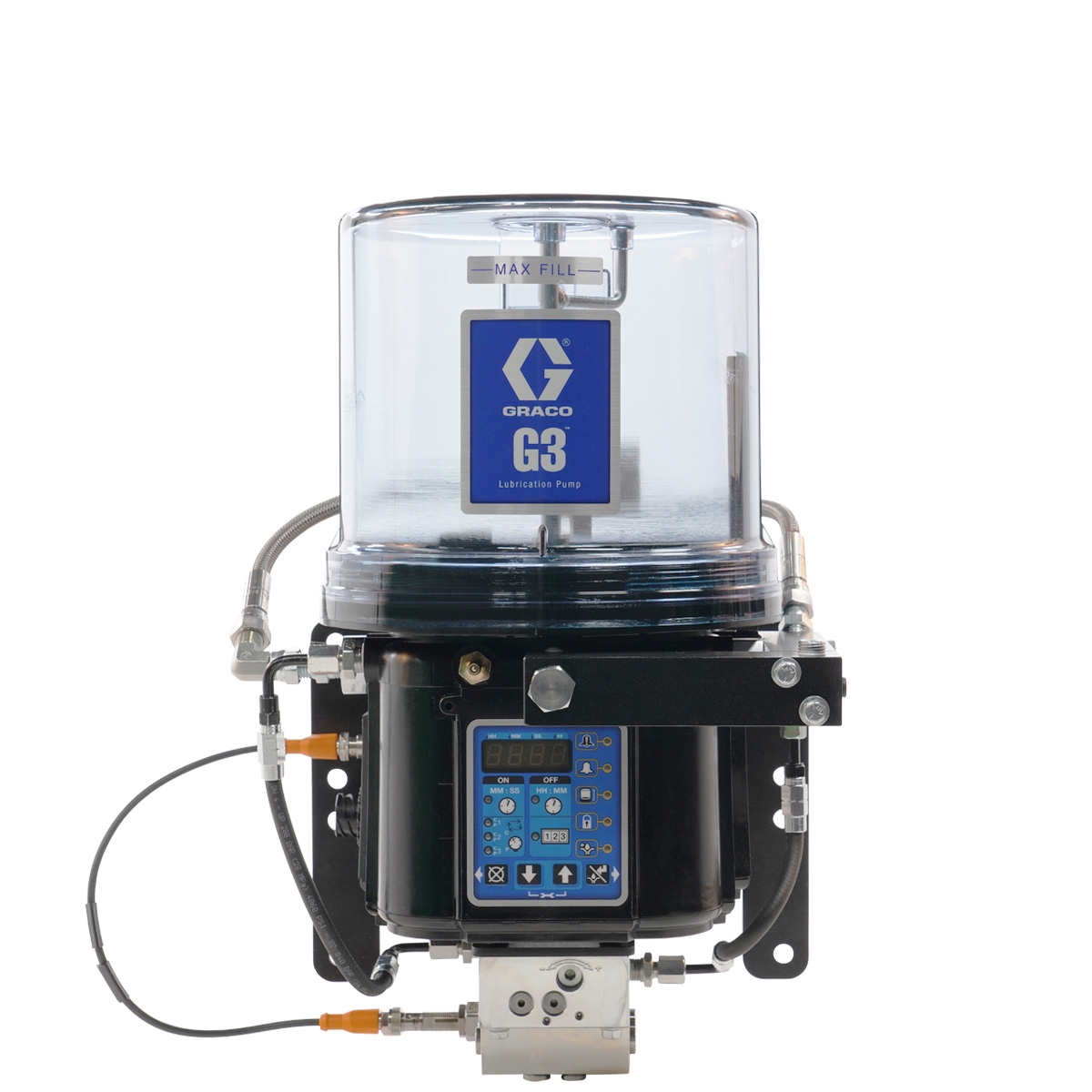

G3® Max Grease Pump for Dual-Line Lubrication Systems, 24 VDC, 4 Liter, Low Level with Controller, 1 Sensor, CPC, 3 Pump Elements
Part Number: 2002240
G3 Max Dual-Line
G3® Max Grease Pump for Dual-Line Lubrication Systems, 24 VDC, 4 Liter, Low Level with Controller, 1 Sensor, CPC, 3 Pump Elements
Part Number: 2002240
Designed for a seamless pump upgrade or replacement in existing dual-line lubrication systems for yellow iron equipment. Effortlessly upgrade your dual-line or twin pump system while ensuring compatibility with the machine's existing dual-line metering devices.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Designed for a seamless pump upgrade or replacement in existing dual-line lubrication systems for yellow iron equipment. Effortlessly upgrade your dual-line or twin pump system while ensuring compatibility with the machine's existing dual-line metering devices.
Reliable drop-in dual-line or twin pump upgrade
- Universal mounting bracket allows easy installation into existing dual-line systems
- Effortlessly adjust pump parameters using the built-in controller
- Minimize failures with a mechanically controlled reversing valve
- Streamline maintenance and troubleshooting with easily accessible components
- Low level indicator provides low warning and shut-down alarm
- Manual run initiates lube cycle on-demand
- Password protection safeguards settings
- Pre-lube function can initiate lube cycle on start-up
- One cycle switch input to ensure proper lubrication cycles
Specifications & Documents
Technical Specifications
Convert to Metric| Application | On-Road Vehicles, Off-Road Equipment |
|---|---|
| Compatible Material | Grease |
| Construction | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Control Options | Max Dual-Line |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | Dual-Line system |
| IP Rating | IP69K |
| Maximum NLGI Grade | #2 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (psi) | 3500 |
| Model | G3 |
| Number of Pump Elements | 3 |
| Overall Width (in) | 12 |
| Power Connection Type | CPC |
| Power Type | Electric |
| Pump Output with 0 Spacers (cu in/min) | 0.75 |
| Reservoir Size (L) | 4 |
| Series | Max Dual-Line |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Weight (lb) | 17.3 |
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Grease |
| Construction | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Control Options | Max Dual-Line |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | Dual-Line system |
| IP Rating | IP69K |
| Maximum NLGI Grade | #2 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24132 |
| Maximum Working Pressure (psi) | 3500 |
| Model | G3 |
| Number of Pump Elements | 3 |
| Overall Width (cm) | 30.48 |
| Power Connection Type | CPC |
| Power Type | Electric |
| Reservoir Size (L) | 4 |
| Series | Max Dual-Line |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Weight (kg) | 7.8 |
