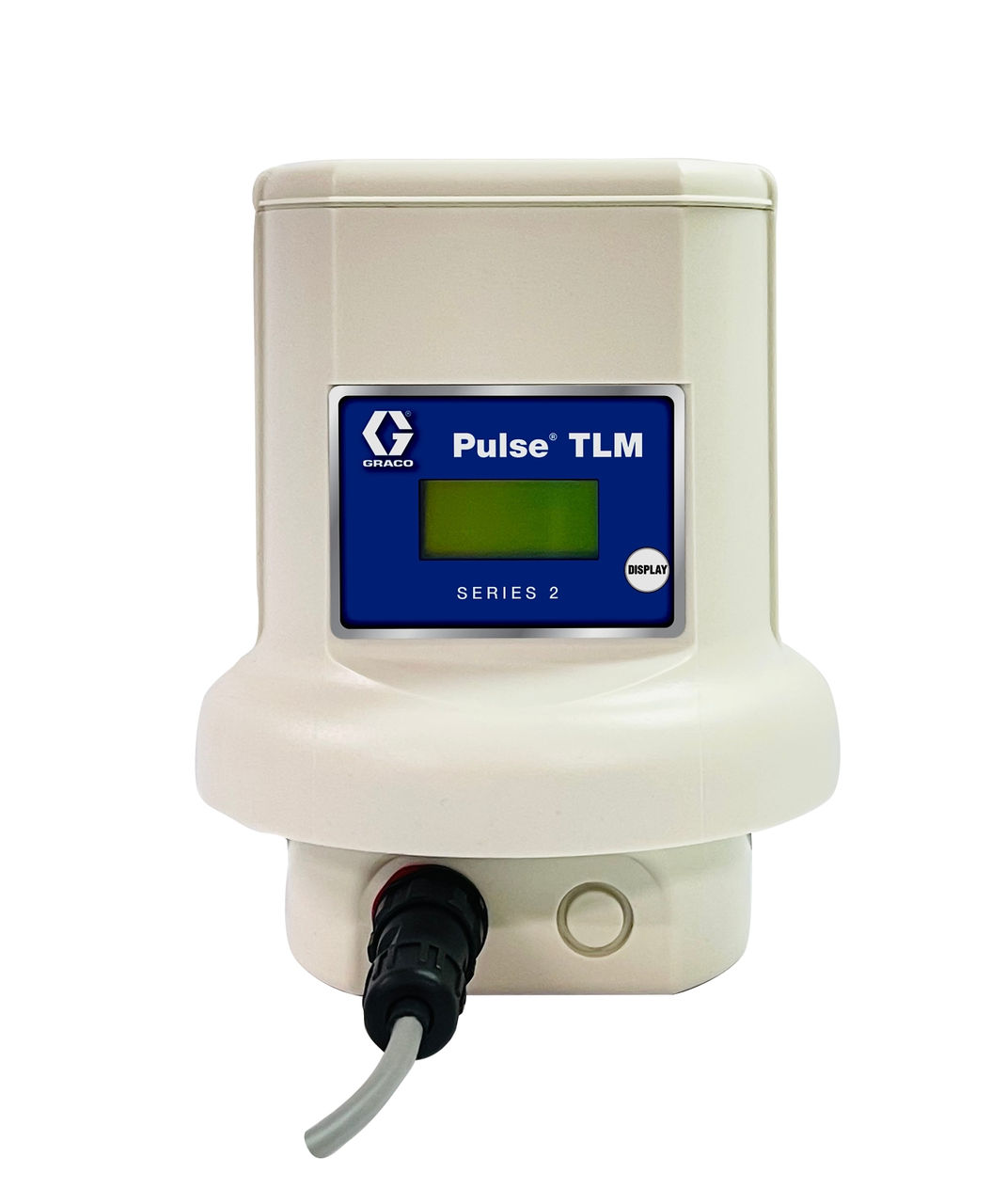

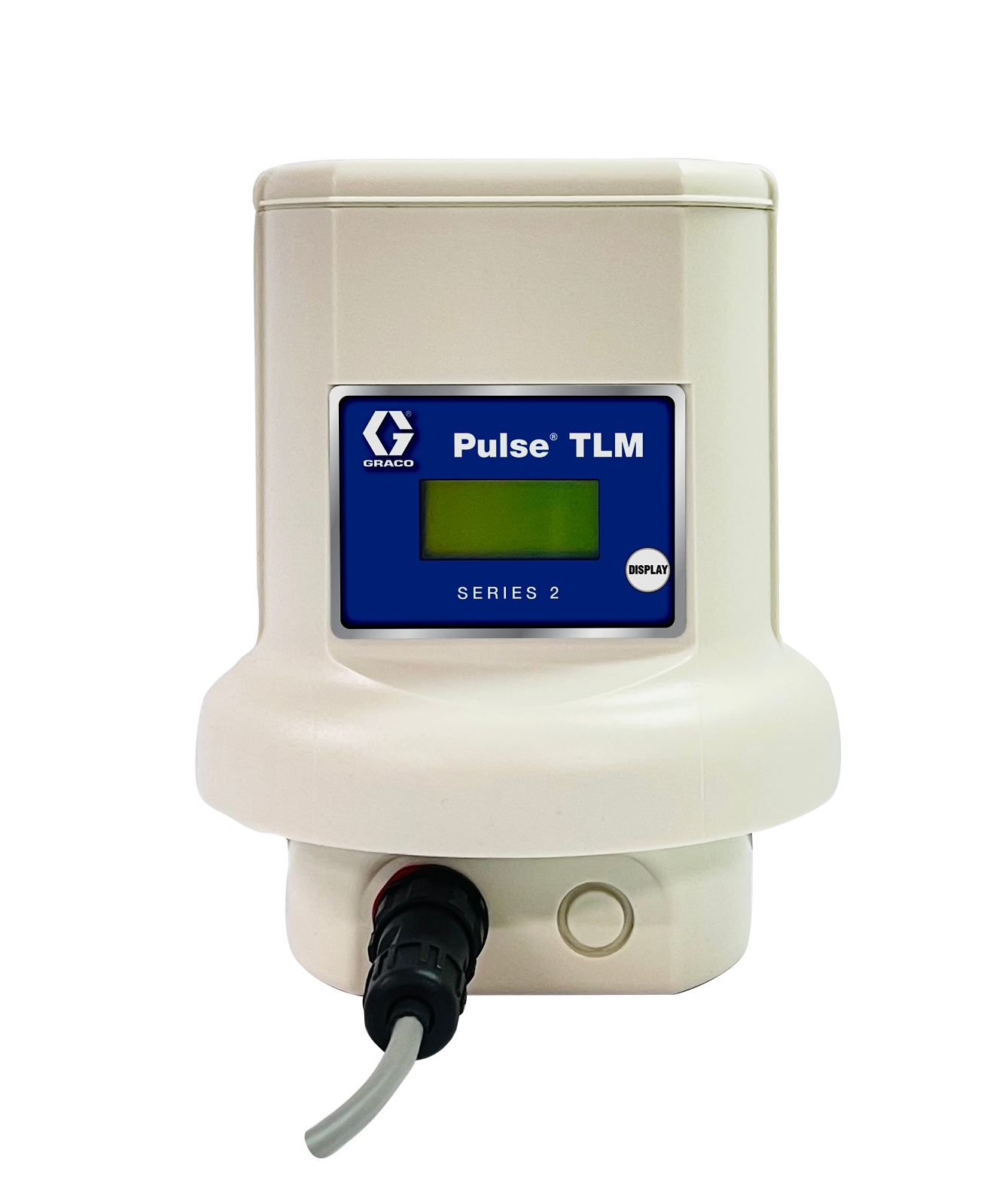

Pulse Pro Tank Level Monitor (TLM)
Part Number: 2007428
Pulse
Pulse Pro Tank Level Monitor (TLM)
Part Number: 2007428
The Pulse® tank level monitors accurately measure fluid levels in your largest tanks. Keep track of fluid levels throughout the day. Send low- or -high-level warnings by email.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The Pulse® tank level monitors accurately measure fluid levels in your largest tanks. Keep track of fluid levels throughout the day. Send low- or -high-level warnings by email.
- Easily track and record inventory levels with electronic monitoring
- Requires 4 AA batteries or optional remote power cord for operation
- 3 head mounting options (magnetic, wall, surface mount) and can be mounted up to 3 meters from tank bung for easier viewing
- Improves accountability and productivity
- Reliable—time-tested Graco engineering
- Built-in display—see real-time levels instantly with on-demand readings
- Simple wireless setup—automatically identifies networks
- Optional wave guide kit for standoff installs
Specifications & Documents
Technical Specifications
Convert to Metric| Battery Chemistry | Alkaline |
|---|---|
| Battery Size | AA |
| Cylindrical Tank Maximum Height (ft) | 13 |
| Cylindrical Tank Maximum Length (ft) | 30 |
| For Use With | Oil, Waste Oil, Automatic Transmission Fluid, Anti-Freeze, Windshield Washer Solution, Waste Water |
| Maximum Storage Temperature (°F) | 185 |
| Minimum Storage Temperature (°F) | -40 |
| Model | Pulse |
| Number of Batteries | 4 |
| Obround Tank Maximum Height (ft) | 13 |
| Obround Tank Maximum Length (ft) | 30 |
| Overall Height (in) | 5.64 |
| Overall Length (in) | 4.58 |
| Product Type | Tank Level Monitor (TLM) |
| Type | Tank Level Monitor |
| Vertical Tank Maximum Height (ft) | 13 |
| Weight (lb) | 1.25 |
| Battery Chemistry | Alkaline |
| Battery Size | AA |
| Cylindrical Tank Maximum Height (m) | 3.96 |
| Cylindrical Tank Maximum Length (m) | 9.14 |
| For Use With | Oil, Waste Oil, Automatic Transmission Fluid, Anti-Freeze, Windshield Washer Solution, Waste Water |
| Maximum Storage Temperature (°C) | 85 |
| Minimum Storage Temperature (°C) | -40 |
| Model | Pulse |
| Number of Batteries | 4 |
| Obround Tank Maximum Height (m) | 3.69 |
| Obround Tank Maximum Length (m) | 9.14 |
| Overall Height (mm) | 143.26 |
| Overall Width (cm) | 116.33 |
| Overall Width (mm) | 116.33 |
| Product Type | Tank Level Monitor (TLM) |
| Type | Tank Level Monitor |
| Vertical Tank Maximum Height (m) | 3.69 |
Product Manuals
