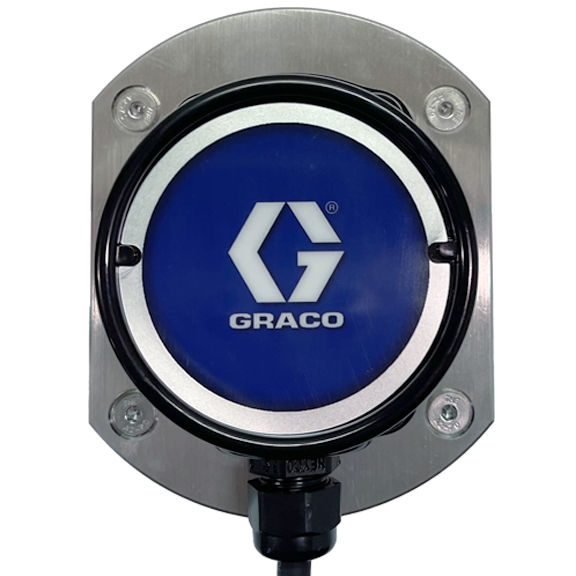

IM35 Stainless In Line Meter with Pulse Output
Part Number: 2007588
HF
IM35 Stainless In Line Meter with Pulse Output
Part Number: 2007588
Graco's IM35 Pulse Output meter is used with Pulse Pro or Pulse Asset for total fluid management, and designed for jobsites and service trucks requiring a higher flow in-line meter for tracking oil, diesel, DEF and water dispenses.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco's IM35 Pulse Output meter is used with Pulse Pro or Pulse Asset for total fluid management, and designed for jobsites and service trucks requiring a higher flow in-line meter for tracking oil, diesel, DEF and water dispenses.
- Stainless Steel Design Allows For Use With DEF and Water
- High Flow Rates - Up To 35 Gallons Per Minute
- IP69K Rating - Designed For Outdoor Use
- For Use With Pulse Pro Or Pulse Asset Fluid Management Systems
Specifications & Documents
Technical Specifications
Convert to Metric| Accuracy (%) | +/- .5% |
|---|---|
| Compatible Material | Antifreeze, ATF, Diesel Exhaust Fluid, Diesel Fuel, Gear Oil, Oil, Water |
| For Use With | Pulse Pro Universal Controller, Pulse Asset Universal Controller |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | BSP |
| Maximum Flow Rate (GPM) | 35 |
| Maximum Working Pressure (psi) | 1500 |
| Model | HF |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | BSPP |
| Accuracy (%) | +/- .5% |
| Compatible Material | Antifreeze, ATF, Diesel Exhaust Fluid, Diesel Fuel, Gear Oil, Oil, Water |
| For Use With | Pulse Pro Universal Controller, Pulse Asset Universal Controller |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | BSP |
| Maximum Working Pressure (bar) | 102 |
| Maximum Working Pressure (psi) | 1500 |
| Model | HF |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | BSPP |
