Dyna-Star

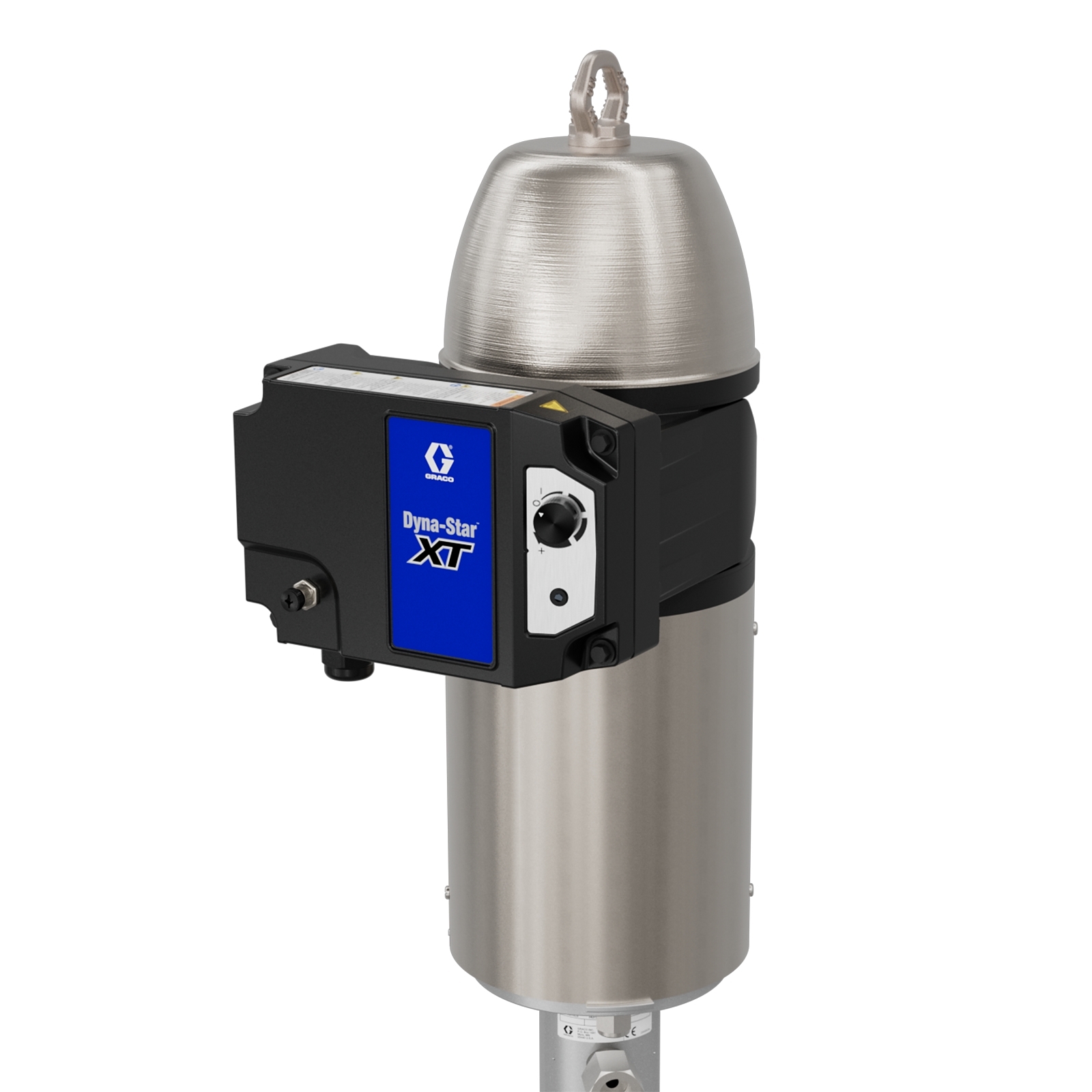

Dyna-Star XT Pump
Part Number: 2009845
Dyna-Star
Dyna-Star XT Pump
Part Number: 2009845
Electrify your lubrication system with Dyna-Star XT—the electric lubrication pump with XT Motor technology designed for heavy-duty mining equipment and industrial applications. This electric pump is a drop-in upgrade over other pneumatic pumps in its class and allows for an immediate increase in per...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Electrify your lubrication system with Dyna-Star XT—the electric lubrication pump with XT Motor technology designed for heavy-duty mining equipment and industrial applications. This electric pump is a drop-in upgrade over other pneumatic pumps in its class and allows for an immediate increase in performance and efficiency.
The Dyna-Star XT delivers consistent high-pressure lubrication, removing costly pneumatic pump issues and improving uptime and sustainability.
- Electric drive eliminates air quality issues related to dirty air, icing, or inconsistent output.
- Consistent flow rate regardless of back pressure.
- Up to 15 times more torque and 8 times more magnets than traditional electric motors, allowing for optimal performance and efficiency.
- Lower running speeds extend the motor’s lifespan and reduce wear.
- Quieter performance provides a more comfortable working environment.
- Higher long-term ROI thanks to increased ease of repair compared to competitive pneumatic pumps in this class.
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Grease |
|---|---|
| Construction | UHMWPE, Buna, Stainless Steel, Steel, Bronze, Aluminum |
| Fluid Outlet Size (in) | 0.75 |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP66;Type 4X |
| Maximum Cycle Rate (CPM) | 30 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Working Pressure (MPa) | 48.3 |
| Maximum Working Pressure (psi) | 7000 |
| Minimum Operating Temperature (°F) | 14 |
| Model | Dyna-Star |
| Motor Type | Xtreme Torque Motor |
| Phase | 1 |
| Reservoir Size (lb) | 400 |
| Type | Electric Piston Pump |
| Weight (lb) | 118 |
| Compatible Material | Grease |
| Construction | UHMWPE, Buna, Stainless Steel, Steel, Bronze, Aluminum |
| Fluid Outlet Size (in) | 0.75 |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP66;Type 4X |
| Maximum Cycle Rate (CPM) | 30 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Working Pressure (MPa) | 48.3 |
| Maximum Working Pressure (bar) | 483 |
| Maximum Working Pressure (psi) | 7000 |
| Minimum Operating Temperature (°C) | -10 |
| Model | Dyna-Star |
| Motor Type | Xtreme Torque Motor |
| Output Per Cycle (cm³) | 34.4 |
| Phase | 1 |
| Type | Electric Piston Pump |
| Weight (kg) | 53.5 |
Product Manuals
X021555A, Dyna-Star® XT Electric Grease Pump, Instruction Manual, English (US)
(7 MB)
(English Only)
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 2010688 | Dyna-Star XT, Motor Assembly Kit |
| 2010555 | Dyna-Star XT, Complete Pump Lower Assembly Kit |
| 2011187 | Dyna-Star XT, Control Board Kit |
| 2011185 | Dyna-Star XT, Stator Cap Kit |
| 2011186 | Dyna-Star XT, Complete Rotor Repair Kit |
| 2011184 | Dyna-Star XT, Rotor Kit |
| 2009432 | Dyna-Star XT, Pump Lower Seal Kit |
