Fire-Ball 300

Fire-Ball® 300 Series 15:1 Undercoating/Rustproofing Package - Portable

Part Number: 222077

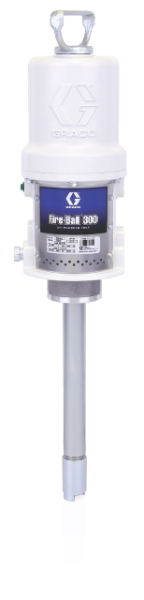

product image
Image is for illustrative purposes only.

Fire-Ball 300

Fire-Ball® 300 Series 15:1 Undercoating/Rustproofing Package - Portable

Part Number: 222077

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps bu... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

Install the Fire-Ball 300 15:1 in high pressure, medium volume undercoating and rustproofing applications such as automotive dealerships, fast lube centers, and service shops.

  • Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil, Rustproofing, Undercoating
Construction Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes UCoat Installation Kit, Repair Kit
Maximum Air Working Pressure 180
Maximum Flow Rate (GPM) 0.7
Maximum Fluid Working Pressure (psi) 2700
Maximum Working Pressure (MPa) 18.6
Maximum Working Pressure (psi) 2700
Model Fire-Ball
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 15:1
Pump Weight (lb) 22
Series 300
Type Piston Pump Package
Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil, Rustproofing, Undercoating
Construction Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes UCoat Installation Kit, Repair Kit
Maximum Air Working Pressure 180
Maximum Fluid Working Pressure (psi) 2700
Maximum Working Pressure (MPa) 18.6
Maximum Working Pressure (bar) 186
Maximum Working Pressure (kPa) 18600
Maximum Working Pressure (psi) 2700
Model Fire-Ball
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 15:1
Series 300
Type Piston Pump Package

What's Included

Part No. Description Qty Unit
206405 Fire-Ball® 300 Series 15:1 Grease Pump For 35 lb (16 kg). Pail ea
222079 Dispense Kit for Undercoating and Rustproofing Pump Packages - 15 ft (4.6 m) Hose ea

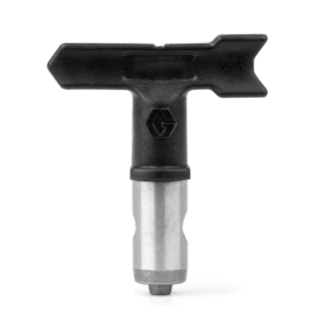

286517 RAC 5 SwitchTip, 517 ea

Repair Parts

Part No. Description
206728 Monark Air Motor Repair Kit
