SDV15

SDV15 Series Oil Control Valve - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

Part Number: 247712

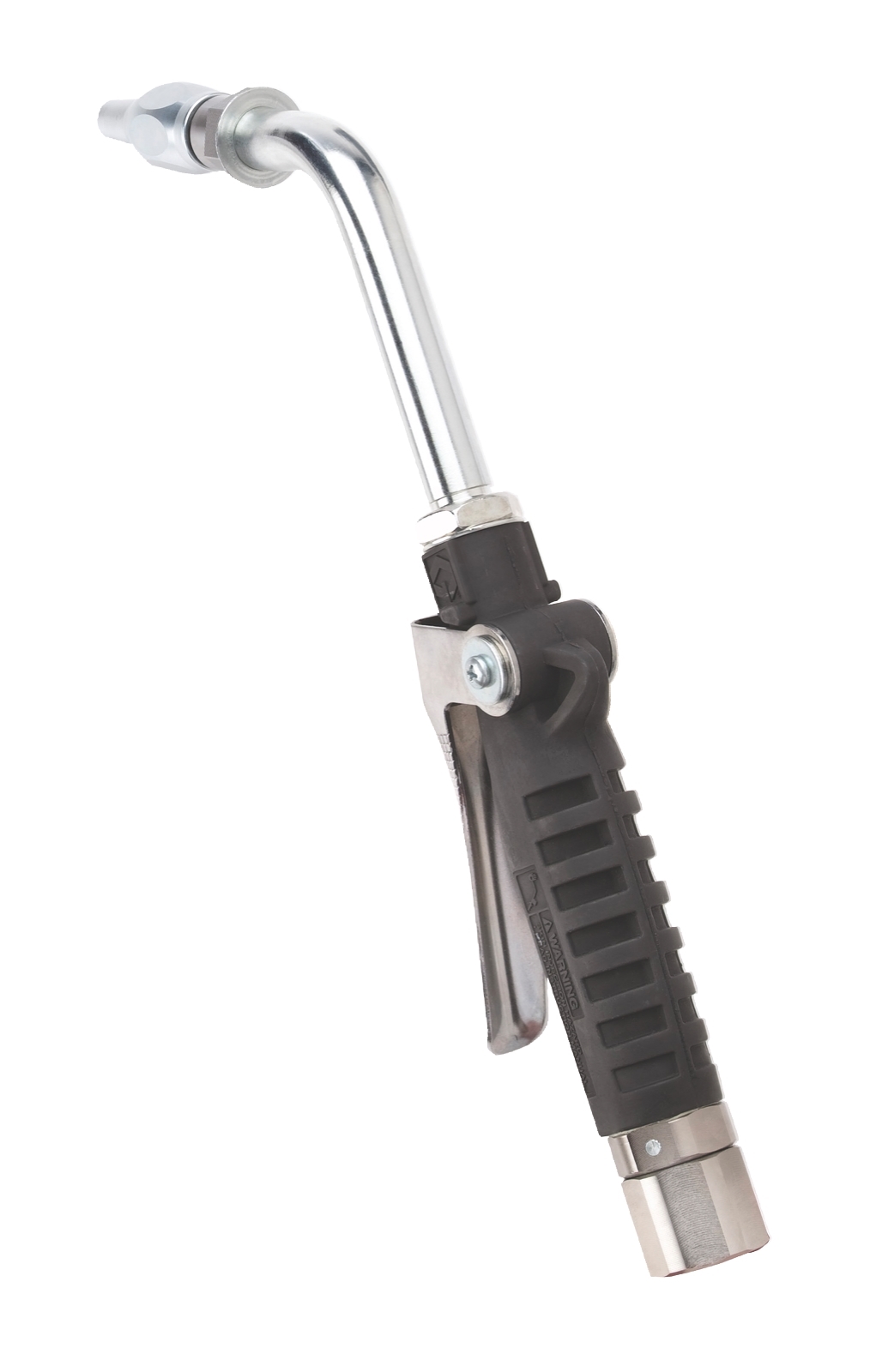

product image
Image is for illustrative purposes only.

SDV15

SDV15 Series Oil Control Valve - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

Part Number: 247712

For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil...

More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).

Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, In-plant, Lube trucks, and Mining.

  • Lock-on/Lock-off trigger allows hands free operation
  • Sturdy cast body designed for use in tough environments
  • Inlet 1/2 in. NPT with swivel
  • Features rigid extension with oil nozzle

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Oil
Construction Aluminum, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE
Dispense Type Manual
Display Type N/A
Extension Type Rigid
Includes Nozzle, Extension
Inlet Size (in) 1/2
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Operating Temperature (°F) 180
Maximum Working Pressure (psi) 1500
Minimum Operating Temperature (°F) -40
Model SDV15
Outlet Size (in) 3/4
Outlet Thread Gender Female
Outlet Thread Type Straight Thread O-Ring Boss
Recommended Environment Indoor, Outdoor
Trigger Lock Locking
Type Non-Metered Dispense Valve
Valve Type Non-Metered
Weight (lb) 0.4
Compatible Material Oil
Construction Aluminum, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE
Dispense Type Manual
Display Type N/A
Extension Type Rigid
Includes Nozzle, Extension
Inlet Size (cm) 1.27
Inlet Size (in) 1/2
Inlet Size (mm) 12.7
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Operating Temperature (°C) 82
Maximum Working Pressure (bar) 103.4
Maximum Working Pressure (kPa) 10340
Maximum Working Pressure (psi) 1500
Minimum Operating Temperature (°C) -40
Model SDV15
Outlet Size (cm) 1.905
Outlet Size (in) 3/4
Outlet Size (mm) 19.05
Outlet Thread Gender Female
Outlet Thread Type Straight Thread O-Ring Boss
Recommended Environment Indoor, Outdoor
Trigger Lock Locking
Type Non-Metered Dispense Valve
Valve Type Non-Metered
Weight (kg) 0.18
