Grease Jockey

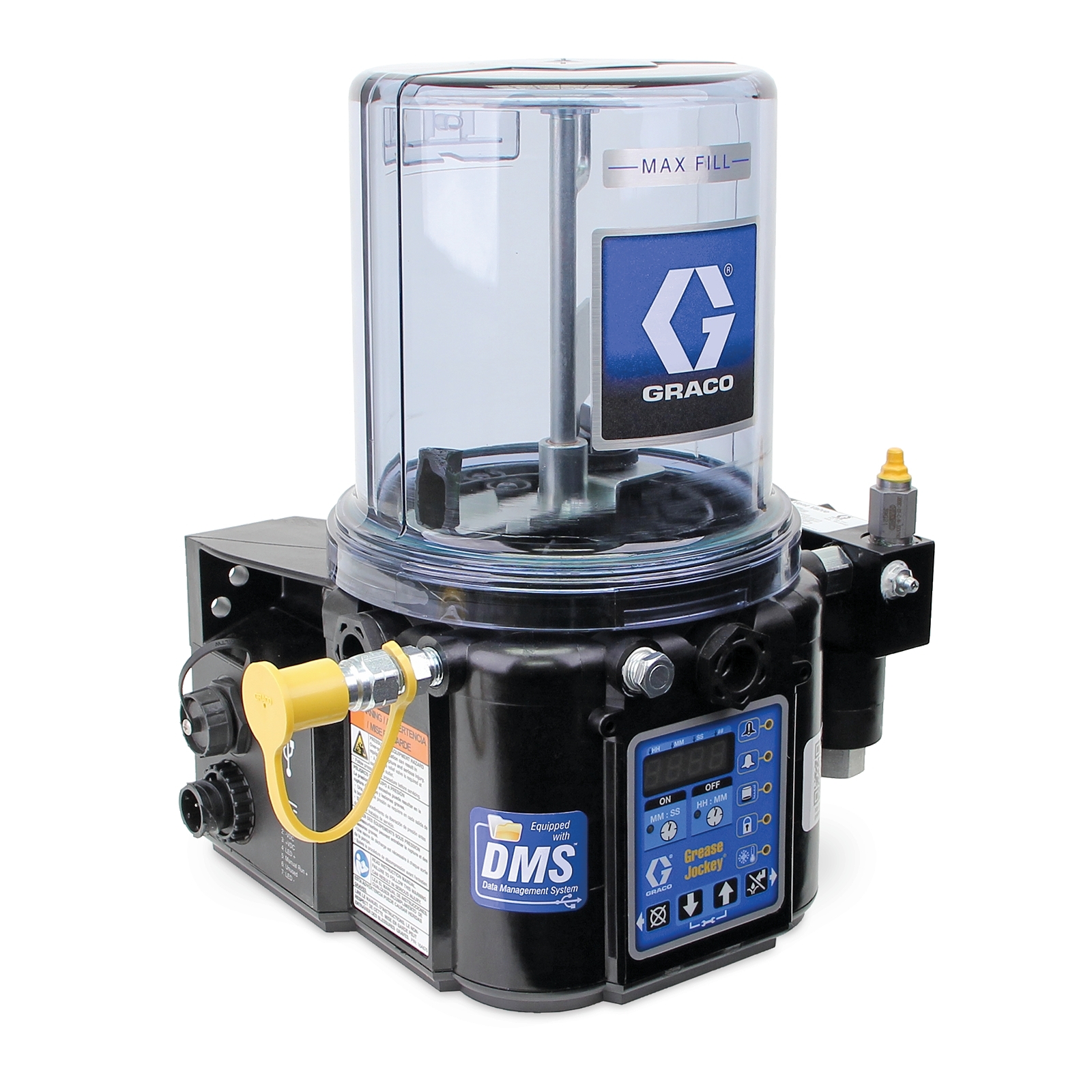

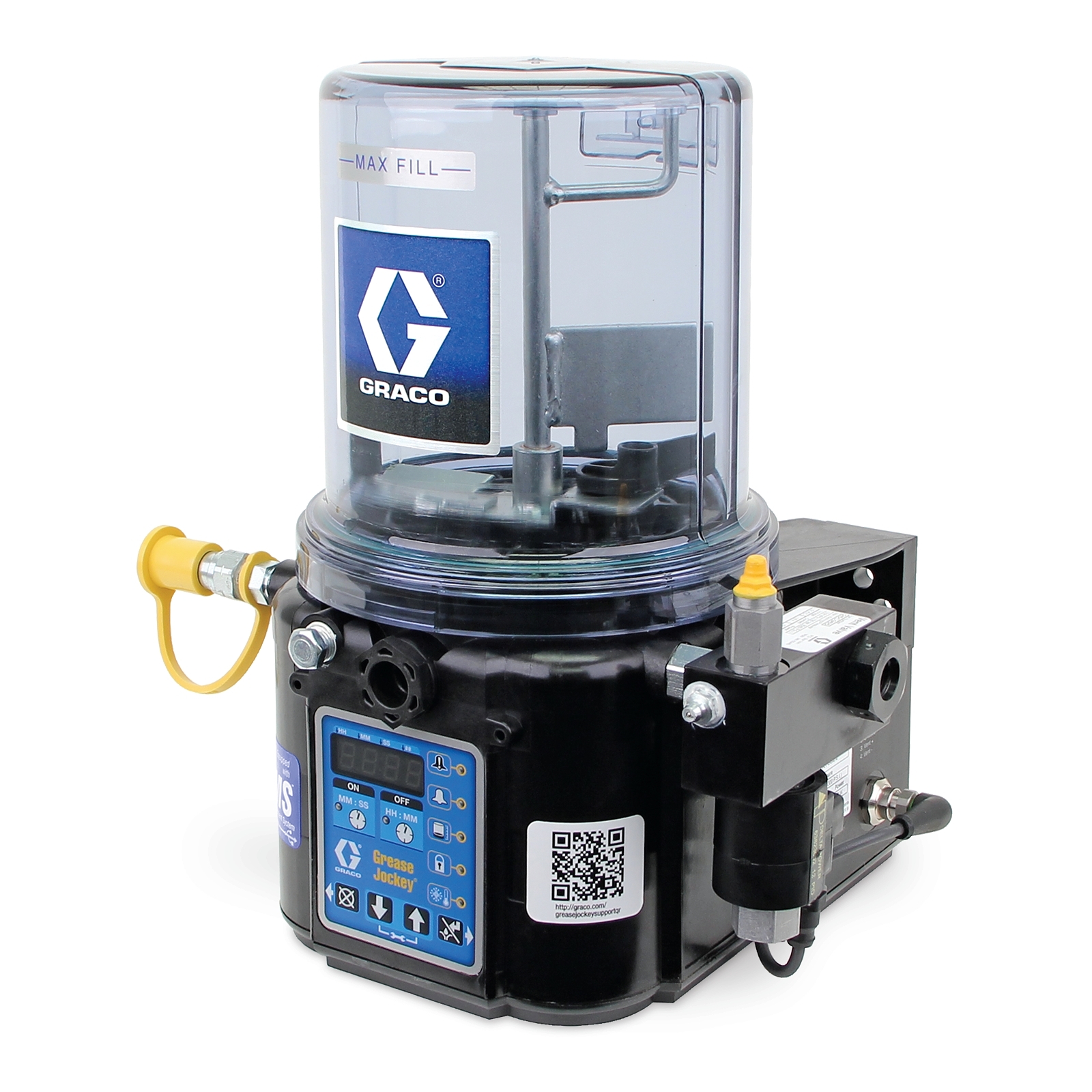

Electric Grease Jockey® Pump, 2L Reservoir, 12 VDC, Data Management System, In-Cab Feedback

24Z660

Grease Jockey

Electric Grease Jockey® Pump, 2L Reservoir, 12 VDC, Data Management System, In-Cab Feedback

24Z660

Lubrication is critical to your vehicle's peak performance. With Graco's Grease Jockey automatic lubrication system, vehicle maintenance gets a whole lot easier. Take the hassle out of manually lubricating your chassis and continuously lubricate it instead.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Grease Jockey Support

Sharpen your skills by utilizing the Grease Jockey Support Center — with tips and tricks around programming, operation and installation. Easily access manuals, guides and educational videos, all in one central location.

Features

Product Brochure

Lubrication is critical to your vehicle's peak performance. With Graco's Grease Jockey automatic lubrication system, vehicle maintenance gets a whole lot easier. Take the hassle out of manually lubricating your chassis and continuously lubricate it instead.

  • Benefits:

    • Keeps your chassis operating, even in harsh on-road conditions
    • Lubricant goes where it's supposed to, automatically, with little or no waste, while the vehicle is operating
    • No wasted time, no missed lube points and no under or over greasing ever again!
    • Systems to fit most OEM on-road vehicles, including specialty fire trucks, cement trucks and waste haulers
    • Field-proven - some of the largest fleets have been using Grease Jockey for decades!
  • Ruggedized Construction

    • U.V., chemical, and high-impact resistant - rigorously tested and field-proven.
  • NLGI #2 Compatible

    • NLGI #000 to #2 and 2000 psi (138 bar).
  • Low Level Signal

    • Alerts when out of grease.
  • Electrical Drive

    • 12 VDC (7 Amp) power. Protected against motor burn-out.
  • Integrated Controls

    • Includes adjustable ON/OFF times, PIN code lockout, and on-panel alerts.
  • Data Management System

    • Track critical lubrication data. Fast programming.
  • In-Cab Feedback

    • Tri-color LED system feedback indicator with Manual Run button.

Specifications & Documents

Technical Specifications

Convert to Metric
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Grease
Fluid Outlet Size (in) 0.5625
Fluid Outlet Thread Type SAE ORB
IP Rating IP69K
Includes Electric Grease Jockey Pump, 2L Reservoir, Data Management System, Vent Valve
Maximum NLGI Grade #2
Maximum Run Time (min) 99
Maximum Working Pressure (MPa) 13.8
Maximum Working Pressure (psi) 2000
Minimum Voltage (V dc) 9
Minimum cST Grade (cST) 40
Number of Pump Elements 1
Power Type Electric
Reservoir Size (gal) 0.528
Type Electric Piston Pump
Voltage (V dc) 12
Weight (lb) 13.3
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Grease
Fluid Outlet Size (cm) 1.4288
Fluid Outlet Size (mm) 14.2875
Fluid Outlet Thread Type SAE ORB
IP Rating IP69K
Includes Electric Grease Jockey Pump, 2L Reservoir, Data Management System, Vent Valve
Maximum NLGI Grade #2
Maximum Run Time (min) 99
Maximum Working Pressure (MPa) 13.8
Maximum Working Pressure (bar) 137.9
Maximum Working Pressure (kPa) 13790
Minimum Voltage (V dc) 9
Minimum cST Grade (cST) 40
Number of Pump Elements 1
Power Type Electric
Reservoir Size (L) 2
Type Electric Piston Pump
Voltage (V dc) 12
Weight (kg) 6
