Dyna-Star

Dyna-Star® HP 10:1 High Ratio Hydraulic Lubrication Pump - 120 lb (55 kg).

Part Number: 25A189

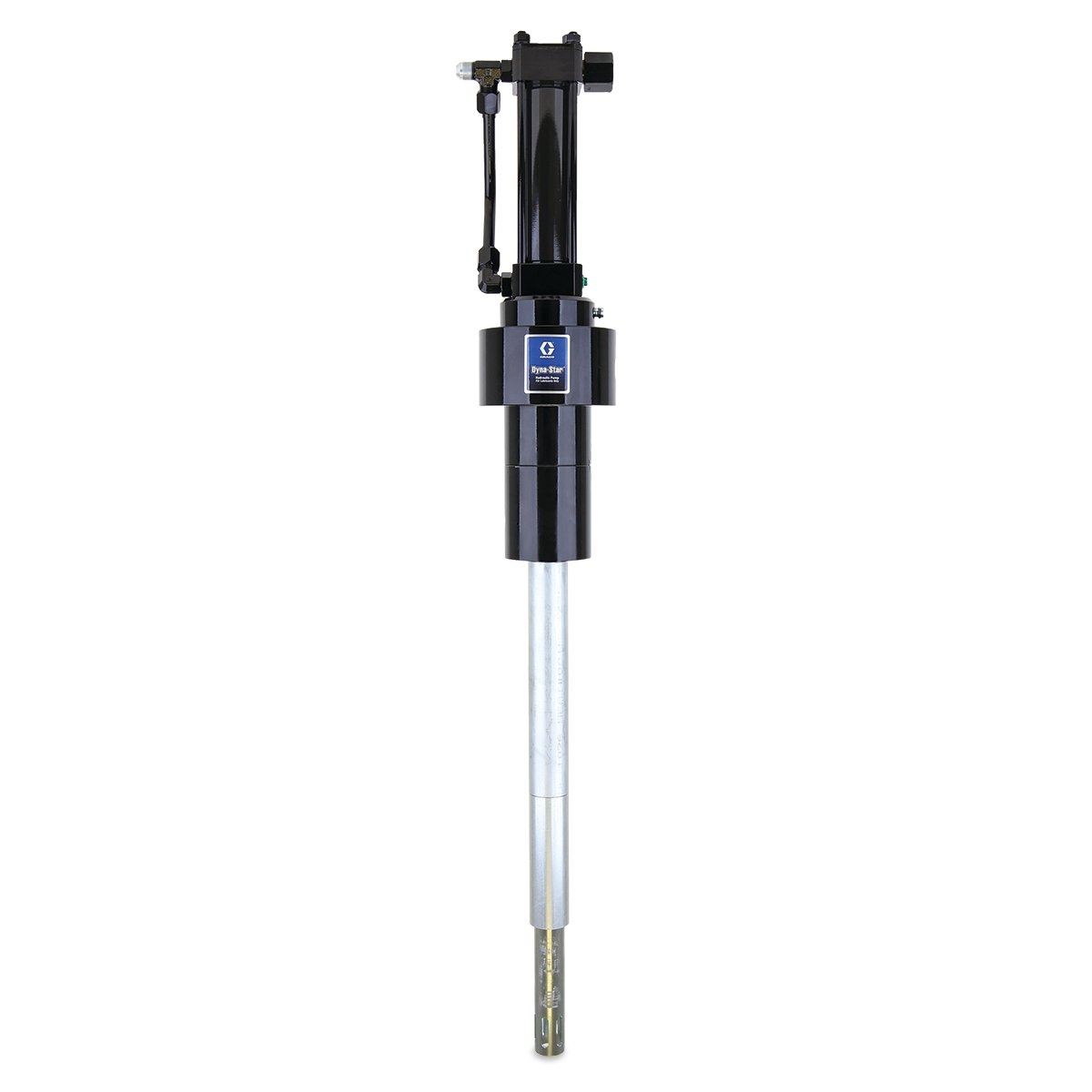

product image
Image is for illustrative purposes only.

Dyna-Star

Dyna-Star® HP 10:1 High Ratio Hydraulic Lubrication Pump - 120 lb (55 kg).

Part Number: 25A189

Graco’s 5:1 and 10:1, hydraulically-powered lubrication pumps designed for long life and reliable operation in demanding off-road mobile applications. Hydraulic Dyna-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy...

More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Graco’s 5:1 and 10:1, hydraulically-powered lubrication pumps designed for long life and reliable operation in demanding off-road mobile applications. Hydraulic Dyna-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems.

Pumps for heavy duty automatic lubrication and transfer systems.

  • Less Downtime and Lower Cost of Ownership

    • Uses up to 3 times less energy than pneumatic systems
    • Fewer moving parts reduces pump wear and maintenance
    • Self-lubricating for long-life and dependable operations
  • Quiet and Smooth Operation

    • Field proven operations
    • Ultra-quiet hydraulic motor
    • Graco's reciprocator piston minimizes change-over stalls
  • Ease of Installation

    • No assembly required, fits in a standard 120lb (55 kg) grease drum
    • Lighter, more compact design than competition
    • Easy to connect, low-pressure hydraulic input

Specifications & Documents

Technical Specifications

Convert to Metric
Application Off-Road Equipment
Compatible Material Grease
Fluid Outlet Size (in) 0.8125
Fluid Outlet Thread Type UNF
IP Rating IP69K
Maximum Fill Inlet Pressure (psi) 900
Maximum NLGI Grade #2
Maximum Working Pressure (MPa) 68.9
Maximum Working Pressure (psi) 10000
Minimum cST Grade (cST) 40
Model Dyna-Star
Overall Height (in) 41.5
Power Type Hydraulic
Reservoir Size (lb) 120
Type Hydraulic Piston Pump
Application Off-Road Equipment
Compatible Material Grease
Fluid Outlet Size (in) 0.8125
Fluid Outlet Size (mm) 20.6375
Fluid Outlet Thread Type UNF
IP Rating IP69K
Maximum Fill Inlet Pressure (bar) 62.1
Maximum Fill Inlet Pressure (kPa) 6210
Maximum Fill Inlet Pressure (psi) 900
Maximum NLGI Grade #2
Maximum Working Pressure (MPa) 68.9
Maximum Working Pressure (bar) 689
Maximum Working Pressure (kPa) 68900
Maximum Working Pressure (psi) 10000
Minimum cST Grade (cST) 40
Model Dyna-Star
Overall Height (cm) 105.4
Overall Height (mm) 1054
Power Type Hydraulic
Type Hydraulic Piston Pump
