Grease Jockey

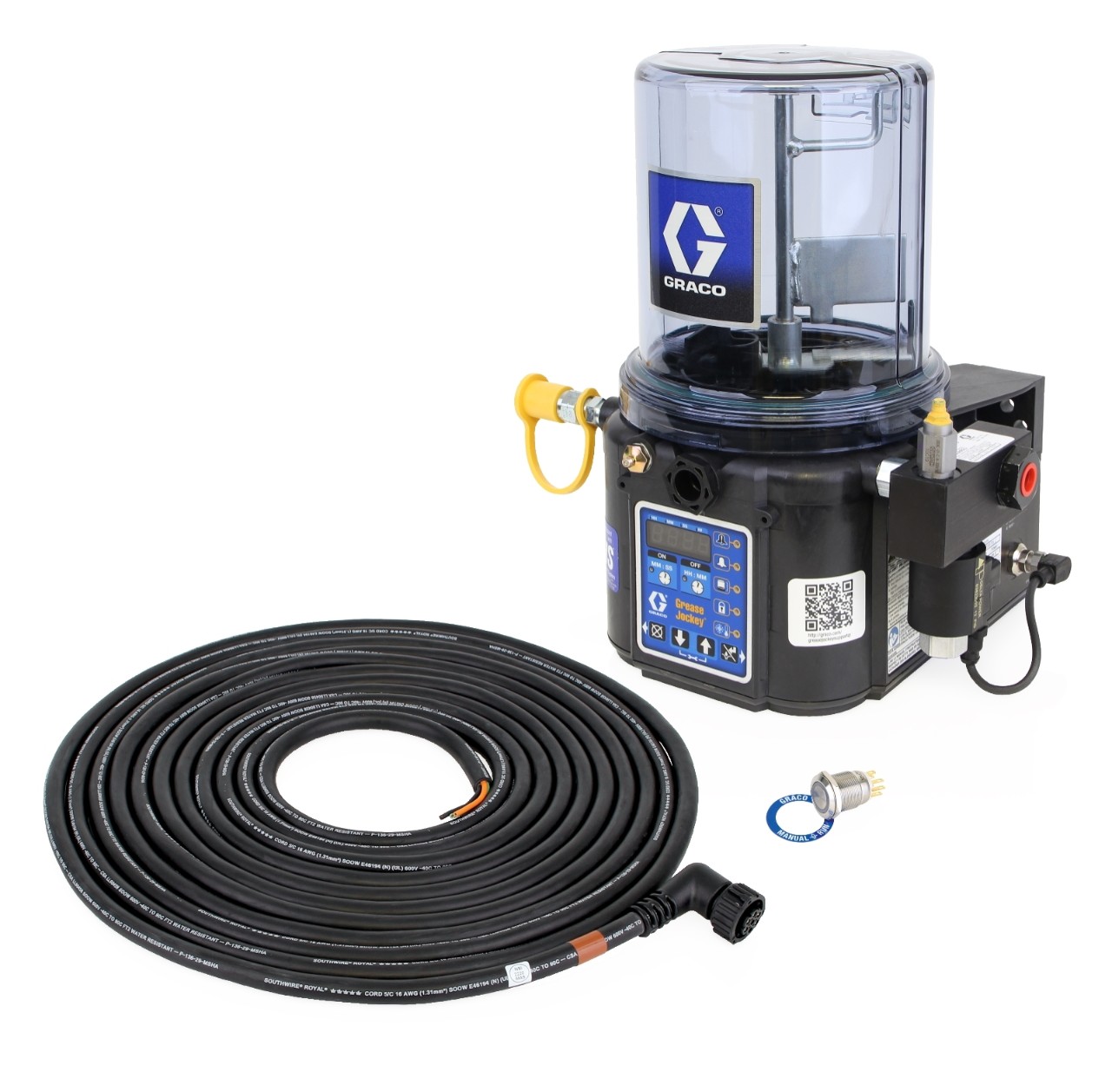

Electric Grease Jockey® Pump, 24V, Data Management System, Manual Run Button

Part Number: 25C993

product image product image product image
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.

Grease Jockey

Electric Grease Jockey® Pump, 24V, Data Management System, Manual Run Button

Part Number: 25C993

Lubrication is critical to your vehicle's peak performance. With Graco's Grease Jockey automatic lubrication system, vehicle maintenance gets a whole lot easier. Take the hassle out of manually lubricating your chassis and continuously lubricate it instead.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Grease Jockey Support

Sharpen your skills by utilizing the Grease Jockey Support Center — with tips and tricks around programming, operation and installation. Easily access manuals, guides and educational videos, all in one central location.

Features

Product Brochure

Lubrication is critical to your vehicle's peak performance. With Graco's Grease Jockey automatic lubrication system, vehicle maintenance gets a whole lot easier. Take the hassle out of manually lubricating your chassis and continuously lubricate it instead.

  • Benefits:

    • Keeps your chassis operating, even in harsh on-road conditions
    • Lubricant goes where it's supposed to, automatically, with little or no waste, while the vehicle is operating
    • No wasted time, no missed lube points and no under or over greasing ever again!
    • Systems to fit most OEM on-road vehicles, including specialty fire trucks, cement trucks and waste haulers
    • Field-proven - some of the largest fleets have been using Grease Jockey for decades!
  • Ruggedized Construction

    • U.V., chemical, and high-impact resistant - rigorously tested and field-proven.
  • NLGI #2 Compatible

    • NLGI #000 to #2 and 2000 psi (138 bar).
  • Low Level Signal

    • Alerts when out of grease.
  • Electrical Drive

    • 24 VDC (4 Amp) power. Protected against motor burn-out.
  • Integrated Controls

    • Includes adjustable ON/OFF times, PIN code lockout, and on-panel alerts.
  • Data Management System

    • Track critical lubrication data. Fast programming.
  • In-Cab Feedback

    • Tri-color LED system feedback indicator with Manual Run button.

Specifications & Documents

Technical Specifications

Convert to Metric
Application On-Road Vehicles
Compatible Material Grease
Construction Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE
Fluid Outlet Size (in) 0.5625
Fluid Outlet Thread Type SAE ORB
IP Rating IP69K
Includes Electric Grease Jockey Pump, 30 ft (9 m) Power Cable, Manual Run Button, Data Management System
Maximum Flow Rate (ci/min) 0.6
Maximum Fluid Output Pressure (psi) 2000
Maximum NLGI Grade #2
Maximum Voltage (V dc) 32
Maximum Working Pressure (MPa) 13.8
Maximum Working Pressure (psi) 2000
Minimum Voltage (V dc) 18
Model Grease Jockey
Number of Pump Elements 1
Power Type Electric
Reservoir Size (L) 2
Reservoir Size (gal) 0.528
Type Electric Piston Pump
Voltage (V dc) 24
Application On-Road Vehicles
Compatible Material Grease
Construction Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE
Fluid Outlet Size (in) 0.5625
Fluid Outlet Size (mm) 14.2875
Fluid Outlet Thread Type SAE ORB
IP Rating IP69K
Includes Electric Grease Jockey Pump, 30 ft (9 m) Power Cable, Manual Run Button, Data Management System
Maximum Fluid Output Pressure (bar) 138
Maximum Fluid Output Pressure (psi) 2000
Maximum NLGI Grade #2
Maximum Voltage (V dc) 32
Maximum Working Pressure (MPa) 13.8
Maximum Working Pressure (bar) 137.9
Maximum Working Pressure (kPa) 13790
Maximum Working Pressure (psi) 2000
Minimum Voltage (V dc) 18
Model Grease Jockey
Number of Pump Elements 1
Power Type Electric
Reservoir Size (L) 2
Type Electric Piston Pump
Voltage (V dc) 24
