SDM8 Series Electronic Manual Antifreeze Meter - Rigid Extension - 1/2 in. (13 mm) Inlet
Part Number: 25M405

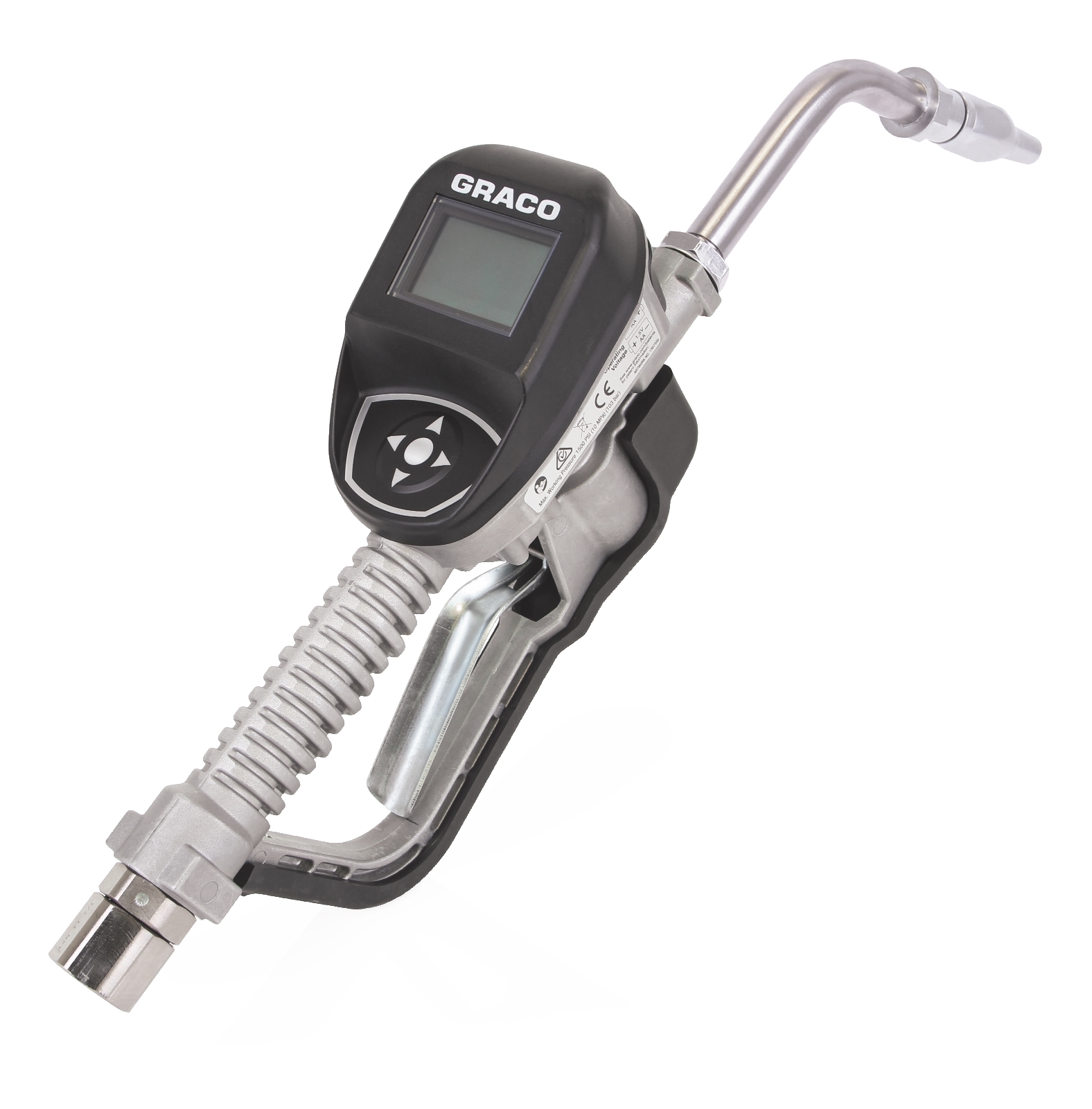

Image is for illustrative purposes only.
SDM8
SDM8 Series Electronic Manual Antifreeze Meter - Rigid Extension - 1/2 in. (13 mm) Inlet
Part Number: 25M405
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
Large, Intuitive Display—high-contrast display for low and bright light conditions
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
Reliable—time-tested Graco engineering
Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Oil, Antifreeze, ATF, Gear Oil |
|---|---|
| Construction | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| Dispense Type | Manual |
| Display Type | Electronic |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Rigid Extension |
| Inlet Size (in) | 1/2 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 8 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Recorded Dispense | 9999 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | ±0.5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.3 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Operating Temperature (°F) | 4 |
| Model | SDM8 |
| Nozzle Type | Manual |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Overall Height (in) | 5.75 |
| Overall Length (in) | 13 |
| Overall Width (in) | 3.75 |
| Recommended Environment | Indoor |
| Trigger Lock | Non-Locking |
| Trigger Protection Type | Guard |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Gallon, Liter |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Compatible Material | Oil, Antifreeze, ATF, Gear Oil |
| Construction | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| Dispense Type | Manual |
| Display Type | Electronic |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Rigid Extension |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (L/min) | 30 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Recorded Dispense | 9999 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (bar) | 103.4 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | ±0.5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (L/min) | 0.9 |
| Minimum Operating Temperature (°C) | -16 |
| Model | SDM8 |
| Nozzle Type | Manual |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Overall Height (cm) | 14.6 |
| Overall Height (mm) | 146 |
| Overall Length (cm) | 33 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (mm) | 95 |
| Recommended Environment | Indoor |
| Trigger Lock | Non-Locking |
| Trigger Protection Type | Guard |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Gallon, Liter |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
