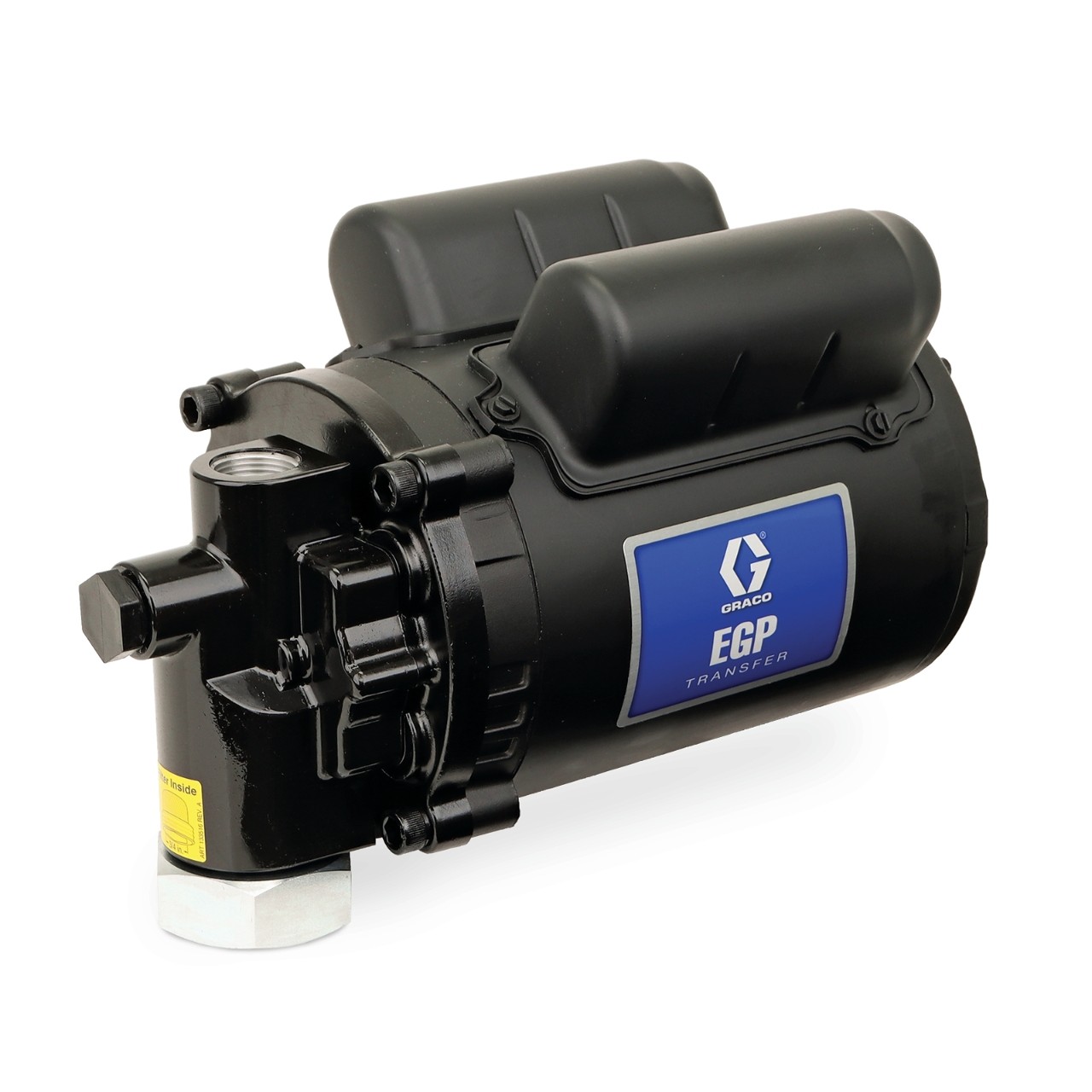

EGP™ Transfer Pump, 115 VAC, 8 gpm (30.3 lpm), 120 psi (8.3 bar)
Part Number: 25U346
Image is for illustrative purposes only.
Image is for illustrative purposes only.
EGP
EGP™ Transfer Pump, 115 VAC, 8 gpm (30.3 lpm), 120 psi (8.3 bar)
Part Number: 25U346
Choose cost-saving convenience with the all-new Graco EGP electric pumps. Attach the EGP transfer pump directly to roll-around barrels for more mobility in more places. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and m...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Choose cost-saving convenience with the all-new Graco EGP electric pumps. Attach the EGP transfer pump directly to roll-around barrels for more mobility in more places. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and more convenience.
Use the EGP Transfer Pump in locations where compressed air is unavailable or too cumbersome for shortdistance fluid transfer.
- Electrical Flexibility - Available in 12 VDC and 115 VAC power options.
- Smooth Fluid Flow 8 gpm (30 lpm) - Output flow is continuous and non-pulsating up to 8 gpm (30 lpm).
- Heavy-Duty Motor with Long Life - Industrial-grade electric motors with over-temperature protection on 115 VAC models.
- Consistent Pressure - Built-in fluid bypass valve protects pump and downstream components.
- Pump Protection - Includes inlet strainer to keep larger debris out of pump housing and extend pump life.
- Plug and Play - Self-priming, precision machined pump design.
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Oil |
|---|---|
| Fluid Pressure Control Type | Internal Bypass |
| Inlet Thread Gender | Female |
| Inlet Thread Size (in) | 1 |
| Inlet Thread Type | NPT |
| Maximum Current (A) | 9.1 |
| Maximum Working Pressure (psi) | 120 |
| Model | EGP |
| Outlet Thread Gender | Female |
| Power Rating (HP) | 1 |
| Power Type | Electric |
| Type | Gear Pump |
| Voltage (V ac) | 115 |
| Wetted Parts | Zinc-Plated Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Nitrile Rubber, PVC, PVC Cement |
| Compatible Material | Oil |
| Fluid Pressure Control Type | Internal Bypass |
| Inlet Thread Gender | Female |
| Inlet Thread Size (in) | 1 |
| Inlet Thread Type | NPT |
| Maximum Current (A) | 9.1 |
| Maximum Working Pressure (bar) | 8.3 |
| Maximum Working Pressure (psi) | 120 |
| Model | EGP |
| Outlet Thread Gender | Female |
| Power Type | Electric |
| Type | Gear Pump |
| Voltage (V ac) | 115 |
| Wetted Parts | Zinc-Plated Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Nitrile Rubber, PVC, PVC Cement |
