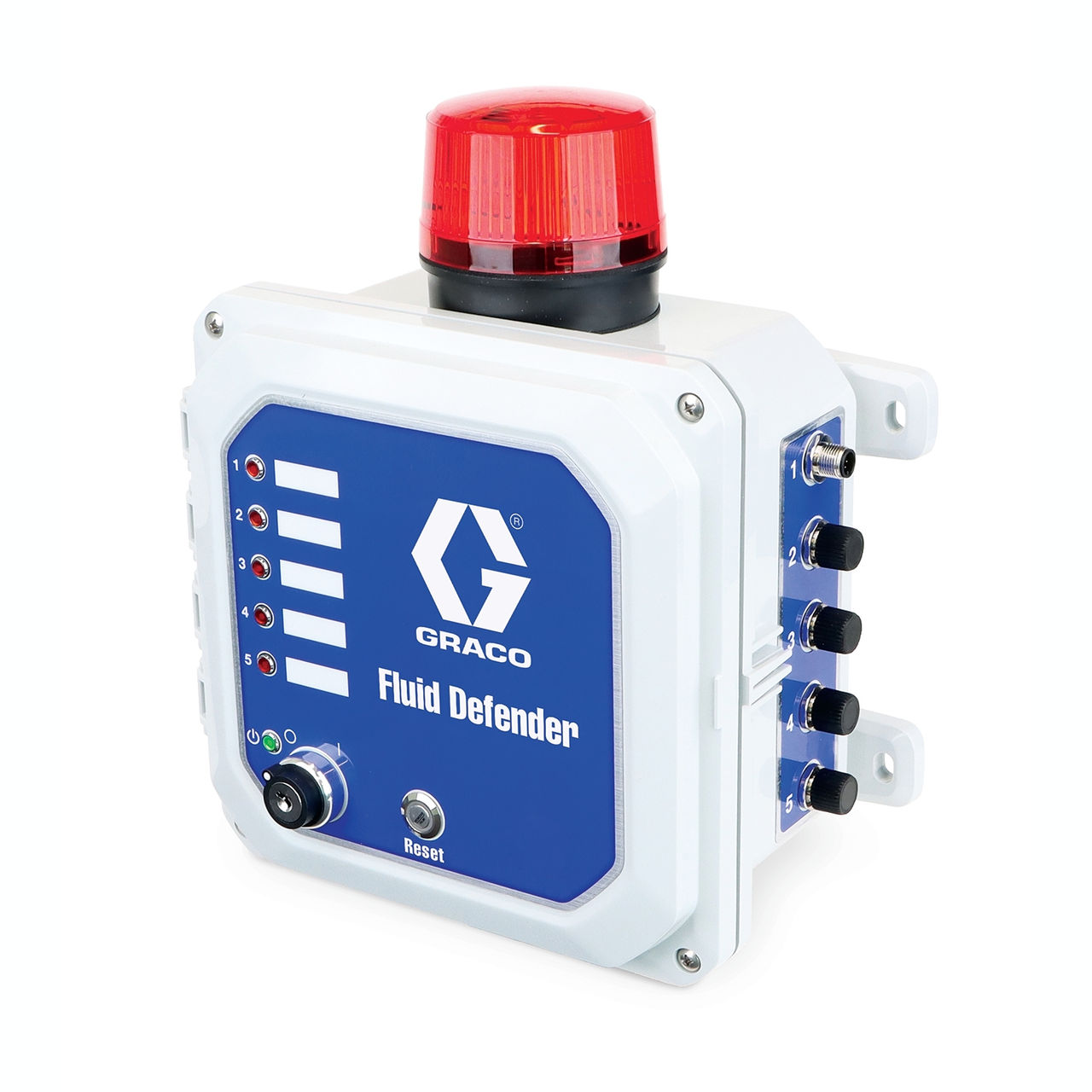

Graco® Fluid Defender®
Part Number: 25V470
Image is for illustrative purposes only.
Graco® Fluid Defender®
Part Number: 25V470
The Graco Fluid Defender is designed to give you precise control of your bulk fluid tanks to help prevent overfills and pump cavitation. Mount near your tank filling location indoors or outdoors to support after-hours refill services.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The Graco Fluid Defender is designed to give you precise control of your bulk fluid tanks to help prevent overfills and pump cavitation. Mount near your tank filling location indoors or outdoors to support after-hours refill services.
- Uses include High level alarm and shut-off, remote fill alarm, low level shut off, low level alarm and remote fill shut off
Reduce risk of fluid spills and EPA compliance issues
- Supports remote tank and remote fill locations
- Siren, beacon and remote light alarms
- Monitor up to 5 tanks and operate up to 5 air control solenoid valves
- Single power source for complete system simplifies installation
- Allows for up to 1000’ between monitor and tanks
- Safe to use with motor and waste oil, ATF, A-F, diesel and windshield wash fluid
Specifications & Documents
Technical Specifications
Convert to Metric| Approvals | NEMA Type 3R |
|---|---|
| For Use With | Fluid Defender |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Storage Temperature (°F) | 185 |
| Minimum Storage Temperature (°F) | -40 |
| Overall Height (in) | 11.3 |
| Overall Width (in) | 10.3 |
| RF Communication (GHz) | 2400 - 2483.5 MHz |
| Type | Fluid Control Box |
| Approvals | NEMA Type 3R |
| For Use With | Fluid Defender |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Storage Temperature (°C) | 85 |
| Minimum Storage Temperature (°C) | -40 |
| RF Communication (GHz) | 2400 - 2483.5 MHz |
| Type | Fluid Control Box |
