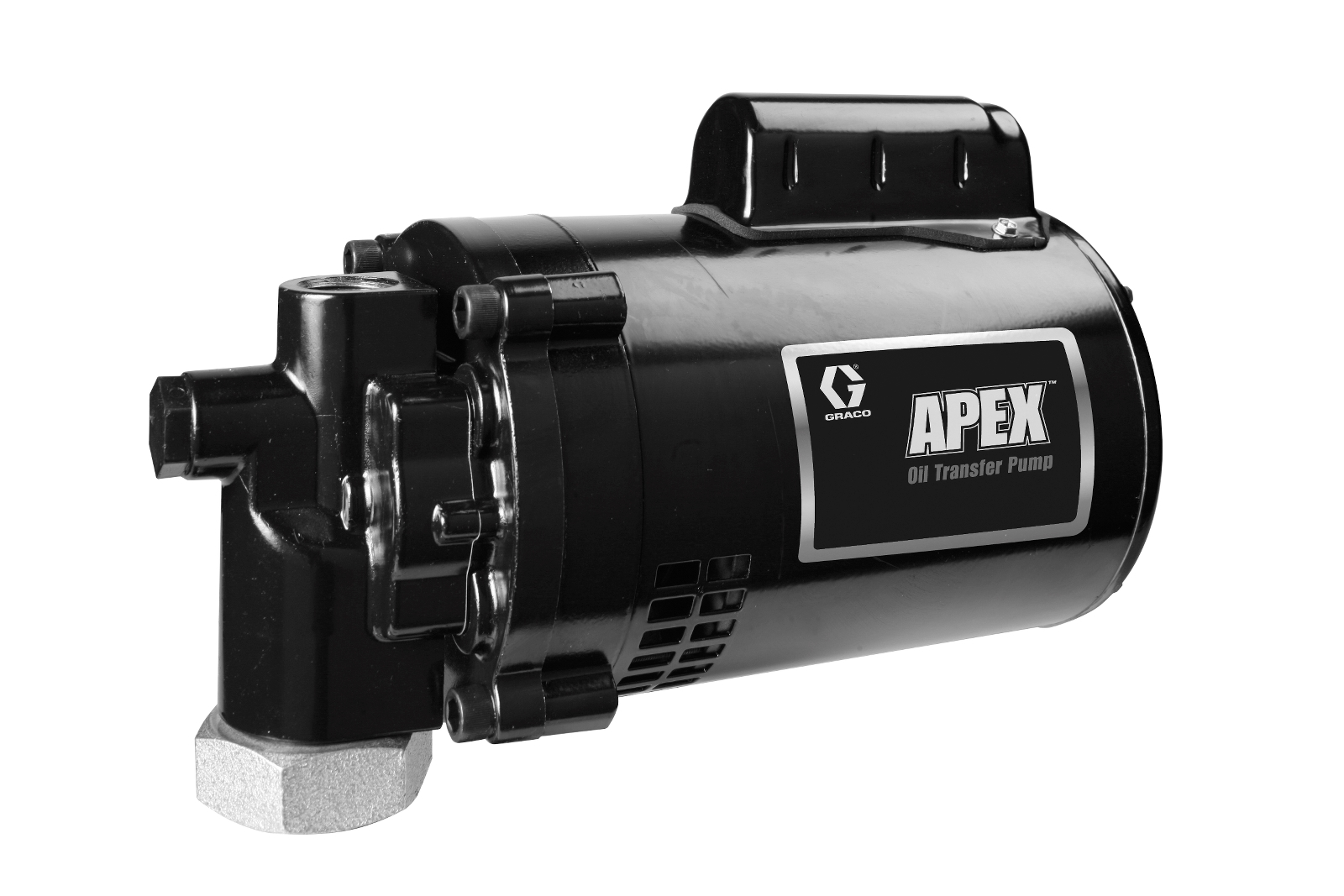

APEX™ Pump - 115 VAC Motor - 1 Horsepower

260101

Apex

APEX™ Pump - 115 VAC Motor - 1 Horsepower

260101

Electric gear pumps are intended for high volume transfer. Graco provides durable pumping solutions for all of your oil and fluid transfer applications. Our line of APEX pumps are available in AC and DC configurations to meet your fluid transfer needs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Electric gear pumps are intended for high volume transfer. Graco provides durable pumping solutions for all of your oil and fluid transfer applications. Our line of APEX pumps are available in AC and DC configurations to meet your fluid transfer needs.

Typical applications include filling bulk tanks from drums, lubricant transfer from remote locations, construction equipment, agricultural equipment, filling in-plant machinery, evacuating used oil receivers, filling shop oil furnaces with new or used oil, automotive and truck service garages, fleet marine and personal boat service and aircraft maintenance.

  • Built-in bypass valve
  • TENV electric motor to handle the dirtiest environments
  • Extremely quiet pump operation
  • Output flow is continuous and non-pulsating
  • Low operating and installation costs
  • Inlet and outlet check valves with thermal relief valves included
  • All units include bung adapter
  • 1 Year Warranty. See manufacturers website for details.
  • Transfer used oil with inlet suction screen

Specifications

Technical Specifications

Convert to Metric
Application Oil
Compatible Material Oil, Hydraulic Fluid, Antifreeze
Fluid Pressure Control Type Internal Bypass
Frequency (Hz) 60
Includes Transfer Pump, Suction Tube, Fluid Hose, Dispense Valve, Bung Adapter
Inlet Thread Gender Female
Inlet Thread Size (in) 1
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 4.25
Maximum Flow Rate (oz/min) 544
Maximum Working Pressure (MPa) 0.5
Maximum Working Pressure (psi) 65
Outlet Thread Gender Female
Outlet Thread Size (in) 3/4
Outlet Thread Type NPT
Overall Depth (in) 12.5
Overall Height (in) 8
Overall Width (in) 6.75
Power Rating (HP) 1
Power Type Electric
Type Gear Pump Package
Voltage (V ac) 115
Voltage (V) 115
Weight (lb) 25
Wetted Parts Rubber, Stainless Steel, Aluminum, Galvanized Steel, Zinc-Plated Steel, Nitrile Rubber
Application Oil
Compatible Material Oil, Hydraulic Fluid, Antifreeze
Fluid Pressure Control Type Internal Bypass
Frequency (Hz) 60
Includes Transfer Pump, Suction Tube, Fluid Hose, Dispense Valve, Bung Adapter
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Flow Rate (L/min) 16.15
Maximum Working Pressure (MPa) 0.5
Maximum Working Pressure (bar) 4.5
Maximum Working Pressure (kPa) 45
Outlet Thread Gender Female
Outlet Thread Type NPT
Overall Depth (cm) 31.75
Overall Depth (mm) 317.5
Overall Height (cm) 20.32
Overall Height (mm) 203.2
Overall Width (cm) 17.14
Overall Width (mm) 171.4
Power Rating (HP) 1
Power Type Electric
Type Gear Pump Package
Voltage (V ac) 115
Voltage (V) 115
Weight (kg) 11.25
Wetted Parts Rubber, Stainless Steel, Aluminum, Galvanized Steel, Zinc-Plated Steel, Nitrile Rubber
