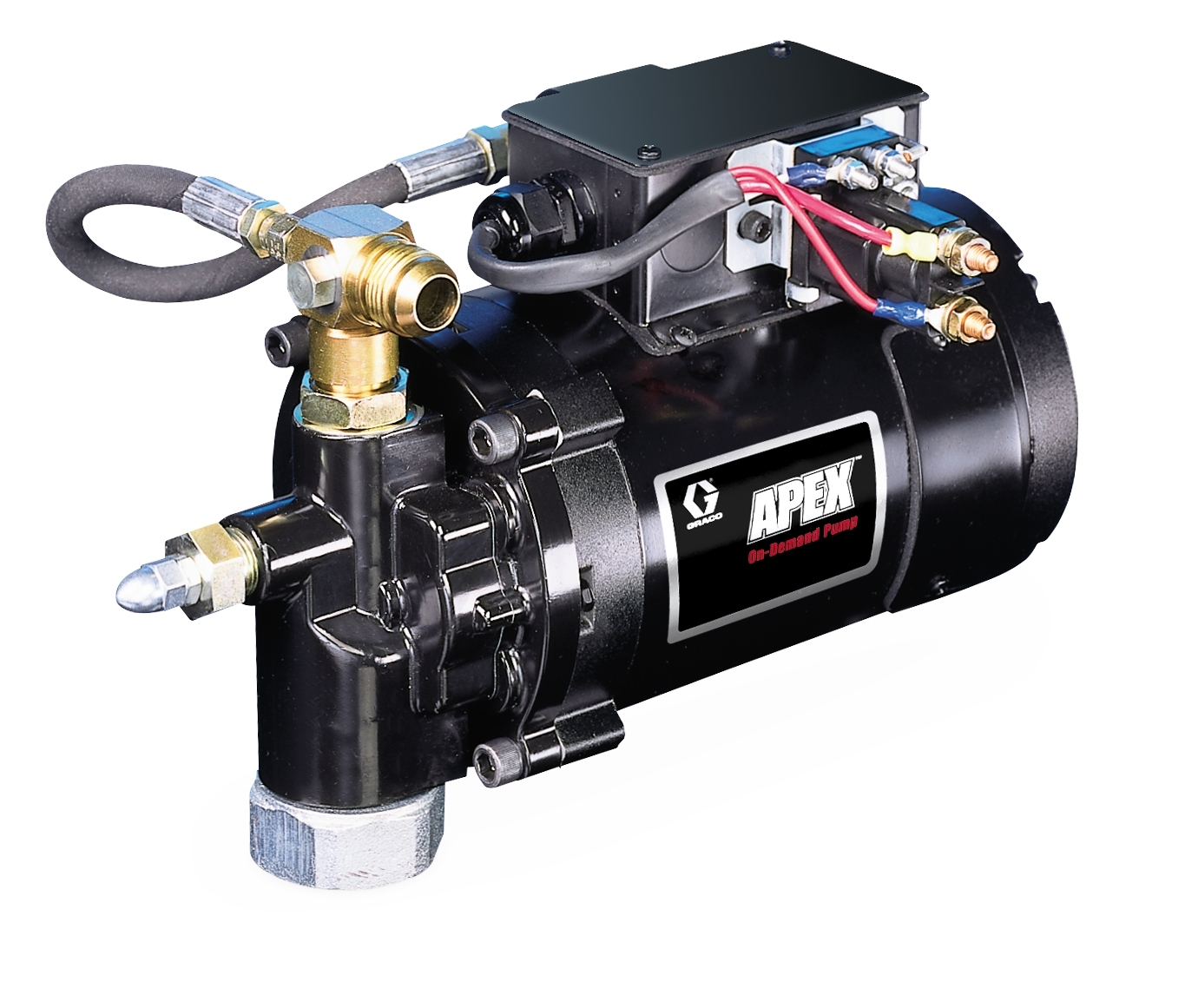

APEX™ On-Demand Pump - 12 VDC Motor - 3/4 Horsepower

260112

mlhe

Apex

APEX™ On-Demand Pump - 12 VDC Motor - 3/4 Horsepower

260112

Electric gear pumps are intended for high volume transfer. Graco provides durable pumping solutions for all of your oil and fluid transfer applications. Our line of APEX pumps are available in AC and DC configurations to meet your fluid transfer needs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Electric gear pumps are intended for high volume transfer. Graco provides durable pumping solutions for all of your oil and fluid transfer applications. Our line of APEX pumps are available in AC and DC configurations to meet your fluid transfer needs.

Typical applications include filling bulk tanks from drums, lubricant transfer from remote locations, construction equipment, agricultural equipment, filling in-plant machinery, evacuating used oil receivers, filling shop oil furnaces with new or used oil, automotive and truck service garages, fleet marine and personal boat service and aircraft maintenance.

  • On-demand pressure sensing system starts and stops the pump
  • TENV electric motor to handle the dirtiest environments
  • Extremely quiet pump operation
  • Output flow is continuous and non-pulsating
  • Low operating and installation costs
  • Inlet and outlet check valves with thermal relief valves included
  • All units include bung adapter
  • 1 Year Warranty. See manufacturers website for details.
  • include bung adapter

Specifications

Technical Specifications

Convert to Metric
Application Oil
Compatible Material Oil
Fluid Pressure Control Type Internal Bypass, Electrical Pressure Shut Off Switch
Inlet Thread Gender Female
Inlet Thread Size (in) 0.75
Inlet Thread Type NPT
Maximum Current (A) 62
Maximum Flow Rate (GPM) 3
Maximum Working Pressure (psi) 400
Outlet Thread Gender Female
Outlet Thread Size (in) 1/2
Outlet Thread Type NPT
Overall Depth (in) 15
Overall Height (in) 10.5
Overall Width (in) 7.5
Power Rating (HP) 0.75
Power Type Electric
Type Gear Pump
Voltage (V) 12
Weight (lb) 27
Wetted Parts Zinc-Plated Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Nitrile Rubber, PVC, PVC Cement
Application Oil
Compatible Material Oil
Fluid Pressure Control Type Internal Bypass, Electrical Pressure Shut Off Switch
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Current (A) 62
Maximum Working Pressure (bar) 28
Maximum Working Pressure (kPa) 280
Outlet Thread Gender Female
Outlet Thread Type NPT
Overall Depth (cm) 38.1000
Overall Depth (mm) 381.0000
Overall Height (cm) 26.6700
Overall Height (mm) 266.7000
Overall Width (cm) 19.0500
Overall Width (mm) 190.5000
Power Rating (HP) 0.75
Power Type Electric
Type Gear Pump
Voltage (V) 12
Wetted Parts Zinc-Plated Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Nitrile Rubber, PVC, PVC Cement
