SDP18

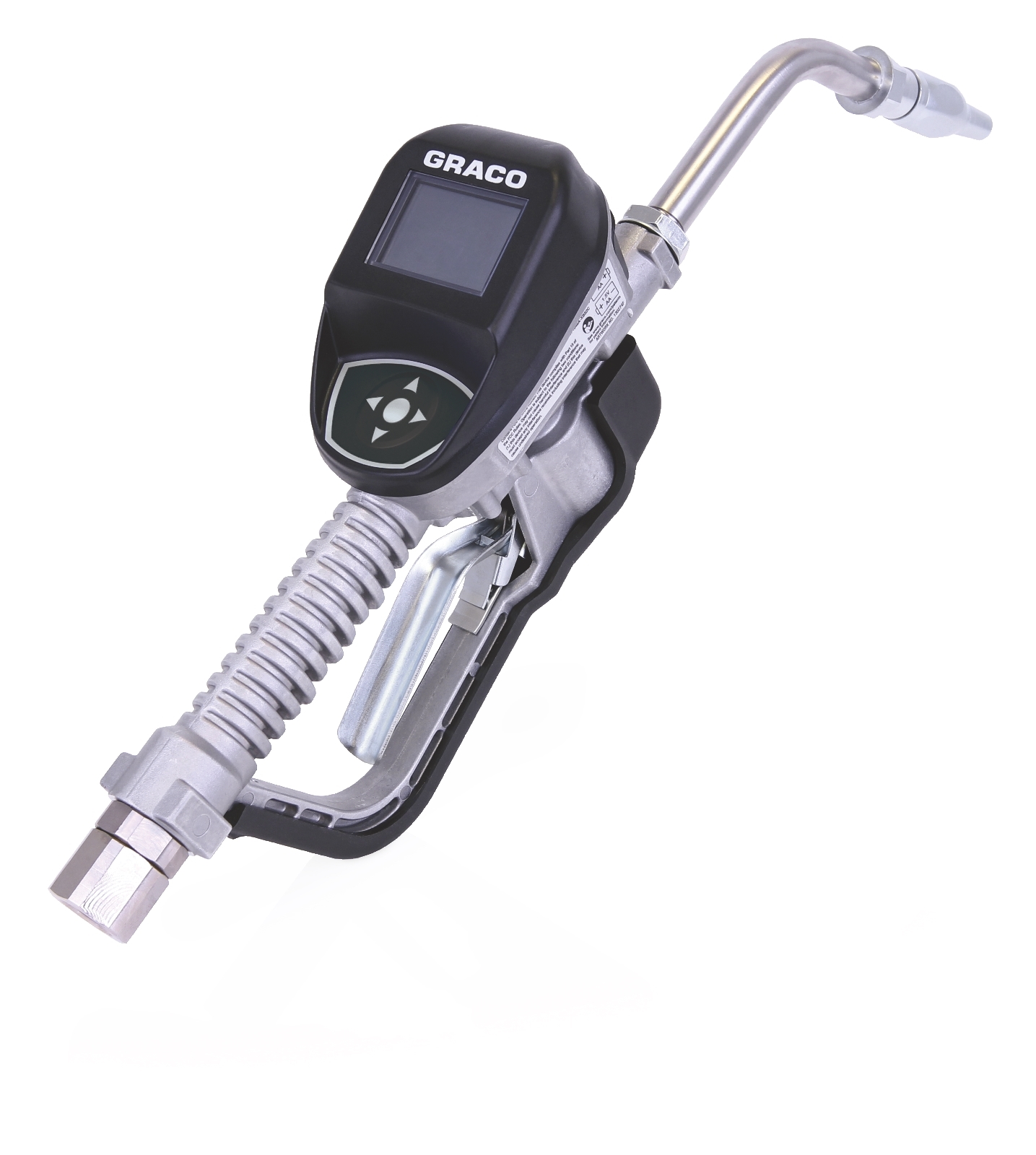

SDP18 Series Electronic Preset Oil/Anti-Freeze Meter - Rigid Extension - 1/2" Inlet

26C356

26C356_SD_Meter_Rigid_Oil_LF

SDP18

SDP18 Series Electronic Preset Oil/Anti-Freeze Meter - Rigid Extension - 1/2" Inlet

26C356

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

  • Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system

  • Large, Intuitive Display—high-contrast display for low and bright light conditions

  • Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time

  • Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue

  • Reliable—time-tested Graco engineering

  • Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications

  • Long battery life—uses 4 AA easy-to-replace batteries

Specifications

Technical Specifications

Convert to Metric
Compatible Material Oil, Antifreeze, ATF, Gear Oil
Dispense Type Preset
Display Type Electronic
Extension Type Rigid
Fluid Inlet Thread Gender Female
Fluid Outlet Thread Gender Female
Includes Nozzle, Rigid Extension
Inlet Size (in) 1/2
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 18
Maximum Operating Temperature (°F) 158
Maximum Recorded Dispense 9999
Maximum Storage Temperature (°F) 158
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (psi) 1500
Meter Accuracy (%) ±0.5
Meter Technology Oval Gear
Metering Gun Weight (lb) 5.3
Minimum Flow Rate (GPM) 0.25
Minimum Operating Temperature (°F) 4
Nozzle Type Manual
Outlet Thread Type Straight Thread O-Ring Boss
Overall Height (in) 5.75
Overall Length (in) 13
Overall Width (in) 3.75
Product Type Meter
Recommended Environment Indoor
Trigger Lock Locking
Trigger Protection Type Guard
Type Electronic Metered Dispense Valve
Unit of Measure Quart, Pint, Gallon, Liter
Valve Type Metered
Warranty 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
Wetted Material Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS
Compatible Material Oil, Antifreeze, ATF, Gear Oil
Dispense Type Preset
Display Type Electronic
Extension Type Rigid
Fluid Inlet Thread Gender Female
Fluid Outlet Thread Gender Female
Includes Nozzle, Rigid Extension
Inlet Size (cm) 1.27
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Flow Rate (L/min) 68
Maximum Operating Temperature (°C) 70
Maximum Recorded Dispense 9999
Maximum Storage Temperature (°C) 70
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (bar) 103.4
Maximum Working Pressure (kPa) 10340
Meter Accuracy (%) ±0.5
Meter Technology Oval Gear
Metering Gun Weight (kg) 2.4
Minimum Flow Rate (L/min) 0.9
Minimum Operating Temperature (°C) -16
Nozzle Type Manual
Outlet Thread Type Straight Thread O-Ring Boss
Overall Height (cm) 14.6
Overall Height (mm) 146
Overall Length (cm) 33
Overall Length (mm) 330
Overall Width (cm) 9.5
Overall Width (mm) 95
Product Type Meter
Recommended Environment Indoor
Trigger Lock Locking
Trigger Protection Type Guard
Type Electronic Metered Dispense Valve
Unit of Measure Quart, Pint, Gallon, Liter
Valve Type Metered
Warranty 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
Wetted Material Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS
