SDP18

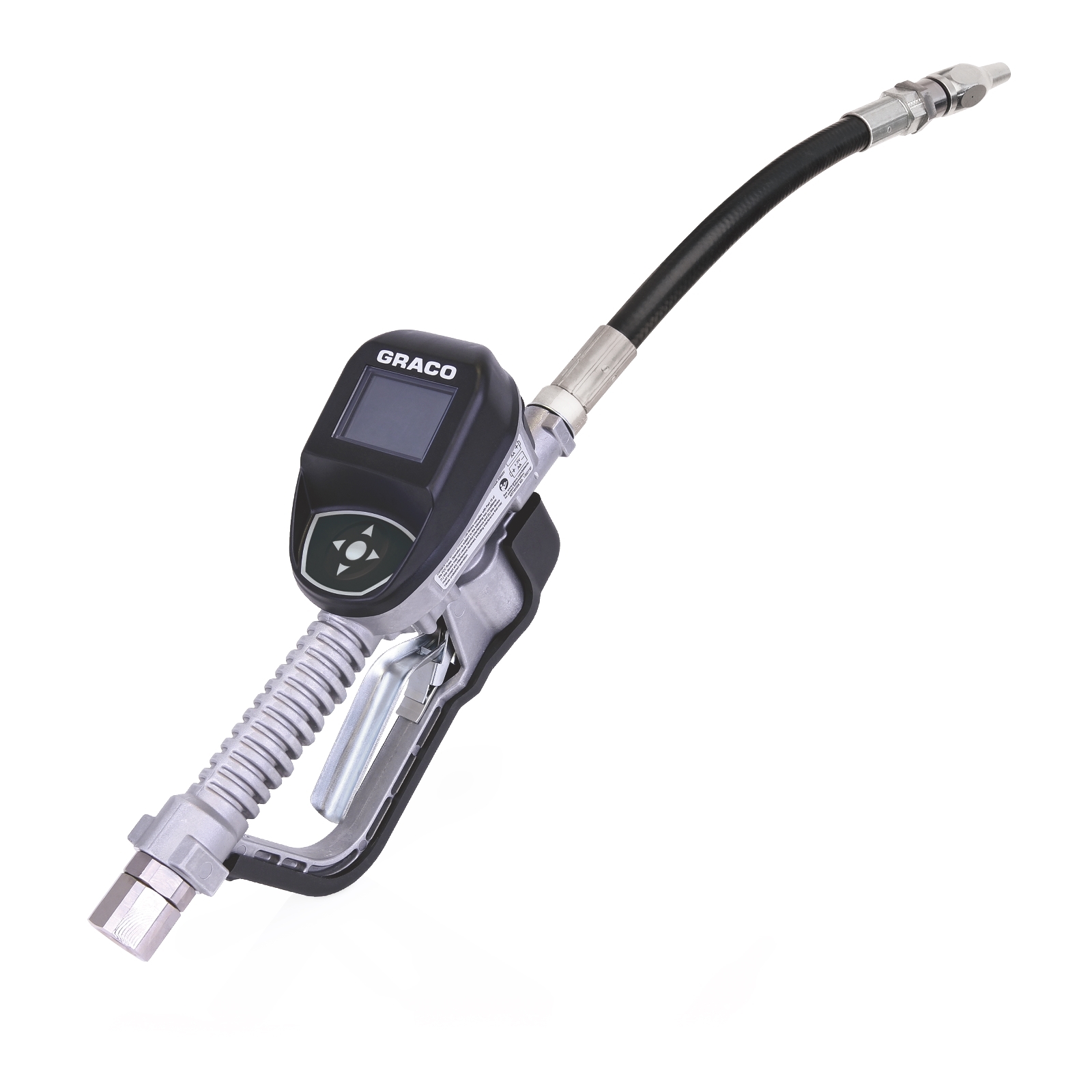

SDP18 Series Electronic Preset Oil/Antifreeze Meter - Flexible Extension - 1/2 in. (13 mm) Inlet
Part Number: 26C357
Image is for illustrative purposes only.
Image is for illustrative purposes only.
SDP18
SDP18 Series Electronic Preset Oil/Antifreeze Meter - Flexible Extension - 1/2 in. (13 mm) Inlet
Part Number: 26C357
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
Large, Intuitive Display—high-contrast display for low and bright light conditions
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
Reliable—time-tested Graco engineering
Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Oil, Antifreeze, ATF, Gear Oil |
|---|---|
| Construction | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Flexible Extension |
| Inlet Size (in) | 1/2 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 18 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Recorded Dispense | 9999 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | ±0.5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.3 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Operating Temperature (°F) | 4 |
| Model | SDP18 |
| Nozzle Type | Manual |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Overall Height (in) | 5.75 |
| Overall Length (in) | 13 |
| Overall Width (in) | 3.75 |
| Product Type | Meter |
| Recommended Environment | Indoor |
| Trigger Lock | Locking |
| Trigger Protection Type | Guard |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Gallon, Liter |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Compatible Material | Oil, Antifreeze, ATF, Gear Oil |
| Construction | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Flexible Extension |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (L/min) | 68 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Recorded Dispense | 9999 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (bar) | 103.4 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | ±0.5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (L/min) | 0.9 |
| Minimum Operating Temperature (°C) | -16 |
| Model | SDP18 |
| Nozzle Type | Manual |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Overall Height (cm) | 14.6 |
| Overall Height (mm) | 146 |
| Overall Length (cm) | 33 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (mm) | 95 |
| Product Type | Meter |
| Recommended Environment | Indoor |
| Trigger Lock | Locking |
| Trigger Protection Type | Guard |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Gallon, Liter |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
Product Manuals
3A6673H,SDP8/SDP18 Preset Metered Dispense Valve, Pulse FC Enabled, Manual, English
(3 MB)
(English Only)
