PM™ 20 Electronic Preset Oil Meter - Flexible Extension - 3/4 in. (19 mm) Inlet - NPT
Part Number: 273168

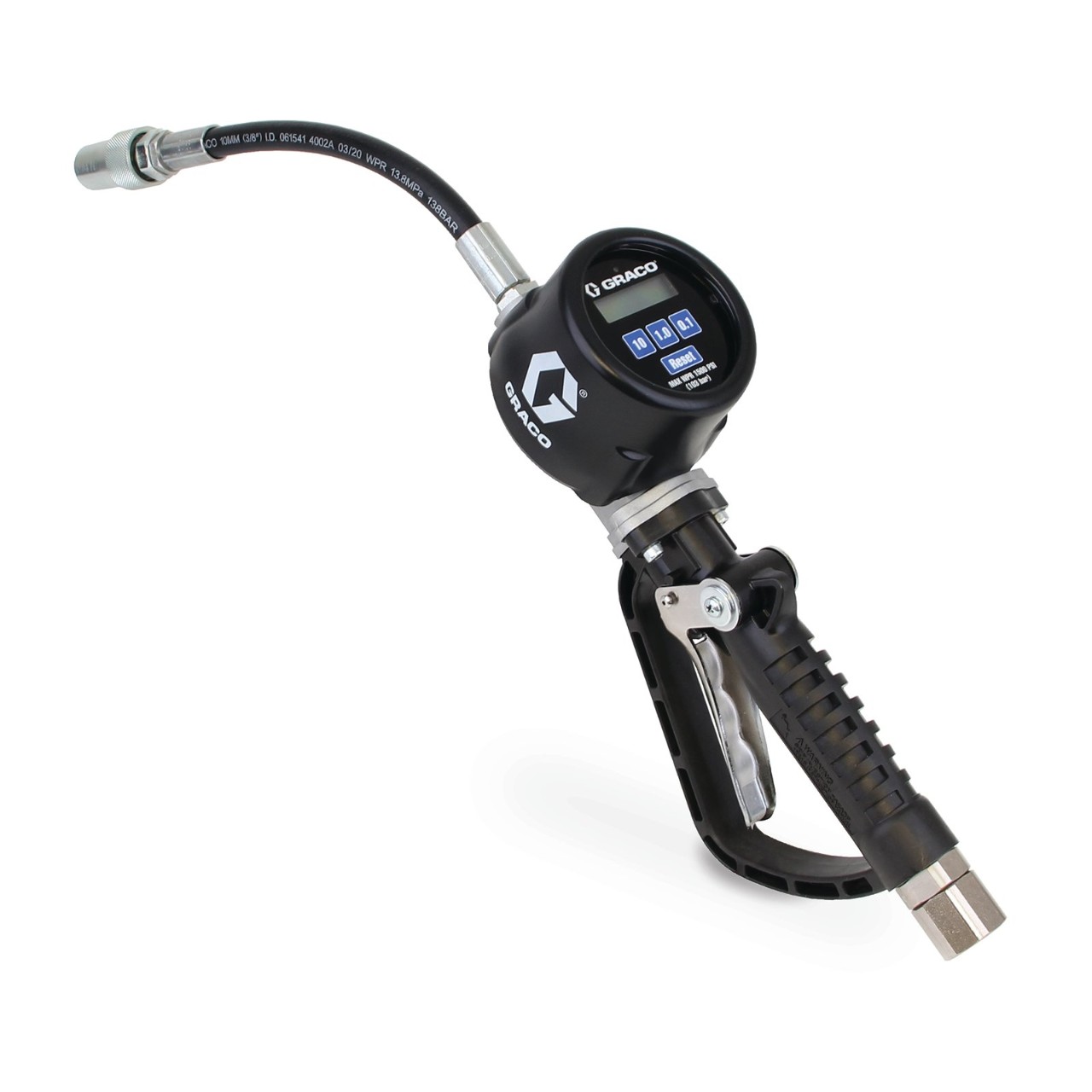

Image is for illustrative purposes only.
Image is for illustrative purposes only.
20
PM™ 20 Electronic Preset Oil Meter - Flexible Extension - 3/4 in. (19 mm) Inlet - NPT
Part Number: 273168
Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.
- Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.
Easy Valve Operation - Ergonomic four-finger trigger for user comfort protected by a robust full length trigger guard.
Durable Cast Body - Designed for heavy duty and harsh applications.
High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
Long Battery Life - Features four easily-replaceable AA batteries.
Specifications & Documents
Technical Specifications
Convert to Metric| Calibration Type | Factory Calibrated |
|---|---|
| Compatible Material | Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze |
| Construction | Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| IP Rating | 69K |
| Includes | Nozzle, Extension |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 20 |
| Maximum Operating Temperature (°F) | 125 |
| Maximum Recorded Dispense | 19999 |
| Maximum Storage Temperature (°F) | 185 |
| Maximum Totalizer | 19999 |
| Maximum Working Pressure (MPa) | 10 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy | ±0.5 |
| Meter Accuracy (%) | ±0.5 |
| Meter Pressure Loss (psi) | 150 PSI at 12 GPM |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.2 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Operating Temperature (°F) | -20 |
| Nozzle Type | Manual |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | ORB |
| Overall Height (in) | 7.2 |
| Overall Length (in) | 30.7 |
| Overall Width (in) | 4.1 |
| Recommended Environment | Indoor/Outdoor |
| Series | 20 |
| Trigger Lock | Locking |
| Trigger Protection Type | Lock Off Button |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Liter, Gallon |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Calibration Type | Factory Calibrated |
| Compatible Material | Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze |
| Construction | Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| IP Rating | 69K |
| Includes | Nozzle, Extension |
| Inlet Size (cm) | 1.91 |
| Inlet Size (in) | 3/4 |
| Inlet Size (mm) | 19.05 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (L/min) | 75.7 |
| Maximum Flow Rate (cc/min) | 75708 |
| Maximum Flow Rate (cc/sec) | 1262 |
| Maximum Operating Temperature (°C) | 52 |
| Maximum Recorded Dispense | 19999 |
| Maximum Storage Temperature (°C) | 85 |
| Maximum Totalizer | 19999 |
| Maximum Working Pressure (MPa) | 10 |
| Maximum Working Pressure (bar) | 102 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy | ±0.5 |
| Meter Accuracy (%) | ±0.5 |
| Meter Pressure Loss (bar) | 10.3 Bar at 12 GPM |
| Meter Pressure Loss (psi) | 150 PSI at 12 GPM |
| Meter Technology | Oval Gear |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Operating Temperature (°C) | -29 |
| Nozzle Type | Manual |
| Outlet Size (cm) | 1.905 |
| Outlet Size (in) | 3/4 |
| Outlet Size (mm) | 19.05 |
| Outlet Thread Type | ORB |
| Overall Height (cm) | 18.3 |
| Overall Height (mm) | 183 |
| Overall Length (cm) | 78 |
| Overall Length (mm) | 780 |
| Overall Width (cm) | 10.4 |
| Overall Width (mm) | 103.5 |
| Recommended Environment | Indoor/Outdoor |
| Series | 20 |
| Trigger Lock | Locking |
| Trigger Protection Type | Lock Off Button |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Liter, Gallon |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
