Trabon MD

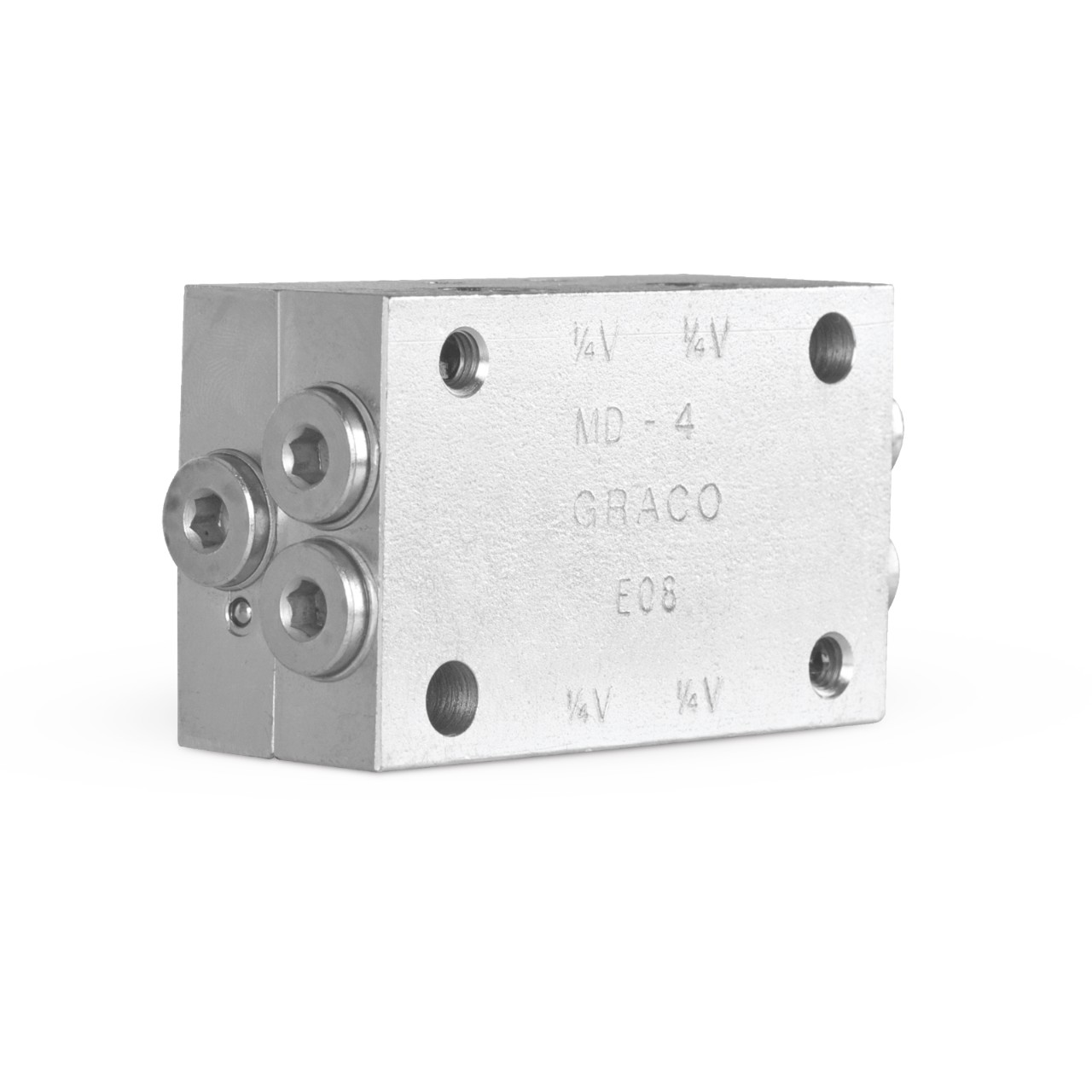

Trabon® MD Mono Block Divider Valve - MD-4

Part Number: 562658

product image
Image is for illustrative purposes only.

Trabon MD

Trabon® MD Mono Block Divider Valve - MD-4

Part Number: 562658

The Trabon MD Series is the most compact series progressive solution making it a perfect fit for tight spaced applications

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Trabon MD Series is the most compact series progressive solution making it a perfect fit for tight spaced applications

  • 4 outlets
  • Easy to install on new or existing equipment
  • Use our cycle indicator pin models to provide positive assurance of a successful lube event
  • Fluoroelastomer seals for high temperature applications or synthetic lubricants
  • Lubriquip part number 103-000-151

Specifications & Documents

Technical Specifications

Convert to Metric
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Compatible Material Oil, Grease
Cycle Indicator None
Discharge Per Piston Stroke (in³) 0.012
Divider Valve Series MD
Inlet Size (in) 1/8
Inlet Thread Gender Female
Inlet Thread Type NPSF
Material Carbon Steel
Maximum Cycle Rate (cycles/min) 200
Maximum NLGI Grade #2
Maximum Operating Temperature (°F) 350
Maximum Working Pressure (psi) 3000
Minimum Working Pressure (psi) 200
Model Trabon
Number of Outlets 4
Outlet Size (in) 1/8
Outlet Thread Gender Female
Outlet Thread Type NPSF
Series MD
Type Divider Valve
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Compatible Material Oil, Grease
Cycle Indicator None
Discharge Per Piston Stroke (in³) 0.012
Divider Valve Series MD
Inlet Size (cm) 0.3175
Inlet Size (in) 1/8
Inlet Size (mm) 3.1750
Inlet Thread Gender Female
Inlet Thread Type NPSF
Material Carbon Steel
Maximum Cycle Rate (cycles/min) 200
Maximum NLGI Grade #2
Maximum Operating Temperature (°C) 176
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20670
Maximum Working Pressure (psi) 3000
Minimum Working Pressure (bar) 14
Minimum Working Pressure (psi) 200
Model Trabon
Number of Outlets 4
Outlet Size (cm) 0.3175
Outlet Size (in) 1/8
Outlet Size (mm) 3.1750
Outlet Thread Gender Female
Outlet Thread Type NPSF
Series MD
Type Divider Valve
