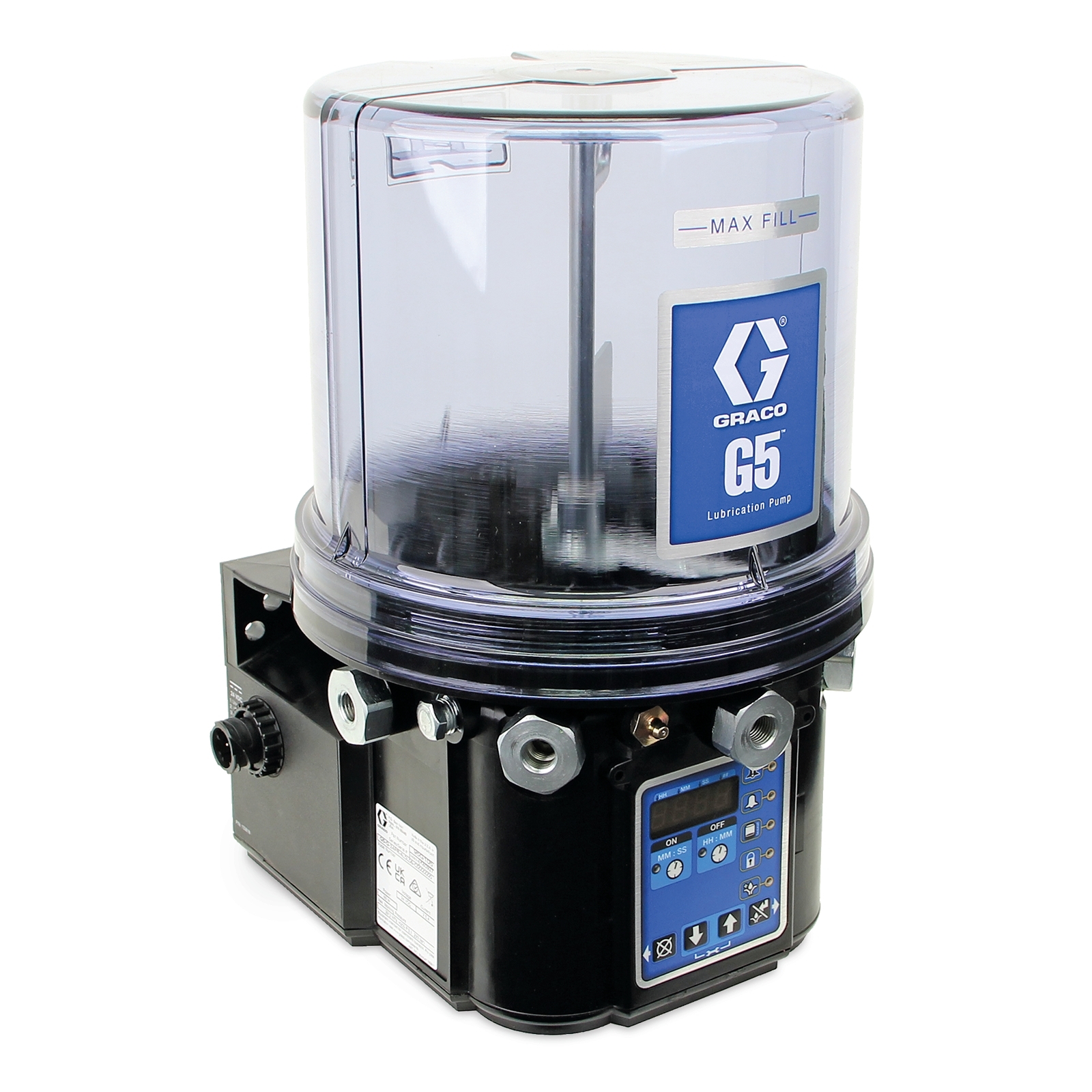

G5™ Pro Grease Lubrication Pump, 24 VDC, 4 Liter with Auto-Fill Shut Off, Remote Manual Run, Vertical Oriented 5-Pin CPC
Part Number: 95G108
G5 Pro
G5™ Pro Grease Lubrication Pump, 24 VDC, 4 Liter with Auto-Fill Shut Off, Remote Manual Run, Vertical Oriented 5-Pin CPC
Part Number: 95G108
Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.
Designed for quintuplex frack pumps, pumpjacks and other pump-to-point applications.
- Five Pump Elements - G5 comes standard with five adjustable pump elements installed.
- Flexible Power Options - Two CPC-style connectors with low level output options make for easy, hassle-free installations.
- Two Controller Options - Use your existing machine’s controller or choose the G5 Pro’s built-in controller.
- Reservoir Wiper Arm - Stirring paddle with wiper arm to keep material from separating.
- Robust Reservoir - U.V. resistant, high-impact reservoirs to meet the needs of your equipment.
- Auto-Fill Shutoff (AFSO) Option - Completely fill the reservoir while avoiding costly spills with an optional AFSO.
Specifications & Documents
Technical Specifications
Convert to Metric| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
|---|---|
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Application | Off-Road Equipment |
| Compatible Material | Grease, Oil |
| Compatible Metering Device | Series Progressive |
| Construction | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Control Options | Pro |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| IP Rating | IP69K |
| Input Voltage (V dc) | 24 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fluid Output Pressure (psi) | 4250 |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°F) | 185 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 29.3 |
| Maximum Working Pressure (psi) | 4250 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Voltage (V dc) | 18 |
| Minimum cST Grade (cST) | 40 |
| Model | G5 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Outlets | 5 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Pump Elements | 5 |
| Overall Depth (in) | 10 |
| Overall Height (in) | 18.170000000000002 |
| Overall Width (in) | 9.25 |
| Power Connection Type | 5 Wire CPC |
| Power Type | Electric |
| Pump Output with 0 Spacers (cu in/min) | 0.16 |
| Pump Output with 1 Spacer (cu in/min) | 0.1 |
| Pump Output with 2 Spacers (cu in/min) | 0.06 |
| Reservoir Size (L) | 4 |
| Reservoir Size (gal) | 1.06 |
| Series | Pro |
| Type | Electric Piston Pump |
| Voltage | 24 |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Weight (lb) | 17.8999999999998 |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Application | Off-Road Equipment |
| Compatible Material | Grease, Oil |
| Compatible Metering Device | Series Progressive |
| Construction | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Control Options | Pro |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| IP Rating | IP69K |
| Input Voltage (V dc) | 24 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fluid Output Pressure (psi) | 4250 |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 29.3 |
| Maximum Working Pressure (bar) | 293 |
| Maximum Working Pressure (kPa) | 29302 |
| Maximum Working Pressure (psi) | 4250 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Voltage (V dc) | 18 |
| Minimum cST Grade (cST) | 40 |
| Model | G5 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Outlets | 5 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Pump Elements | 5 |
| Overall Depth (cm) | 25.4 |
| Overall Depth (mm) | 254 |
| Overall Height (cm) | 46.2 |
| Overall Height (mm) | 462 |
| Overall Width (cm) | 23.5 |
| Overall Width (mm) | 235 |
| Power Connection Type | 5 Wire CPC |
| Power Type | Electric |
| Reservoir Size (L) | 4 |
| Series | Pro |
| Type | Electric Piston Pump |
| Voltage | 24 |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Weight (kg) | 8.9 |
