G3 Max

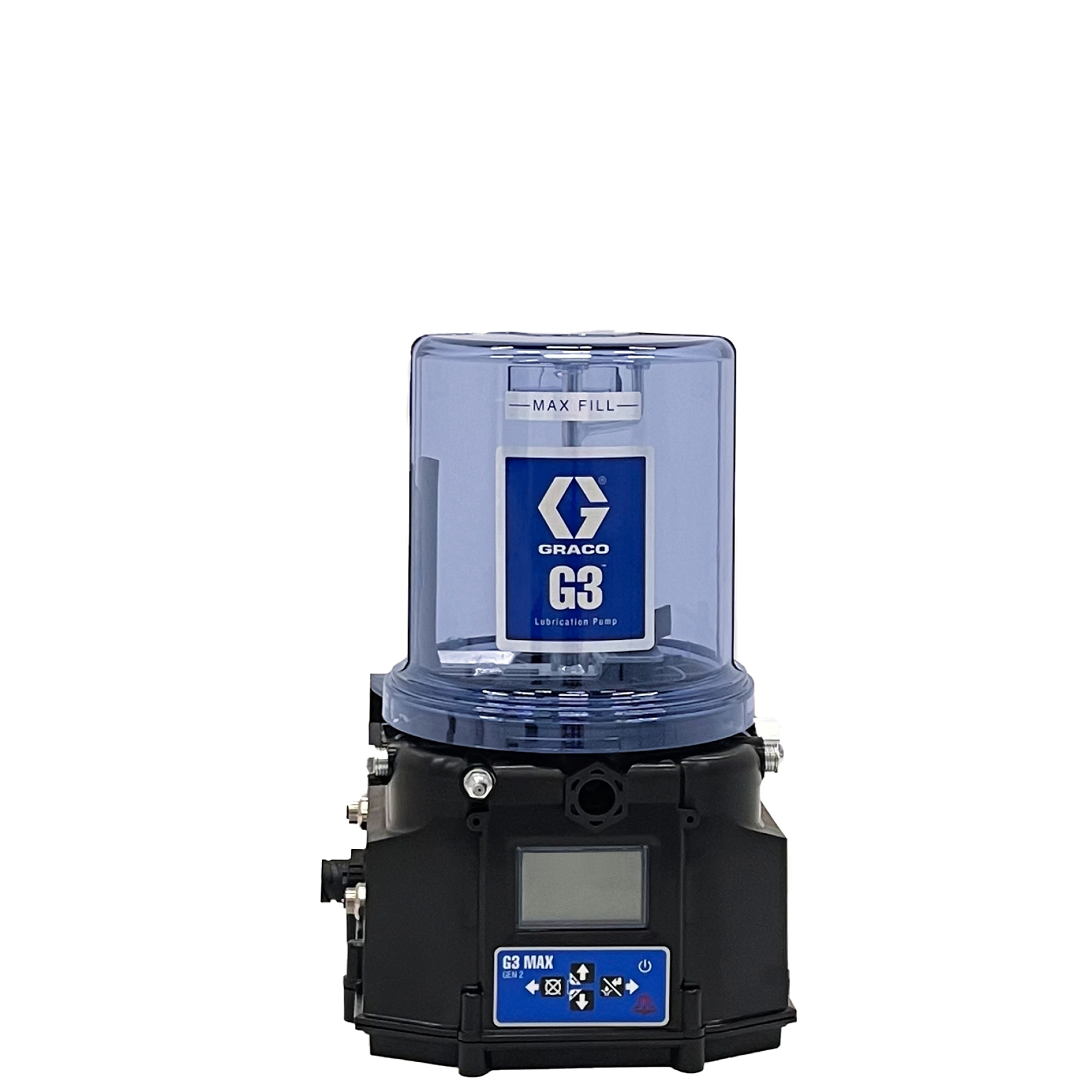

G3® Max Full-Featured Grease Lubrication Pump, 12 VDC, 8 liter reservoir with low level paddle, CPC-7 I/O connector for power, remote button, and alarms for telematics, M12 connectors for vent valve, one pressure sensor (analog or digital), machine count and one cycle switch
Part Number: 96G551
G3 Max
G3® Max Full-Featured Grease Lubrication Pump, 12 VDC, 8 liter reservoir with low level paddle, CPC-7 I/O connector for power, remote button, and alarms for telematics, M12 connectors for vent valve, one pressure sensor (analog or digital), machine count and one cycle switch
Part Number: 96G551
Extend machinery life, reduce operating costs and increase productivity! The G3 Max has a flexible design that works with injector-based or series progressive systems. The ultimate in flexibility - for a high value, custom fit on your application.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Extend machinery life, reduce operating costs and increase productivity! The G3 Max has a flexible design that works with injector-based or series progressive systems. The ultimate in flexibility - for a high value, custom fit on your application.
- LCD screen provides detailed view of pump status and operation. Alarm screens include troubleshooting tips and a QR code links to the G3 Education Center for Training-on-Demand. Bright LEDs with nearly 180 degree viewing angle allow users to confirm pump status from a distance.
- Low level indicator provides low alert and shut-down alarm
- Manual run initiates lubrication on-demand (remote option also available)
- Password protection safeguards settings
- Pre-lube function can initiate lube cycle on start-up
- One pump works with either a cycle switch or pressure sensor for custom installations and feedback. Cycle input is compatible with PNP, NPN, and dry contact switches; Pressure input is compatible with analog transducers/sensors and normally open switches.
- Machine count input - ideally suited for inconsistently used equipment
- The new CPC-7 untilizes the same Circular Plastic Connector (CPC) as other G3 pump, now with all seven pins populated with input and output functions.: ◦ Connections for tri-color remote manual run and LED push-button in CPC, (similar to CPC-5 on the EGJ and G-Mini Controller pumps) ◦ Two alarm output signal wires: one for low level and one for system alarm Access to I/O features are dependent on selection of external wiring harness (power cord)
- Compatible with Normally Open Vent Valves - simplifies pump programming, with the added benefit of venting whenever the pump is not running.
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Grease |
|---|---|
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Display Type | LCD |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| Includes | Wiper Arm, Low Level Paddle, CPC-7 I/O connector for power, remote button, and alarms for telematics, M12 connectors for vent valve, one pressure sensor (analog or digital), machine count and one cycle switch |
| Maximum Flow Rate (ci/min) | 0.25 |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Voltage (V dc) | 16 |
| Maximum Working Pressure (psi) | 5100 |
| Minimum Voltage (V dc) | 9 |
| Model | G3 |
| Number of Pump Elements | Up to 3 |
| Power Type | Electric |
| Reservoir Material | Polyamide |
| Reservoir Size (L) | 8 |
| Reservoir Size (gal) | 2.11 |
| Series | Max |
| Type | Electric Piston Pump |
| Voltage (V dc) | 12 |
| Voltage (V) | 12 VDC |
| Compatible Material | Grease |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Display Type | LCD |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| Includes | Wiper Arm, Low Level Paddle, CPC-7 I/O connector for power, remote button, and alarms for telematics, M12 connectors for vent valve, one pressure sensor (analog or digital), machine count and one cycle switch |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Voltage (V dc) | 16 |
| Maximum Working Pressure (bar) | 351.6 |
| Maximum Working Pressure (psi) | 5100 |
| Minimum Voltage (V dc) | 9 |
| Model | G3 |
| Number of Pump Elements | Up to 3 |
| Power Type | Electric |
| Reservoir Material | Polyamide |
| Reservoir Size (L) | 8 |
| Series | Max |
| Type | Electric Piston Pump |
| Voltage (V dc) | 12 |
| Voltage (V) | 12 VDC |
