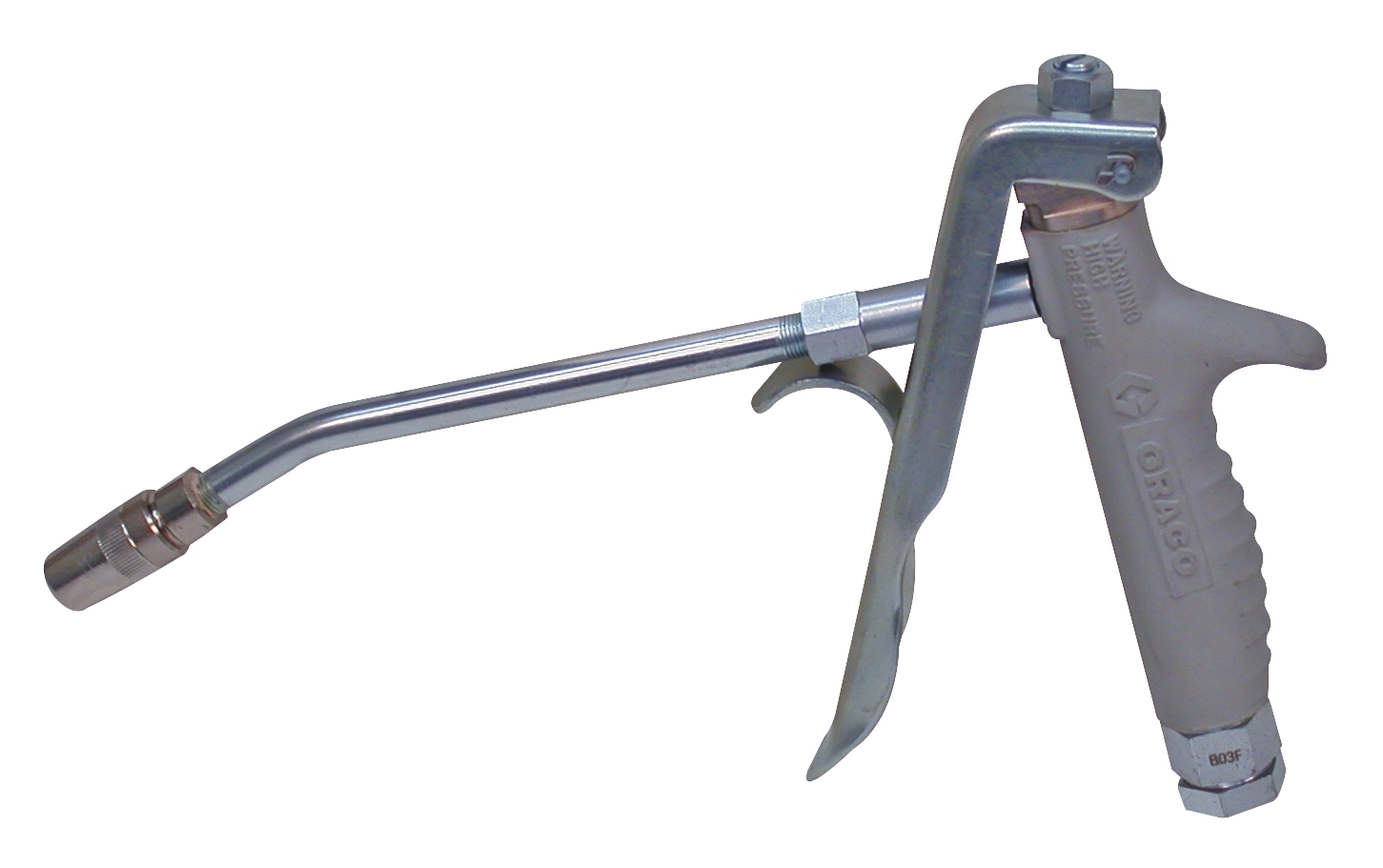

1/8 NPT Power Shot Booster Valve. Includes Nozzle
Part Number: 202600
Image is for illustrative purposes only.
1/8 NPT Power Shot Booster Valve. Includes Nozzle
Part Number: 202600
Designed to perform in heavy-equipment shops, fleet maintenance
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureDesigned to perform in heavy-equipment shops, fleet maintenance
Typical applications include fleet services facilities, heavy-duty dealerships, in-plant, lube trucks, and mining.
- Boosts incoming pressure up to 18,000 psi (1,242 bar).
- Maximum inlet pressure of 5,000 psi (345 bar).
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Grease |
|---|---|
| Extension Type | Rigid |
| Grease Gun Type | Power-Shot Booster Gun, Manual |
| Includes | Nozzle |
| Maximum Working Pressure (psi) | 18000 |
| Overall Height (in) | 7 |
| Power Type | Manual |
| Pump Material | Steel |
| Type | Manual Grease Gun |
| Valve Type | Boostered |
| Weight (lb) | 3 |
| Compatible Material | Grease |
| Extension Type | Rigid |
| Grease Gun Type | Power-Shot Booster Gun, Manual |
| Includes | Nozzle |
| Maximum Working Pressure (bar) | 1241 |
| Maximum Working Pressure (kPa) | 124100 |
| Overall Height (cm) | 17.8 |
| Overall Height (mm) | 178 |
| Power Type | Manual |
| Pump Material | Steel |
| Type | Manual Grease Gun |
| Valve Type | Boostered |
| Weight (kg) | 1.4 |
