Fire-Ball 300
Fire-Ball® 300 5:1 Bulk Oil Bench/Top Tank Dispensing Package
Part Number: 224534

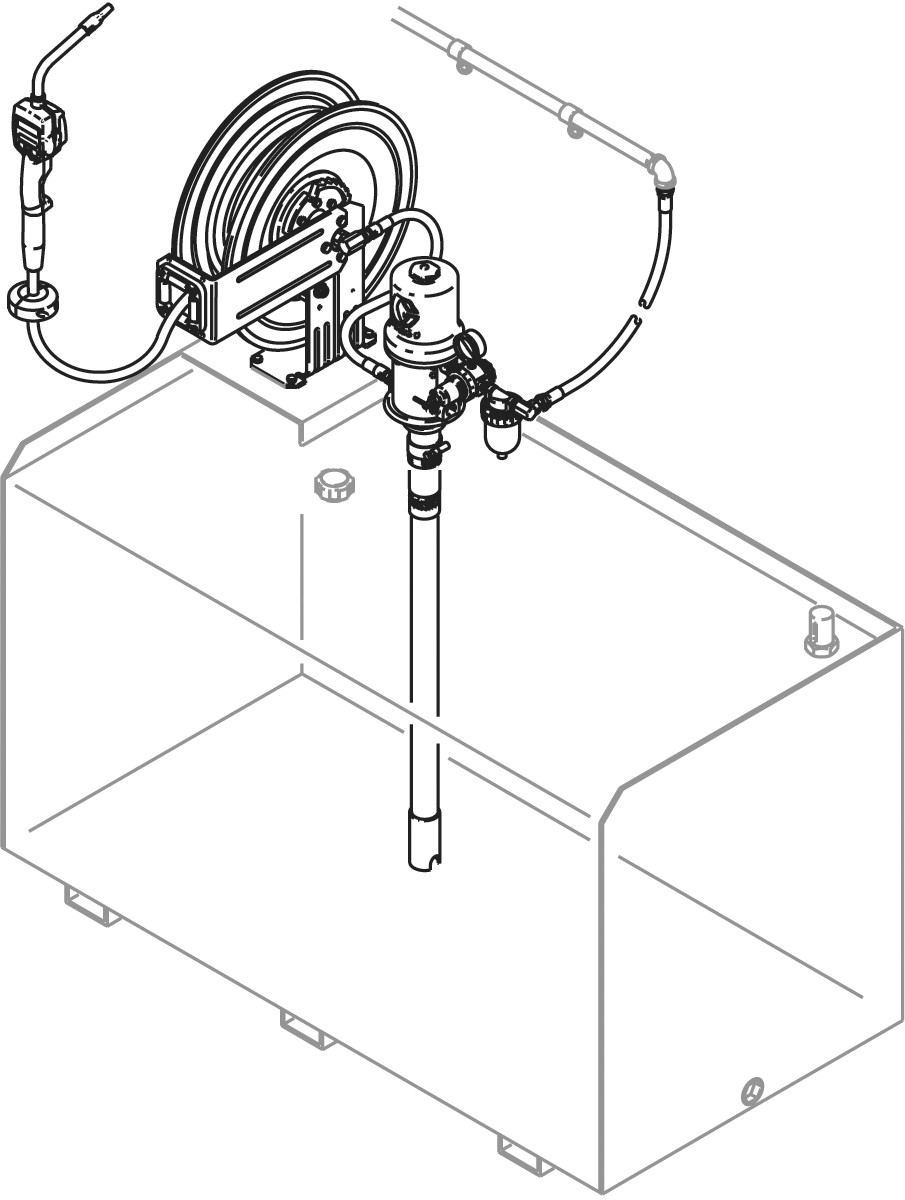

Image is for illustrative purposes only.
Image is for illustrative purposes only.
Fire-Ball 300
Fire-Ball® 300 5:1 Bulk Oil Bench/Top Tank Dispensing Package
Part Number: 224534
As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps bu...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.
- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 0.375 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Oil |
| Construction | Steel, Polyurethane, Aluminum, Buna-N |
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Fire-Ball 300 5:1 Pump, Regulator/Gauge, Air Filter, Nipple, SD Series Reel with Hose, Drain Valve, Hose Kit, Thermal Relief Valve, SDM5 Meter |
| Maximum Air Working Pressure | 180 |
| Maximum Flow Rate (gpm @ 80 cpm) | 2.8 |
| Maximum Fluid Working Pressure (psi) | 900 |
| Maximum Working Pressure (MPa) | 6.2 |
| Maximum Working Pressure (psi) | 900 |
| Model | Fire-Ball |
| Motor Type | Pneumatic |
| Mount Location | Bench Mount, Universal |
| Power Type | Pneumatic |
| Pump Ratio | 5:1 |
| Pump Weight (lb) | 17 |
| Series | 300 |
| Type | Piston Pump Package |
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Oil |
| Construction | Steel, Polyurethane, Aluminum, Buna-N |
| Fluid Inlet Size (cm) | 3.8100 |
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1000 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Fire-Ball 300 5:1 Pump, Regulator/Gauge, Air Filter, Nipple, SD Series Reel with Hose, Drain Valve, Hose Kit, Thermal Relief Valve, SDM5 Meter |
| Maximum Air Working Pressure | 180 |
| Maximum Fluid Working Pressure (psi) | 900 |
| Maximum Working Pressure (MPa) | 6.2 |
| Maximum Working Pressure (bar) | 62 |
| Maximum Working Pressure (kPa) | 6200 |
| Maximum Working Pressure (psi) | 900 |
| Model | Fire-Ball |
| Motor Type | Pneumatic |
| Mount Location | Bench Mount, Universal |
| Power Type | Pneumatic |
| Pump Ratio | 5:1 |
| Series | 300 |
| Type | Piston Pump Package |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 203876 | Fire-Ball® 300 Series 5:1 Universal Size Oil Pump | ea | |
| 156849 | Hose Fitting, 3/8 in x 3/8 in | ea | |
| SDM6HB | SDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Tank/Bench Mount, Metallic Blue | ea | |
| 25M404 | SDM8 Series Electronic Manual Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet | ea | |
| 106148 | Air Filter - 3/8 in NPT with 20 Micron Filter | ea |
